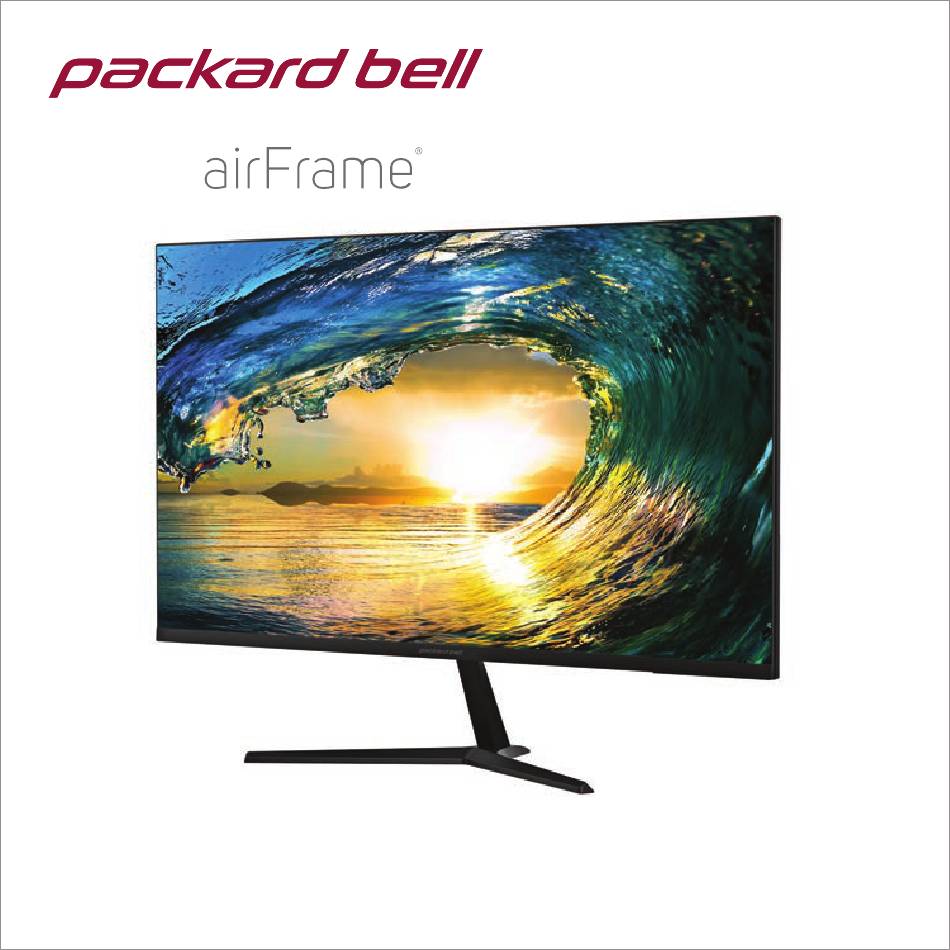

- Page 1 27” ULTRA-SLIM BEZEL FULL HD MONITOR M27200 Quick start guide...
- Page 2 In the box Stand arm Phillips screwdriver 27” monitor Stand base 27” ULTRA-SLIM BEZEL FULL HD MONITOR M27200 Quick start guide Quick start guide HDMI cable Power cable...
- Page 3 Buttons, ports & hardware Monitor (back view) Stand HDMI Power connector 3.5mm audio (out) Main menu / Select Screen mode / Scroll down Input menu (HDMI / VGA) / Scroll up Exit / Previous Power...
-
Page 4: Assembling The Monitor
Assembling the monitor 1. Remove the screw from the stand arm using the included phillips screwdriver. Stand arm Screw Phillips screwdriver Stand arm 2. Connect the stand arm to the stand base, then reattach and tighten the screw. Stand base Screw... - Page 5 2. Snap the assembled stand into the monitor's stand connector and make sure it is securely connected and locked into the monitor. Stand connector Assembled stand...
-
Page 6: Using The Monitor
Using the monitor Monitor (back view) Wall outlet Power cable... - Page 7 Monitor (back view) HDMI port VGA port You can also connect the monitor to the PC with a VGA cable using this port. HDMI cable...
-
Page 8: Vesa Mount
VESA mount Monitor (back view) VESA mounting holes Example NOTE: VESA mount not included. The illustra- tions are just for reference. -
Page 9: Fcc Information
FCC information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 10: Limited Warranty
Limited warranty 1-Year Limited Warranty Territory: United States LIMITED WARRANTY TO ORIGINAL CONSUMER This product as supplied and distributed new by an authorized retailer is warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows: To obtain warranty service: •...
