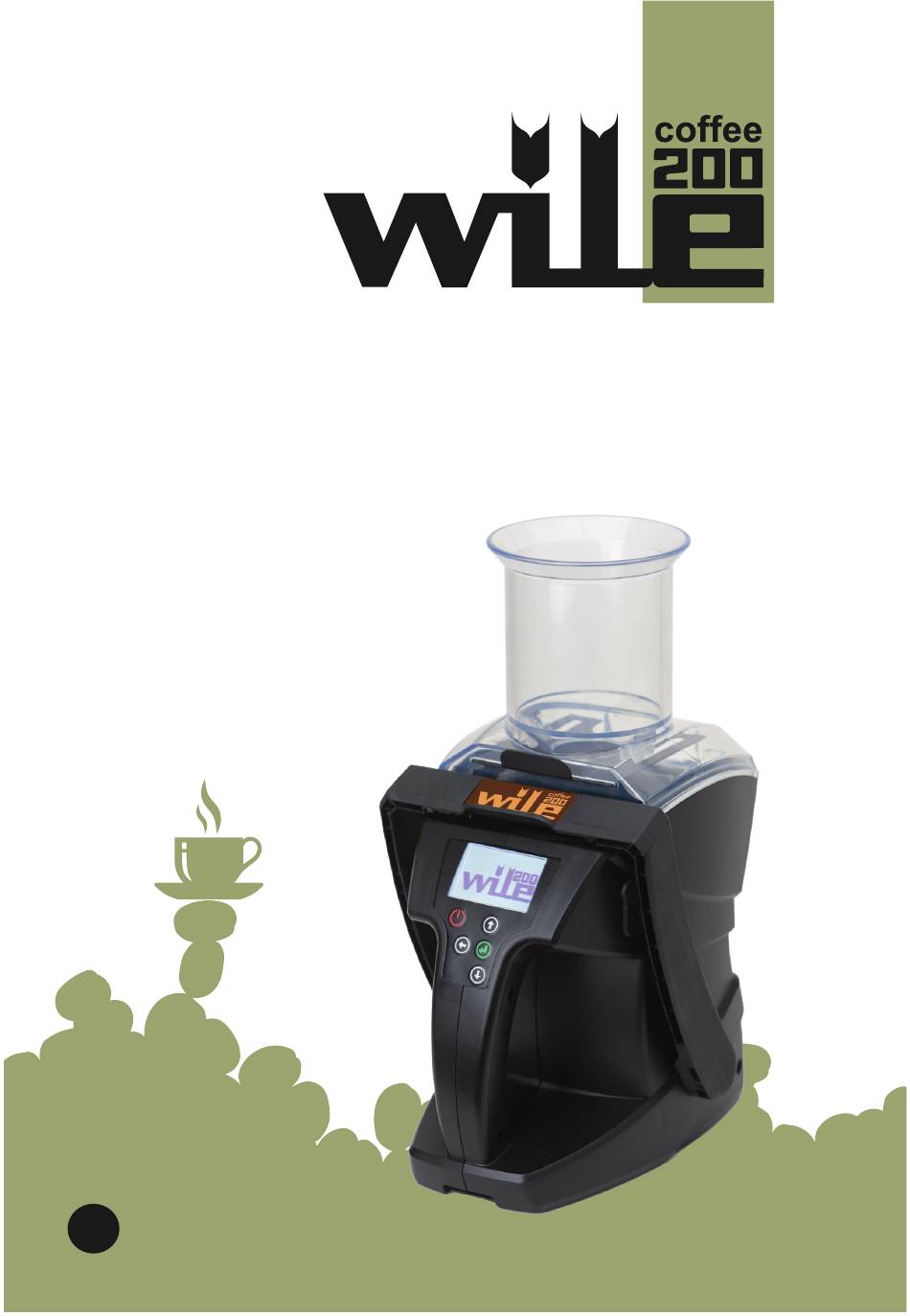

- Page 1 COFFEE AND COCOA MOISTURE METER WITH TEST WEIGHT USER INSTRUCTIONS...
- Page 3 5. User instructions Preparing for measurement Important! The scale settings of Wile meters are adjusted to match the common standard bean types as closely as possible. However, properties of beans are likely to vary due to, for instance, varying growing conditions or new species. Therefore, we advise you to always make sure before harvesting that the readings of your meter match the readings obtained in oven- testing with the bean type you handle.
- Page 4 Functional symbols SYMBOL DEFINITION The battery is low and needs to be replaced. < 4.0 % The beans are too dry for accurate measurement (4 % is the lower limit for the selected beans). > 28.0 % The beans are too moist for accurate measurement. An estimate of the beans moisture level when the value is outside the ~ 34 % precise measurement range.
- Page 5 Measurement GRAIN SELECTION SETTINGS 1. Green Coffee 2. Parchment Coffee Make sure that Place the meter on Start the meter by Fill the drop the retractable a stable and sturdy pressing the start barrel with beans. plate of the drop horizontal surface.
-
Page 6: Functions And Settings
Functions and settings The meter settings can be viewed and changed from the ”SETTINGS” menu. Use the arrow keys to scroll to the desired setting and change it with the ENTER key. Adjusting the measurement result The result given by the meter can be adjusted on the basis of known information from a sample. - Page 7 Auto off (Auto shutdown) If the meter is not in use, it shuts down automatically after the set period of time (30 sec, 1 min, 5 min, 10 min, 20 min). The meter can also be turned off by pressing and holding the red button. Auto off 30 s.
- Page 8 Battery The battery status can be checked. If the battery charge level is below 22 %, the meter will warn you of it at start-up. The reliability of the measurement result shown on the display does not depend on the battery charge level. Testing of the weighting scales The functioning of the weighting scales of the meter can be checked in the weighting scales test mode.
-
Page 9: Battery Replacement
Maintenance of the meter • To clean the meter, wipe it with a dry or damp cloth. • Do not use strong detergents, and make sure that moisture does not get inside the meter. • Store the meter in its carrying case in a dry place, preferably at room temperature. Temperature sensor Cleaning the measuring cup... - Page 10 IMAGE CAUSE SOLUTION The meter needs to be delivered to an Critical error. authorised service centre. Start the measurement from the beginning. The same weighing result with If it happens again, check the weighting and without beans. scales. Was the measuring cup empty during the The tare result of the scales is taring process? Perform a weight test and too high.
-
Page 11: Warranty
According to ISO/IEC 17050-1 Farmcomp Oy (Jusslansuora 8, 04360 TUUSULA, FINLAND) under its sole responsibility hereby declares, that its products Wile 200 Coffee conforms to the EMC directive 2014/30/EU by following the harmonised standard EN IEC 61326-1:2021 and to the RoHS directive 2011/65/ EU as amended by directive (EU) 2015/863 by following the harmonised standard EN IEC 63000:2018. - Page 12 Jusslansuora 8, FI-04360 TUUSULA, FINLAND info@farmcomp.fi www.wile.fi 99209113...
