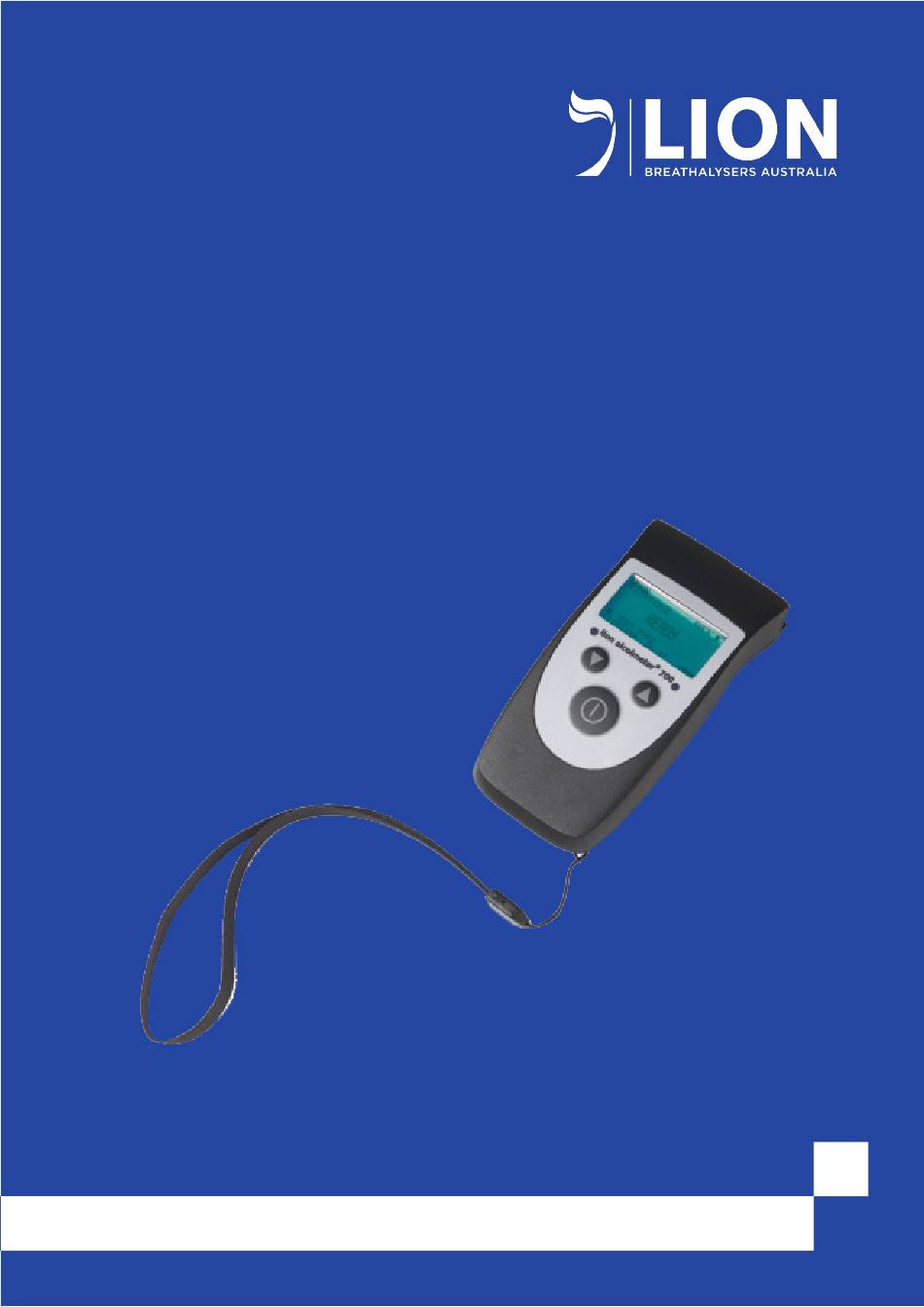

- Page 1 700 User Handbook © Copyright 2016, Lion Breathalysers Australia page lion alcolmeter® 700 User Handbook...
-
Page 2: Table Of Contents
CONTENTS Introduction Principle of Operation Instrument Features Running a Breath Test Warning & Errors Messages in Operation Mode Some DO’s and DON’T’s page 1 lion alcolmeter® 700 User Handbook... -
Page 3: Introduction
INTRODUCTION The lion alcolmeter® 700 is the latest in Lion’s range of breath alcohol measuring instruments for breath alcohol testing applications in traffic law enforcement, commercial health and safety programs, and in medicine. This instrument incorporates a memory to record the data from each subject’s breath test, with the relevant date and time. -
Page 4: Principle Of Operation
PRINCIPLE OF OPERATION The lion alcolmeter® 700 uses an electrochemical fuel cell sensor to measure the concentration of alcohol vapour in the subject’s breath; a measured amount of which is drawn from the mouthpiece into the fuel cell. In the fuel cell a voltage is generated in proportion to the breath alcohol concentration: it is therefore amplified and displayed in terms of the subject’s alcohol level. -
Page 5: Instrument Features
5. RED INDICATOR AND 6. GREEN INDICATOR The two LED indicators GREEN and RED are used to indicate the level of the subject’s alcohol reading and to provide a visual indication of analysis occurring. page 4 lion alcolmeter® 700 User Handbook... - Page 6 [depending on operating conditions]. The small icon at the bottom right shows the power unit’s charge level. Use Only Alkaline AA Batteries page 5 lion alcolmeter® 700 User Handbook...
-
Page 7: Running A Breath Test
ATTACH A NEW MOUTHPIECE Unwrap a mouthpiece (don’t touch the lipped end that the subject will put in their mouth), and attach it to the sampling port: either way round. page 6 lion alcolmeter® 700 User Handbook... -
Page 8: Instruct The Subject
The time taken for this to occur will depend on how much alcohol was present. page 7 lion alcolmeter® 700 User Handbook... - Page 9 If the 700 is left switched on but no action is taken for five minutes it will automatically switch itself off, to conserve battery life. This is preceded by a series of ten warning beeps. page 8 lion alcolmeter® 700 User Handbook...
-
Page 10: Warning & Errors Messages In Operation Mode
ERROR CODE 05 Instrument Too Hot Instrument Too Cold Change/Charge Battery E 5 is the only error that will be seen for an operator, this will require service by Lion Breathalysers Australia. page 9 lion alcolmeter® 700 User Handbook... -
Page 11: Some Do's And Don't's
Lion mouthpieces and/or sampling cups, or as produced by a Lion approved supplier. use a clean Lion mouthpiece for each subject test. - Page 12 info@lionaus.com.au P. 1300 728 287 | P. +61 2 4753 1046 Postal: PO Box 565, Hazelbrook NSW 2779 Delivery: 15 Dawes Avenue, Linden NSW 2778 lionbreathalysersaustralia.com.au...
