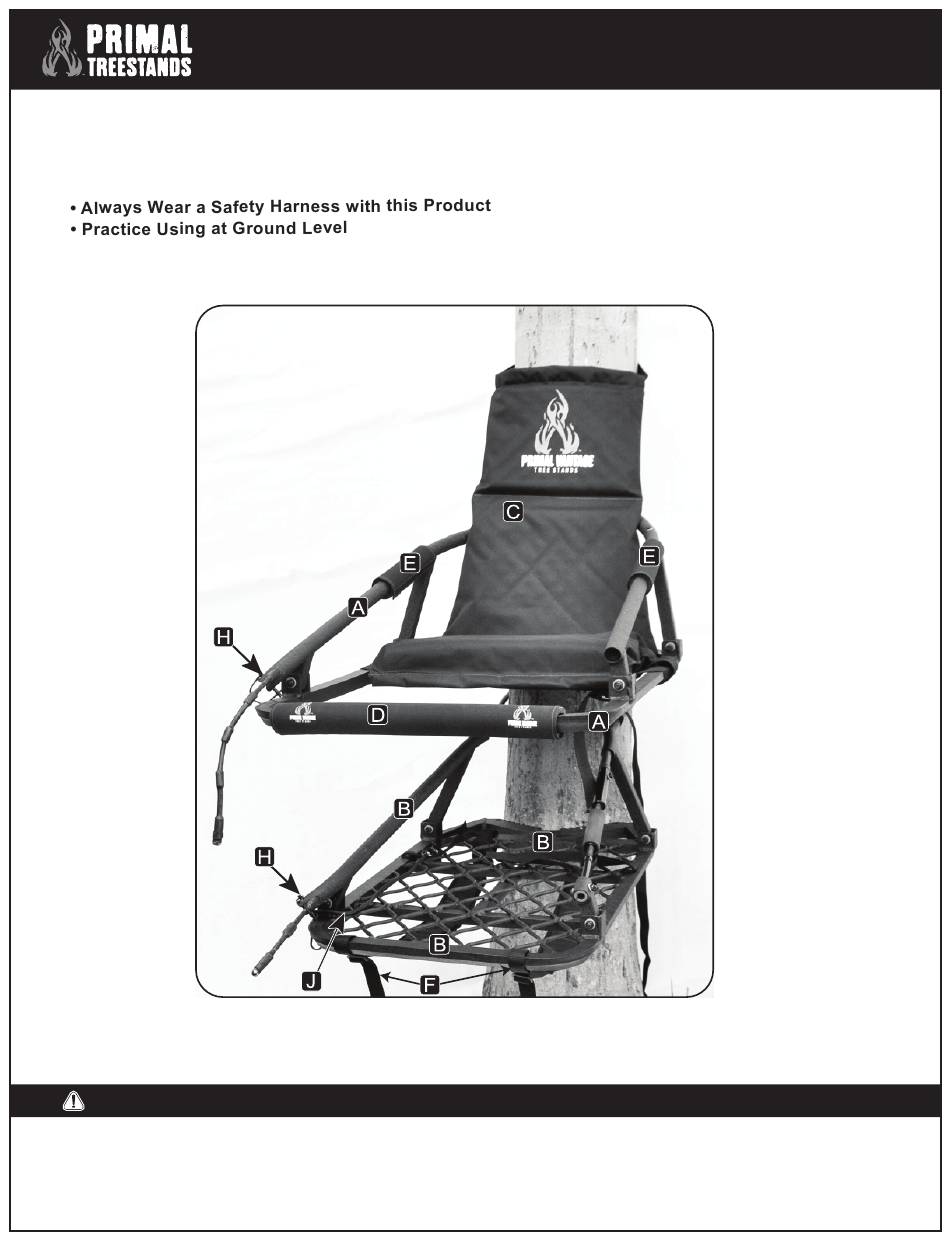

Bullet Drive Aluminum Climbing Stand
MODEL: PVCS-420
• Weight Limit: 300 lbs.
• Tree Size: 9"-18" diameter
W A R N I N G
Every year serious injury or death can occur from hunting related accidents. To ensure your safety, please completely read and follow this safety manual
and all warning labels before assembling, installing or utilizing this product.
Do not use this product before fully understanding all safety warnings and instructions. If you have questions, are unsure about any information or need additional
information concerning your product, contact our customer service department at 1-866-972-6168 or visit www.Primaltreestands.Com. Keep and
maintain this safety and instruction manual in a safe location for future reference.
Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120
Instruction and Safety Manual
SAFETY MUST BE YOUR FIRST PRIORITY WITH THIS PRODUCT
2019
©2019 (rev. 1/19)
Advertisement
Related Manuals for PRIMAL TREESTANDS Bullet Drive
Summary of Contents for PRIMAL TREESTANDS Bullet Drive
- Page 1 Instruction and Safety Manual Bullet Drive Aluminum Climbing Stand MODEL: PVCS-420 • Weight Limit: 300 lbs. • Tree Size: 9”-18” diameter W A R N I N G SAFETY MUST BE YOUR FIRST PRIORITY WITH THIS PRODUCT Every year serious injury or death can occur from hunting related accidents. To ensure your safety, please completely read and follow this safety manual and all warning labels before assembling, installing or utilizing this product.
- Page 2 Treestand Safety Warnings Please read the following instruction manual and warnings labels completely before utilizing this product. Failure to understand and execute the instructions and warnings may result in serious injury or death. In the event of an accident, have a plan for rescue, including the use of devices that may be easily reached while suspended.
- Page 3 Treestand Safety Warnings NEVER adjust your stand while in use. Practice the attachment of this treestand at ground level before using in a hunting environment. ALWAYS ensure that you and your treestand are safely secured to a healthy tree. Your tree stand MUST be attached tightly to the tree and secured in place. If the stand is not secure, it may shift while in use, resulting in serious injury or death.
-
Page 4: Proper Care And Maintenance
Choosing A Safe Tree • ALWAYS thoroughly inspect the tree before installing your product. DO NOT install your TREE/LADDER STAND onto any dead or unsafe tree, telephone utility pole, structural column, or man-made structure. Doing so may result in serious injury or death. •... -
Page 5: Parts List
Bullet Drive Aluminum Climbing Stand MODEL: PVCS-420 • Weight Limit: 300 lbs. • Tree Size: 9”-18” diameter PARTS LIST Seat Platform Assembly (1) Foot Platform Assembly (1) 1 Seat Platform Part # PSP-420 1 Foot Platform Part # PFP-420 1 Seat Pad... - Page 6 Model: PVCS-420 Assembly Instructions Page 1 Bullet Drive Aluminum Climbing Stand Unfold arms on Foot Platform Assembly BOTTOM Slide Lock Slide Lock 2a: Attach Backpack Straps to BOTTOM of Foot Platform Assembly 2b: Weave top loops of each Backpack Strap through rear tree brace section of Foot Platform Assembly 2c: Pull entire strap through the loop and pull to tighten.
- Page 7 (as shown Above). the cable around back of tree and through rail tube NEVER remove this quick clip while this “Bullet Drive System” (as shown above). Climber is in use. If these Quick Clips missing or not correctly installed, DO NOT To tighten, pull on cable allowing “notched”...
- Page 8 Install by sliding Quickclip pin through rail tube“Bullet Drive System” (as shown above). through BOTH attachment holes at the end of rail tube. Once though, flex and fasten metal To tighten, pull on cable allowing “notched”...
- Page 9 Model: PVCS-420 Assembly Instructions Page 4 Bullet Drive Aluminum Climbing Stand At ground level, step cautiously onto the Foot Platform Assem- . Attach your harness to the tree (as per harness manufacturer’s instructions). While standing on the foot platform facing the tree, insert your feet under the foot straps.
- Page 10 Model: PVCS-420 Climbing Instructions Bullet Drive Aluminum Climbing Stand Before beginning to climb -Check that your harness is secure, check that cables are properly quick clipped, and make sure that the seat straps on your seat section are off to the side, they should not obstruct the cable connecting to the tree in anyway while climbing.
- Page 11 W A R N I N G Failure to follow all warnings listed below could result in serious injury or death. ALWAYS read and understand all warnings and instructions ALWAYS make platform level adjustments at ground level. DO NOT use this tree stand while under the influence of before each use of this product.
