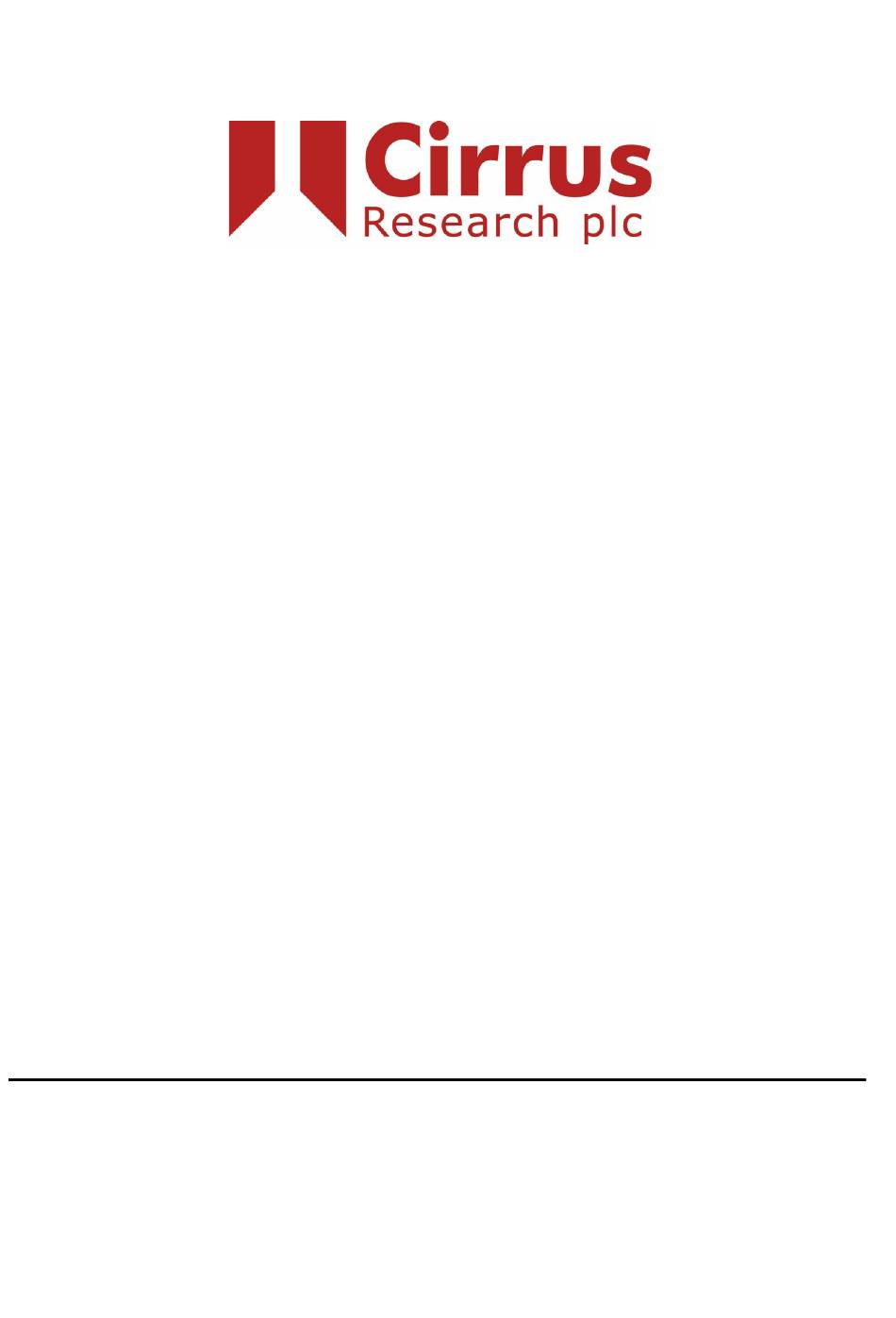

- Page 1 Technical Note 67 Printing with GPS - Optimus...
-
Page 2: Copyright
You must not modify text, images, or illustrations in any way. The material must be acknowledged as Cirrus Research plc copyright, and you must give the title of the source document/publication. Where any third-party copyright material is identified, you will need to obtain permission from the copyright holders concerned. -
Page 3: Table Of Contents
Page 3 Technical Note 67 – Vehicle Noise Printing - Optimus Contents Copyright ................................. 2 Contents ................................3 Introduction ............................4 Equipment Required..........................4 Preparation ............................. 5 Operation ..............................6 Print Options ............................6... -
Page 4: Introduction
Page 4 Technical Note 67 – Printing with GPS - Optimus Introduction This tech note describes the equipment and steps required to perform Optimus+ printing with the GPS Module fitted. This will include the GPS coordinates on any report printed. Equipment Required To print with the GPS module fitted, the following equipment is required: Optimus plus –... -
Page 5: Preparation
Page 5 Technical Note 67 – Vehicle Noise Printing - Optimus Preparation Plug the GPS Module into the Optimus. To configure the Optimus for a printer, plug the Optimus into NoiseTools, select ‘Configure’, then select the ‘Advanced’ tab and select the Printer (Generic 32ch or AP1300) option for Port A and GPS (Module) for Port B. -
Page 6: Operation
Page 6 Technical Note 67 – Printing with GPS - Optimus Operation Press the power on printer button, the printer will now stay powered until disconnected from the Optimus. On the Optimus Information page, step down twice to view Peripherals. This page will show the printer option selected and the current GPS location. - Page 7 200 56.1 12.5k 43.0 250 55.7 16k 42.0 315 54.9 20k 42.6 1:3 Octave Functions: LAeq, LF, 20Hz - 200Hz: 62.3 dB Cirrus Research Plc. Print Option - Generic_32 Noise Report Sound Level Meter: Type CR:171C Serial No. G304873 Accuracy:...
- Page 8 73.2 dB LCeq 78.0 dB LCFMax 85.8 dB LCFMin 60.6 dB LCSMax 82.6 dB LCSMin 65.0 dB 91.4 dB LZeq 86.1 dB LZFMax 93.0 dB LZFMin 70.7 dB LZSMax 89.7 dB LZSMin 71.9 dB 99.6 dB Notes: Cirrus Research Plc.
