INSTALLATION GUIDE
714/715
Zone Expansion Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 714 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP 714

Summary of Contents for DMP 714

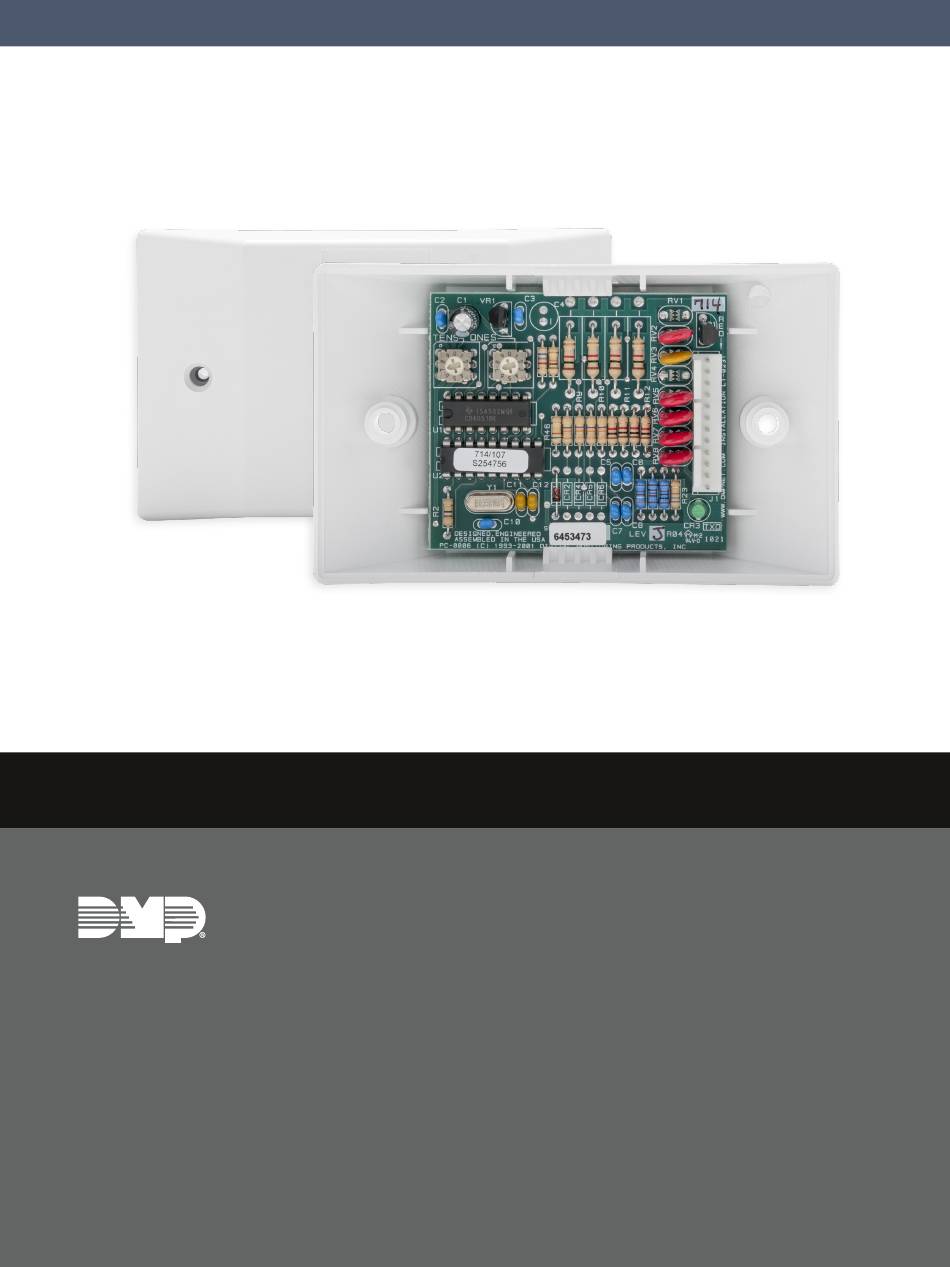

  • Page 1 INSTALLATION GUIDE 714/715 Zone Expansion Module...

  • Page 2: Get Started

    Program the Panel Program the zones on 714 or 715 zone expander modules with any of the panel’s burglary or fire zone types. You can also program zones as an Arming zone type when they are being used with key switches. For more information, refer to the appropriate panel programming guide.

  • Page 3: Wire The Module

    Wire the Module Connect the 714 to the LX-Bus To wire the 714, join the red, yellow, green, and black wires to a 4‑wire harness and SPECIFICATIONS 714 MODULE 715 MODULE connect it to the LX‑Bus. Normal Operating Range 650‑2100 Ohms 1200‑6000 Ohms...
  • Page 4 Set the Module Address 714 and 715 Zone Expansion Modules use two rotary switches (TENS and ONES) to set the module address. For keypad bus addresses, set the switches to match the device address. For LX‑Bus addresses, set the switches to match the last two digits of the addresses.

  • Page 5: Additional Information

    You can replace the standard wiring harness with the optional 718T Plug‑in Screw Terminal. The enclosure base can also accommodate the 719T Terminal Boards for the 714 or the 720T Terminal Boards for the 715, both of which pass through panel LX‑Bus wiring. The 719T includes 1k EOL resistors. The 720T includes 3.3k EOL resistors.

  • Page 6: Compliance Information

    Place the zone expander module in a listed enclosure and connect a DMP Model 307 Clip‑on Tamper Switch to the enclosure programmed as a 24‑hour zone. The 714/715 zones can be installed in medium or high risk applications when two zones are used as shown in the Dual Zone Protection diagram in the XR150/XR550 Canadian Installation Guide.

  • Page 7: Specifications

    SPECIFICATIONS Operating Voltage 12 VDC 714 Operating Current 7 mA + 1.6 mA per zone 714 Zone Voltage 5 VDC, max 2 mA 715 Operating Current 7 mA + 4 mA per active zone + 30 mA per smoke in alarm + 58 mA per zone shorted 715 Zone Voltage 12 VDC, max 34 mA per test results...

This manual is also suitable for:

715
