JVC RX-5000VBK Service Manual

Hide thumbs Also See for RX-5000VBK:

Instructions manual (55 pages)

Service manual (16 pages)

Instructions manual (30 pages)

Table Of Contents

Quick Links

Download this manual

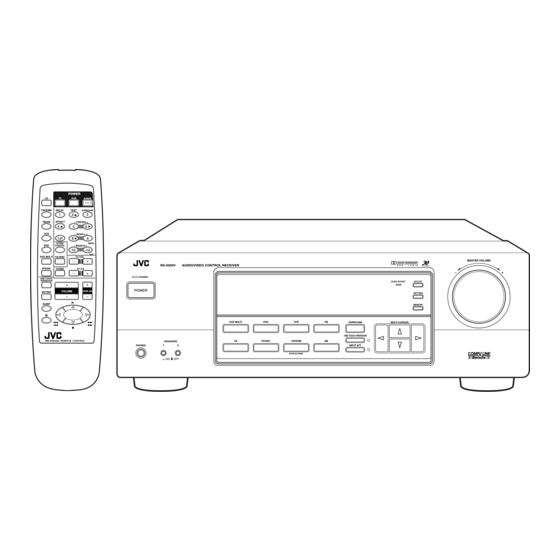

SERVICE MANUAL

AUDIO/VIDEO CONTROL RECEIVER

POWER

VCR

AUDIO

TAPE/MD

DELAY

TEST

SURROUND

FM/AM

EFFECT

– CENTER +

VCR

– REAR•L +

7/P

SOUND

DVD

CONTROL

– REAR•R +

+10

ENT

DVD MULTI

CD-DISC

TV VOL.

–

PHONO

TV/VIDEO

TV CH

–

STANDBY

ONE TOUCH

OPERATION

POWER

MUTING

VOLUME

VCR CH

–

SLEEP

RM-SR558U REMOTE CONTROL

PHONES

Contents

Safety precautions ---------------- 1-2

Disassembly method ------------- 1-3

Adjustment method --------------- 1-5

RX-5000VBK

RX-5001VGD

RX-5000V

AUDIO/VIDEO CONTROL RECEIVER

DVD MULTI

DVD

VCR

SURROUND

ONE TOUCH OPERATION

PHONO

TAPE/MD

SPEAKERS

SOURCE NAME

_ ON

OFF

2000 VICTOR COMPANY OF JAPAN, LTD.

MASTER VOLUME

–

BASS BOOST

ADJUST

SETTING

MEMORY

MULTI CURSOR

INPUT ATT.

Description of major ICs --------- 1-6

Internal connections for

FL display tube ----- 1-15

RX-5000VBK

RX-5001VGD

Area Suffix

China

Singapore

No.20883

Nov. 2000

Table of Contents

Need help?

Do you have a question about the RX-5000VBK and is the answer not in the manual?

Questions and answers

Summary of Contents for JVC RX-5000VBK

Page 1 RX-5000VBK RX-5001VGD SERVICE MANUAL AUDIO/VIDEO CONTROL RECEIVER RX-5000VBK RX-5001VGD Area Suffix China Singapore POWER AUDIO TAPE/MD DELAY TEST SURROUND FM/AM EFFECT – CENTER + – REAR•L + SOUND MENU CONTROL – REAR•R + DVD MULTI CD-DISC TV VOL. – MASTER VOLUME...
Page 2 RX-5000VBK/RX-5001VGD Safety Precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer.
Page 3 RX-5000VBK/RX-5001VGD Disassembly method Removing the top cover (See Fig.1) 1. Remove 4 screws "A" on both sides of the top cover and 3 screws "B" on the rear side. 2. Lift the back of the top cover spreading both sides Fig.1...
Page 4 RX-5000VBK/RX-5001VGD Removing the audio & source selector board (See Fig.6) 1. Remove the rear panel. 2. Remove the video board and Tuner board. 3. Disconnect the connector CN512 and CN619 on the audio & source selector board. 4. Disconnect to the card wire CN314 on the audio &...
Page 5 RX-5000VBK/RX-5001VGD Adjustment method TUNER SECTION 1.Tuner range 87.5MHz~108.0MHz AM(MW) 530kHz~1710kHz POWER AMPLIFIER SECTION VR742 TP001 4 3 2 1 TP001 VR741 IDLING CURRENT 1.Set the volume control to minimum during this adjustment. 2.Set the surround mode OFF. 2.Turn VR741 and VR742 fully counterclockwise to warm up before adjustment.
Page 6 RX-5000VBK/RX-5001VGD Description of major ICs M62446FP(IC341) : 6CH Master volume 1.Block Diagram OUT4 DVDD OUT- OUT3 OUT2 PORT DATA volume OUT1 LATCH AVDD DGND volume SWIN AGND GNDS SWout SRin SRout volume SLin SLout GNDC Cout volume Rout GNDR Lout...
Page 7 RX-5000VBK/RX-5001VGD 2.Pin Function Pin No. Symbol Descriptions SURROUND SURROUND control terminal BASS BOOST control terminal BASS BOOST INPUT-ATT Input attenuator control terminal MUTING control terminal MUTING AVDD Analog positive power supply terminal SUB Woofer volume signal input terminal SWIN A.GND...
Page 8 RX-5000VBK/RX-5001VGD LA1838(IC102): FM AM IF AMP&detector, FM MPX Decoder 1. Block Diagram DECODER RF.AMP ANIT-BIRDIE MUTE BUFF STEREO P-DET AM IF PILOT 384KHz COMP S-METER AM/FM S-CLRVE S-METER IF-BUFF TUNING STEREO DRIVE DRIVE FM IF 2. Pin Function Symbol Function...
Page 9 RX-5000VBK/RX-5001VGD LC72136N (IC121) : PLL Frequency Synthesizer 1. Pin layout FM/AM LPFOUT LPFIN CLOCK FM/ST/VCO FMIN AM/FM AMIN IFCONT SDIN IFIN 2. Block diagram Phase Reference Detector Driver Charge Pump Swallow Counter Swallow Counter 1/16,1/17 4bit 1/16,1/17 4bit Unlock Detector...
Page 10 RX-5000VBK/RX-5001VGD MN173222BA(IC401) : System controller 1.Key Matrix KEY OUT 2 KEY OUT 3 KEY OUT 4 KEY OUT 0 KEY OUT1 KEY IN 0 DVD MULTI POWER SURROUND KEY IN 1 ADJUST ONE TOUCH PHONE OPERATION KEY IN 2 SETTING...
Page 11 RX-5000VBK/RX-5001VGD 2.Pin Function (2/2) Pin No. Symbol Function TV OUT Connect to GND VCR OUT Connect to GND VCR IN RESET IN Reset signal input Connect to GND Non connect Connect to GND OSC2 Oscillation terminal OSC1 Oscillation terminal Power supply...
Page 12 RX-5000VBK/RX-5001VGD TC9471F(IC601) : Dolby prologic 1.Block Diagram DLRO DLRI 1-12...
Page 13 RX-5000VBK/RX-5001VGD 2.Pin Function (1/2) Symbol Pin No. Function Non connect ECKO Amplifier input terminal for external clock input. ECKI Ground terminal.(For crystal oscillator circuit) A.GND Ground terminal.(For DAC L channel) A.GND DAC analog signal output terminal.(L channel) LchOUT Reference voltage terminal.(For DAC L channel) V-REF1 Power supply terminal.(For DAC L channel)
Page 14 RX-5000VBK/RX-5001VGD 2.Pin Function (2/2) Symbol Pin No. Function Power supply terminal D.5V 59~71 Non connect. Chip select signal input terminal.(MCU interface) DSP-CS Data sift clock input terminal.(MCU interface) DSP-CLK Data input terminal.(MCU interface) DATA-IN At the IC bus mode,data input /output terminal.
Page 15 RX-5000VBK/RX-5001VGD Internal connections for FL display tube QLF0002-001(DI401):FL DISPLAY TUBE 1-15...
Page 16 RX-5000VBK/RX-5001VGD Block diagrams Amplifier/Control section...
Page 17 RX-5000VBK/RX-5001VGD Tuner Section TUNER OUT L/R IF OUT FM FRONTEND FM IF/DET/MPX RF101 AM RF/IF/DET IC102 CN121 AM RF AM OSC FM OSC AM/FM AM OSC DATA CLOCK MW RF/MWOSC COIL PLL Synthesizer T111 IC121 Power Supply Section Only U type...
Page 18 RX-5000VBK/RX-5001VGD Standard schematic diagrams Power supply section F801 T3.15A F802 T100mA C804 0.0047 T801 RY801 QQT0281-004 Q803 KRC105M C801 0.0047/100 D808 1ss133 D801 D802 D804 R801 Q805 Q802 2SD1266 2SC2235 D803 C802 470/63 R806 1SR35 R807 3.3K D805 C803 470/10...
Page 19 RX-5000VBK/RX-5001VGD Audio AMP / Power primary section C571 EP110 R593 C556 D585 R571 Q575 R808 Q561 C816 C817 0.0015 R561 2SD2390LD( O,P,Y) 1SS133 C865 0.022 0.022 2SA1038S( SE) R585 0.1/160 D860 R576 R562 Q591 R553 2SA1038S( SE) 1SS133 C562 R569...
Page 20 RX-5000VBK/RX-5001VGD Audio IN / OUT & Source selector section CN122 CN414 CN121 CN612 CN611 CN314 C395 1000P R306 C310 R310 R308 100P 470K R395 C308 C306 0.0068MY 0.0018MY R1061 C1057 100/10 IC312 NJM4580L C312 R391 4.7/50 FL141 Q371 KRA104M C390 0.022/25...
Page 21 RX-5000VBK/RX-5001VGD Video signal input / output section C201 C202 R201 R202 330P 330P R203 R204 C203 C204 330P 330P CN603 R205 R206 CN301 C205 C206 CN311 330P 330P R271 C216 1000/16 CN604 J214 R215 C213 C215 0.022/25 4.7/50 R227 R244 1.5K...
Page 22 RX-5000VBK/RX-5001VGD System control & operation switch section C414 C411 C412 4.7/50 4.7/50 4.7/50 Q414 gg11 KRC107M Q413 gg10 KRC107M Q412 KRC107M DI401 Q411 KRC107M S402 S403 S404 S417 S418 S419 Q410 KRC107M D431 1SS133 CN412 D433 CN402 G8/KO0 1SS133 JS401...
Page 23 RX-5000VBK/RX-5001VGD DSP Control section R612 C631 0.01/16 R613 R614 C630 C603 0.0022/16 IC601 R601 TC9471F LchIN C613 47/10 C601 C621 C622 V_REF5 47/10 0.01/16 4.7/50 C614 47/10 V_REF6 R602 C602 4.7/50 RchIN A.GND C604 0.0022/16 C628 1000/6.3 C634 C635 0.01/16 0.001...
Page 24 RX-5000VBK/RX-5001VGD Tuner section FM / Tuner signal Parts are safety assurance parts. When replacing those parts make AM / Tuner signal sure to use the specified one. SHEET END...
Page 25 RX-5000VBK/RX-5001VGD Printed circuit boards System control & DSP board 2-10...
Page 26 RX-5000VBK/RX-5001VGD Power supply & Main board 2-11...
Page 27 RX-5000VBK/RX-5001VGD AV Input/output bard 2-12...
Page 28 RX-5000VBK/RX-5001VGD Tuner board 2-13...
Page 29 RX-5000VBK/RX-5001VGD -MEMO- 2-14...
Page 30: Table Of Contents
RX-5000VBK/RX-5001VGD PARTS LIST [ RX-5000VBK ] [ RX-5001VGD ] * All printed circuit boards and its assemblies are not available as service parts. RX-5000VBK RX-5000VGD Area suffix Area suffix UF --------------------------- China UF --------------------------- China US --------------------- Singapore - Contents -...
Page 31 RX-5000VBK/RX-5001VGD -MEMO-...
Page 32 RX-5000VBK/RX-5001VGD Exploded view of general assembly and parts list Block No. Tunner board Video board D.S.P. board Audio board System Control board Main board Accessories...
Page 33 RX-5000VBK/RX-5001VGD Parts list (General assembly) Parts list (General assembly) Block No. M1MM Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area LV10128-022A FRONT PANEL RX-5001VGD QYSDSG3008M SCREW H.BKT(F)-C.BASE LV10128-020A FRONT PANEL...
Page 34: Rx-5000Vbk
RX-5000VBK/RX-5001VGD Parts list (General assembly) Block No. M1MM Item Parts number Parts name Q'ty Description Area E409372-001 CCEE LABEL E409396-001 CAUTION LABEL LV30092-091A UF LABEL RX-5001VGD LV30092-090A UF LABEL RX-5000VBK LV30225-024A FELT SPACER RX-5001VGD QYSBSGY3008M SPECIAL SCREW VOL.SEL QMF51E2-3R15-J1 FUSE...
Page 35: Electrical Parts List
RX-5000VBK/RX-5001VGD Electrical parts list Electrical parts list (System control & DSP board) Block No. 01 Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area C 401 QEKC1AM-227Z E CAPACITOR 220MF 20% 10V C 712 QETN1CM-107Z...
Page 36 RX-5000VBK/RX-5001VGD Electrical parts list (System control & DSP board) Block No. 01 Item Remarks Parts number Parts name Area Item Parts number Parts name Remarks Area IC601 TC9471F R 454 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W JS401 QSW0502-001 SWITCH R 455...
Page 37 RX-5000VBK/RX-5001VGD Electrical parts list (System control & DSP board) Block No. 01 Item Parts number Parts name Remarks Area S 404 QSW0683-001Z PUSH SWITCH INPUT ATT S 405 QSW0683-001Z PUSH SWITCH S 406 QSW0683-001Z PUSH SWITCH DVD MULTI S 407...
Page 38 RX-5000VBK/RX-5001VGD Electrical parts list (Power supply & Main board) Block No. 02 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 501 QETN1HM-106Z E CAPACITOR 10MF 20% 50V C 897 QETN1EM-107Z E CAPACITOR 100MF 20% 25V...
Page 39 RX-5000VBK/RX-5001VGD Electrical parts list (Power supply & Main board) Block No. 02 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area EP901 E409182-001SM GRAND TERMINAL Q 905 2SC2389S/SE/-T TRANSISTOR EP961 QNZ0136-001Z EARTH PLATE Q 906...
Page 40 RX-5000VBK/RX-5001VGD Electrical parts list (Power supply & Main board) Block No. 02 Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area R 754 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W TA801 QNZ0079-001Z R 771 QRZ0196-R22 EMIT.RESISTOR...
Page 41 RX-5000VBK/RX-5001VGD Electrical parts list (AV input / output board) Block No. 03 Item Parts number Parts name Remarks Area Item Remarks Parts number Parts name Area C 181 QFN31HJ-562Z M CAPACITOR 5600PF 5% 50V C 344 QETN1HM-475Z E CAPACITOR 4.7MF 20% 50V...
Page 42 RX-5000VBK/RX-5001VGD Electrical parts list (AV input / output board) Block No. 03 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area CN613 QGB2510J1-07 CONNECTOR D1531 1SS133-T2 SI DIODE CN614 QGB2510J1-07 CONNECTOR EP201 E409182-001SM GRAND TERMINAL...
Page 43 RX-5000VBK/RX-5001VGD Electrical parts list (AV input / output board) Block No. 03 Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area Q1509 2SA1038S/SE/-T TRANSISTOR R 347 QRE141J-221Y C RESISTOR 220 5% 1/4W Q1511 2SC2389S/SE/-T TRANSISTOR...
Page 44 RX-5000VBK/RX-5001VGD Electrical parts list (AV input / output board) Block No. 03 Item Remarks Parts number Parts name Area Item Parts number Parts name Remarks Area R1031 QRE141J-104Y C RESISTOR 100K 5% 1/4W R1545 QRE141J-181Y C RESISTOR 180 5% 1/4W...
Page 45 RX-5000VBK/RX-5001VGD Electrical parts list (Tuner board) Block No. 04 Item Remarks Item Parts number Parts name Remarks Area Parts number Parts name Area AT101 QNB0014-001 ANT TERMINAL R 122 NRSA02J-472X MG RESISTOR BK 1 LV31618-001A SHIELD BKT R 124 NRSA02J-222X...
Page 46: Parts List
RX-5000VBK/RX-5001VGD Packing materials and accessories parts list Block No. A1~A7 Block No. Parts list (Packing) Block No. M2MM Item Parts number Parts name Q'ty Description Area LV30044-0E4A PACKING CASE RX-5001VGD LV20806-001A PACKING CASE RX-5000VBK LV20806-002A PACKING CASE RX-5001VGD LV20231-001A PACKING PAD(F)
Page 47 RX-5000VBK RX-5001VGD VICTOR COMPANY OF JAPAN, LIMITED AUDIO & COMMUNICATION BUSINESS DIVISION PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1Chome,Ohwatari-machi,maebashi-city,371-8543,Japan Printed in Japan No.20883 200011(V)
Page 48: Rx-5000Vbk / Rx-5001Vgd
AUDIO/VIDEO CONTROL RECEIVER RECEPTOR DE CONTROL DE AUDIO/VÍDEO RECEPTOR DE COMANDO AUDIO/VÍDEO RX-5000VBK / RX-5001VGD AUDIO TAPE/MD DELAY TEST SURROUND FM/AM EFFECT – CENTER + – REAR•L + SOUND MENU CONTROL – REAR•R + DVD MULTI CD-DISC TV VOL. MASTER VOLUME –...
Page 49 Warnings, Cautions and Others / Avisos, precauciones y otras notas / Advertêcias, precauções e outras notas / CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. PRECAUCIÓN Para reducir riesgos de choques eléctricos, incendio, etc.: 1.
Page 50: Rx-5000Vgd
Spacing 15 cm or more Espacio de 15 cm o más Espaço de 15 cm ou mais Front Frente Frente RX-5000VBK/ RX-5001VGD Wall or obstructions Pared u obstrucciones Parede ou obstáculo Stand height 15 cm or more Allura del soporte 15 cm o más...
Page 51 Available DSP Modes According to the Speaker Arrangement .. 16 Adjusting the 3D-PHONIC Modes .......... 17 Adjusting the DAP Modes ............17 Adjusting the Surround Modes — Dolby Surround and JVC Theater Surround ............... 18 Activating the DSP Modes ............19 Using the DVD MULTI Playback Mode ..
Page 52: Parts Identification
Parts Identification Become familiar with the buttons and controls on the receiver before use. Refer to the pages in parentheses for details. MASTER VOLUME AUDIO/VIDEO CONTROL RECEIVER – STANDBY BASS BOOST ADJUST SETTING STANDBY/ON MEMORY DVD MULTI MULTI CURSOR SURROUND ONE TOUCH OPERATION SPEAKERS PHONO...
Page 53: Getting Started
Getting Started This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply. Before Installation Connecting the FM and AM Antennas General FM Antenna Connections • Be sure your hands are dry. •...
Page 54: Connecting The Speakers
AM Antenna Connections Basic connecting procedure Snap the tabs on the loop into the ANTENNA slots of the base to assemble the FM 75 AM loop. COAXIAL 1 Cut, twist and remove the insulation at the end of LOOP each speaker signal cable. AM Loop Antenna 2 Open the terminal and then insert the speaker signal cable.
Page 55: Connecting Audio/Video Components
Connecting the subwoofer speaker Turntable You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the If an earth cable is SUBWOOFER OUT jack on the rear panel, using a cable with RCA provided for your ANTENNA turntable, connect the...
Page 56 Video component connections DVD player Use the cables with RCA pin plugs (not supplied). • When you connect the DVD player with stereo output jacks: Connect the white plug to the audio left jack, the red plug to the audio right jack and the yellow plug to the video jack. DVD player TV (as the monitor) TV (or Monitor)
Page 57: Connecting The Power Cord
Connecting the Power Cord Putting Batteries in the Remote Control Before plugging the receiver into an AC outlet, make sure that all Before using the remote control, put two supplied batteries first. connections have been made. When using the remote control, aim the remote control directly at the remote sensor on the receiver.
Page 58: Basic Operations
Basic Operations The following operations are commonly used when you play any sound source. Turning the Power On and Off (Standby) MUTE TUNED SLEEP 3D-PHONIC On the front panel: AUTO STEREO PRO LOGIC HALL VOLUME To turn on the power, press STANDBY/ON STANDBY The STANDBY lamp goes off.
Page 59: Adjusting The Volume
Listening only with headphones Adjusting the Volume 1. Connect a pair of headphones to the PHONES jack on the front On the front panel: panel. 2. Press SPEAKERS 1 and SPEAKERS 2 to set them in the — To increase the volume, turn MASTER MASTER VOLUME OFF position.
Page 60: Attenuating The Input Signal
Attenuating the Input Signal Reinforcing the Bass When the input level of the playing source is too high, the sounds With this Bass Boost function, you can boost the bass level. will be distorted. If this happens, you need to attenuate the input Before you start, remember...
Page 61: Basic Settings
Basic Settings Some of the following settings are required after connecting and positioning your speakers in your listening room, while others will make operations easier. 3. Press MULTI CURSOR @ / # to MULTI CURSOR Changing the Source Name select your center speaker size. When you have connected an MD recorder to the TAPE/MD jacks LARGE SMALL...
Page 62: Storing The Basic Settings And Adjustments - One Touch Operation
(in Adjustments — One Touch Operation minutes): JVC’s One Touch Operation function is used to assign and store different sound settings for each different playing source. By using (Canceled) this function, you do not have to change the settings every time you When the shut-off time comes change the source.
Page 63: Receiving Radio Broadcasts
Receiving Radio Broadcasts You can browse through all the stations or use the preset function to go immediately to a particular station. Setting the AM Tuner Interval Spacing Using Preset Tuning Some countries space AM stations 9 kHz apart, and other countries Once a station is assigned to a channel number, the station can be use 10 kHz spacing.
Page 64: Selecting The Fm Reception Mode
To tune in a preset station Selecting the FM Reception Mode On the front panel: When an FM stereo broadcast is hard to 1. Press FM or AM. receive or noisy The last station of the selected band is tuned You can change the FM reception mode while receiving an FM •...
Page 65: Using The Dsp Modes
Using the DSP Modes The built-in Surround Processor provides three types of the DSP (Digital Signal Processor) mode — 3D-PHONIC mode, DAP (Digital Acoustic Processor) mode and Surround mode (Dolby Pro Logic and JVC Theater Surround). 3D-PHONIC modes Surround Modes The 3D-PHONIC mode gives you such a nearly surround effect as it With this receiver, you can use two types of the Surround modes.
Page 66: Available Dsp Modes According To The Speaker Arrangement
Available DSP Modes According to the Speaker Arrangement Available DSP modes will vary depending on how many speakers are used with this receiver. Make sure that you have set the speaker information correctly (see page 11). Speaker arrangements Available DSP modes Each time you press SURROUND, the DSP modes change as follows: Front...
Page 67: Adjusting The 3D-Phonic Modes
Adjusting the 3D-PHONIC Modes Adjusting the DAP Modes Before you start, remember... Before you start, remember... • Make sure that you have set the speaker information correctly • Make sure that you have set the speaker information correctly (see page 11). (see page 11).
Page 68: Adjusting The Surround Modes - Dolby Surround And Jvc Theater Surround
• There is a time limit in doing the following steps. If the setting is EFFECT 4 EFFECT 5 canceled before you finish, start from step 1 again. • You can only adjust the effect level when selecting JVC Theater As the number increases, JVC Theater Surround becomes Surround. stronger.
Page 69: Activating The Dsp Modes
16 for more details.) level (from –10 to +10). 2. Select and play a sound source. • To enjoy the 3D-PHONIC, Dolby Surround, and JVC Theater Surround, play back a software which was processed with MULTI CURSOR 5. Press MULTI CURSOR % / ﬁ...
Page 70: Using The Dvd Multi Playback Mode
Using the DVD MULTI Playback Mode This receiver provides the DVD MULTI playback mode for reproducing the analog discrete output mode of the DVD player. Before playing back a DVD, refer also to the manual supplied with the DVD player. 7.
Page 71: Compu Link Remote Control System
COMPU LINK Remote Control System The COMPU LINK remote control system allows you to operate JVC audio components through the remote sensor on the receiver. Automatic Power On/Off (Standby): only possible To use this remote control system, you need to connect JVC audio...
Page 72: Operating Jvc's Audio/Video Components
Operating JVC’s Audio/Video Components You can operate JVC’s audio and video components with this receiver’s remote control, since control signals for JVC components are preset in the remote control. Sound control section (Amplifier) IMPORTANT: After pressing SOUND CONTROL, you can perform the following To operate JVC’s audio components using this remote control:...
Page 73 DVD player or TV, not on the receiver. For detailed menu operations, refer to the instructions supplied • Some JVC VCRs can accept two types of the control signals — with the discs or the DVD player. remote code “A” and “B.” Before using this remote control, make sure that the remote control code of the VCR connected to the VCR jacks is set to code “A.”...
Page 74: Troubleshooting
Troubleshooting Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC service center. PROBLEM POSSIBLE CAUSE SOLUTION The display does not light up. The power cord is not plugged in.
Page 75: Specifications
8 Ω at 1 kHz, with no more than 0.8% total harmonic distortion. Total Harmonic Distortion (8 Ω, 1 kHz): 0.8%* at 100 W output (* Measured by JVC Audio Analysis System) Audio Audio Input Sensitivity/Impedance (1 kHz): 2.7 mV/47 k Ω...
Page 76 FM tuner (IHF) Tuning Range: 87.50 MHz to 108.00 MHz Monaural: 12.8 dBf (1.20 µV/75 Ω) Usable Sensitivity: 50 dB Quieting Sensitivity: 21.3 dBf (3.2 µV/75 Ω) Monaural: 41.3 dBf (31.5 µV/75 Ω) Stereo: Signal-to-Noise Ratio (IHF-A weighted): Monaural: 78 dB at 85 dBf Stereo: 73 dB at 85 dBf Total Harmonic Distortion:...
Page 77 Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia and U.K.) Instrucción sobre la línea de la red (CA) (no aplicable para Europa, EE.UU., Canadá, Australia, ni el Reino Unido) Instrução sobre a tensão da rede eléctrica (CA) (não aplicável para a Europa, os E.U.A., o Canadá, a Austrália e o Reino Unido) VOLTAGE SELECTOR 127V...
