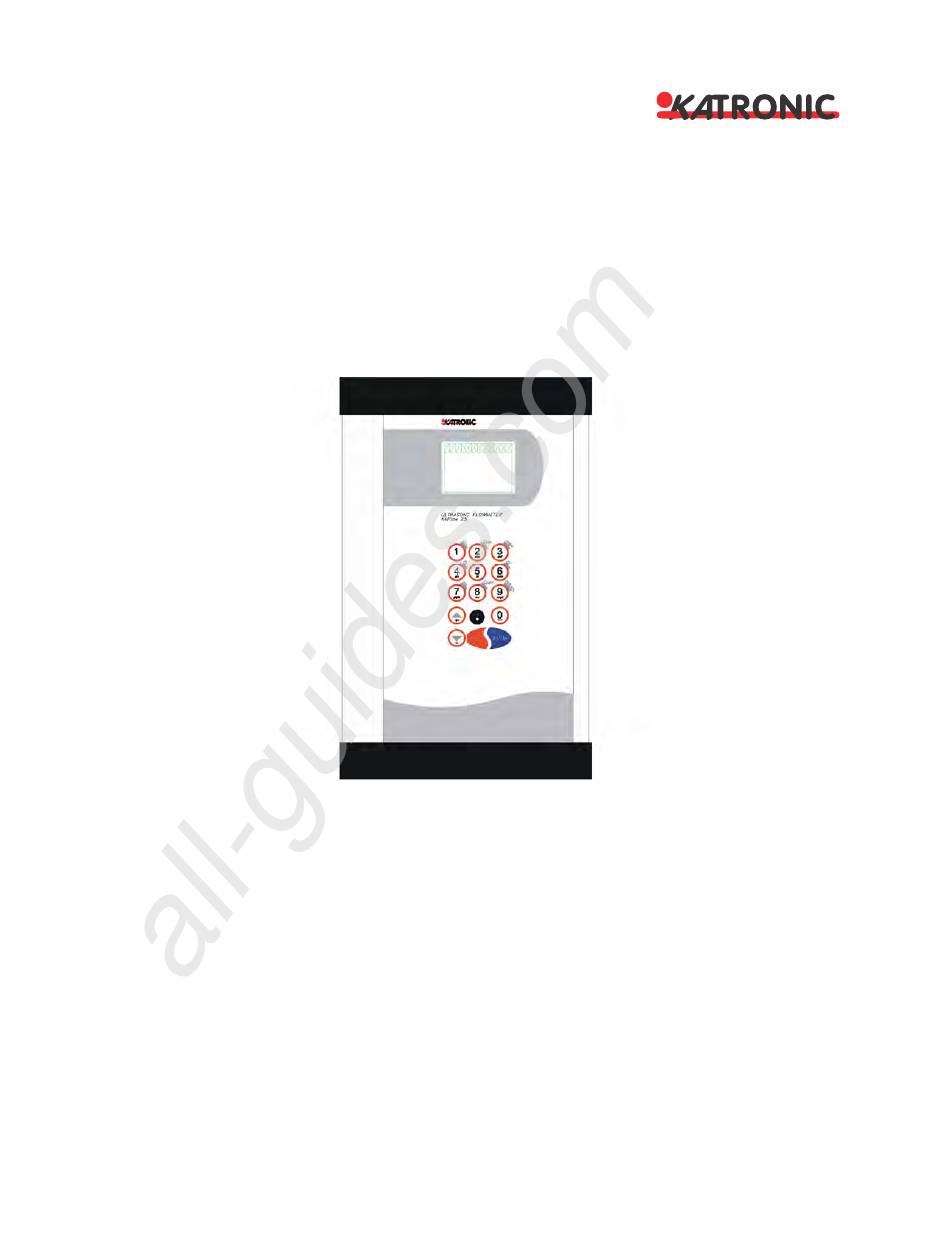

Operating Instructions
Portable
Ultrasonic Flowmeter
KA
Tflow 230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KATflow 230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Katronic KATflow 230

  • Page 1 All manuals and user guides at all-guides.com Operating Instructions Portable Ultrasonic Flowmeter Tflow 230...
  • Page 2 All manuals and user guides at all-guides.com Katronic Technologies Ltd. 23 Cross Street Leamington Spa Warwickshire CV32 4PX United Kingdom Tel. +44 (0)1926 882954 Fax +44 (0)1926 338649 Internet www.katronic.co.uk E-mail mail@katronic.co.uk Operating Instructions KATflow 230 Version V09E1108 Copyright © 2008 All rights reserved.
  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com KATflow 230 Table of Content KATflow 230 Operating Instructions Table of Content Page 1 Safety instructions, legal requirements, warranty, return policy....7 1.1 Symbols used in these operating instructions..........7 1.2 Safety instructions..................7 1.3 Warranty......................8 1.4 Return policy....................8...
  • Page 4 All manuals and user guides at all-guides.com KATflow 230 Table of Content 5.4.2 Analogue current output 0/4 ... 20 mA...........35 5.4.3 Digital Open-Collector output..............35 5.4.4 Digital relay output.................35 5.5 Input configurations..................36 5.5.1 PT100 inputs..................36 5.6 Heat quantity measurement (HQM)..............36 5.7 Sound velocity measurement (SVM)............36 5.8 Dual-channel flow calculations (maths functions).........36...
  • Page 5: Safety Instructions, Legal Requirements, Warranty, Return Policy

    ● Install the equipment and cabling securely and safely according to the re- spective regulations in place. ● If the product does not operate normally, please refer to the service and trouble shooting instructions or contact KATRONIC for help.
  • Page 6: Warranty

    1.4 Return policy If the flowmeter has been diagnosed to be faulty, it can be returned to KATRONIC for repair using the Customer Returns Note (CRN) attached to the Appendix of this manual. KATRONIC regret that we cannot accept the return of the equipment un- less accompanied by the completed CRN for Health &...
  • Page 7: Introduction

    The clamp-on sensors are simply attached to the out- side of pipes. The KATflow 230 uses ultrasonic signals for the measurement of the flow, employing the so-called transit-time method.
  • Page 8: Installation

    The following items are typically supplied (please refer to your delivery note for a detailed description of your scope of supply): ● KATflow 230 portable flowmeter ● Clamp-on sensors (usually one or two pairs depending on pipe sizes to be measured) ●...
  • Page 9: Clamp-On Sensor Installation

    All manuals and user guides at all-guides.com KATflow 230 3 Installation 3.2 Clamp-on sensor installation The correct selection of the sensor location is crucial for achieving reliable meas- urements and a high accuracy. Measurement must take place on a pipe in which sound can propagate (see Acoustic Propagation) and in which a rotationally sym- metrical flow profile is fully developed (see Straight Pipe Lengths).
  • Page 10 All manuals and user guides at all-guides.com KATflow 230 3 Installation Correct Disadvantageous For a vertical pipe: Select the measuring point at a location where the liquid flows upward to insure that the pipe is completely filled. Correct Incorrect Table 1: Recommendations for sensor mounting location Look for a sensor installation location with sufficient straight pipe to obtain accurate measurements.
  • Page 11: Pipe Preparation

    All manuals and user guides at all-guides.com KATflow 230 3 Installation Disturbance source: T-section Inlet Outlet L ≥ 50 D L ≥ 10 D Disturbance source: diffuser Inlet Outlet L ≥ 30 D L ≥ 5 D Disturbance source: reducer...
  • Page 12: Clamp-On Sensor Mounting Configurations And Separation Distance

    All manuals and user guides at all-guides.com KATflow 230 3 Installation 3.5 Clamp-on sensor mounting configurations and separation distance Reflection Mode The most common clamp-on sensor mounting configuration is the Reflection Mode, also known as V-Mode (see Illustration 3, sketch (1). Here the ultrasonic signal pass twice through the medium (2 signal passes).
  • Page 13: Flowmeter Installation

    All manuals and user guides at all-guides.com KATflow 230 3 Installation 3.6 Flowmeter installation 3.6.1 Outline dimensions The KATflow 230 is a portable, battery operated device with the following outline di- mensions. Flowmeter outline di- mensions Shock Protectors 080610_1 Process I/O connector...
  • Page 14 All manuals and user guides at all-guides.com KATflow 230 3 Installation K1 type transducer 2500 1500 080609_1 K4 type transducer 1000 1500 080609_1 Drawing 2: Transducers...
  • Page 15: Electrical Interconnections

    Input/output Temperature sensor Pt100 1 interface system connector sensor Pt100 2 Drawing 3: Electrical interconnections overview KATflow 230 3.7 Clamp-on sensor mounting Before the sensors can be mounted ● the installation location should have been determined, ● a sensor mounting method should be chosen, ●...
  • Page 16: Acoustic Coupling Gel

    All manuals and user guides at all-guides.com KATflow 230 3 Installation Diagonal mode Reflection mode A<0 A= Transducer distance 080114_1 Illustration 4: Sensor pipe mounting configurations 3.7.2 Acoustic coupling gel In order to obtain acoustical contact between the pipe and the sensors, apply a bead of acoustic coupling gel lengthwise down the centre of the contact area of the sensors.
  • Page 17: Correct Positioning Of The Sensors

    All manuals and user guides at all-guides.com KATflow 230 3 Installation 3.7.3 Correct positioning of the sensors 080114_1 Illustration 6: Correct positioning of the sensors Always mount the transducer pair such that the free front edges of the sensors face each other.
  • Page 18 All manuals and user guides at all-guides.com KATflow 230 3 Installation ● Take the spring end of the chain in one hand and insert the last ball ele- ment in the vertical slot of the retaining clip. Mount the chain around the pipe.
  • Page 19: Operation

    All manuals and user guides at all-guides.com KATflow 230 4 Operation 4 Operation 4.1 Switching On/Off The flowmeter is switched on by the <ON> key for more than 2 seconds continu- ously. Equally it can be switched off by pressing the <OFF> key for more than 2 seconds.
  • Page 20: Keypad And Display

    All manuals and user guides at all-guides.com KATflow 230 4 Operation 4.3 Keypad and display Illustration 9: Keypad and display overview 4.3.1 Keypad key functions Main function Secondary function Alphanumerical entry: Show NEXT available item (1 short key stroke) (2 short key strokes)
  • Page 21 All manuals and user guides at all-guides.com KATflow 230 4 Operation < Alphanumerical entry: > Alphanumerical entry: = Show positive total value Alphanumerical entry: Toggle MUltipleXer (for multi-chan- nel functionalities) Alphanumerical entry: = Stop totaliser function Alphanumerical entry: DIRECT menu access...
  • Page 22: Display Functions

    All manuals and user guides at all-guides.com KATflow 230 4 Operation 4.3.2 Display functions Display icons Menu header Display line 1 Display line 2 Date, time (optional) Illustration 10: Main display functions Display icon Function Icon not used Datalogger recording...
  • Page 23: Quick Setup Wizard

    All manuals and user guides at all-guides.com KATflow 230 4 Operation RTC operating RTC failure Error recorded in error log No error detected Serial output RS 232 switched on Serial output RS 232 switched off 4.4 Quick setup wizard The quick setup wizard allows for a speedy setup of the most important parameters...
  • Page 24 All manuals and user guides at all-guides.com KATflow 230 4 Operation Select fluid using cursor keys. Confirm by pressing <ENTER>. Enter process temperature using alphanumer- ical keys and confirm by pressing <ENTER>. Use key <UP> as character backspace clear to correct for data entry errors.
  • Page 25: Measurements

    All manuals and user guides at all-guides.com KATflow 230 4 Operation 4.5 Measurements 4.5.1 Main process value (PV) display The measurements are started either through the Quick Setup Wizard or the menu structure by selecting Start Measurement upon first power on. Once all the para- meters are programmed, any subsequent power-on sequences will bring up the main PV display immediately.
  • Page 26: Totalisers

    All manuals and user guides at all-guides.com KATflow 230 4 Operation 4.5.4 Totalisers The totaliser displays will only be shown when the totalisers are activated. Display screen Operation The flow totaliser can be started by press- ing <Q >. Pressing <Q >...
  • Page 27: Commissioning

    All manuals and user guides at all-guides.com KATflow 230 5 Commissioning 5 Commissioning 5.1 Menu structure Main menu Menu level 1 Menu level 2 Description/settings Quick Start Setup Wizard Single Units Select from list ↑↓ in/s m3/h m3/min m3/s l/min...
  • Page 28 All manuals and user guides at all-guides.com KATflow 230 5 Commissioning Hydrochloric acid Sour cream Sulphuric acid Toluene Vinyl chloride User (kinematic viscosity, density, medium c- speed) Kinematic vis- Only if user fluid selected cosity 0.001 ... 30000 mm Density Only if user fluid selected 100 ...
  • Page 29 All manuals and user guides at all-guides.com KATflow 230 5 Commissioning ment Sensor type Indication of sensor type and serial number if automatically detected, otherwise select from list ↑↓ Special SP 1 ... SP 8 Only for special, unrecognised sensors...
  • Page 30 All manuals and user guides at all-guides.com KATflow 230 5 Commissioning No – Pulse output off Pulse Value Totaliser value of selected PV at which a pulse is generated, e.g. PV = [m3/h], Pulse Value = 10, a pulse is output every 10 m3 0.01 ...
  • Page 31 All manuals and user guides at all-guides.com KATflow 230 5 Commissioning User Identifier Example: Pump P3A 9 alphanumeric character string Tag No. Example: 1FT-3011 9 alphanumeric character string Test Test Mode Control system simulation: 60 second ramping up of flow velocity in m/s from 0 to programmed Max F Cut and subsequent 60 second ramping down, i.e.
  • Page 32: Diagnostics

    All manuals and user guides at all-guides.com KATflow 230 5 Commissioning 2400 9600 (Default) 19200 Parity Select from list ↑↓ None Even (Default) Type Select from list ↑↓ None RS232 5.2 Diagnostics Diagnostic screens can be accessed directly during measurement or through the menu structure.
  • Page 33: Serial Interface Rs 232

    All manuals and user guides at all-guides.com KATflow 230 5 Commissioning 5.4.1 Serial interface RS 232 The RS 232 serial interface can be used to transmit data on-line or to download the Serial interface integral datalogger content. The settings can be found in submenu Serial Comm.
  • Page 34: Input Configurations

    All manuals and user guides at all-guides.com KATflow 230 5 Commissioning Wiring Form C (SPDT-CO) contacts Electrical V = 48 V characterist- = 250 mA 5.5 Input configurations There are two 4-wire circuit PT100 inputs available at the bottom of the enclosure.
  • Page 35: Troubleshooting

    All manuals and user guides at all-guides.com KATflow 230 7 Troubleshooting 7 Troubleshooting Should there be the need to call customer service, please let us know the following details: ● Model code ● Serial number ● SW, HW revision ●...
  • Page 36 All manuals and user guides at all-guides.com KATflow 230 7 Troubleshooting error call customer support COMM READ AVE Hardware Internal communication Power on/off, otherwise error call customer support COMM READ RAW Hardware Internal communication Power on/off, otherwise error call customer support...
  • Page 37: Technical Data

    All manuals and user guides at all-guides.com KATflow 230 7 Troubleshooting 8 Technical data Sound Speed* Shear Wave (at 25 ºC) Material ft/s Steel, 1% Carbon, hardened 3,150 10,335 Carbon Steel 3,230 10,598 Mild Steel 3,235 10,614 Steel, 1% Carbon...
  • Page 38 All manuals and user guides at all-guides.com KATflow 230 8 Technical data All data given at 25 ºC (77 ºF) unless otherwise stated Change Kinematic Viscosity Sound Speed v/ºC x10-6 Chemical Specific Substance ft/s m/s/ºC m Formula Gravity Acetic anhydride (CH3CO)2O 1.082 (20 ºC)
  • Page 39 All manuals and user guides at all-guides.com KATflow 230 8 Technical data (-89 ºC) (-128 ºF) Methanol CH4O 0.791 (20 ºC) 1,076 3,530.2 0.695 7.478 Methyl acetate C3H6O2 0.934 1,211 3,973.1 0.407 4.379 Methyl alcohol CH4O 0.791 1,076 3,530.2 0.695 7.478...
  • Page 40 All manuals and user guides at all-guides.com KATflow 230 8 Technical data Tetrachloro-Methane CCl4 1.595 (20 ºC) 3,038.1 0.607 6.531 Tetrafluoro-methane 875.24 2,871.5 1.75 (-150 ºC) 6.61 (Freon 14) (-150 ºC) (-283 ºF) 1,328 4,357 Toluene C7H8 0.867 (20 ºC) 4.27...
  • Page 41 All manuals and user guides at all-guides.com KATflow 230 8 Technical data 98.6 1523 4990 100.4 1525 4997 102.2 1527 5010 104.0 1528 5013 105.8 1530 5020 107.6 1532 5026 109.4 1534 5033 111.2 1535 5036 113.0 1536 5040 114.8...
  • Page 42 All manuals and user guides at all-guides.com KATflow 230 8 Technical data 195.8 1549 5082 197.6 1549 5082 199.4 1548 5079 201.2 1547 5076 203.0 1547 5076 204.8 1546 5072 206.6 1545 5069 208.4 1544 5066 210.2 1543 5063 212.0...
  • Page 43: Specification

    General of liquids and liquified gases in full pipes. The KATflow 230 is designed for portable use to meet the Measuring principle : Ultrasonic time difference needs of the Service/Maintenance and Commissioning correlation principle Engineer wishing to check the flow rate at different Flow velocity range : 0.01 ...
  • Page 44 All manuals and user guides at all-guides.com KATflow 230 9 Specification Flowmeter (cont.) Digital (Open- Collector) : Totaliser, value 0.01 ... Power 1000/unit, width 30 ... 999 ms, consumption : < 5 W U = 24 V, I = 4 mA Signal damping : 0 ...
