MICA
User Manual
V 1.3. (20/06/2022)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MICA and is the answer not in the manual?

Questions and answers

Related Manuals for inBiot MICA

Summary of Contents for inBiot MICA

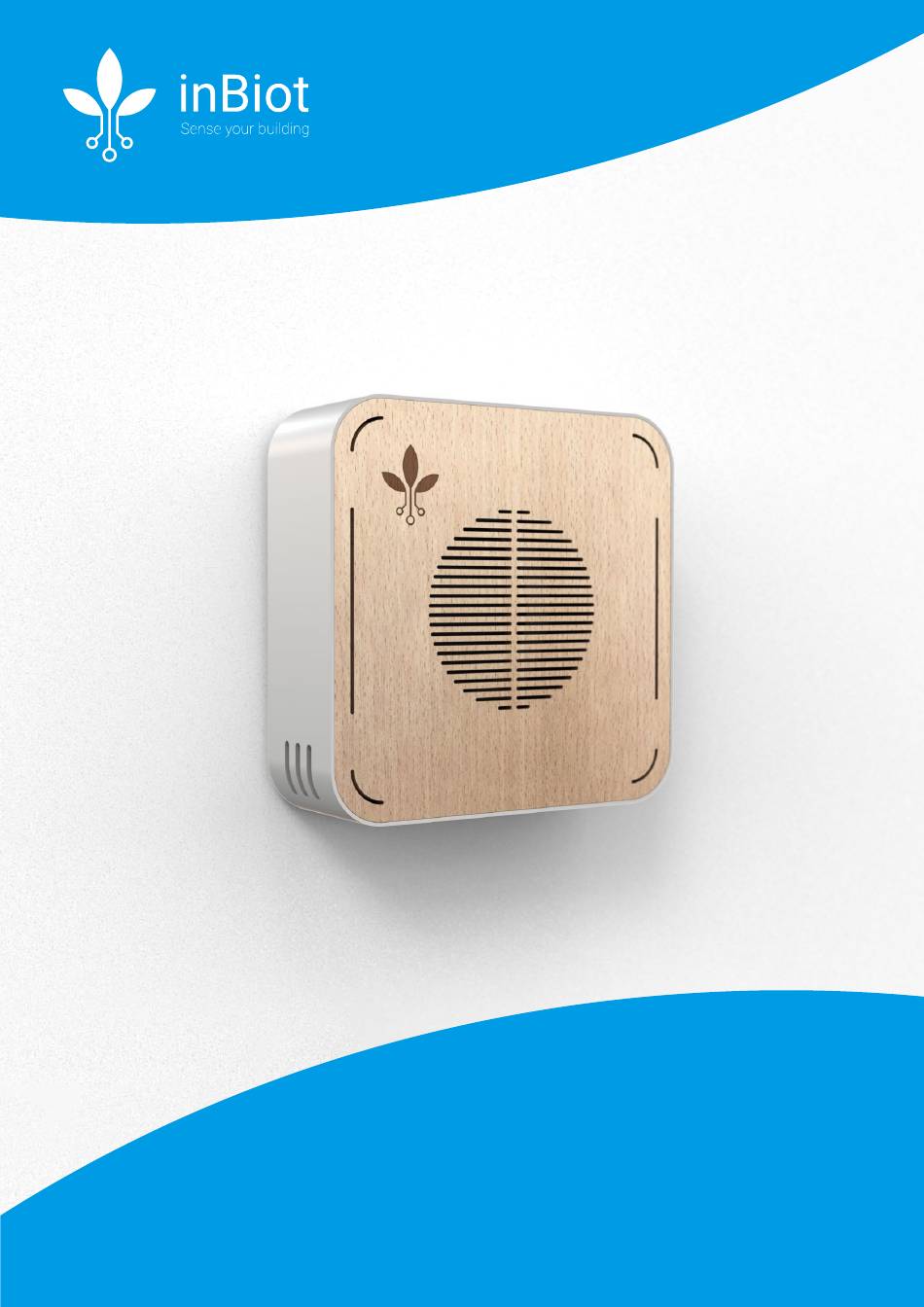

  • Page 1 MICA User Manual V 1.3. (20/06/2022)

  • Page 2: Product Overview

    1. Product overview MICA is a smart device that will allow you to monitor the indoor air quality. This device is able to measure up to 8 different parameters: temperature, humidity, carbon dioxide (CO2), suspended particles (PM10, PM2.5 and PM1.0), formaldehyde and volatile organic compounds (VOCs).

  • Page 3: Technical Specifications

    Precision: ± (50 + 5%) ppm. Calibration lifespan: 10 years. PM1.0/PM2.5/PM10 Sensor: Particle laser. Measurement unit: µg/m³ / Range: 0 - 1,000 µg/m³. Precision: < 35 µg/m³: ±5 µg/m³; >35 µg/m³: ±15% of measurement value. Calibration lifespan: 4 years. Copyright © 2022 inBiot Monitoring SL...
  • Page 4 21 and 25 ºC (70 - 77 ºF), being 21 - 23 ºC in winter (70 - 73.4 ºF) and 23 - 25 ºC for summer (73.4 - 77 ºF), although these values could be slightly higher or lower depending on the rest of parameters that determine comfort. Copyright © 2022 inBiot Monitoring SL...

  • Page 5: Carbon Dioxide (Co2)

    - Not significant: < 20 µg/m³. - Slightly significant: 20 - 50 µg/m³. - Strongly significant: 50 - 100 µg/m³. - Extremely significant: > 100 µg/m³. Copyright © 2022 inBiot Monitoring SL...
  • Page 6 The ranges of values used in the MICA device as indicators take into consideration the SBM values for rest areas, as well as the values from which allergic and sensitizing reactions may occur: GREEN: < 70 µg/m³. YELLOW: 70 - 120 µg/m³.

  • Page 7: Installation And Setup

    - Successfully connected: A green light is shown for 10 seconds and then turns off. You may proceed to My inBiot and add your new device to your account following the video on the Tuto - rials section.

  • Page 8: Time Intervals

    - At the initial setup, where you can select the periodicity of uploading data (min). - At My inBiot, select the desired device and click on the 3 vertical dots at the upper right corner. Select Periodicity of uploading data. A new screen will pop up where you can select the time interval between measurements.
  • Page 9 The first time you access, you will need to create an account and a valid password. Within an account, you may have as many devices as you like. Using My inBiot web platform you may: Copyright © 2022 inBiot Monitoring SL...
  • Page 10 - Give access to several clients through a shareable link, which you can also use to display the data in full screen for events or offices. Web platform You will find a clear explanation of the possibilities of our software in the following link My inBiot web platform. START Copyright © 2022 inBiot Monitoring SL...
  • Page 11 DEVICE SHAREABLES Copyright © 2022 inBiot Monitoring SL...
  • Page 12 ALERTS Additionally, the My inBiot Business account gives access to several more features. This modality has an annual fee and will give you access to: - Select up to 1 minute of periodicity of uploading data. - Download historical data without any time limitation.

  • Page 13: Manufacturer's Warranty

    - The long-term stability of the measurements. Manufacturer’s warranty The design of the MICA devices includes the detailed selection of specific sensors. All sensors are calibra- ted by the sensor manufacturer itself, with its corresponding warranty. Sensor self-calibration Additionally, some sensors such as CO2 or VOCs have an automatic self-calibration process by software.

  • Page 14: Safety Instructions

    The device includes a 3-year warranty for products sold in Spain, 2 years for products sold within the EU/ UK and 1 year for those sold in the US/CAN and other countries. Should you find any defect that is the responsibility of inBiot and not due to misuse of the device, please contact our Customer Service team through support@inbiot.es...

  • Page 15: End Of Life Cycle

    - Has been falsified. The guarantee will only apply to products with the inBiot brand, serial num - ber and logo that identifies it as such. inBiot will not apply the warranty on any product that was not manufactured by or with the permission of inBiot.
  • Page 16 Copyright © 2022 inBiot Monitoring SL...
