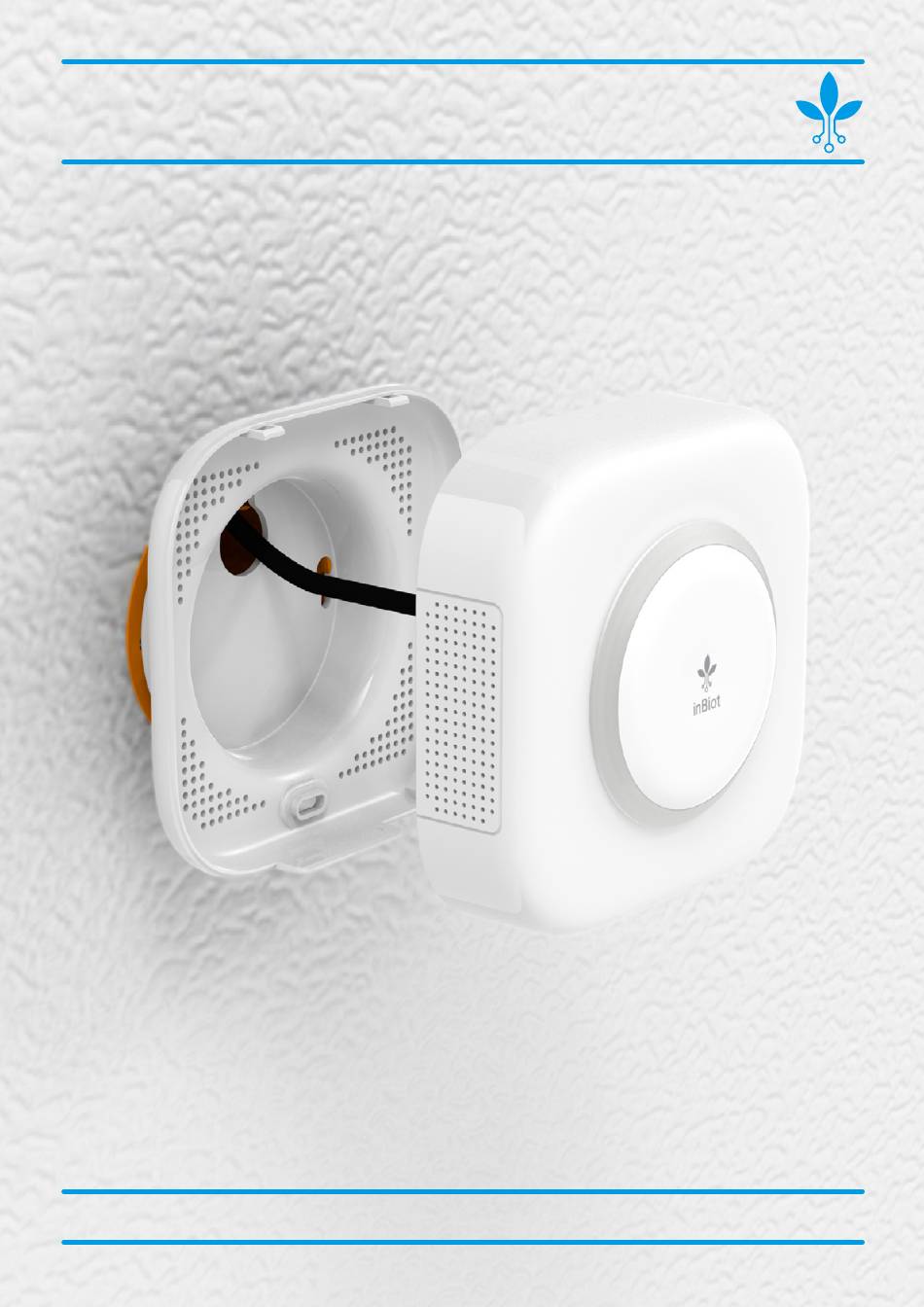

- Page 1 Wall Instalation Guide MICA Mini / MICA / MICA Plus / MICA WELL V1.7 03/24...
-
Page 2: Table Of Contents
Wall Instalation with Gutter ....................................27 LoRaWAN / Sigfox + Modbus RTU LoRaWAN / Sigfox + Modbus RTU ������������������������������������������������������������������������� ������������������������������������������������������������������������� 31 Concealed Wall Installation Concealed Wall Installation ....................................31 Usage notes �������������������������������������������������������������������������������������������������� 35 Copyright © inBiot Monitoring SL... - Page 3 Modbus TCP/IP (wireless) � API� MQTT� *The device can only connect to 2.4 GHz WiFi networks. 5GHz WiFi networks are not supported. Supported authentication and security protocols: WPA2 (Personal), WPA2 Enterprise, WPA3 (Personal), and WPA3 Enterprise. Copyright © inBiot Monitoring SL...
-
Page 4: Important: Before You Begin
IMPORTANT: Before you begin Copyright © inBiot Monitoring SL... - Page 5 Remove the MICA from the box and remove the back cover from the 4� case. Remove bottom screws (2) Detach the back cover of the MICA Recommendations The recommended height to install the electrical boxes or attach the MICA to the wall is between 120cm and 180cm. Copyright © inBiot Monitoring SL...
-
Page 6: Mica Models
MICA Models Copyright © inBiot Monitoring SL... -
Page 7: Wi-Fi
Female power terminal Necessary 7� 1) Assembly guides (x2). 2) Assembly hooks (x2). 3 mm 1/8” 8� Male power terminal. M3 x 2 9� Drilling guide (boxed). Note: The recommended height for installation is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 8 Steps to follow Copyright © inBiot Monitoring SL...
- Page 9 Copyright © inBiot Monitoring SL...
- Page 10 To close the MICA, first align the assembly guide ❼ with the assembly hooks ❼ (this must 8� be done with the case slightly tilted) and then close the cover. To finish, secure the cover with the two bottom assembly screws ❹. 9� Copyright © inBiot Monitoring SL...
-
Page 11: Concealed Wall Installation
7� 1) Assembly guides (x2). M3 x 2 2) Assembly hooks (x2). Si la caja eléctrica no 8� Male power terminal. los incluye Note: The recommended height for installing electrical boxes is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 12 Steps to follow For 110 - 240V AC For 8 - 36V DC Copyright © inBiot Monitoring SL...
- Page 13 Copyright © inBiot Monitoring SL...
- Page 14 To close the MICA, first align the assembly guides ❼ with the assembly hooks ❼ (this must be 7� done with the housing slightly tilted) and then close the cover. To finish, secure the cover with the two bottom assembly screws ❹. 8� Copyright © inBiot Monitoring SL...
-
Page 15: Modbus Tcp/Ip / Api / Mqtt
2) Assembly hooks (x2). M3 x 2 9� Male power terminal. Si la caja eléctrica no 10� Male Modbus RTU terminal. los incluye Note: The recommended height for installing electrical boxes is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 16 Steps to follow For 110 - 240V AC For 8 - 36V DC Copyright © inBiot Monitoring SL...
- Page 17 Copyright © inBiot Monitoring SL...
- Page 18 To close the MICA, first align the assembly guides ❼ with the assembly hooks ❼ (this must 7� be done with the housing slightly tilted) and then close the cover. To finish, secure the cover with the two lower assembly screws ❹. 8� Copyright © inBiot Monitoring SL...
-
Page 19: Modbus Rtu
2) Assembly hooks (x2). M3 x 2 9� Male power terminal. Si la caja eléctrica no 10� Male Modbus RTU terminal. los incluye Note: The recommended height for installing electrical boxes is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 20 Steps to follow For 110 - 240V AC For 8 - 36V DC Copyright © inBiot Monitoring SL...
- Page 21 Copyright © inBiot Monitoring SL...
- Page 22 To finish, secure the cover with the two lower assembly screws ❹. 8� [*] GND: From the same device as A and B (master, etc)� Copyright © inBiot Monitoring SL...
-
Page 23: Lorawan / Sigfox
Mounting holes (x2). M3 x 2 11� Assembly screws (x2). 12� Male power terminal. Si la caja eléctrica no los incluye 13� Antenna (boxed). Note: The recommended height for installing electrical boxes is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 24 Steps to follow Copyright © inBiot Monitoring SL...
- Page 25 Copyright © inBiot Monitoring SL...
- Page 26 To close the MICA, first align the assembly guides ❺ with the assembly hooks ❺ (this must 9� be done with the housing slightly tilted) and then close the cover. 10� To finish, secure the cover with the two lower assembly screws Copyright © inBiot Monitoring SL...
-
Page 27: Wall Instalation With Gutter
Assembly screws (x2). M3 x 2 12� Male power terminal. Si la caja 13� Drilling guide (boxed). eléctrica no los incluye 14� Antenna (boxed). Note: The recommended height for installing electrical boxes is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 28 Steps to follow Copyright © inBiot Monitoring SL...
- Page 29 Copyright © inBiot Monitoring SL...
- Page 30 To close the MICA, first align the assembly guides ❺ with the assembly hooks ❺ (this 11� must be done with the housing slightly tilted) and then close the cover. 12� To finish, secure the cover with the two lower assembly screws Copyright © inBiot Monitoring SL...
-
Page 31: Lorawan / Sigfox + Modbus Rtu
Assembly screws (x2). M3 x 2 13� Male power terminal. Si la caja 14� Male Modbus RTU terminal. eléctrica no los incluye 15� Antenna (boxed). Note: The recommended height for installing electrical boxes is 120 - 180cm� Copyright © inBiot Monitoring SL... - Page 32 Steps to follow Copyright © inBiot Monitoring SL...
- Page 33 Copyright © inBiot Monitoring SL...
- Page 34 11� To finish, secure the cover with the two lower assembly screws [*] GND: From the same device as A and B (master, etc)� Copyright © inBiot Monitoring SL...
-
Page 35: Usage Notes
To reduce risks, always entrust the installation and maintenance of the equipment to qualified personnel. 3� Download the “inBiot Setup“ mobile application to configure your MICA. 4� For any inquiries, contact the support team through the form on our support page. Copyright © inBiot Monitoring SL... - Page 36 Copyright © inBiot Monitoring SL...
