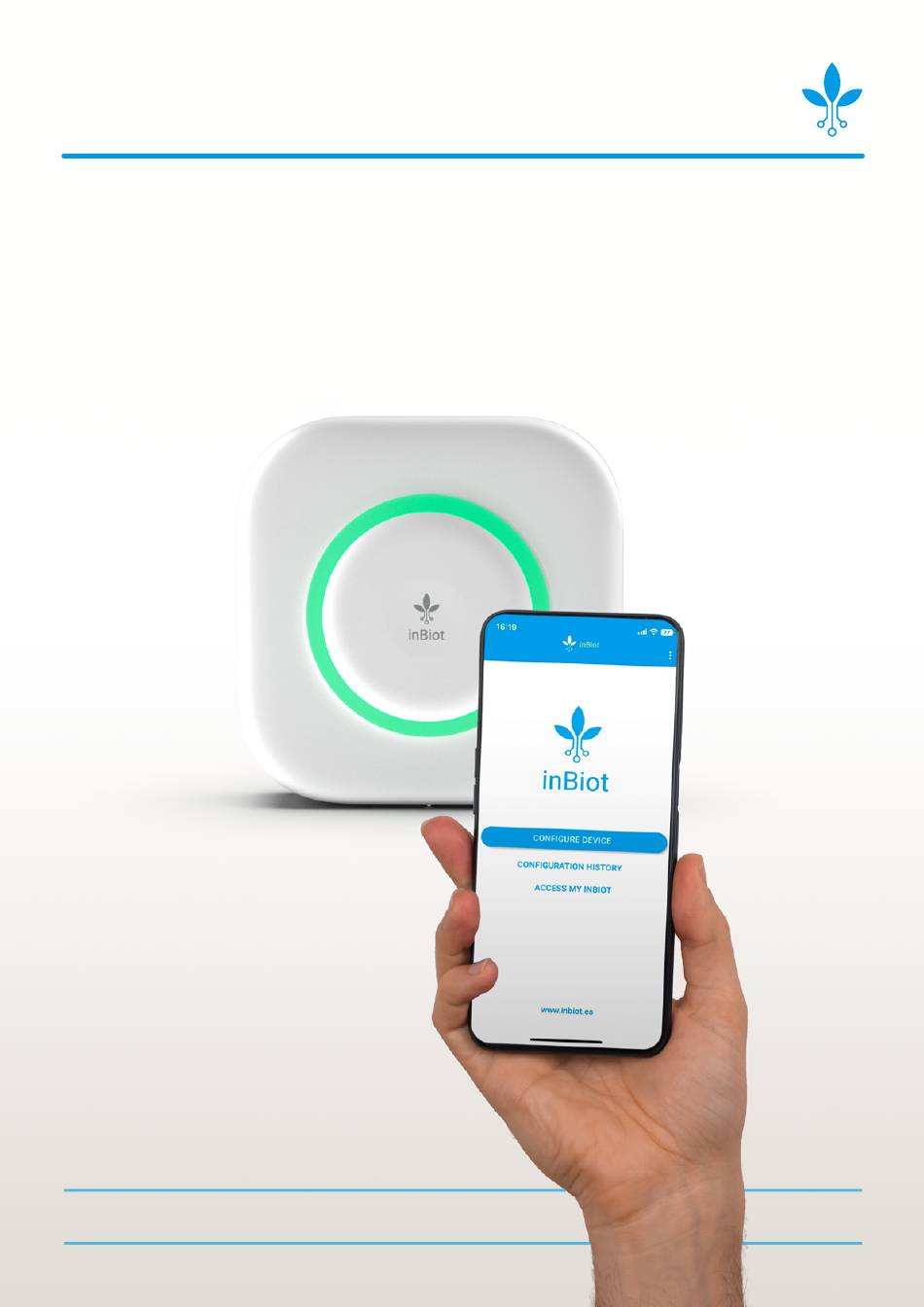

- Page 1 Configuration Manual MICA Mini / MICA / MICA Plus / MICA WELL V2.0 04/24...
-
Page 2: Table Of Contents
Read before you start ....................... 3 First Steps ........................... 4 Connect to Wi-Fi ........................8 Setting up device ........................12 Setting up Modbus ........................15 Modbus TCP ........................16 Modbus RTU ........................17 Setting up LoRaWAN ......................18 Updating device ........................21 Copyright © inBiot Monitoring SL... -
Page 3: Read Before You Start
Read before you start Download “inBiot Setup” app on your mobile device. You can do it from the links to the stores or by scanning the QR code. Check which model you are going to configure, this is indicated on the bottom of the box. -
Page 4: First Steps
FIRST STEPS Copyright © inBiot Monitoring SL... - Page 5 (iPhone) Android Open “inBiot Setup” app. If a message appears requesting permission to use the location, allow it to use it. To set up a MICA, click . If you want to access My inBiot platform...

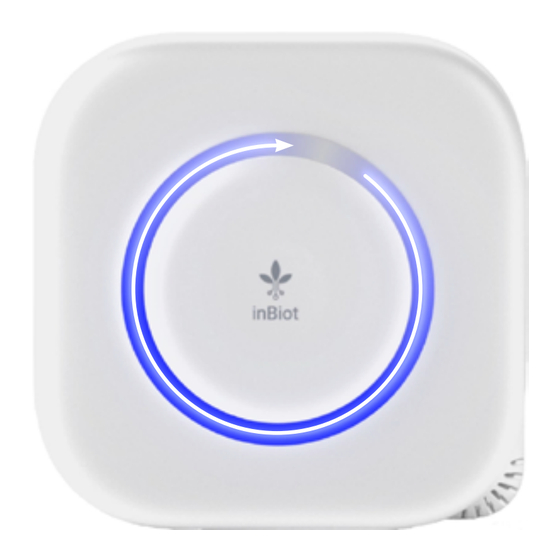

- Page 6 MICA logo until the light turns blue and begins to rotate. Once the device is on the access point, click . When your device appears in SEARCH MICA the list, select it to establish the connection between your phone and the MICA. Copyright © inBiot Monitoring SL...
- Page 7 If the error persists, contact support through this form. If the connection is established correctly, it means that your device is connected to your phone via Bluetooth and you can continue with the configuration by pressing CONTINUE Copyright © inBiot Monitoring SL...
-
Page 8: Connect To Wi-Fi
CONNECT TO WI-FI Copyright © inBiot Monitoring SL... - Page 9 Then press the button CONNECT TO THE WI-FI NETWORK If the network is not listed, make sure it is a 2.4GHz network and is in range of the device. MICA devices cannot connect to 5G networks. Copyright © inBiot Monitoring SL...
- Page 10 If the error persists, contact support through this form. TRY AGAIN CONNECT TO THE WI-FI NETWORK If the connection to the Wi-Fi network is established correctly, click BACK TO MENU continue with the configuration. BACK TO MENU Copyright © inBiot Monitoring SL...
- Page 11 ACCESS MY INBIOT SAVE ALL CHANGES AND FINALIZE If you want to add it immediately, you can access My inBiot from the application by clicking on the button . Otherwise, you can set up another MICA or close the app.
-
Page 12: Setting Up Device
SETTING UP DEVICE Copyright © inBiot Monitoring SL... - Page 13 • Type of ventilation: The type of ventilation that exists in the place where the MICA is located. • MICA indicator light: Button to turn the MICA LED indicator on or off. Note: These settings can also be modified later from My inBiot. APPLY CHANGES...
- Page 14 Return to the Main Menu and press so that the changes made are saved SAVE ALL CHANGES AND FINALIZE to the device. SAVE ALL CHANGES AND FINALIZE Note: All changes will be lost if not saved from the Main Menu. Copyright © inBiot Monitoring SL...
-
Page 15: Setting Up Modbus
SETTING UP MODBUS Copyright © inBiot Monitoring SL... -
Page 16: Modbus Tcp
Write the correct Modbus Address and press .To save the configuration, APPLY CHANGES select followed by BACK TO MENU SAVE ALL CHANGES AND FINALIZE Note: If you do not know the proper parameters for configuration, see the Modbus Guide. Copyright © inBiot Monitoring SL... -
Page 17: Modbus Rtu
Write the Modbus Address and Speed, select the correct Parity and press APPLY CHANGES To save the settings, select followed by BACK TO MENU SAVE ALL CHANGES AND FINALIZE Note: If you do not know the proper parameters for configuration, see the Modbus Guide. Copyright © inBiot Monitoring SL... -
Page 18: Setting Up Lorawan
SETTING UP LORAWAN Copyright © inBiot Monitoring SL... - Page 19 EUI” field, enter the values you obtained in step 2 of the guide. In the “App EUI” and “AppKey” fields, enter the values that you configured or found by default in the settings app (make sure they match exactly those on the device). Copyright © inBiot Monitoring SL...
- Page 20 LED will flash green three times indicating the successful connection to the server. Otherwise, the flashing will be red and you will have to review the configured credentials or the network coverage range. Note: For more detailed instructions, download the LoRaWAN Configuration Manual. Copyright © inBiot Monitoring SL...
-
Page 21: Updating Device
UPDATING DEVICE FOR LORAWAN & SIGFOX Copyright © inBiot Monitoring SL... - Page 22 If the app finds a newer version of firmware available for the device, it will give you the option to install it. To do this, press . The device LED will turn pink during the update. UPDATE Once the update is complete, select to finish and return to the menu. RESTART DEVICE Copyright © inBiot Monitoring SL...
- Page 23 Copyright © inBiot Monitoring SL...
