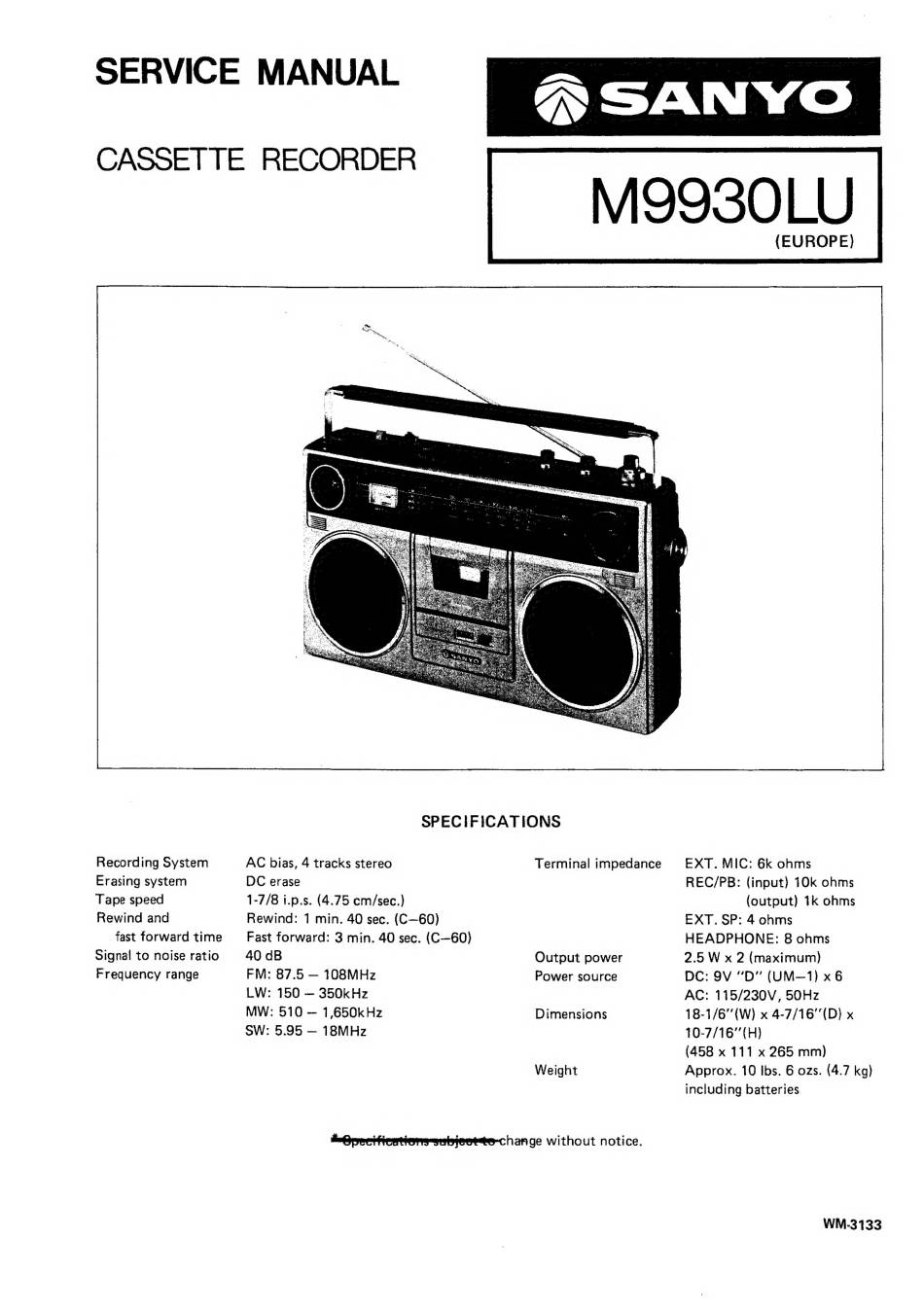

Sanyo M9930LU Service Manual

SERVICE MANUAL
CASSETTE RECORDER
Recording System
Erasing system
Tape speed
Rewind and
fast forward time
Signal to noise ratio
Frequency range
M9930LU
SPECIFICATIONS
AC bias, 4 tracks stereo
DC erase
1-7/8 i.p.s. (4.75 cm/sec.)
Rewind: 1 min. 40 sec. (C—60)
Fast forward: 3 min. 40 sec. (C—60)
40 dB
FM: 87.5 — 108MHz
LW: 150 — 350kHz
MW: 510 -— 1,650kHz
SW: 5.95 — 18MHz
Terminal impedance
Output power
Power source
Dimensions
Weight
mGpeciftertionssnisjeerte-change without notice.
(EUROPE)
EXT. MIC: 6k ohms
REC/PB: (input) 10k ohms
(output) 1k ohms
EXT. SP: 4 ohms
HEADPHONE: 8 ohms
2.5 W x 2 (maximum)
DC: 9V "D" (UM—1) x 6
AC: 115/230V, 50Hz
18-1/6''(W) x 4-7/16''(D) x
10-7/16''(H)
(458 x 111 x 265 mm)
Approx. 10 Ibs. 6 ozs. (4.7 kg)
including batteries
WM-3133
