DeWalt XR TRAK-IT DGN845 Manual

Gas actuated nailer

Hide thumbs Also See for XR TRAK-IT DGN845:

Instruction manual (40 pages)

Instruction manual (40 pages)

page of 16

/ 16
Troubleshooting
Bookmarks

Quick Links

Download this manual

DGN845

Table of Contents

Need help?

Do you have a question about the XR TRAK-IT DGN845 and is the answer not in the manual?

Questions and answers

Summary of Contents for DeWalt XR TRAK-IT DGN845

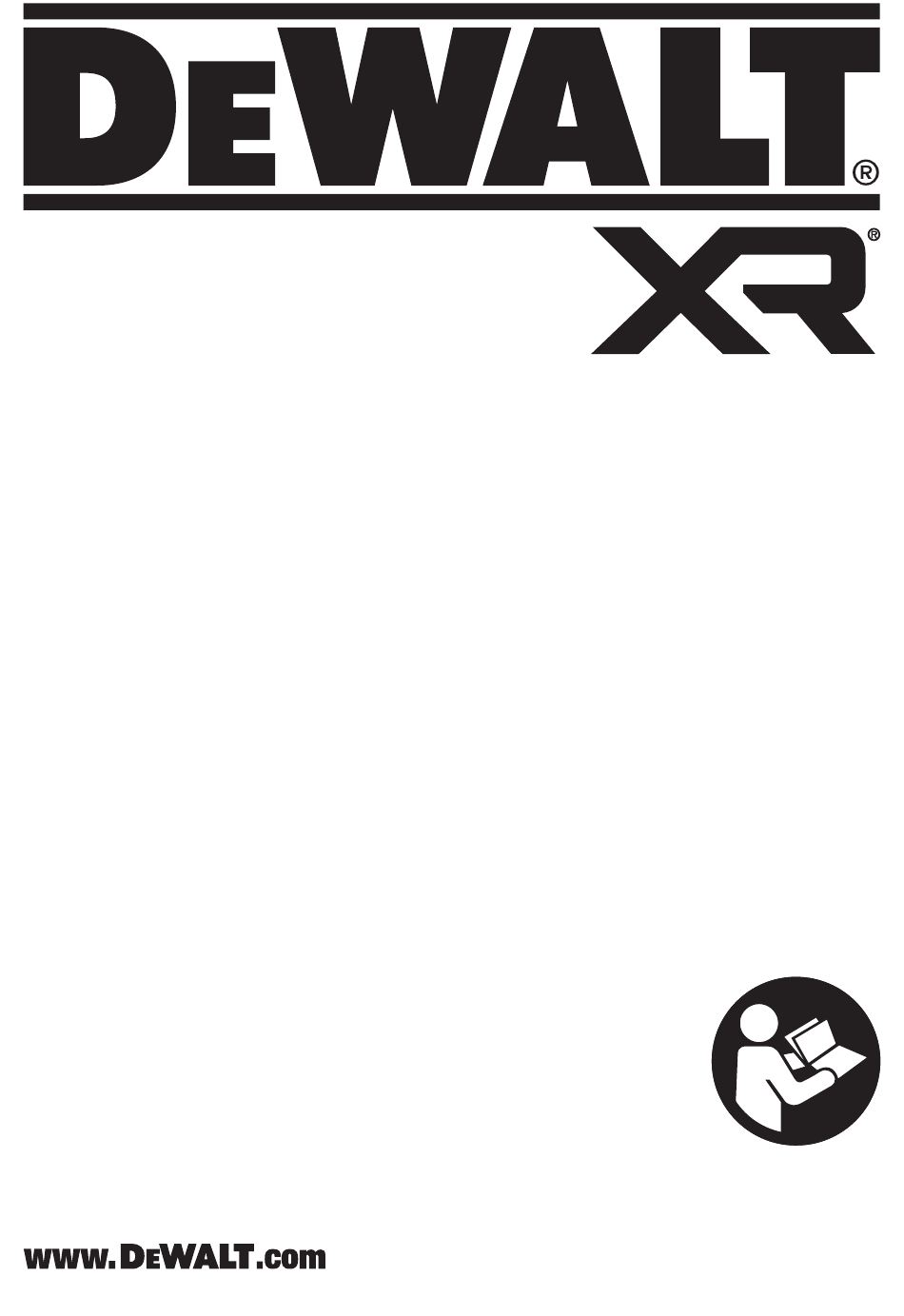

Page 1 DGN845...
Page 2 Fig. A Fig. B XXXX XX XX Copyright D WALT...
Page 3 Fig. C Fig. D Fig. E Fig. F Fig. G...
Page 4 Fig. I Fig. H 90° Fig. J...
Page 5: Product Information
English TRAK‑IT® C6 GAS ACTUATED NAILER DGN845 Congratulations! The vibration emission level given in this information sheet has been measured in accordance with a standardised test You have chosen a D WALT tool. Years of experience, thorough given in EN28927‑13:2019 and may be used to compare one product development and innovation make D WALT one of the tool with another.
Page 6: General Safety Instructions
English Batteries Chargers/Charge Times (Minutes)*** DCB112/ DCB115/ Weight (kg) DCB104 DCB107 DCB113 DCB116 DCB117 DCB118 DCB132 DCB119 Cat # DCB1102 DCB1104 DCB546 18/54 6.0/2.0 1.08 DCB547/G 18/54 9.0/3.0 1.46 135* 110* 135* DCB548 18/54 12.0/4.0 1.46 DCB549 18/54 15.0/5.0 2.12 DCB181 0.35 DCB182...
Page 7 English • Use of proper power source - Refer to Technical Data. Avoid Explosion Hazard • That tool is in proper working order. Do not operate the tool in explosive atmospheres, • What actuation system is on tool and how it operates. such as in the presence of flammable liquids, gases •...
Page 8: Vibration Hazards
English 2 . Refer to Technical Data section for detailed specification on Foreseeable hazards and warnings in the general use of the tool are described below. Assess the specific risks that may be presented fasteners and accessories. as a result of each use. 3 .
Page 9: Property Damage
English 2 . Be careful when using gas tools, as the tool can become hot, • Never use the gas nailer in the vicinity of fires or highly affecting grip and control. flammable materials/liquids (thinner, paints/varnishes, gasoline). 3 . Gas tools shall be used in ventilated spaces. •...
Page 10: Safety Notes
English Fuel Cells such marks by D WALT is under license. Other trademarks and trade names are those of their respective owners. Danger of explosion: • Check for damage to the tool, parts or accessories which may • Observe the instructions printed on the fuel cell and in the fuel have occurred during transport.
Page 11: Intended Use
English Suitable materials to use as a base, for example: Never hold your hand or other body parts • Concrete of normal strength under the barrel • Steel Materials that are unsuitable and should not be used as a base, for example: 40˚...
Page 12: Operation
English Inserting and Removing the Battery Pack from the Inserting the Nail Strip (Fig. A, F) Tool (Fig. B) WARNING: Severe injuries due to accidental triggering. • Remove the battery. nOTE: Make sure your battery pack 6 is fully charged. • Do not press the barrel of the gas nailer against any surfaces. To Install the Battery Pack into the Tool Handle •...
Page 13: Maintenance
English If the Gas Nailer Does Not Fire • Do not press the barrel of the gas nailer against any surfaces. • Keep your finger away from the trigger. • Repeat the process up to three times, replace an empty fuel cell (if applicable), Refer to Inserting the Fuel Cell. CAUTION: Hot surfaces.
Page 14: Rechargeable Battery Pack
English Rechargeable Battery Pack Problem Cause(s) Measure(s) This long‑life battery pack must be recharged when it fails to Barrel is firmly Fuel cell empty Refer to chapter Inserting produce sufficient power on jobs that were easily done before. pressed against the or not filled to a the Fuel Cell.
