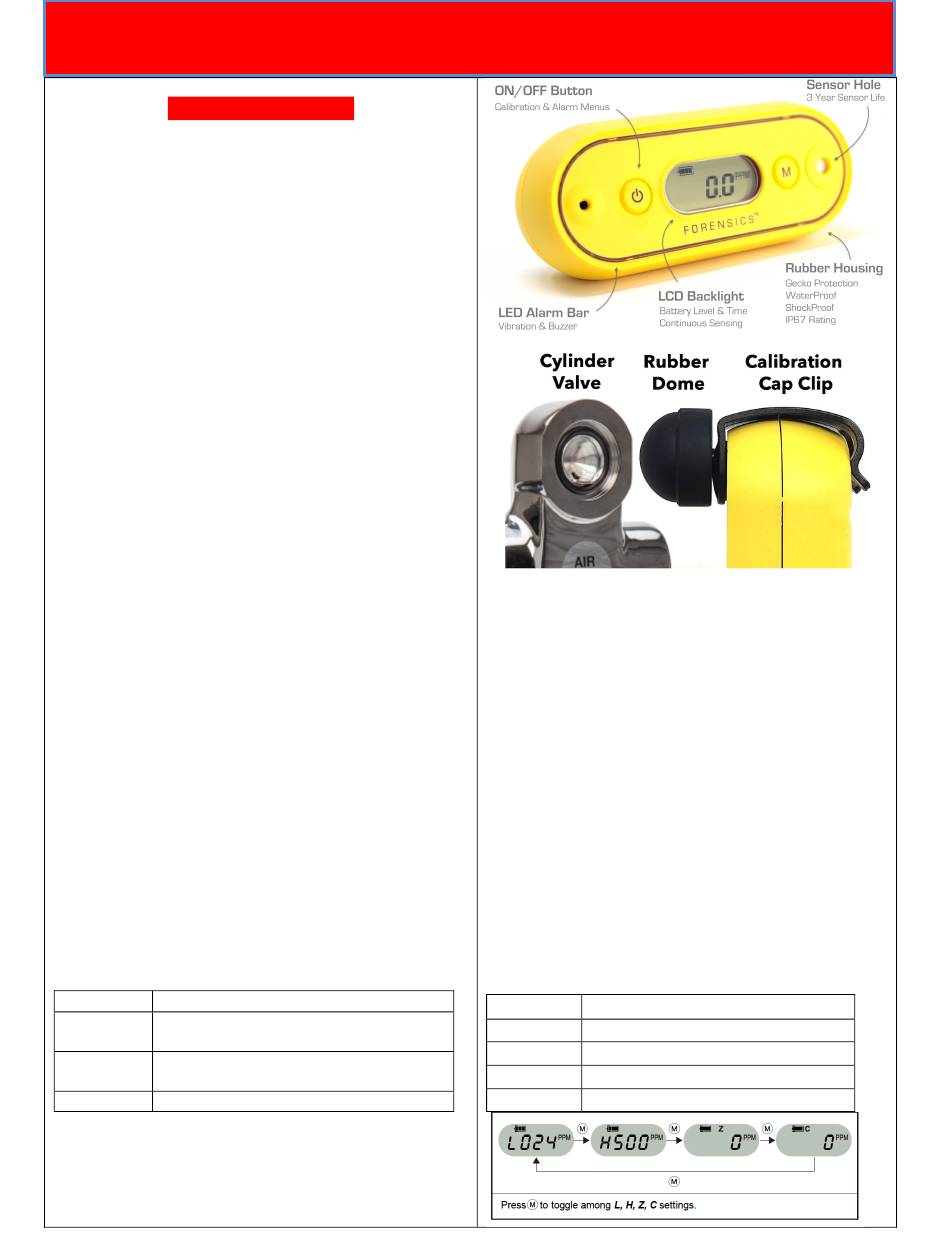

FORENSICS DETECTORS FD-103-CO-LOW Quick Start Manual

Low Level CO Meter
FORENSICS DETECTORS
** ATTENTION**
Ø KEEP DETECTOR AWAY FROM ELECTROMAGNETC
& MAGNETIC INTERFERENCE (i.e. PHONES &
MAGNETS)
Ø STORE/OPERATE DETECTOR WITHIN
ENVIRONMENTAL SPECIFICATIONS, AWAY FROM
DUST, VAPORS & HARSH CHEMICALS
Ø IF FEELING UNWELL, SEEK FRESH AIR & MEDICAL
ASSISTANCE
Ø DO NOT EXPOSE DIRECTLY TO EXHAUST FUMES
INTRODUCTION
You have purchased the highly sensitive
FORENSICS DETECTORS
extremely low levels of carbon monoxide (CO) in compressed
gas or ambient air. It can be used test gas quality in scuba
cylinders or to monitor exposure to CO in the ambient air.
For critical applications, calibrate every 6 months and bump
test daily, or before use, to verify detector operation.
OPERATION
Press the POWER button to turn the unit on. The preset
alarm levels will be shown followed by a 60-second
countdown. Once complete, the unit will beep and be ready
to analyze CO content in air or other gases. The current CO
concentration will be displayed. CO concentrations
exceeding the preset alarm points will trigger an
audio/visual/haptic alarm. To turn the unit OFF, hold the
POWER button for 3 seconds.
SCUBA CYLINDER TESTING
To test the contents in a scuba cylinder, securely fasten the
calibration cap clip to the unit. Ensure the clip is aligned over
the white sensor hole, then place the rubber dome on the
barb. Gently open the cylinder valve to allow a small amount
of gas to flow (a light hissing sound). Place the dome over
the cylinder valve outlet and allow gas to flow for about 15
seconds. Ideally, the CO concentration in your breathing gas
should be 0 ppm. Divers Alert Network (DAN) recommends
less than 5 ppm for safe diving. The Compressed Gas
Association (CGA) limit is 10 ppm.
AMBIENT AIR TESTING
To monitor ambient air, remove the rubber dome and
calibration cap clip if fitted. Ensure the white sensor hole is
unobstructed. Place the detector in the area to be
monitored. The unit may remain on for as long as needed.
DISPLAY MODE
Display
S
STEL: Short Term Exposure reading 15-
minute time weighted average.
T
TWA: Time Weight Average 8 hour time
weighted average reading.
Time
Digital Clock Display
Press the MENU (M) button on the right-hand side to scroll
through the DISPLAY selection options as shown in the
table. After 6 seconds the display will resume displaying
current CO levels.
FD-103-CO-LOW
TM
FD-103-CO-LOW by
This product can detect
.
TM
Description
BATTERY
The CO meter uses a 9v lithium battery. The battery icon
appears on the top left LCD display. Unscrew the four hex
screws and replace with a new lithium 9V battery.
TIME CHANGE
Use the MENU button to cycle through screens to the
time display. While viewing the time display, press and
hold the MENU button for 2 seconds to change the time.
The hour will begin to flash - use the POWER button to
change the hour. Press the MENU button to move to the
minutes. Use the POWER button to change the minutes.
Once done, hold the MENU button for 2 seconds to save
the time.
MENU FUNCTIONS
Press the MENU button for 2 seconds to enter into the
menu functions. Enter 1234 as the password. The
POWER button updates the digits, and the MENU button
toggles digit selection. When finished, hold the MENU
button for 2 seconds to enter the MENU Function as
shown in the below table. Use the MENU button to
toggle between these selections.
Display
L
Low Alarm Point
H
High Alarm Point
Z
Zero Calibration
C
Span Calibration
Description
