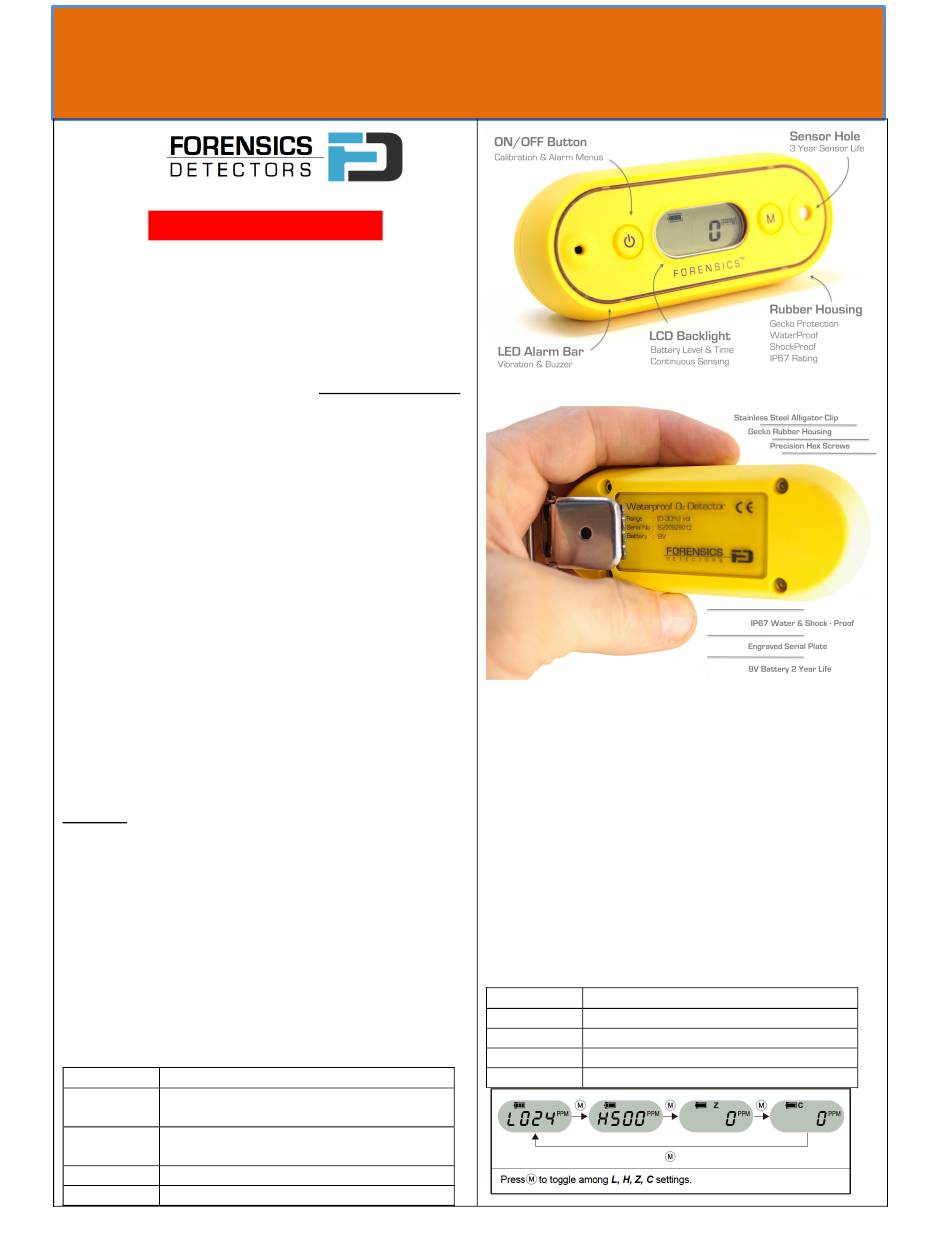

FORENSICS DETECTORS FD-103 Quick Start Manual

WATERPROOF & SHOCKPROOF METER
FORENSICS DETECTORS
MODEL: FD-103
** ATTENTION**
Ø KEEP DETECTOR AWAY FROM
ELECTROMAGNETC & MAGNETIC
INTERFERENCES (i.e. PHONES & MAGNETS)
Ø STORE DETECTOR WITHIN SPECIFICATIONS
Ø IF UNWELL, SEEK FRESH AIR & MEDICAL HELP
Ø KEEP AWAY FROM DUST, VAPORS, HARSH
CHEMICALS. STORE IN A CLEAN PLACE
Ø DO NOT EXPOSE DIRECT TO EXHAUST FUMES
INTRODUCTION
You have purchased
SHOCKPROOF METER
This product tracks gas levels (either CO,
DETECTORS .
TM
O2, H2S – depending on your version) that is suited for gas
detection applications. The monitor operates from a lithium
9V battery that will last up to 2 years. For critical
applications, we recommend calibration every 12 months.
Don't forget to bump test before use. The meter is IP67
compliant and is very rugged. Gas concentrations exceeding
the preset alarm points will trigger an audio/visual/haptic
alarm.
BATTERY
The FD-103 monitor has a built-in 9v lithium battery. When
the detector operates, the battery icon appears on the top
left LCD display. When replacing the battery, unscrew the
4 x hex screws and replace with a lithium 9v battery.
OPERATION
ON/OFF: The ON/OFF power button is located on the front
left of the detector. Press the POWER button to turn ON.
Preset alarm levels will be shown then a 60 second
countdown will take place. Once done the FD-103 monitor
will display the instantaneous gas concentration that it
detects. To turn OFF. Hold the power button for 3 seconds.
DISPLAY MODE
Press the MENU (M) button on the right hand side to scroll
through the DISPLAY selection options as shown in the
table. After 6 seconds the display will return to showing the
normal instantaneous detected level.
Display
S
STEL: Short Term Exposure reading 15-
minute time weighted average.
T
TWA: Time Weight Average 8 hour time
weighted average reading.
Time Digital Clock Display
the
WATERPROOF AND
FD-103 by FORENSICS
Description
TIME CHANGE
When in the time display, hold the MENU button for 2
seconds to change the time. The time hour digit will flash
- use the POWER button to change the hour. Press the
MENU button to toggle to minutes and use the POWER
button to change the minutes. Once done, hold the
MENU button for 2 seconds to save the time.
MENU FUNCTIONS
Press the MENU button for 2 seconds to enter into the
menu functions. Enter 1234 password. The Power
button toggles numbers and MENU button toggles digit
selection. When completed hold MENU button to enter
the MENU Function as shown in the below table. Use the
MENU button to toggle between these selections.
Display
L
Low Alarm Point
H
High Alarm Point
Z
Zero Calibration
C
Span Calibration
FD-103
TM
Description
