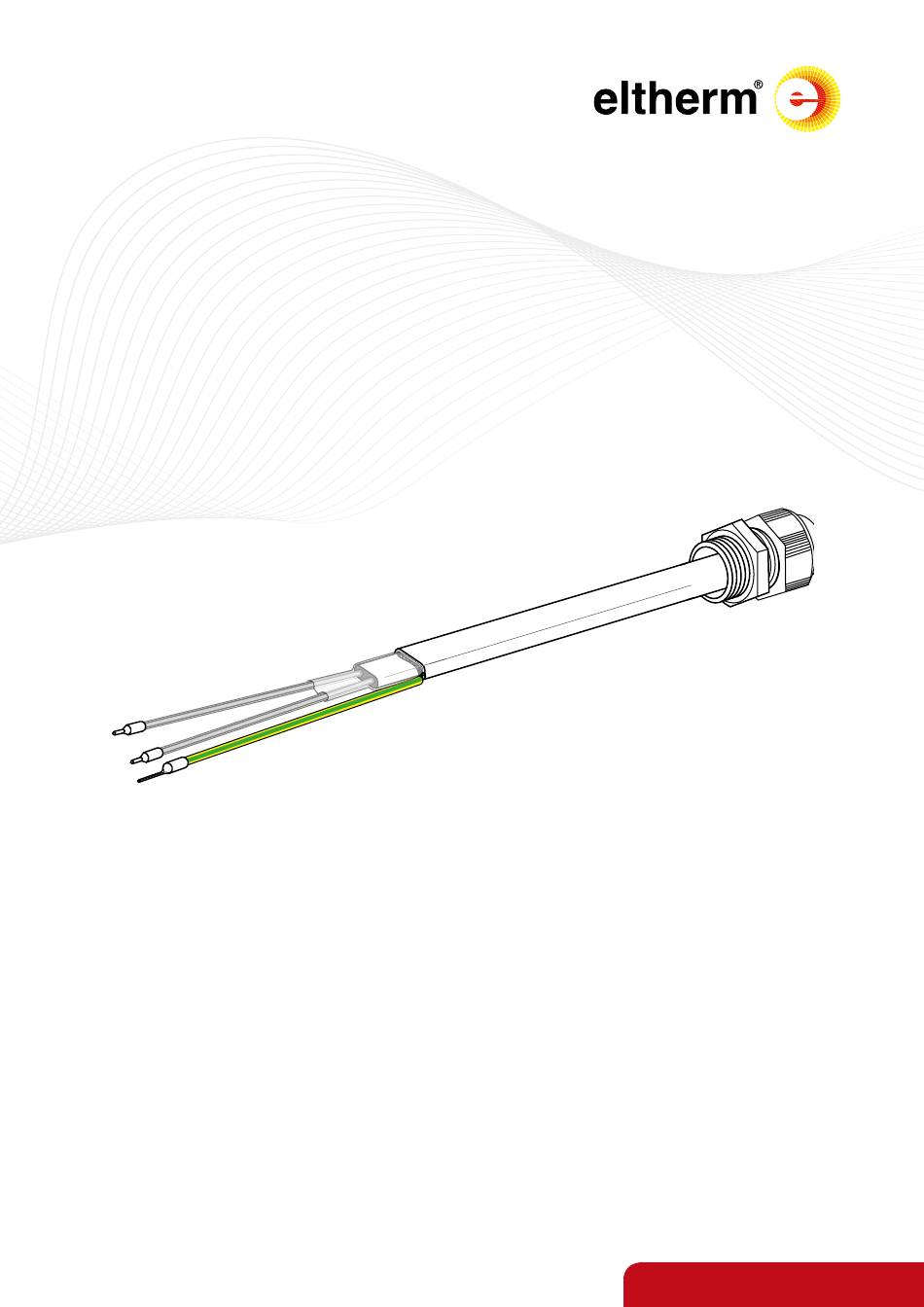

- Page 1 ASSEMBLY INSTRUCTIONS ELVB-SRAs-25 Heat-shrink connection set with M25 cable gland for ELSR-R, -M eltherm GmbH Ernst-Heinkel-Strasse 6 -10 57299 Burbach, Germany P.: +49 2736 4413-0 QAA 058 F.: +49 2736 4413-50 info@eltherm.com Rev.06 www.eltherm.com...
-
Page 2: Table Of Contents
CONTENTS Topic Page Recommended tools Contents of connection set Preparation & assembly Slide on cable gland Remove outer sheath Loosen protective braiding (ELSR type BO/BOT - with braiding) Loosen protective braiding (ELSR type BAF - with braiding & aluminiumfoil) Remove aluminium foil (ELSR type „AO“) Remove inner insulation Expose the supply conductor Finalise assembly... - Page 3 Comply with the applicable and currently valid standards and regulations for safety-related components and systems. Document: Assembly instructions eltherm GmbH 864304091A0XX ELVB-SRAs-25 Ernst-Heinkel-Str. 6-10 57299 Burbach T.: +49 2736 4413-0 F.: +49 2736 4413-50 Author: Peter Schmidt Date: 05.02.2014 info@eltherm.com Revision: 06 Detlef Matthes Date: 12.02.2024 Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com...
-
Page 4: Recommended Tools
RECOMMENDED TOOLS CONTENTS OF CONNECTION SET ELVB-SRAM-25 (article no. 091A015) & ELVB-SRAR-25 (article no. 091A020) Type Quantity Cable gland M25 x 1,5 1 unit Shrink tubing Øi=3/16“ (4,8 mm); l = 115 mm; gn/ye 1 unit Shrink tubing Øi=1/8“ (3,2 mm); l = 100 mm; black 2 units Shrink tubing Øi=3/8“... -
Page 5: Preparation & Assembly
ELSR Type BO/BOT (with braiding) ELSR Type BAF (with braiding / Aluminiumfoil) Loosen protective braiding ATTENTION Do not damage the protective braiding! Push braiding wires apart Pull heating tape through Stretch braiding, do not twist Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... -
Page 6: Remove Inner Insulation
Remove Aluminium foil ELSR Type AO (with Aluminiumfoil) Remove Aluminium foil Stretch earth conductor Remove inner insulation Carefully expose the heating matrix Expose supply conductors Carefully expose supply condudtors &, if necessary, thoroughly clean... -
Page 7: Finalise Assembly
Slide on the heat-shrink tubing (4), shrink at 150°C and press together between the supply conductors with needle-nose pliers when warm Push the wire end ferrules onto the supply conductors, push the pin terminal lug onto the braid and crimp using a suitable tool Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... - Page 8 An earthing kit is not included in the set. If an earthing kit is the cable glands. They contain further important information for required, this must be ordered separately safe use! This document can also be found on the eltherm website. Visit our download area. eltherm GmbH Ernst-Heinkel-Straße 6 -10 57299 Burbach. Germany T.: +49 2736 4413-0...
