SimLab XP-1 Instruction Manual page 12

Control box

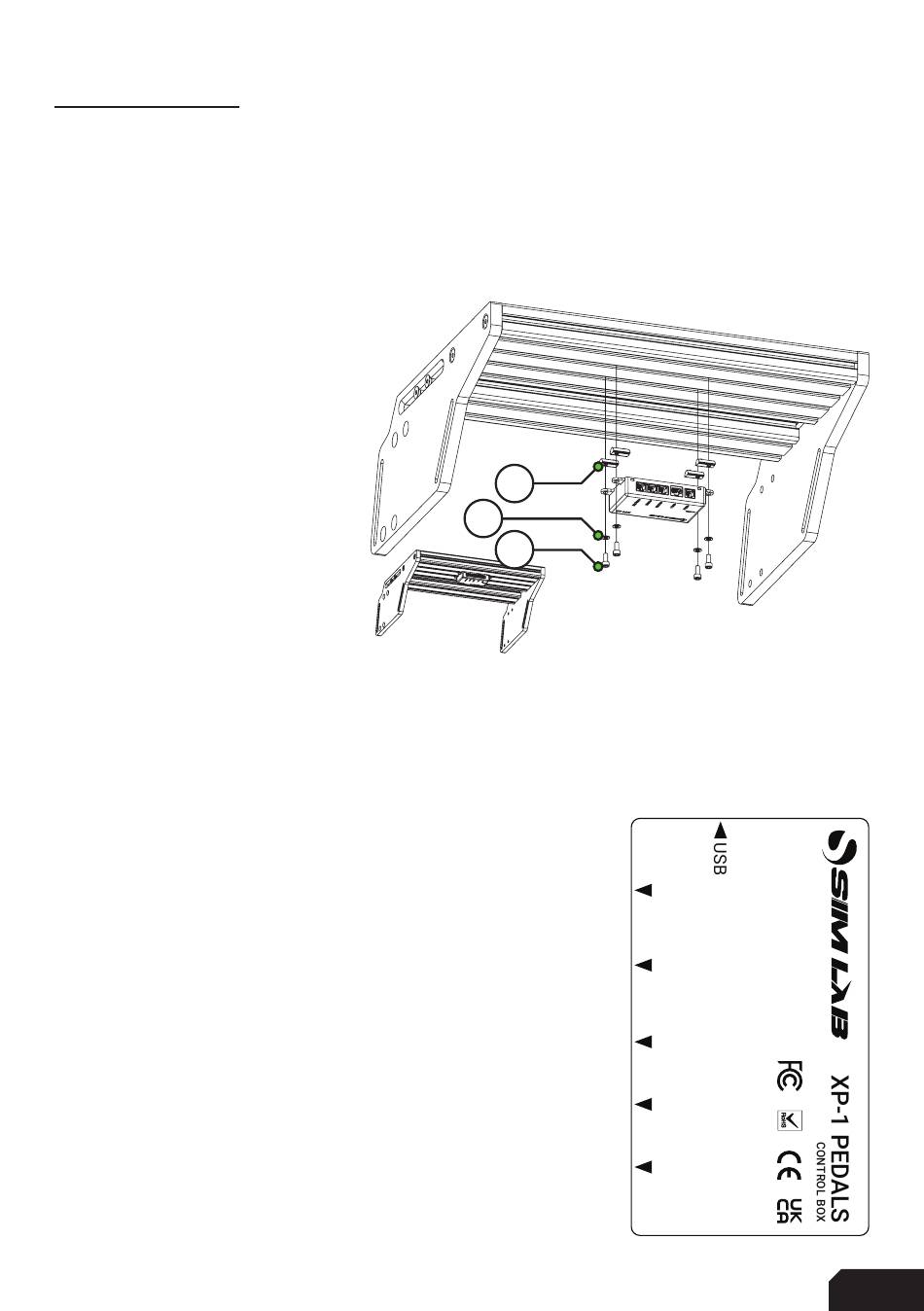

Installation
The mounting tabs are suited to a 80x40 pattern so they can be mounted almost
everywhere near your pedals. Here we chose to mount the control box underneath a
profile based pedal deck found on our P1-X and X1-Pro cockpits.
Using the hardware provided
the control box won't go anywhere.
Don't overtighten the M5 bolts,
the control box doesn't go
anywhere.
Connected the cables to and
from the pedals as labeled.
We recommend taking some
time for cable management.
Please refer to the included
quick start guide for more
information about mounting
the control box.
Plugging in the pedals
All pedals are plugged into the control box the same way. All inputs are labeled, for
reference, here is top-down drawing with the same information as found on the box.
Every pedal uses the same connector, so you don't
have to worry about mixing up the cables or anything.
They are all identical to each other.
When your computer is powered on during installation,
please make sure you plugin the USB cable last. This is
ensures all connected pedals are calibrated correctly on
the first connection.
When you have trouble calibrating pedals
correctly, we recommend to reset the control box by
unplugging the USB cable, wait a second or two and plug
it back in. Now you can resume calibration of all pedals.
A21
A17
A14
EXT. 2
EXT. 1
CLUTCH
BRAKE
THROTTLE
12
12 22 |
