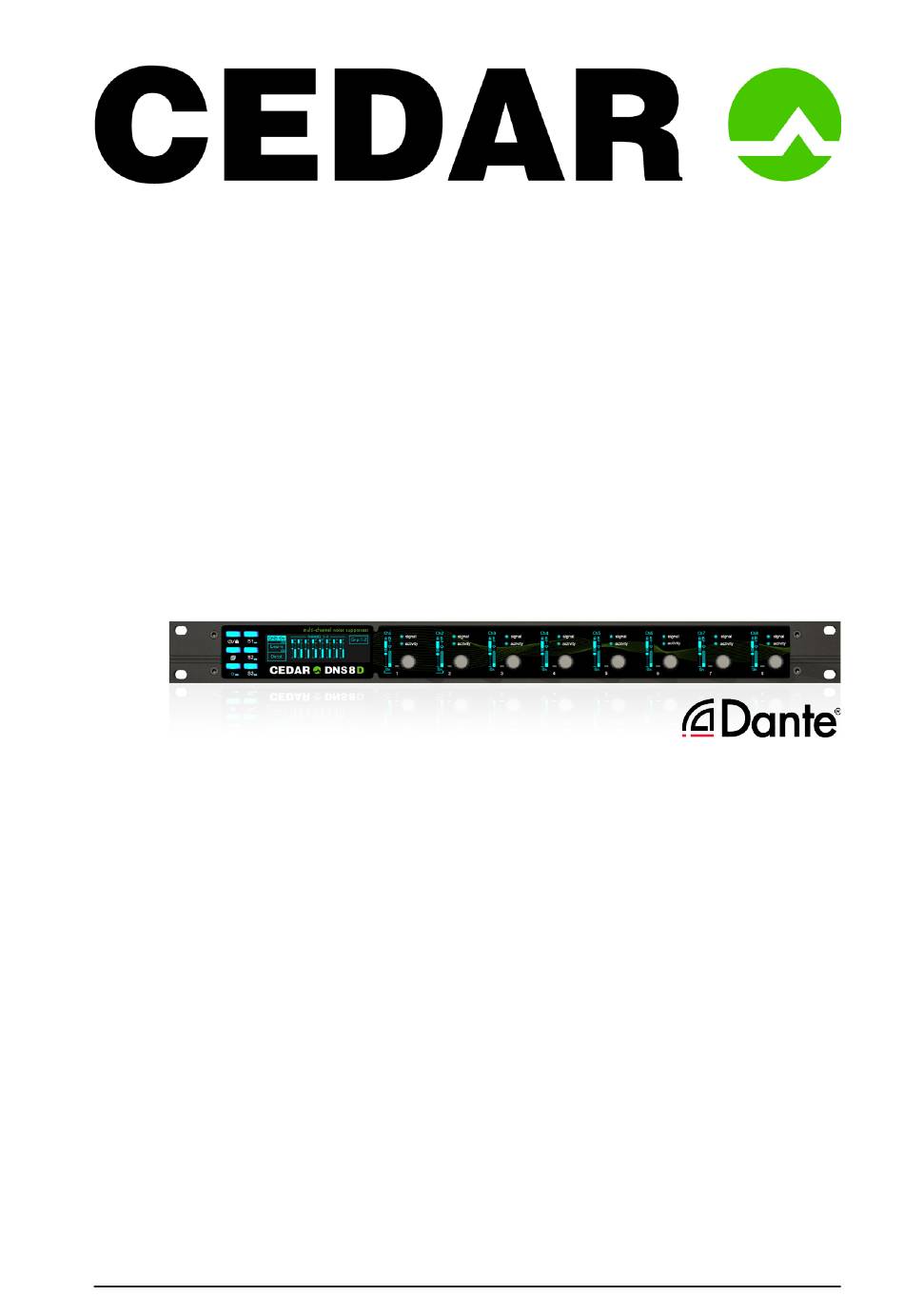

- Page 1 OWNER’S MANUAL © 2019 - 2023 CEDAR Audio Ltd Manual version 1.30: February 2023 Page 1...
- Page 2 Intentionally left blank Page 2...
-
Page 3: Table Of Contents
Table of Contents An Introduction to the DNS 8D ..............4 Safety instructions ..................5 Setting up the DNS 8D ................. 6 Operation ...................... 8 In Use ......................11 Menus ......................14 Remote control ................... 18 Settings ....................... 19 Preset Manager ..................20 Firmware updates .................. -
Page 4: An Introduction To The Dns 8D
® multi-channel digital audio via standard Ethernet networks with near-zero latency and perfect synchronisation. The DNS 8D is the first DNS with a Dante interface in addition to its AES3 audio connections (DB25 using the AES59 pin-out). With fail-safe AES3 audio bypass implemented in the form of hardware relays that immediately connect the inputs to the outputs in the event of a power failure plus support for Dante’s redundant... -
Page 5: Safety Instructions
Mounting and ventilation You should place the DNS 8D on a flat, stable surface or mount it in a standard 19” equipment rack. Use the supplied rubber feet to avoid scratching the surface, or the rackmounting accessories, as appropriate. -
Page 6: Setting Up The Dns 8D
SETTING UP THE DNS 8D Unpack the DNS 8D carefully. Save the carton and all packing materials since you may need them to transport the unit in the future. In addition to the DNS 8D and its packaging, the box should contain the following:... - Page 7 Fail-safe bypass The DNS 8D offers AES3 fail-safe bypass as standard. In the event of a power failure the AES inputs become connected directly to the AES outputs by relays, bypassing the active electronics of the unit.
-
Page 8: Operation
OPERATION Power/Lock The DNS 8D switches on automatically when power is applied. This guarantees that it reboots after a power failure. Switch it off by pressing and holding the power/lock button for about three seconds. The current settings will be stored during shutdown. If the unit is not shut down correctly, settings may not be stored. - Page 9 THE SCREENS Main screen - Summary mode The main screen provides visual feedback regarding the current operation of the unit as well as displaying the menus and associated parameters. In normal use, the four boxes provide information regarding the operation of the DNS 8D: •...
- Page 10 Individual screens - Detail mode The first six displays (1 - 6, viewed from left to right) show the Attenuation and Bias information for a given channel or group on a band-by-band basis, with the lowest frequency band shown within the furthest left display, and the highest frequency band shown within the sixth display.
-
Page 11: In Use
Learn With Learn (S2) on for any channels or groups of channels, the DNS 8D continually identifies the power and spectral distribution of the noise present. When Learn is Off, the noise identification is frozen at the last determined values. If Learn is Off when the unit is switched off, the current noise measurement will be saved and recalled when the unit is next switched On. -
Page 12: Detail View
Groups Grouping channels together makes them adopt identical settings, and allows you to adjust them together. Group channels by clicking two encoders simultaneously or in quick succession. For example, pressing encoders 1 and 4 will group channels 1, 2, 3 and 4 together. Pressing them again removes the grouping. When channels are grouped, you can adjust their Attenuations and Biases using any of the grouped encoders. - Page 13 These allow you to step through the channels/groups. Tutorial If you wish to determine in more detail how the DNS 8D processes each channel, you should use Detail mode to adjust the Attenuations and Biases in each of its six control bands.
-
Page 14: Menus
Some menus provide options to move around on screen and to edit characters or values in specific locations. Status The status page reports the current audio and network status of the DNS 8D. No editing is possible on this page. Page 14... - Page 15 For further explanation of these values, please refer to your Dante documentation. Presets The DNS 8D contains 100 memory locations (“presets”) numbered 0 to 99. Each preset stores the process settings of all eight channels, including grouping when appropriate. If Learn is switched Off, the frozen noise measurement is also stored as part of the preset.
- Page 16 When Off, you may set these manually. Note for network administrators: The DNS 8D sends its serial number as its host name in DHCP requests. If your DHCP server registers host names in the domain name server, you can access your DNS 8D as dns-8-xxxxx.yourdomain.com instead of directly by its numeric IP address.
- Page 17 When configured correctly, the DNS 8D will respond to ICMP echo requests (pings) to its control Ethernet IP address Screensaver Select the length of time that passes between the last adjustment and the screen saver dimming the screens to prolong their lives. Options are 5, 30 or 180 minutes, or Off.
-
Page 18: Remote Control
To access it, connect the DNS 8D’s control port to your Ethernet network. It will attempt to obtain an IP address from the network using DHCP and then register its serial number as its hostname. Once this is complete, enter the unit’s address... -
Page 19: Settings
SETTINGS You may set up the DNS 8D over the network using a standard web browser. Determine the address of your DNS 8D by inspecting the Status window, then launch your browser and type the following into the address bar… xxx.xxx.xxx.xxx/settings.html …where xxx.xxx.xxx.xxx is that address. -
Page 20: Preset Manager
Click on Download Preset Dump to create a file containing all 100 memories within the DNS 8D. Click on Browse to select and reload a previous dump. Presets are always saved and loaded as complete banks of 100. It is not possible to save or load individual slots. -
Page 21: Firmware Updates
CEDAR Audio Ltd. When the upload is complete, the DNS 8D’s front panel will instruct you to power cycle the unit. You must do this by removing the power cable or by switching off the power at the mains before switching the unit on again. -
Page 22: Declaration Of Conformity
Substances. The manufacturing processes include the assembly of purchased components and/or sub-assemblies from various sources. Any statement of RoHS compliance made by CEDAR Audio Ltd may be based, in part or in full, on statements provided by suppliers. Thus whilst every effort is made to ensure compliance, CEDAR Audio Ltd may not have undertaken independent tests to establish the compliance of such components and/or sub-assemblies. -
Page 23: Contact Information
CONTACT INFORMATION Headquarters: CEDAR Audio Ltd, 20 Home End, Fulbourn, Cambridge, CB21 5BS, United Kingdom t: +44 1223 881771 e: support@cedaraudio.com USA Office: CEDAR Audio USA 82 Gilman Street, Portland, ME 04102, USA t: +1 207 828 0024 e: cedarusa@cedaraudio.com... -
Page 24: Specifications
Gb Ethernet Other: AES67 support The CEDAR DNS 8D includes licence from Audinate Pty Ltd under US Patents 7747725, 8005939, 7978696, 8171152, European Patent 2255541, Chinese Patent ZL200780026677.0 and other patents pending or issued, see www.audinate.com/patents. Audinate®, the Audinate logo and Dante® are trademarks of Audinate Pty Ltd. - Page 25 3RD-PARTY LICENCES The CEDAR DNS 8D firmware includes certain elements that are distributed under the following licences. === FreeRTOS LICENSE ================================================================== Copyright (C) 2017 Amazon.com, Inc. or its affiliates. All Rights Reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify,...
- Page 26 the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.
- Page 27 The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable.
-
Page 28: Licence And Limited Warranty
In this Licence and Limited Warranty the following words and phrases shall bear the following meanings: ‘the Company’ is CEDAR Audio Limited of 20 Home End, Fulbourn, Cambridge CB21 5BS, UK; ‘a/the System’ means an instance of the DNS 8D sound processing system comprising hardware and software developed by the Company;... - Page 29 FORCE MAJEURE The Company shall not be liable for any breach of its obligations hereunder resulting from causes beyond its reasonable control including, but not limited to, fires, strikes (of its own or other employees), insurrection or riots, embargoes, container shortages, wrecks or delays in transportation, inability to obtain supplies and raw materials, or requirements or regulations of any civil or military authority.
- Page 30 Copyright CEDAR Audio Ltd, © 2019 - 2023 CEDAR is a registered trademark of CEDAR Audio Ltd DNS, DNS One, DNS 8D, DNS 8 Live, DNS 8 CS, DNS One, DNS Two, DNS 2, DNS1000, DNS1500, DNS2000 and DNS3000 are trademarks of CEDAR Audio Ltd E&OE, Subject to revision at the Company’s sole discretion...
