Summary of Contents for TOLSEN TOOLS 87276

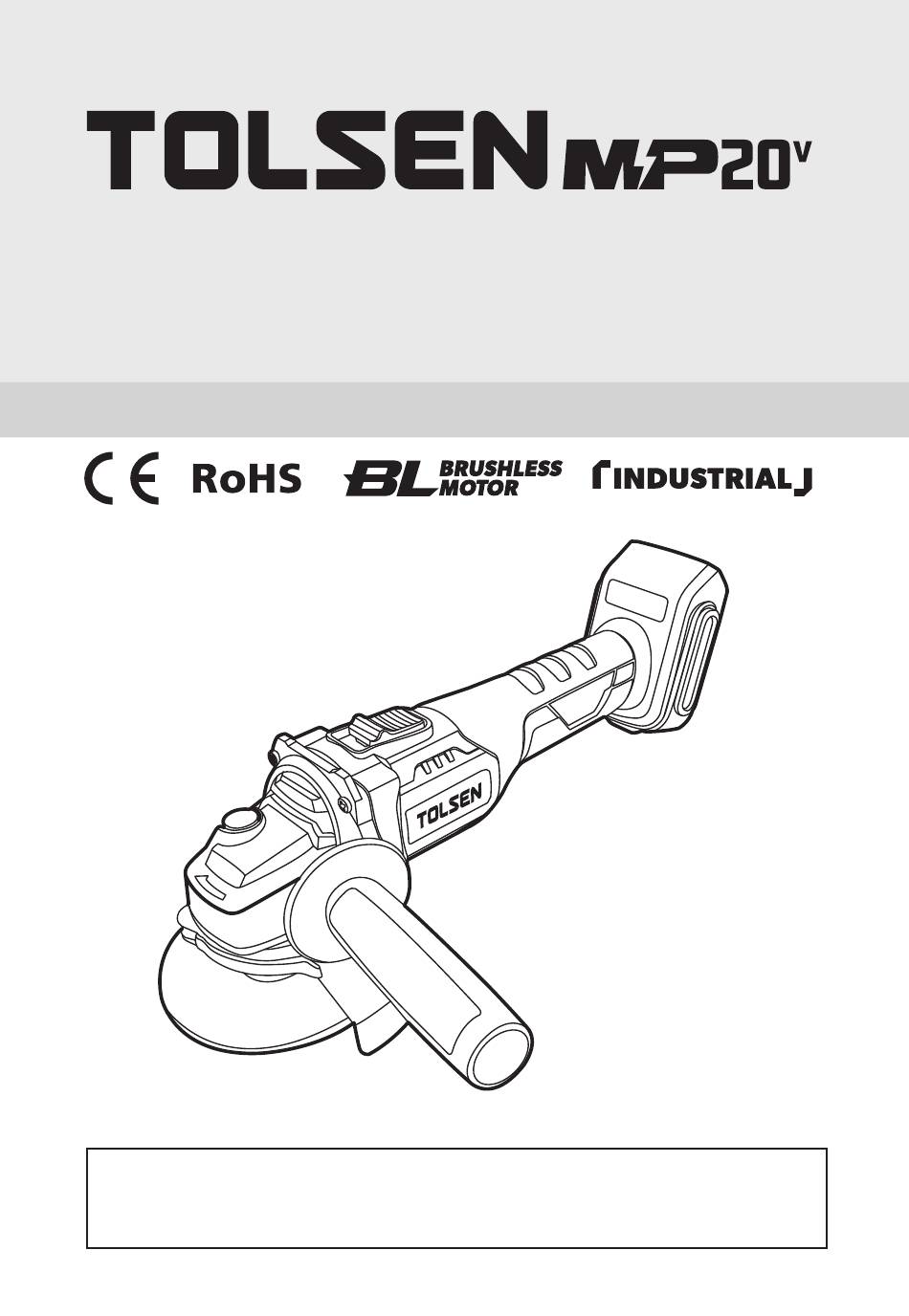

- Page 1 87276 LI-ION CORDLESS ANGLE GRINDER INSTRUCTION MANUAL LITHIUM-ION LITHIUM-ION SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 SAFETY Power tool use and care 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. 2.
- Page 4 SAFETY POWER TOOL-SPECIFIC SAFETY WARNINGS Safety Warnings Common for Grinding, Sanding, Wire Brushing, and Abrasive Cutting-Off Operations 1. This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
-
Page 5: Kickback And Related Warnings
SAFETY Kickback and Related Warnings 1. Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. -
Page 6: Safety Warnings Specific For Sanding Operations
SAFETY Safety Warnings Specific for Sanding Operations Do not use excessively oversized sanding disc paper. Follow manufacturer’s recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback. Safety Warnings Specific for Wire Brushing Operations Be aware that wire bristles are thrown by the brush even during ordinary operation. - Page 7 SAFETY Note: Symbology Class II Double insulated for additional protection CE conformity Read the instruction manual before using Wear hearing protection while operating the tool Wear hand protection Always use breathing apparatus when machining materials which generate dust. Wear ear protection. Waste electrical products should not be disposed of with household waste.
-
Page 8: Functional Description And Specifications
SETUP FUNCTIONAL DESCRIPTION AND SPECIFICATIONS WARNING Disconnect battery pack from tool before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Slide switch Spindle lock Ventilation openings Wrench(in the handle) Vibration control Wheel guard side handle... - Page 9 SETUP ASSEMBLY NOTE: For tool specifications refer to the nameplate on your tool. Accessory speed rating must be equal to or greater than the tool’s speed rating. Do not exceed the recommended wheel diameter. NOTE: Not recommended for use with type 11 cup wheels. Wheel guard installation Wheel guard must be attached when using disc grinding or cutting wheels.
- Page 10 SETUP OPERATING INSTRUCTIONS WARNING Hold the tool with both hands while starting the tool, since torque from the motor can cause the tool to twist. Start the tool before applying to work and let the tool come to full speed before contacting the workpiece. Li the tool from the work before releasing the switch.
-
Page 11: Maintenance
MAINTENANCE WARNING: ALWAYS disconnect from the mains power supply, before carrying out any maintenance/ cleaning of the charger. Remove the battery before carrying out any maintenance/ cleaning of the tool. Note: Both the tool and the charger contain no user-serviceable parts. If the device does not perform as outlined in this manual, return it to an authorised service centre for repair General inspection - Regularly check that all the fixing screws are tight... -
Page 12: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING problem possible causes Likely Solutions Tool will not 1. Battery Pack not properly 1. Remove Battery Pack, make sure there are no obstructions, clean battery contacts on tool, start. connected. reinsert the Battery Pack according to its shape 2. -
Page 13: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 87276 LI-ION CORDLESS ANGLE GRINDER Complies with the essential health and safety requirements of the following Directices: council directive 2006/42/EC Standards and technical specifications referred to:... - Page 14 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. TolsenWorld SCAN TO VISIT MADE IN CHINA PRODUCT LINK...
