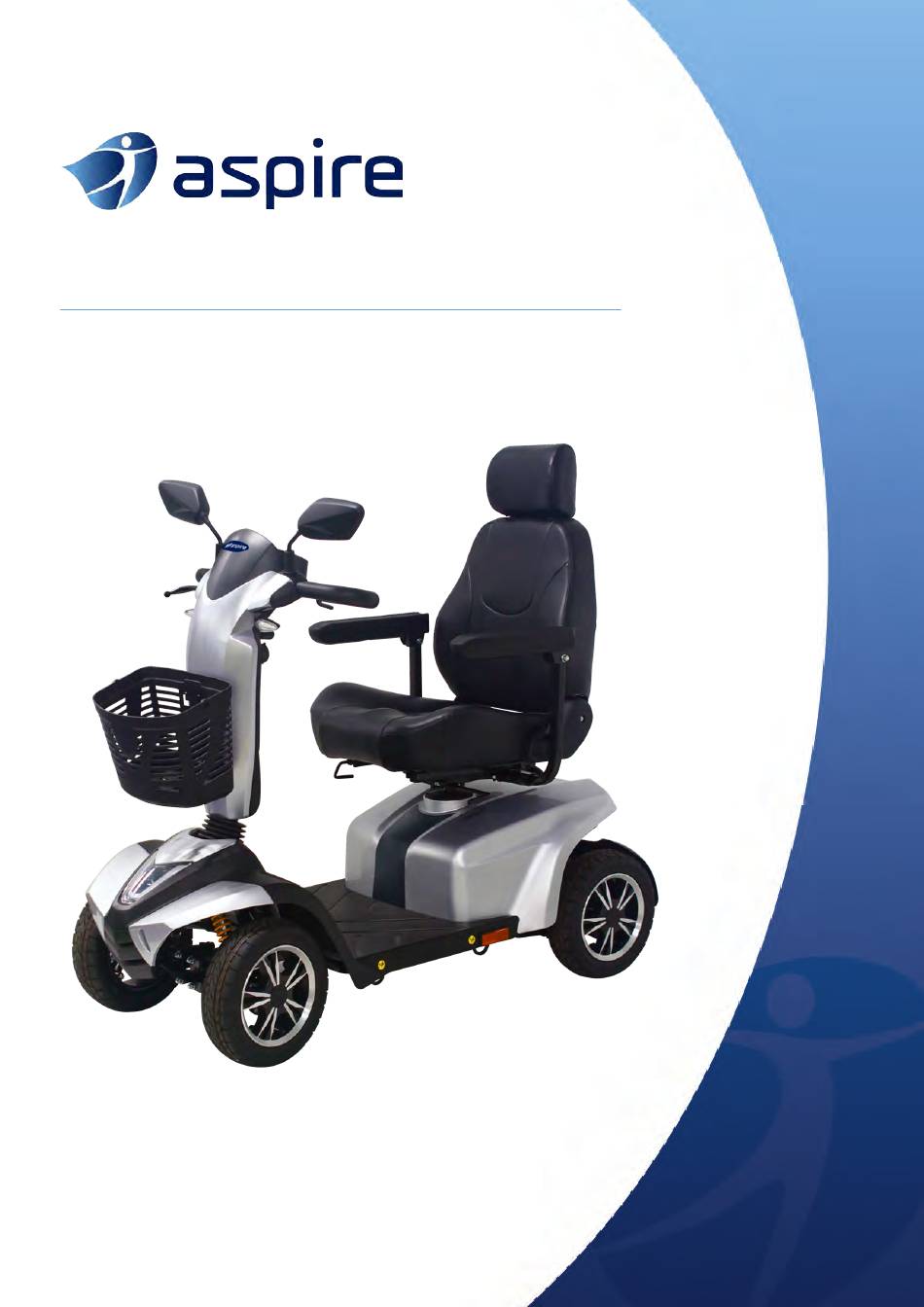

- Page 1 USER MANUAL HS828 MOBILITY SCOOTER LARGE...
-
Page 2: Table Of Contents
User Manual HS828 TABLE OF CONTENTS 01.INTRODUCTION ..................1 02.IMPORTANT PRECAUTIONS ..............2 2-1 BEFORE DRIVING SCOOTER 2-2 CAUTIONS WHEN DRIVING 2-3 GENERAL SAFETY INFORMATION FOR SCOOTER 2-4 CAUTIONS WHEN DRIVING ON INCLINES 2-5 CAUTIONS WHEN CLIMBING 2-6 ELECTROMAGNETIC INTERFERENCE AND WARNINGS 2-7 SAFETY WARNING AND INSTRUCTION LABELS 03.IDENTIFICATION OF PARTS ..............8... -
Page 3: Introduction
User Manual 1.INTRODUCTION Thank you and congratulations on purchasing your new Aspire mobility scooter. It is designed to provide the transportation ability indoors and outdoors for person whose ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric scooter. -
Page 4: Important Precautions
HS828 User Manual 2.IMPORTANT PRECAUTIONS 2-1 Before driving for the first time, •Before taking the first trip with mobility scooter, you should familiarize yourself well the operation of mobility scooter and with the operation elements. Please take your time to read this introduction booklet. •Before driving, please evaluate the personal condition, and fully understand the operation of mobility scooter. -
Page 5: Cautions When Driving
User Manual HS828 2-2 CAUTIONS WHEN DRIVING •Please do the daily check before your journey always. (Refer to 7-1 Daily check.) •Do not extend your body over the mobility scooter. •Please make sure your safety when crossing the level crossing. •Cross the level crossing, please be aware of the wheel and rail are perpendicular. -
Page 6: General Safety Information For Scooter
User Manual HS828 2-3 GENERAL SAFETY INFORMATION FOR SCOOTER •Batteries should be fully charged before using for maximum performance and longevity. (see section 6-2) •The maximum load of the scooter is 160kg. Do not exceed the maximum permissible load. Exceeding the max.weight rating may result in injury to yourself. •The maximum load of the front basket is 3KG, exceeding the max. -
Page 7: Cautions When Climbing
User Manual HS828 2-5 CAUTIONS WHEN CLIMBING •The maximum height of obstacle and curb that scooter can climb is up to 10 cm with run-up (A). •The maximum gap that scooter can drive over is 15-20 cm (B). •Always overcome obstacles straight on at 90 degrees, in one stroke, do not stop halfway! Firstly, make sure the front wheels of the scooter is perpendicular to the obstacle, approach the obstacle slowly until the front wheels touch... - Page 8 User Manual HS828 Mobility Scooter Electromagnetic Interference： Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.
-
Page 9: Safety Warning And Instruction Labels
HS828 User Manual 2-7 SAFETY WARNING AND INSTRUCTION LABELS. Figure 2 Warning Sticker 1.Please read the instruction booklet carefully before using your scooter. 2.Do not drive the scooter on slippery surfaces or on slopes over 6~10 degrees limit. 3.Do not drive on highway, crowded roads, or unfamiliar areas. 4.Do not turn at high speed in either forward or reverse. -
Page 10: Identification Of Parts
User Manual HS828 3.IDENTIFICATION OF PARTS Figure 3 Figure 4 ITEM Rear Mirror Emergency Hand Brake Tiller Angle Adjustment Lever Front Basket Headlight Decorative Light Side Reflector Seat fore-aft Adjustment Lever Seat Swivel Lever Width adjustable armrests Seat Back Angle Adjustment Lever Luxury Seat Throttle Level Control Panel... -
Page 11: Introduction & Operation Of Control Panel
HS828 User Manual 4.INTRODUCTION & OPERATION OF CONTROL PANEL 4-1 IDENTIFICATION of CONTROL PANEL Left Turn Indicator H/L Speed Indicator Headlight Indicator Right Turn Indicator Mode Hazard Light Hi/Lo Switch Headlight Left Turn Signal Right Turn Deceleration Horn Acceleration Signal Figure 5 - HS-828 Control Panel Button Name Operation... -
Page 12: Operation & Set Up
User Manual HS828 Main Key Switch : •Turn the key to the right - Turn scooter on. •Turn the key to the left - Turn scooter off. •Turn on the scooter, control panel will be in standby mode. (C) •Always ensure that the scooter is switched off before getting on or off the scooter and before removing any items of the scooter. - Page 13 HS828 User Manual Head light / Tail light/ Decorative light : •There are 4 modes for lights: On (Default) / Off / Head Light / 3-Stage. •Please refer to section 4-4 for light modes setting. •For any head light or tail light faults, the panel indicator will flash and stop in 5 seconds when pressing headlight switch.
-
Page 14: Mode] Selection
HS828 User Manual 4-3 [MODE] SELECTION •Press [MODE] to change display mode: TIME, TEMP, ODO, and TRIP. Figure 11 Figure 12 [ TIME ] [ TEMP ] Figure 13 Figure 14 [ ODO ] [ TRIP ] Exit / Save : •Setup mode will automatically quit after 15secs without pressing [left turn] and [right turn], and scooter will save the setting and return to operation mode. -
Page 15: Setting -User Define
User Manual HS828 4-4 SETTING- USER DEFINE 1.Make sure the scooter (key) is off. 2.Press and hold both [ ] then turn on the key. Keep holding the buttons until the LCD screen is on. MODE 3.Press [ MODE ] button to select the Save/Exit/ modes you want to set up. -
Page 16: Operation Your Scooter
User Manual HS828 5.OPERATION YOUR SCOOTER 5-1 GERNERAL OPERATION Brake : •Release throttle, scooter will stop automatically. •If necessary, please use handbrake to stop scooter. (Figure 20) Throttle : •Pull the right throttle to move scooter forward. Pull the left throttle to move scooter backward. -
Page 17: Free-Wheeling (N-D Lever)
User Manual HS828 Figure 24 Figure 25 Armrest angle, height, and width adjustment : •Width : Loosen the thumbscrews as picture to adjust the width, tighten again to lock at a desired position. (Figure 27) •Angle : Adjust the attached screw height to control armrest’s angle. Pull the armrest up when getting on or off the scooter. -
Page 18: Disassembling Your Scooter
User Manual HS828 5-4 DISASSEMBLING YOUR SCOOTER Disassembling seat : •By lifting lever to remove seat upwards. (Figure 30) Rear Compartment cover : •Open the compartment cover upwards according to the example. (Figure 31) Disassembling front basket : •Lift the front basket upwards. (Figure 32) Do not turn on the scooter when disassemble/assemble the scooter, and make sure the scooter is in D position. -
Page 19: Charging The Batteries
HS828 User Manual 6.CHARGING THE BATTERIES 6-1 OPERATING THE CHARGER Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger. The charging procedure may be different from below. -
Page 20: Care And Maintenance
HS828 User Manual 7.CARE AND MAINTENANCE 7-1 DAILY CHECK Please always check your scooter before you start your every journey. Check point Inspection Ref. What to do if the inspection is failed N-D lever Check for correct function P.12 Contact your dealer. Horn Check for correct function P.10... -
Page 21: Cleaning Your Scooter
User Manual HS828 7-4 CLEANING YOUR SCOOTER •Do not use any abrasive or scouring liquids for cleaning. Only use a damp cloth and gentle detergent. •Do not use hose pipe or splash water directly onto the scooter as this may cause damage to electronics. -
Page 22: Other Information
User Manual HS828 Setting : •Please reset for next maintenance distance when the maintenance is performed. 1.Turn the power (key) off 2.Press [MODE] button and [ ] button at the same time. 3.Hold the two buttons and then turn the power to get in Maintenance mode setting. 4.Press [ ] to increase digits (+ 500km/per press) or [ ] to decrease digits (-500km/... -
Page 23: Trouble Shooting
User Manual HS828 9.TROUBLE SHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a self-diagnostic warning light on the control panel. To check the self-diagnostic warning light, turn on the key and count the number of blinks on the warning light. 9-1 SCOOTER WON’T MOVE WHEN KEY IN TURNED ON Check point Solution... -
Page 24: Options
User Manual HS828 OPTIONS We offer below options to add functionality for your scooter, please contact the authorized dealer for more information. Height Adjustable Armrests 12V/75Ah Battery 8A Charger Safety Turning Speed Reduction (Gyro Meter) When turning left and right, scooter will reduce the speed itself according turning space to ensure safety. -
Page 25: Technical Specifications
HS828 User Manual 10.TECHNICAL SPECIFICATIONS Overall Length 1400 mm Overall Width 680 mm Overall Height 1325 mm Front Wheels 330 mm / 13" Rear Wheels 330 mm / 13" Weight W/ Batteries 124 kg Max. Speed 10 kmph Weight Capacity 160 kg Ground Clearance 90 mm... -
Page 26: Service Log Book
HS828 User Manual SERVICE LOG BOOK YEAR 1 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 2 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 3 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 4... - Page 28 MANUFACTURED AND IMPORTED BY: AIDACARE PTY LTD. Building 3A, 1 Moorebank Avenue, Moorebank NSW Australia 2170 1300 133 120 | www.aspirecare.com.au...
