- Page 1 USER MANUAL HS589 MOBILITY SCOOTER MIDI...
-
Page 2: Table Of Contents
HS589 User Manual TABLE OF CONTENTS INTRODUCTION -----------------------------------------------------------1 IMPORTANT PRECAUTIONS -------------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS -----3 SAFETY WARNING AND INSTRUCTION LABELS ----------------5 IDENTIFICATION OF PARTS -------------------------------------------6 OPERATING YOUR SCOOTER ----------------------------------------8 DISASSEMBLING YOUR SCOOTER --------------------------------10 RE-ASSEMBLING YOUR SCOOTER --------------------------------11 CHARGING THE BATTERIES -----------------------------------------11 CARE AND MAINTENANCE -------------------------------------------13... -
Page 3: Introduction
Thank you and congratulations on purchasing your new Aspire Mobility Scooter. It is designed to provide you with transportation indoors and outdoors. Chien Ti Enterprise Co., Ltd. is the manufacturer for the Aspire mobility scooter. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction with our product. -
Page 4: Important Precautions
HS589 User Manual IMPORTANT PRECAUTIONS •Only one person at a time could ride an Aspire Mobility Scooter. •Maximum load is 135 kg / 300 lbs. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. -
Page 5: Electromagnetic Interference And Warnings
HS589 User Manual ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 HS589 User Manual Warnings： Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized scooters. Following the warnings listed below should reduce the chance of unintended brake release or motorized scooter movement, which could result in serious injury. 1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as cellular phones, while the motorized scooter is turned ON;...
-
Page 7: Safety Warning And Instruction Labels
HS589 User Manual SAFETY WARNING AND INSTRUCTION LABELS Warning Sticker 1.Please read the instruction booklet carefully before using your scooter. 2.Do not drive the scooter on slippery surfaces or on slopes over 10 degrees limit. 1.Please read the instruction Booklet carefully before using your scooter. 2.Keep the scooter properly maintained. -
Page 8: Identification Of Parts

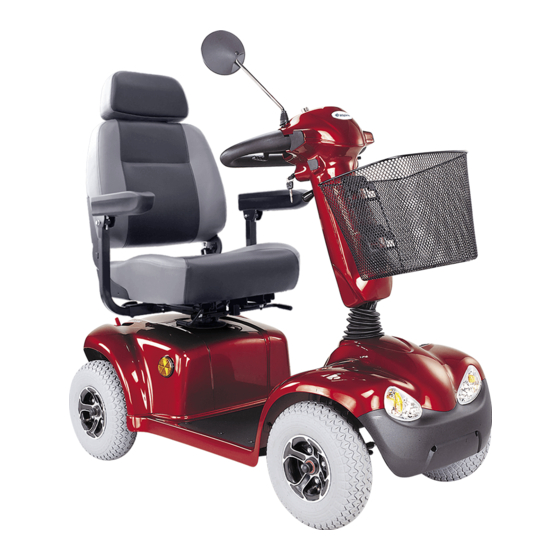

HS589 User Manual IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls and how they operate. Rearview Mirror Delta Handle Bar Tiller Angle Adjustment Mid-Back W/Headrest Swivel Seat Tilting Armrest Front Basket... - Page 9 HS589 User Manual Function Of Parts： •MAIN SWITCH (A) (See Fig. 4) 1.Turn the key clockwise to ON to switch power on status. 2.Turn the key counterclockwise to OFF to switch power off status. •SPEED CONTROL KNOB (B) (See Fig. 5) 1.Turn the speed control knob clockwise for faster speed.
-
Page 10: Operating Your Scooter
User Manual HS589 Figure 10 Figure 11 Figure 12 1.The scooter can be pushed manually by pushing the lever forward to N position (J). 2.Before driving, make sure to engage the free-wheeling lever (J) to D position. Its extremely dangerous and forbidden to drive on the scooter when free-wheeling lever is disengaged and declining a slope. - Page 11 HS589 User Manual 6.If only two-battery gauge LED lights are lit, you should plan to recharge the batteries very soon. 7.If the scooter stops and does not function, locate the circuit breaker (M) in the storage area. Push it and try the scooter again.
-
Page 12: Disassembling Your Scooter
HS589 User Manual DISASSEMBLING YOUR SCOOTER Taking apart your scooter enables you to save space when keeping it in storage or to carry it along in your vehicle when going away from home. Having the scooter disassembled is easier than ever since no tools are required. Please follow these steps Remove the seat by pull the Seat Rotation Lever (N) up and then lift off. -
Page 13: Re-Assembling Your Scooter
HS589 User Manual Figure 26 Figure 27 Figure 28 RE-ASSEMBLING YOUR SCOOTER To assemble the scooter, you can repeat the disassembly directions in reverse. Abbreviated directions are given below. Refer to the figures on pages 12-13 to locate the parts. 1.Using the tiller angle adjustment, unfold the tiller in an upright position. - Page 14 HS589 User Manual 4.Charging starts. During charging, LED (Charge) will indicate orange light, when it turns to green light, that means well-charged. 5.LED indication •LED(POWER) - GREEN LIGHT ON : Power On. •LED(CHARGE) - ORANGE LIGHT ON : Charging / GREEN LIGHT ON : Fully Charged 6.Charger Trouble Shooting (A)If LED (POWER) light is off •Check the input voltage (115V/230V) is the same as you adjust.
-
Page 15: Care And Maintenance
HS589 User Manual CARE AND MAINTENANCE DAILY CHECK Please always check your scooter before you start your every journey. Check point Inspection What to do if the inspection is failed N-D lever Check for correct function Contact your dealer. Horn Check for correct function Contact your dealer. -
Page 16: Other Information
HS589 User Manual Seat Upholstery : Taking care of your scooter will keep it in top-notch condition. It is recommended that you have your dealer to provide preventative maintenance service of your scooter on a regularly basis. Here are a few maintenance guidelines : CLEANING YOUR SCOOTER •Do not use any abrasive or scouring liquids for cleaning. -
Page 17: Trouble Shooting
HS589 User Manual TROUBLE SHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a self-diagnostic warning light on the control panel. To check the self-diagnostic warning light, turn on the key and count the number of blinks on the warning light. SCOOTER WON’T MOVE WHEN KEY IS TURNED ON Check point Solution... -
Page 18: Technical Specifications
HS589 User Manual TECHNICAL SPECIFICATIONS Overall Length 1290 mm Overall Width 625 mm Overall Height 1150 mm Front Wheels 290 mm Rear Wheels 290 mm Weight W/ Batteries 98 kg Max. Speed 10 kmph Weight Capacity 135 kg Ground Clearance 90 mm Grade Climbable 15 degree... - Page 20 MANUFACTURED AND IMPORTED BY: AIDACARE PTY LTD. Building 3A, 1 Moorebank Avenue, Moorebank NSW Australia 2170 1300 133 120 | www.aspirecare.com.au...
