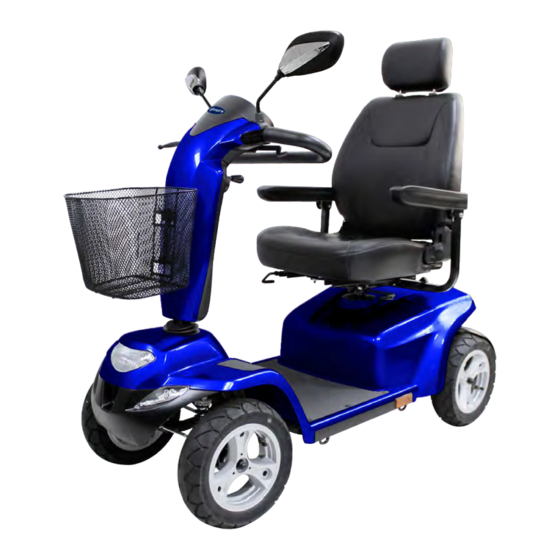

- Page 1 USER MANUAL HS898 MOBILITY SCOOTER LARGE...
-
Page 2: Table Of Contents
HS898 User Manual TABLE OF CONTENTS INTRODUCTION -------------------------------------------------------1 IMPORTANT PRECAUTIONS ---------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ---3 SAFETY WARNING AND INSTRUCTION LABELS -------------5 IDENTIFICATION OF PARTS ---------------------------------------6 CHARGING THE BATTERIES -------------------------------------11 DISASSEMBLING YOUR SCOOTER ----------------------------12 ASSEMBLING YOUR SCOOTER ---------------------------------13 OPERATING YOUR SCOOTER -----------------------------------13 CARE AND MAINTENANCE ---------------------------------------15... -
Page 3: Introduction
User Manual INTRODUCTION Thank you and congratulation on purchasing your new Aspire mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction. -
Page 4: Important Precautions
HS898 User Manual IMPORTANT PRECAUTIONS •Only one person at a time could ride an Aspire Mobility Scooter. •Maximum load is 181 kgs / 400 pounds. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. -
Page 5: Electromagnetic Interference And Warnings
HS898 User Manual ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 HS898 User Manual 1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as cellular phones, while the motorized scooter is turned ON; 2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them;...
-
Page 7: Safety Warning And Instruction Labels
HS898 User Manual SAFETY WARNING AND INSTRUCTION LABELS Warning Sticker 1.Please read the instruction booklet carefully before using your scooter. 2.Do not drive the scooter on slippery surfaces or on slopes over 10 degrees limit. 1.Please read the instruction Booklet carefully before using your scooter. 3.Do not drive on highway, crowded roads, or unfamiliar areas. -
Page 8: Identification Of Parts
HS898 User Manual IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate Rear Mirror Swivel Seat With Head Rest Throttle Tiller Angle Adjustment Basket Adjustable Armrest... - Page 9 HS898 User Manual FUNCTION OF PARTS： MAIN SWITCH (A) 1.By turning the key clockwise to NO to turn on the power 2.By turning the key anticlockwise to OFF to turn off the power. Speed Dial Knob (B) The Rabbit means fast and Turtle is slow. By turning this you control total speed transferred to thumb controls.
- Page 10 HS898 User Manual Battery Gauge Capacity Battery Capacity% Display ☆ ☆ ☆ ☆ ☆ ☆ ☆ >80 ☆ ☆ ☆ ☆ ☆ ☆ <80 <65 ☆ ☆ ☆ ☆ ☆ <50 ☆ ☆ ☆ ☆ <35 ☆ ☆ ☆ <25 ☆...
- Page 11 HS898 User Manual Table of Warning Sound Settings Function Volume Button Volume Adjustment Reverse Warning Sound Head Light Button Flash Turn Signal Warning Left or Right Turn Signal Sound Button Minimum Stop (Warning) Warning Stop (Warning) Light Sound Button Low Voltage Warning Hi &...
- Page 12 HS898 User Manual Throttle Pulling right Throttle (E) moves scooter forward. Pulling left Throttle (F) moves the scooter backward. (This can be reversed if required by local dealer.) Releasing both, engages automatic brake. These are also your accelerator. The further you depress them, the faster you go. (Subject to the position of the Rabbit/Turtle control).
-
Page 13: Charging The Batteries
HS898 User Manual CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger. The charging procedure may be different from below. -
Page 14: Disassembling Your Scooter
HS898 User Manual DISASSEMBLING YOUR SCOOTER Disassembling Basket By lifting the basket (O) upwards. Disassembling Seat By lifting lever (H) and seat (a) upward. Rear Compartment Cover Open the Compartment Cover (P) according to arrow's direction. Figure 13 Figure 14 Figure 15 Disassembling Batteries Tear off battery straps (Q) and disconnect battery connectors (R) to remove the batteries (b). -
Page 15: Assembling Your Scooter
HS898 User Manual ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat disassembly directions in reverse. Abbreviated directions are given below. Refer to Figures on pages 12 to locate parts. 1.Use the tiller adjustment to move tiller up and out of the way. 2.Place front basket. - Page 16 HS898 User Manual Other Operating Information： Hill climbing: You may need to use a higher speed. Turn to lower speed before going downhill. Down slopes: proceed with downward slopes slowly, and set speed control in proximity of turtle. The closer speed control is set toward turtle, the slower scooter travels.
-
Page 17: Care And Maintenance
HS898 User Manual CARE AND MAINTENANCE DAILY CHECK Please always check your scooter before you start your every journey. Check point Inspection What to do if the inspection is failed N-D lever Check for correct function Contact your dealer. Horn Check for correct function Contact your dealer. -
Page 18: Other Information
HS898 User Manual CLEANING YOUR SCOOTER •Do not use any abrasive or scouring liquids for cleaning. Only use a damp cloth and gentle detergent. •Do not use hose pipe or splash water directly onto the scooter as this may cause damage to electronics. -
Page 19: Trouble Shooting
HS898 User Manual TROUBLE SHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a self-diagnostic warning light on the control panel. To check the self-diagnostic warning light, turn on the key and count the number of blinks on the warning light. SCOOTER WON’T MOVE WHEN KEY IS TURNED ON Check point Solution... -
Page 20: Technical Specifications
HS898 User Manual TECHNICAL SPECIFICATIONS Overall Length 1440 mm Overall Width 720 mm Overall Height 1360 mm Front Wheels 330 mm Rear Wheels 330 mm Weight W/ Batteries 145 kg Max. Speed 10 kmph Weight Capacity 180 kg Ground Clearance 100 mm Grade Climbable 10 degree... - Page 21 HS898 User Manual SERVICE LOG BOOK YEAR 1 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 2 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 3 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 4...
- Page 22 HS898 User Manual YEAR 6 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 7 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 8 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: _________________________________________ YEAR 9 Date:...
- Page 24 MANUFACTURED AND IMPORTED BY: AIDACARE PTY LTD. Building 3A, 1 Moorebank Avenue, Moorebank NSW Australia 2170 1300 133 120 | www.aspirecare.com.au...
