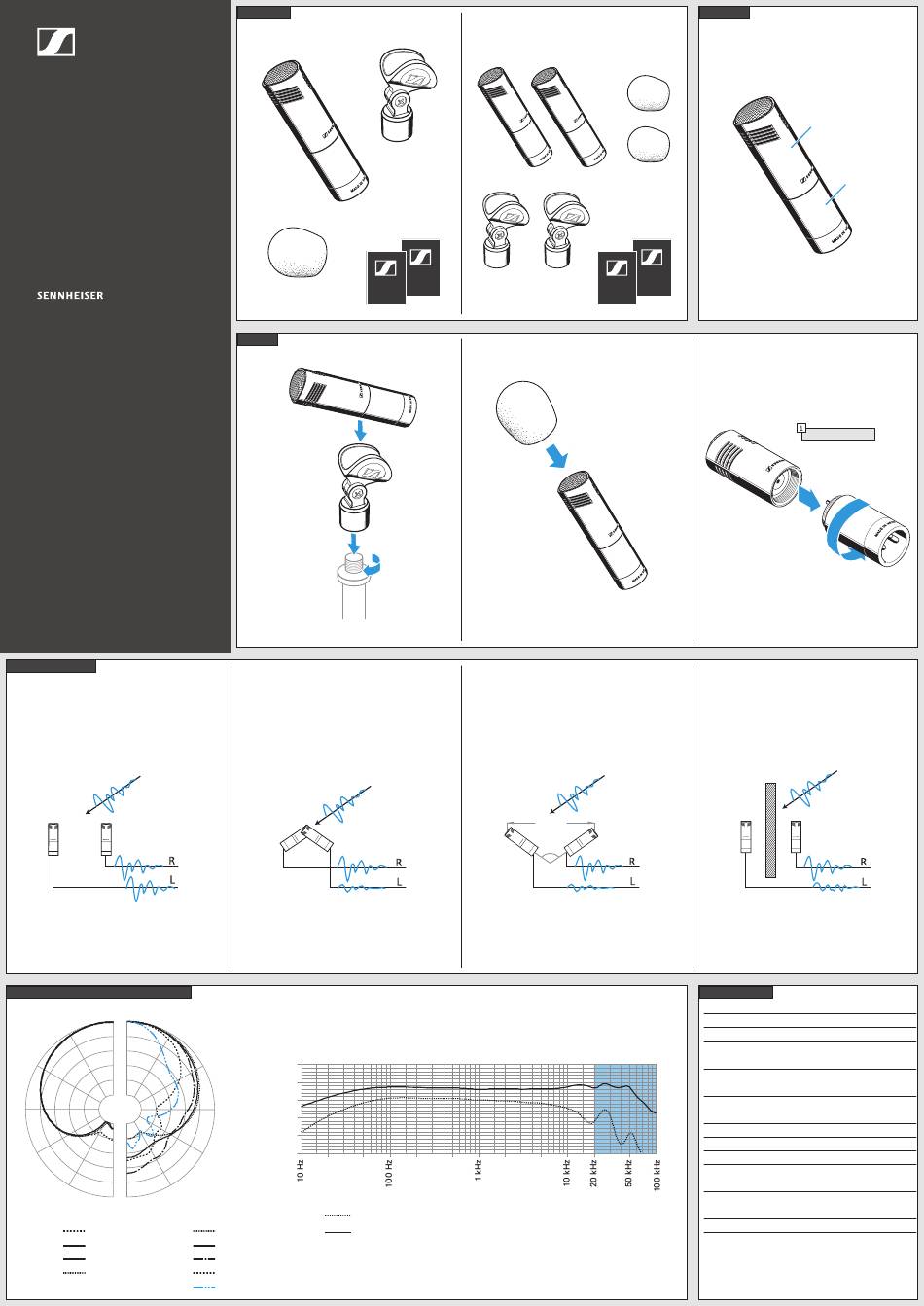

Sennheiser MKH 8040 Quick Manual

MKH 8040
MKH 8040 Stereoset
Quick Guide Kort vejledning
Kurzanleitung Pikaohje
Γρήγορος οδηγός
Guide rapide
Guida rapida Kısa Kılavuz
Guía de inicio rápido Краткая инструкция
快速指南
Guia rápido
快速使用指南
Beknopte handleiding
クイックガイド
Krótka instrukcja obsługi
퀵 가이드
Snabbguide
Sennheiser electronic SE & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 07/24, 581391/A05
Stereo recording
Time-of-arrival stereo (AB):
(almost) only time-of-arrival differences
Polar pattern and frequency response
0°
0
30° 30°
5
10
60°
15
20
25
dB
90°
120°
150°
150°
180°
125 Hz 2,000 Hz
250 Hz 4,000 Hz
500 Hz 8,000 Hz
1,000 Hz 16,000 Hz
32,000 Hz
In the box
MKH 8040
Quick
Guide
Setup
Intensity stereo (XY):
only sound pressure level differences
dB
60°
-20
-30
-40
90°
-50
-60
-70
120°
90°
0°
MKH 8040 Stereoset
Safety
Guide
Equivalence or mixed stereo (here: ORTF):
sound pressure level and time-of-arrival
differences
17 cm
110°
Overview
Safety
Quick Guide
Guide
Baffle stereo (here: OSS):
sound pressure level, time-of-arrival and
spectral differences with off-axis sound
Specifications
Pick-up pattern
Frequency response
Sensitivity
with MZF 8000 II
Max. SPL
with MZF 8000 II
Equivalent noise level
Phantom powering
Current consumption
Diameter
Length
with MZF 8000 II
Weight
with MZF 8000 II
Operting temperature
1 Microphone head
2 XLR module
1
2
MKH 8000 Series
cardioid
30 - 50,000 Hz
−34 dBV/Pa (31 mV/Pa)
−44 dBV/Pa (10 mV/Pa)
142 dB
137 dB
13 dB(AA)
22 dB (CCIR)
48 V ±4 V (P48, IEC 61938)
3.3 mA
approx. 19 mm
approx. 41 mm
approx. 74 mm
approx. 25 g
approg. 55 g
-10 °C to 60 °C
