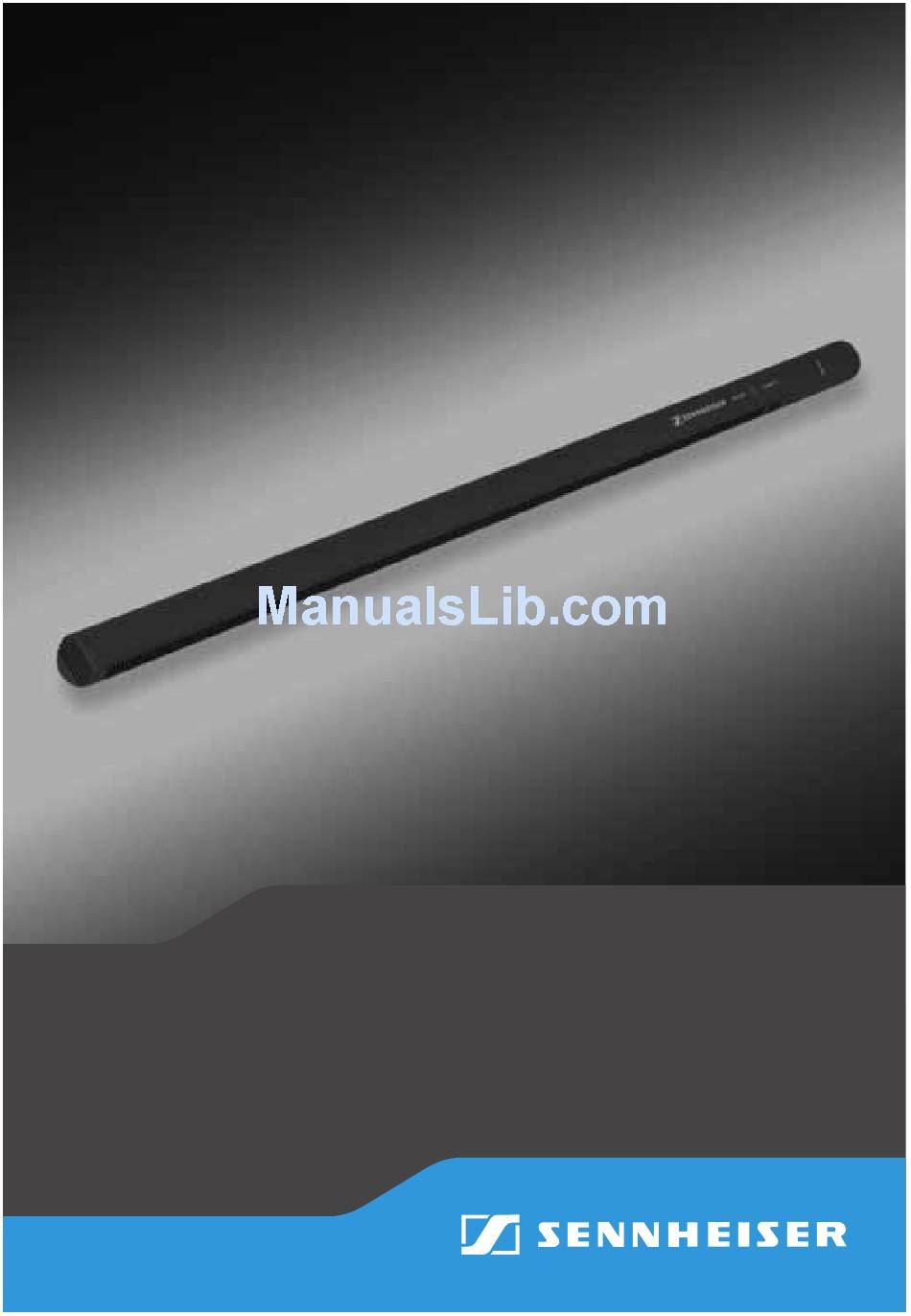

- Page 1 MKH 8070 Directional studio microphone Instruction manual...
-
Page 2: Table Of Contents
Important safety information ... 2 The MKH 8070 ... 3 Delivery includes ... 4 Product overview ... 5 Putting the MKH 8070 into operation ... 6 Connecting the microphone ... 6 Attaching the microphone ... 6 Using the windshield ... 7 Using optional modules ... -
Page 3: Important Safety Information
• using the product within the operating conditions and limitations described in this instruction manual. “Improper use” means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein. MKH 8070... -
Page 4: The Mkh 8070
The MKH 8070 The MKH 8070 The MKH 8070 is a gun microphone from the modular MKH 8000 microphone series that convinces with its excellent directivity and especially natural sound. The microphone’s special design ensures that off-axis sound is attenuated without col- orations. -
Page 5: Delivery Includes
Delivery includes Delivery includes Microphone, consisting of the MKH 8070 microphone head and the MZX 8000 XLR module MZQ 8070 microphone clamp MZW 8070 foam windshield MKH 8070 Directional studio microphone Instruction manual Instruction manual Frequency response sheet 1.00 50 Hz... -
Page 6: Product Overview
Product overview Product overview Foam windshield Microphone head XLR module Microphone clamp (thread adaptor included for 3/8” and 5/8” threads) MKH 8070... -
Page 7: Putting The Mkh 8070 Into Operation
• 48 V ± 4 V phantom powering (P48, as per IEC 61938) • XLR-3 connector, balanced To connect the MKH 8070 to a mixing console or recording device: Connect the socket of the microphone cable to the microphone. Connect the connector of the microphone cable to the mixing console or recording device. -
Page 8: Using The Windshield
25 dB. Place the MZW 8070 foam windshield all lateral slots are covered. Alternative windshields are available as accessories and can be found on the MKH 8070 product page at www.sennheiser.com. Sennheiser MZS 20-1 over the microphone head so that... -
Page 9: Using Optional Modules
If necessary, disconnect a connected XLR cable in order to not distort the cable and to avoid short-circuits. Unscrew the microphone head Screw the MZF 8000 filter module chain between microphone head and XLR module. MKH 8070 from the XLR module 3. at a suitable place in the audio signal... -
Page 10: The Mzd 8000 Digital Module
Using optional modules The MZD 8000 digital module The MZD 8000 digital module is an A/D converter for all microphone heads of the MKH 8000 series. The sound of the MKH 8000 series is converted to digital directly at the microphone head, ensuring that the warm, natural, yet clear and powerful sound of the microphones is maintained in full quality along the entire signal chain. -
Page 11: Transporting The Microphone
Transporting the microphone Transporting the microphone Let the microphone dry if you used it under extreme climatic conditions. If necessary, remove the windshield or take the microphone out of the basket windshield. Slide the microphone into the transport tube. Cleaning and maintaining the microphone... -
Page 12: Specifications
2 k Ω 48 V ± 4 V (P48, IEC 61938) 3.3 mA 19 mm 432 mm 465 mm with MZX 8000 XLR module 300 g 332 g with MZX 8000 XLR module −10°C to +60°C MKH 8070 | 11... -
Page 13: Polar Diagram
120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve 50 Hz 100 Hz 200 Hz 90 ° 12 | MKH 8070 0° 30° 60° 120° 150° 2000 Hz 180° 4000 Hz 8000 Hz 16000 Hz 1.00... -
Page 14: Manufacturer Declarations
Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •... - Page 15 This class B digital apparatus complies with the Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment. 14 |...
- Page 16 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 08/10, 540062/A01...
