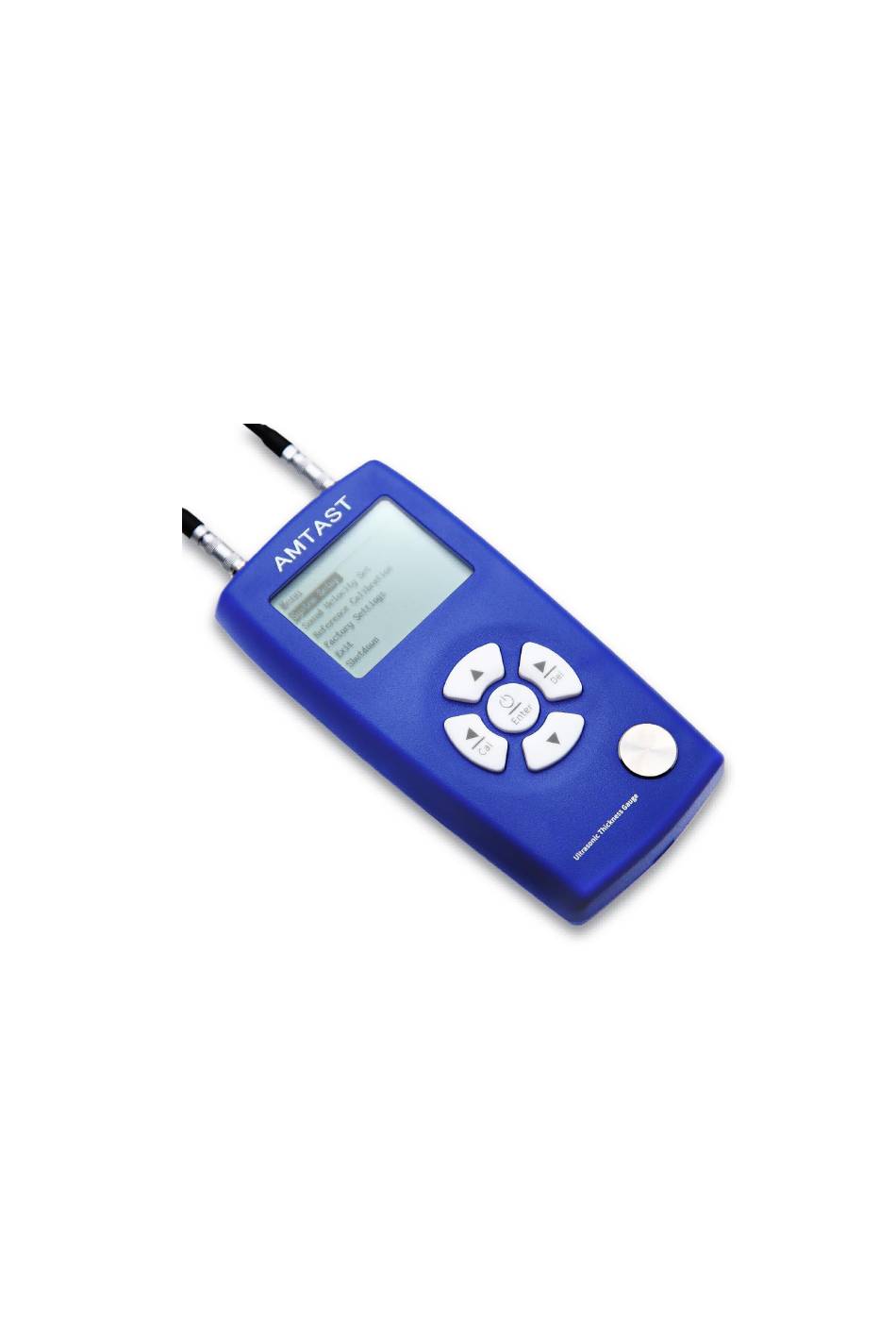

  • Page 1 AMTAST AMA006E Ultrasonic Thickness Gauge USER MANUAL AMTAST USA INC...

  • Page 2: Product Introduction

    I. Product introduction Ultrasonic thickness gauge adopts the principle of the reflected plus ultrasonic measurement, which is specialized in thickness measurement of materials that can transmit ultrasonic waves such as metals (e.g. steel, aluminum, copper, etc.), plastics, ceramics, glass, etc. The instrument employs a professional design of time-chip with a resolution of up to 0.01 mm.
  • Page 3 2. Host parameters Resolution 0.8-100mm:0.01mm 100-350mm:0.1mm Sound Velocity Range 1000~9999m/s Display 240×160 dot matrix LCD Unit mm/inch Power Supply 2pcs of 1.5V AA alkaline battery Host Size 142*72*28 mm Weight About 230g Operation Temperature Range -10~50℃，0~85%RH（No condensation） Storage Temperature Range -10~60℃，0~85%RH（No condensation）...

  • Page 4: Operation

    thickness/ manually. 8. The instrument intelligently identifies the model of the probe, and the instrument adapts the display interface according to the probe type. 9. Large storage capacity, up to 999 data records. IV. Operation 1. Turn on/off Turn on: Short press on the button to boot, the version number and a serial number of the instrument will be displayed, and then enter the interface of benchmark adjustment.

  • Page 5: General Measurement

    3. General Measurement Apply coupling fluid on the surface of the material, press the probe of the instrument tightly and keep it still, then the user can get the thickness of the material. When the probe is well coupled with the material to be tested, the coupling mark on the right side of the screen will remain still and a buzzer will prompt.
  • Page 6 error, the standard probe with penetration coating measurement, without removing the coating on the surface of the workpiece, that can accurately measure the actual thickness of the substrate under the workpiece coating. This function is achieved by measuring two consecutive bottom echoes of the substrate, which can penetrate the coating thickness of 0.2~2.5mm and measure the thickness of the substrate (45# steel) of 4~60mm.
  • Page 7 (1) System Setup Language: Short press the button to enter the language selection. These two buttons are available to select language. A short press on the button completes the setting. Unit: Short press on the button to enter the unit selection. These two buttons available to select units.
  • Page 8 the selection. (2) Sound velocity Set Short press the buttons to select [Set by material/Set by thickness/Manual input/Return]. A short press on the button confirms the selection. Set by material: The user can set the sound velocity according to the known material. Short press the button to enter the interface of material selection, short press the button to return, and short...
  • Page 9 speed, short press button to select “OK” option to complete the setting. Select “Modify” option to enter the prompt interface "Please press the probe tightly against the material with known thickness". Press the probe of the instrument tightly against the surface of the material with couplant and keep it still.
  • Page 10 (3) Reference calibration The function of " Reference Calibration" in the main menu is the same as that of "Benchmark Calibration" when the instrument is powered on. (4) Exit A short press on the button exists the main menu and enters the measurement interface. (5) Shutdown A short press on the button turns off the instrument.

  • Page 11: Device Connection

    V. Bluetooth connection APP function The instrument has built-in Bluetooth communication module, which can be connected to cell phone APP. VI. APP Function 1. APP Installation The measuring instrument APP supports 7.0 and above Android operating system, search “UT and HL” on google play, follow the instructions to download and install the APP.
  • Page 12 "Measurement" interface. Bluetooth connection interface If the APP has a bound Bluetooth device, the logo interface will automatically search and connect the bound Bluetooth device after 3 seconds, and the successful connection will automatically enter the "measurement" interface.

  • Page 13: Measurement Interface

    Measurement interface 3. Measurement interface (1) Bluetooth connection status The APP is connected successfully, the upper right corner of the interface shows "Connected", and the APP is disconnected, showing "Not connected". When not connected, tap it, and the APP will automatically reconnect the bound device. (2) Data group modification operations Click the data group name, the interface pops up, you can modify the name.
  • Page 14 Display instrument setup material, unit, connected probe type. (6) Create groups Click Create Groups icon to automatically save the previous group and generate a new group. (7) All groups Click All Groups icon to select a set of data for open and delete operations. (8) Share Click the Share icon, enter the file name first, choose one of the four file formats of PDF, PNG, CSV and TXT, and then share the file with your friends through QQ, WeChat, etc.

  • Page 15: Packing List

    2. Provide users with spare parts and lifelong maintenance services. 3. Provide the users with the gauge calibration service. 4. Free technical support for long term manufacturer. AMTAST USA INC 438 Skyline Dr E Lakeland FL.33809 U.S.A. www.amtast.com E-mail: amtast1@gmail.com...
