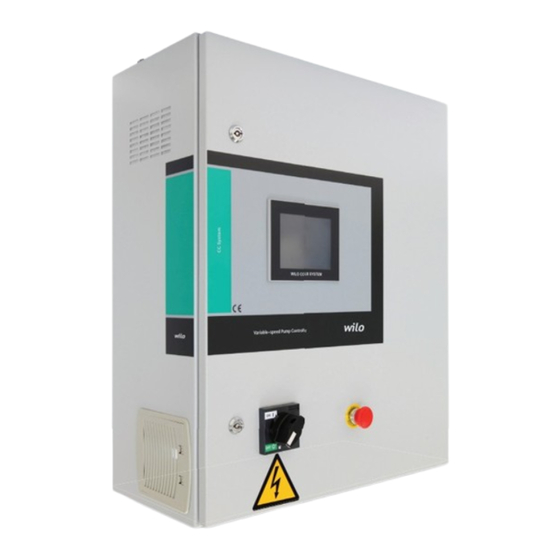

  • Page 1 Pioneering for You Handling and Operating Manual CC-LB / LC Control Panel...

  • Page 2: Table Of Contents

    CC-LB/LC Control Panel Handling and Operating Manual CC-LB/LC Control Panel Handling and Operating Manual Contents 1. General ....................................4 2. Safety ..................................... 4 2.1 Symbols related to explanations in the operation guide ..................4 2.2 Staff education .................................4 2.3 Dangerous hazards if the safety rules are not observed ....................4 2.4 Safety rules for operating personnel ..........................
  • Page 3 CC-LB/LC Control Panel Handling and Operating Manual Figure: 1 (Wall Type) 1- FC Magnetic switch 2- Isolation transformer thermal magnetic switch 3- Phase control relay 4- Thermostat 5- Isolation transformer 6- Frequency converter 7-24VDC Transformer 8- PLC 9- Thermal magnetic circuit breaker...
  • Page 4 CC-LB/LC Control Panel Handling and Operating Manual Figure: 1 (Standing Type) 1-Frequency converter 2-Thermostat FC Magnetic switch Thermal magnetic circuit breaker FC and Network contactors Auto-Man selector switch Star triangle relays Running&Fault info relays 9-Terminals Main switch Isolation transformer thermal magnetic...

  • Page 5: General

    Purpose of use compensation claims that may arise due to possible injuries. The CC-LB-LC control unit is for automatic and easy Failure to comply with the rules in general can lead to adjustment of the pressure boost devices (single and multiple the following negative facts: pump systems).

  • Page 6: Product Information

    CC-LB/LC Control Panel Handling and Operating Manual Through the screen; 5.Product information • Different language option (English, Turkish, Russian and France) • Setting the system pressure value • Existing pressure value in the system • Selecting a replacement pump • Delay times of pump on and off •...

  • Page 7: Equipment Used In Board

    • Installation and operating instructions ATTENTION! 5.7 Options / Accessories The CC-LB/LC system can optionally be equipped with Do not apply external voltage to the terminals! the options listed below. They must be ordered exclusively. The connection of the pumps must be...

  • Page 8: Operation

    7.2 Control of motor rotation 10. Authorized services Each pump should be activated for a short period of time You can find a list of services authorized by WILO Pompa as «manual operation» to check whether the direction of Sistemleri A.Ş. : rotation of the mains operated pump is the same as the arrow http://www.wilo.com.tr/anasayfa/servis-destek/yetkili-servisler/...

  • Page 9: Display Settings And Visuals

    CC-LB/LC Control Panel Handling and Operating Manual 13. Screen Views and Explanations Screen View Descriptions 9.1 Opening screen saver You need to touch the screen saver to reach the main page. 9.2 Operating mode seletion main page After touching the screen saver, the main page is opened, the main page differs according to the system operating mode.

  • Page 10: Set Setup

    CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions System Menu Page The first page opened after entering the service settings password is the System menu page. Operating Mode Settings System Settings When the button is pressed from the previous System Menu page the system operation page is opened.
  • Page 11 CC-LB/LC Control Panel Handling and Operating Manual 9. Screen View and Explantions Screen View Descriptions 9.4 Çalışma modları 9.4.1 Δ PC mode Δ PC mode means constant pressure control. This mode is only for use in circulation systems. System, with 1 value read from the pressure difference sensor tries to catch the desired set value.
  • Page 12 CC-LB/LCControl Panel Handling and Operating Manual 11 Screen View Descriptions Main Menu page Menu The Main Menu page can be accessed by clicking the button in the previous main page. In general, the system settings and the Pump operation times monitoring page are referenced from this page. All pages except the Service Settings page are accessible without password, only for the access to the service settings page requires password .
  • Page 13 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions Operating Mode Settings When the Sytem Settings button clicked, the System Operation Page is opened, in this page the operation mode, the number of pumps and auxiliary pump operation mode settings can be changed. To change the operation mode, system off button must be switched.
  • Page 14 CC-LB/LC Control Panel Handling and Operating Manual 13 Screen View Descriptions Time Settings-1 Page For Time Settings-1 Page, press the button at the bottom of the previous Frequency settings page or on the system menu page by clicking the Time Settings button.
  • Page 15 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions Automatic Test Control Page To access to the automatic test control page, the button at the bottom of the previous Pipe Fill property page should be clicked. For this function to work,“Auto Test” button should be “ON ". The Auto Test function counts the time the pumps have not run.
  • Page 16 CC-LB/LC Control Panel Handling and Operating Manual 15 Screen View Descriptions Swap FC to Network Page Swap FC to Network Page is accessed by clicking the button at the bottom of the previous PID Control Settings Page. This feature is used when the FC is not desired to be used at high frequencies.
  • Page 17 16 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions Options-3 Page Options-3 page is accessed by clicking the button from the previous Options-2 page. To see the alarms on Options-3 page in general fault output, the corresponding option button is set to "ON".
  • Page 18 CC-LB/LC Control Panel Handling and Operating Manual 17 Screen View Descriptions Time Settings Page: The Time Setting Page is accessed by clicking the button at the bottom of the previous Set Value Interval page. In this page, the pump on and off delay times are set.
  • Page 19 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions System Stand-by Page: System Stand-by Page is a ccessed from the Main Menu page by clicking the button. Stand- by mode is clock-based or day-based to Standby Mode separately stop the system.
  • Page 20 CC-LB/LC Control Panel Handling and Operating Manual 19 Screen View Descriptions External Set Settings Page: External Set Settings Page is accessed from Main Menu page by clicking button. When the button is pressed and activated,the External Set Settings system operates according to the given external set value from automation.The Alarm Upper Limit% Value that we input on this page alarms when the pressure reading from the sensor exceeds the value of the external setpoint.
  • Page 21 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions Date & Time Page Date and Time Page is accessed from Main Menu page by clicking the button. The current time and date data of the system on the right Date&Time...
  • Page 22 CC-LB/LCControl Panel Handling and Operating Manual 21 Screen View Descriptions Activation Quantities Page ON / OFF number input screen in the window opened when the button is pressed.The desired number of switches is entered and by clicking the Switch Alarm Off button is activated.
  • Page 23 22 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions 9.4.2 Δ PV mode Δ PV mode is used with a single FC and can not be used with an external setpoint. The working principle of the Δ PV mode is; When the need for the...
  • Page 24 CC-LB/LC Control Panel Handling and Operating Manual 23 Screen View Descriptions TC cooling mode operation screen Δ When the Δ TC cooling mode is selected, the system operating screen starts up like this. Monitoring of the faults and operating conditions of the pumps and system monitoring can be performed .This mode is used in the circulation of the...
  • Page 25 24 CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions Temperature difference setting mode: On this screen, if written on the sensor selection button; c)Double Temperature Assigned The system controls the return and inlet water temperature difference and the return water temperature tries to stay above the temperature threshold value.
  • Page 26 CC-LB/LC Control Panel Handling and Operating Manual 25 Screen View Descriptions Maintenance time settings: If the maintenance time settings are activated, the yellow key signal will appear on the operation screen when the maintenance time is close, and the red switch signal will appear when the maintenance time has come.

  • Page 27: Display Screens And Explanations That Are Different In Multi-Drive Boards

    CC-LB/LC Control Panel Handling and Operating Manual Screen View Descriptions Maintenance time reset After maintenance has been performed, the service password is entered on the System Menu page button should be Operation Time Settings clicked. Maintenance time reset Pump that is maintained at operating time page and requested to be reset to zero is clicked to open the reset screen.

  • Page 28: Failure Causes And Possible Solutions

    CC-LB/LC Control Panel Handling and Operating Manual 27 13. Failure causes and possible solutions Definition of Problem Possible reasons Solution recommendation Change the acceleration and deceleration Acceleration and deceleration times are not ramp times over the drive. compatible The pump goes faulty when tripping over...
  • Page 29 28 CC-LB/LC Control Panel Handling and Operating Manual 13. Failure causes and possible solutions Definition of Problem Possible reasons Solution recommendation Screen and PLC are not communicated, Check the communication cable, try to whether PLC program is removed or there is a...
  • Page 30 05.2016 WILO Pompa Sistemleri A.Ş. Orhanlı Mah. Fettah Başaran Cad. No: 91, 34956, Tuzla, İstanbul T 0216 250 94 00 F 0216 250 94 01 wilo@wilo.com.tr www.wilo.com.tr Pioneering for You www.wilo.com.tr...
