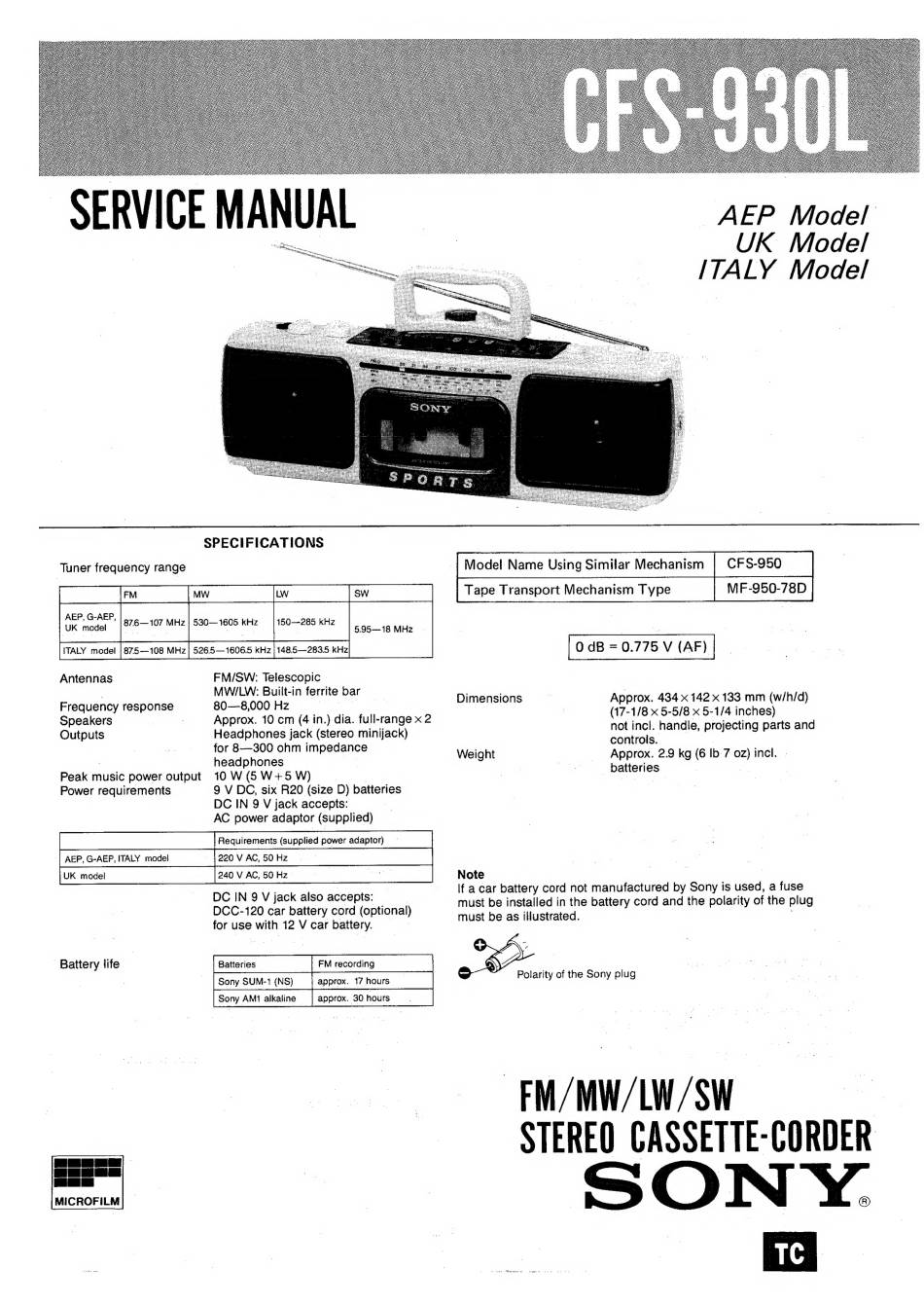

Sony CFS-930L Service Manual

—
S See
SUSUR a eke 3 oo Os
—s—s—SO —
ee —
SPECIFICATIONS
Tuner frequency range
AEP, G-AEP,
UK model
ITALY model | 87.5—108 MHz
87.6—107 MHz | 530—1605 kHz
150—285 kHz
526.5—1606.5 kHz | 148.5—283.5 kHz
Antennas FM/SW: Telescopic
MW/LW: Built-in ferrite bar
Frequency response 80—-8,000 Hz 7
Speakers Approx. 10 cm (4 in.) dia. full-range x 2
Outputs Headphones jack (stereo minijack)
for 8-—300 ohm impedance
headphones _
Peak music power output 10 W(5W+5 W) | |
Power requirements 9 V DC, six R20 (size D) batteries
DC IN 9 V jack accepts:
AC power adaptor (supplied)
ee Requirements (supplied power adaptor) —
' | AEP, G-AEP, ITALY model ~ ~ 4220VAC,50HzZz .
UK model
DC IN 9 V jack also accepts: |
DCC-120 car battery cord (optional)
for use with 12 V car battery.
Batteries FM recording
Sony SUM-1 (NS) approx. 17 hours
Sony AM1 alkaline approx. 30 hours
Battery life
MICROFILM
- | Model Name Using Similar Mechanism | CFS-950
5.95—18 MHz -
Dimensions
240 V AC, 50 Hz- —_ ee
AEP Model
UK Model
ITALY Model
OdB=0.775V(AF)|
Approx. 434 x 142 x 133 mm (w/h/d)
(17-1/8 x 5-5/8 x 5-1/4 inches)
not incl. handle, projecting parts and
controls. 7
Approx. 2.9 kg (6 Ib 7 oz) incl. .
batteries -
lf a car battery cord not manufactured by Sony is used, a fuse
must be installed in the battery cord and the polarity of the plug
must be as illustrated.
\
Polarity of the Sony plug
SONY.
TC
Pa
aos
