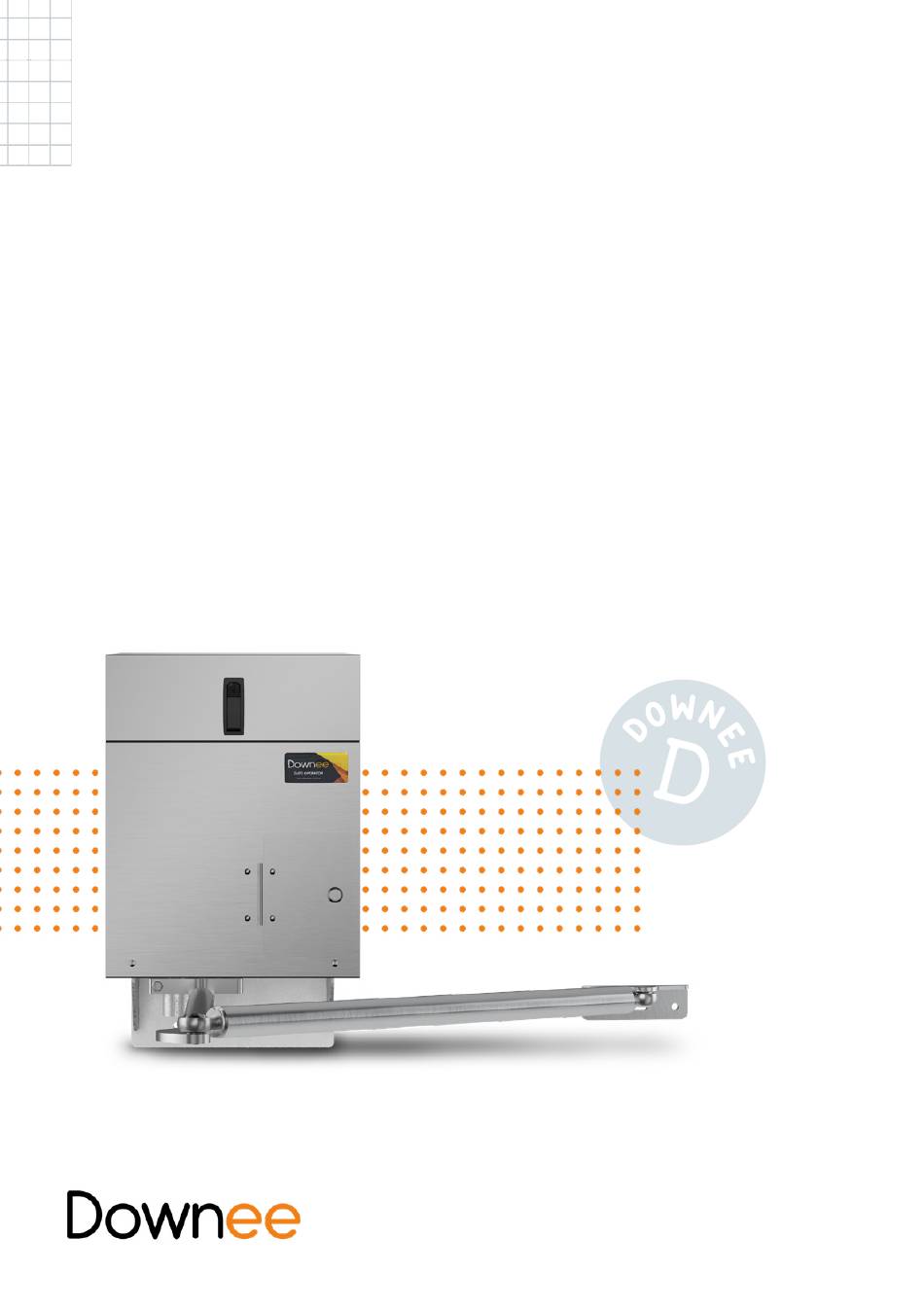

- Page 1 INSTALLATION AND MAINTENANCE MANUAL Industrial Swing Gate Operator DA6000 Manufactured in Australia...
-
Page 2: Techincal Data
6 per leaf Maximum duty cycle (%) Operating temperature range (°C) -10 to +40 Weight of operator (kg) 64kg Operator + 20kg bracket Auxiliary DC power supply output 24 VDC 2A Auxiliary DC power supply output 12 VDC 500mA MANUAL | DA6000... -
Page 3: Safety Precautions
10. It is the responsibility of the installer WARNING: to ensure the safety of the automatic ELECTRICITY CAN KILL gate system. A health and safety risk Danger 240 Volts assessment must be performed on the automated gate system, and appropriate MANUAL | DA6000... -
Page 4: Notice Of Compliance
3. Either the surrounding structure or the gate or door strength and rigidity was not sufficient for the task in hand. 4. Inefficient locking devices were employed. 5. Poor or no maintenance has been regularly undertaken. 6. Any other circumstances beyond the manufacturer’s control. MANUAL | DA6000... -
Page 5: Wiring Requirements
Master to Slave unit • Allow for control input cables, Output signal cables, Lock cabling, Safety PE’s etc ALL SHIELDED LOW VOLTAGE CABLE IF RUN IS OVER 8M MANUAL | DA6000... - Page 6 TOL. ANGLE ± 0°30' FINISH MASS grams PIVOT HINGE UNLESS OTHERWISE SPECIFIED LEFT SCALE 1:20 CLOSED POSITION 1500 1413 GATE RIGHT RENCE CLOSED POSITION MANUAL | DA6000 TITLE DRAWN 28/02/2025 DIE No DA-6000- Footprint -Left Side 28/02/2025 CHECKED MATERIAL THIRD ANGLE PROJECTION...
-
Page 7: Installation Steps
70-72 WILLIAM ANGLISS DRIVE TOLERANCE: 0.00 ± 0.05 DENSITY g/mm VICTORIA 3026 TOL. ANGLE ± 0°30' FINISH LAVERTON NORTH MASS grams UNLESS OTHERWISE SPECIFIED SCALE STEP 4 Step STEP 2 Step Step Step Step MANUAL | DA6000 TITLE 17/04/2025 DRAWN DIE No... -
Page 8: Installation Details
(normally 10mm). IMPORTANT: Ensure that gate stops have been firmly installed in the fully open and closed positions. These stops must be engineered and installed to stop the gate should the limits fail. MANUAL | DA6000... - Page 9 CLOSE 6. See the installation manual for the Elsema MCi Control Board for connection of external inputs and set up details. OPEN MANUAL | DA6000...
-
Page 10: Manual Release Instructions
10mm past after it ‘clicks’ (to allow for Ramp Down). Fine adjustment can be made later. Tighten Allen-Head Bolt holding cams. 4. Check cams are right by closing and opening gate. 5. Move gate back to centre position MANUAL | DA6000... -
Page 11: Wiring Diagrams
WIRING DIAGRAMS To connect slave VSD (Inveter) to Master Swing Elsema (M2 LIMIT): To connect slave Slave Limit switch to Master Swing Elsema board: MANUAL | DA6000... -
Page 12: Maintenance Details
Torque limiter chain is lubricated All electrical connections are properly secured Limit switches are operating as specified External safety devices are working properly External locks operate correctly General operations i.e. speed, auto close etc are normal Comments: MANUAL | DA6000... -
Page 13: Warranty
5. Goods returned under warranty for repair or testing will incur a charge to be fixed by 2. For goods not manufactured by Downee, we the manufacturer if no fault is found. shall pass on the manufacturer’s warranty to the Customer from the date of invoice. - Page 14 downee.com.au...
