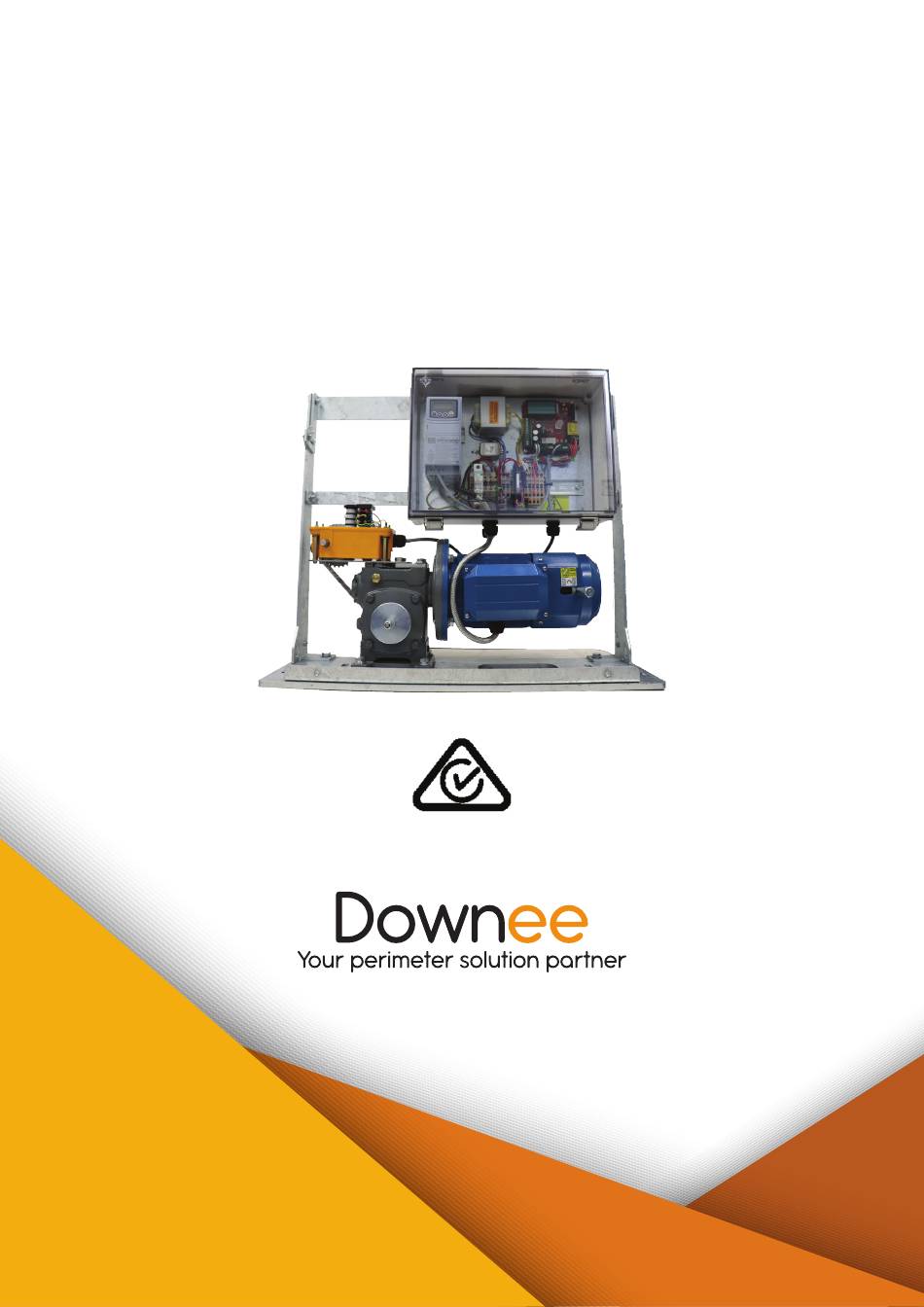

- Page 1 MANUAL Installation and Maintenance Industrial Sliding Gate Operators DA500 - DA700 - DA200 - DA250 Manufactured in Australia E2913 ABN 31 004 313 937...
-
Page 2: Safety Precautions
14. Disconnect the supply(s) when cleaning or other maintenance is being carried out. 15. DA Operators exceed a single person lift, and weigh in excess of 65kgs. Please adopt safe manual handling techniques when lifting, manoeuvring, and positioning these operators into their respective locations. www.downee.com.au... -
Page 3: Post Installation
• Only original spare parts are to be used. • The installer is responsible for providing all information concerning the safe use of the automation equipment as well as instructions regarding the manual override and maintenance procedures to all users of the system. www.downee.com.au... -
Page 4: Product Description
• Extra low voltage cables from the gate operator to connected accessories, i.e. safety, and access control systems. Extra-low voltage cables must be shielded if they are longer than 8m. Cable shields must be connected to ground. • Conduits for power and accessories should come up through the base plate ‘knockout’. www.downee.com.au... - Page 5 TRACK SUPPORT POST Notes: • These measurements are only applicable when using a 100 x 100mm gate frame. • This drawing is for a gate that opens to the left when looking from the non secure side of gate. www.downee.com.au...
-
Page 6: Installation And Commissioning
Standard programming (motor brake and strobe light) has been performed in the factory and arrives ready to set limits and travel times. Details can be found by scanning the QR code below or visit www.elsema.com.au www.downee.com.au... -
Page 7: Mechanical Installation
20 - 35 Hz 20 - 40 Hz 25 Hz 40 Hz P126 Slow open speed 10 - 20 Hz 10 -20 Hz 10 Hz 20 Hz P127 Slow close speed 10 - 20 Hz 10 -20 Hz 10 Hz 20 Hz www.downee.com.au... - Page 8 TOP CAM = OPEN LIMIT MIDDLE TWO CAMS = SLOW SPEED LIMITS BOTTOM CAM = CLOSE *Note: It is important that the slow down limit is set to operate before the end of travel limit. This applies in both directions. www.downee.com.au...
- Page 9 8. Adjust the cam second from the top using the adjustment screw labelled 2 on the cam tower so this cam operates before the stop cam. This allows the gate to slow down before stopping. 9. Retighten (slightly) the 8mm nut locking nut on top of the cam tower once the cams are set to prevent movement. www.downee.com.au...
-
Page 10: Control Board Setup
Driving the gate hard into stops will cause damage to the operator, gate and stops. Check that all safety devices are operating correctly, e.g. Photoelectric beams, loops, strobes, bump strips, etc Verify that the access control system is connected correctly and working. www.downee.com.au... -
Page 11: Manual Release Instructions
Operator performs under 20 cycles per day: every 12 months NOTE: Chains on Chain Sliders must be oiled at least every two months. Before commencing maintenance on the gate or operator, isolate the electrical supply and ensure the system is de-energised. www.downee.com.au... - Page 12 Limit Switches operate in appropriate positions and limit-chain is lightly oiled External safety devices work effectively and are clean Electromagnetic lock, if fitted, operates correctly and is clean General operation i.e. speed, auto close etc normal Slightly grease worm drive on Limit switch Comments: www.downee.com.au...
-
Page 13: Warranty
All goods must be returned to Downee or its representative for inspection and or testing to assess if a claim is justified. It is the responsibility and at the cost of the Customer, to return the goods for inspection and freight costs are the responsibility of the Customer.
