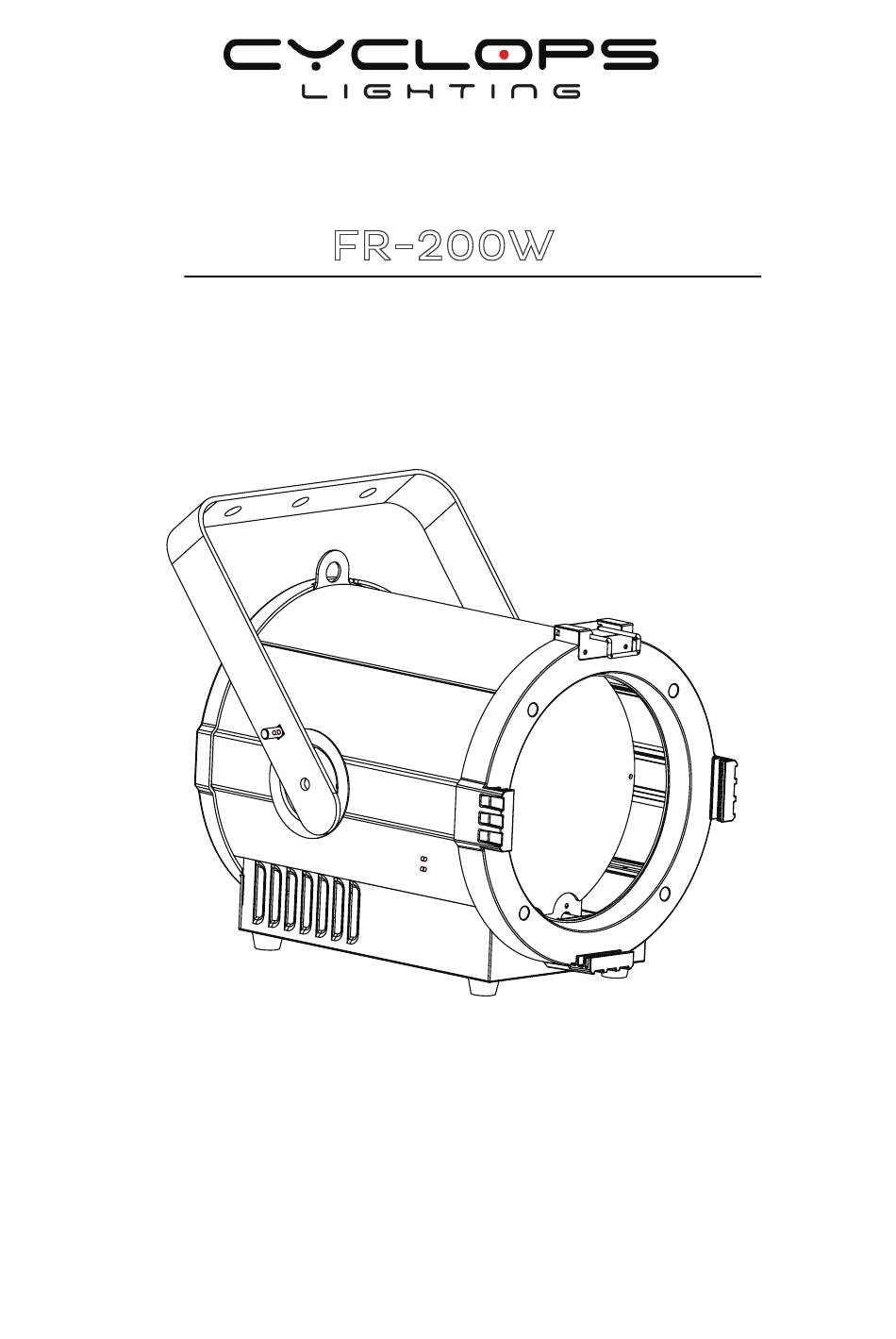

- Page 1 FR-200W 200W - Warm White LED fresnel with zoom USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 3 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-200W. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Mounting The Fixture On A Truss
Mounting the fixture on a truss The fixture can be clamped to a truss or similar rigging structure in any orientation. When installing the fixture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in any other orientation, you must use a half-coupler clamp that completely encircles the truss chord. -
Page 6: Power Connection
Yellow/green Earth(Ground) Operation The FR-200W can operate different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. Control Menu Map... -
Page 7: Addressing
In the case of the FR-200W, which is 2/3/4/5 channels fixture. If you set, for example, the address in the 2 channel mode to channel 3, the device will use the channel 3 to 4 for control. - Page 8 3 Channels Mode Function Function Control Strobe 000-255: strobe with speed increasing Zoom 000-255: zoom function 4 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: strobe with speed increasing Zoom 000-255: zoom function 000-005: Menu setting 006-055: Dimmer speed 0 (no delay) 056-105: Dimmer speed 1 Dimmer mode 106-155: Dimmer speed 2...
-
Page 9: Id Address Selection
ID address selection Each independent DMX address can have up to 66 ID addressed fixtures. An ID address of 0 will activate all ID address locations. CH5 is used to select the target ID address. DMX value Function DMX value Function DMX value Function... -
Page 10: Fuse Replacement
Fuse Replacement This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel. To replace a fuse: 1. Disconnect the fixture from power and allow it to cool for at least 10 minutes. 2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and rating only. -
Page 11: Technical Specifications
Technical specifications Model FR-200W Light source: 200 watts Warm white COB LED LED life expectancy: 50,000 Hrs. Color temperature: 3200 K CRI: 96, R9>90 TLCI: ≥98 Electronic zoom Zoom range: 15° to 60° 5 Dimmer curves Strobe Video flicker free with selectable PWM...
