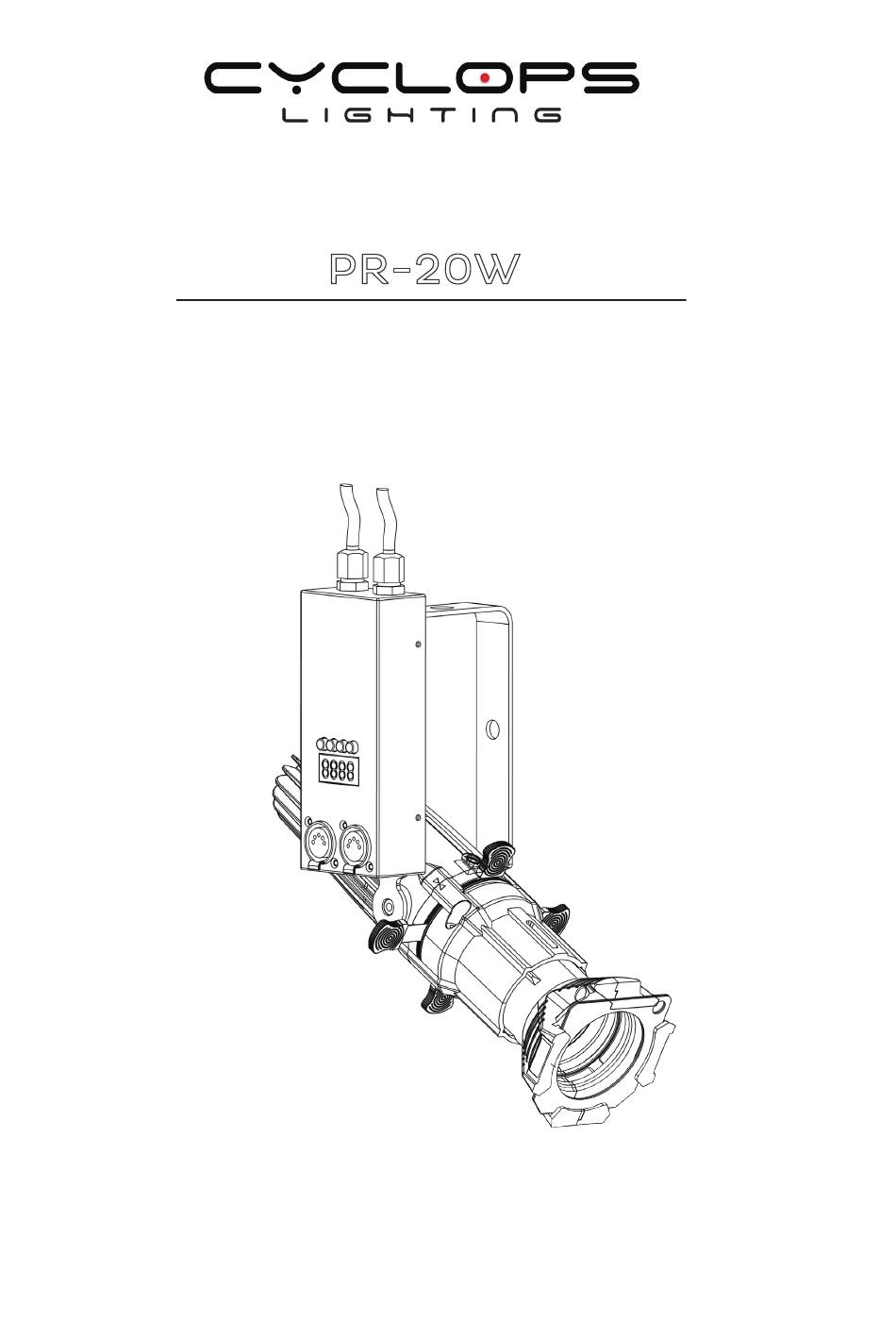

- Page 1 PR-20W Mini portable - Warm White LED profile USER MANUAL...
- Page 2 Table of contents Caution! .........................3 Introduction ......................3 Safety instructions ....................4 Overview........................3 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ......................Power connection ..........................
- Page 3 - download the latest version of the user manual from the Internet Introduction Thank you for having chosen PR-20W. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation.
- Page 4 Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over.
- Page 5 Power connection Power Requirements The PR-20W zoom luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power supply. Connection with the mains: Connect the device to the mains with the enclosed power supply cable.
- Page 6 Operation Control Menu Map MAIN MENU LEVEL 1 FUNCTION INSTRUCTION A001 001-512 DMX address setting, 3CH mode d001 001-512 DMX address setting, 1CH mode Slave Slave mode Stat 000-255 Dimmer St01 1-50 Strobe, with speed increasing Soud Sound mode Focus This function allows you to adjust the focus of the fixture.
- Page 7 Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend clean- ing on a monthly basis.
- Page 8 Technical specifications Model PR-20W Light source: 20 watts Warm white LED Color temperature: 3200 K LED life expectancy: 50,000 Hrs. CRI: Fixed lens: 19°, 26°, 36° or 50° Optional Fresnel lenses 2 Dimmer curves Strobe Track adapters Video flicker free...
