Summary of Contents for Cyclops Lighting PAR-350T

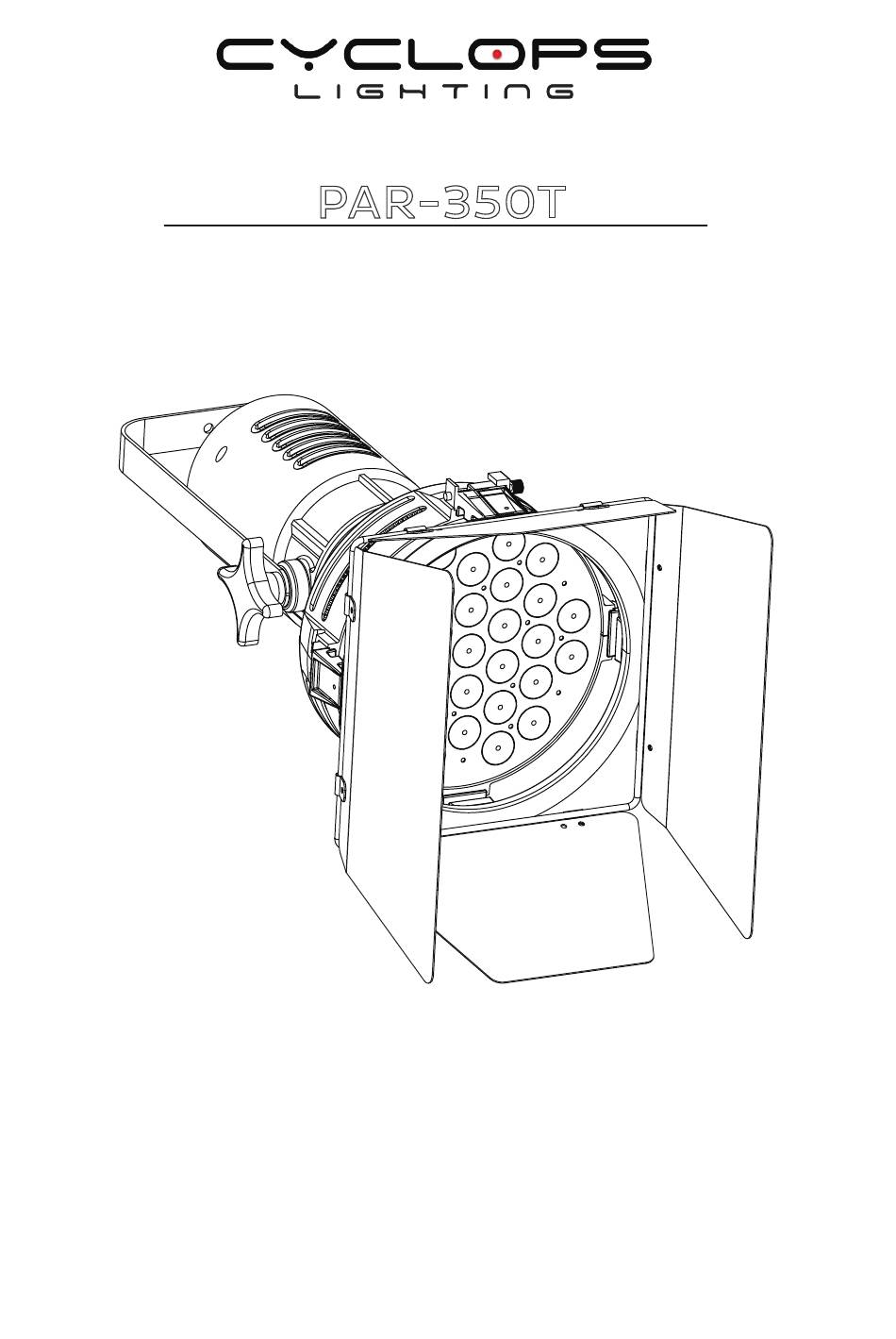

- Page 1 PAR-350T 31x10 watts Tunable White LED Power Par USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ........................3 Introduction ......................3 Safety instructions ....................3 Overview .........................3 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... DMX-512 connection/connection between fixtures ................. -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen PAR-350T. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview Yoke Yoke fixation knob Barndoors’ fixation clips Barn door Dmx input Dmx output On/Off switch Digital display Menu button Up button Down button Enter button Fuse PowerCon in PowerCon out Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. -
Page 5: Fastening The Fixture To A Flat Surface
Fastening the fixture to a flat surface The fixture can be fastened to a hard, fixed, flat surface that is oriented at any angle. Ensure that the surface and all fasteners used can support at least 10 times the weight of all fixtures and equipment to be installed on it. -
Page 6: Power Connection
Power connection Power Requirements The PAR-350T luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power supply. On the rear panel, there is a lockable powercon out. Connect the output with the mains input of the next fixture until all fixtures are connected. -
Page 7: Operation
In the case of the PAR-350T, which is 4 channels fixture. If you set, for example, the address in the 4 channel mode to channel 5, the device will use the channel 5 to channel 8 for control. -
Page 8: Sound Active Mode
Sound active mode In the sound mode, the fixture can run with the beat of sound. 1. Press the MENU button and select “BEBE”. 2. Press the ENTER button to confirm. 3. The fixture will now run sound mode. Control Menu Map MENU SUB MENU OPERATION... -
Page 9: Troubleshooting
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model PAR-350T Light source: 31 x 10 watts Tunable white COB LED Color temperature: 2700K-7000K LED life expectancy: 50,000 Hrs.
