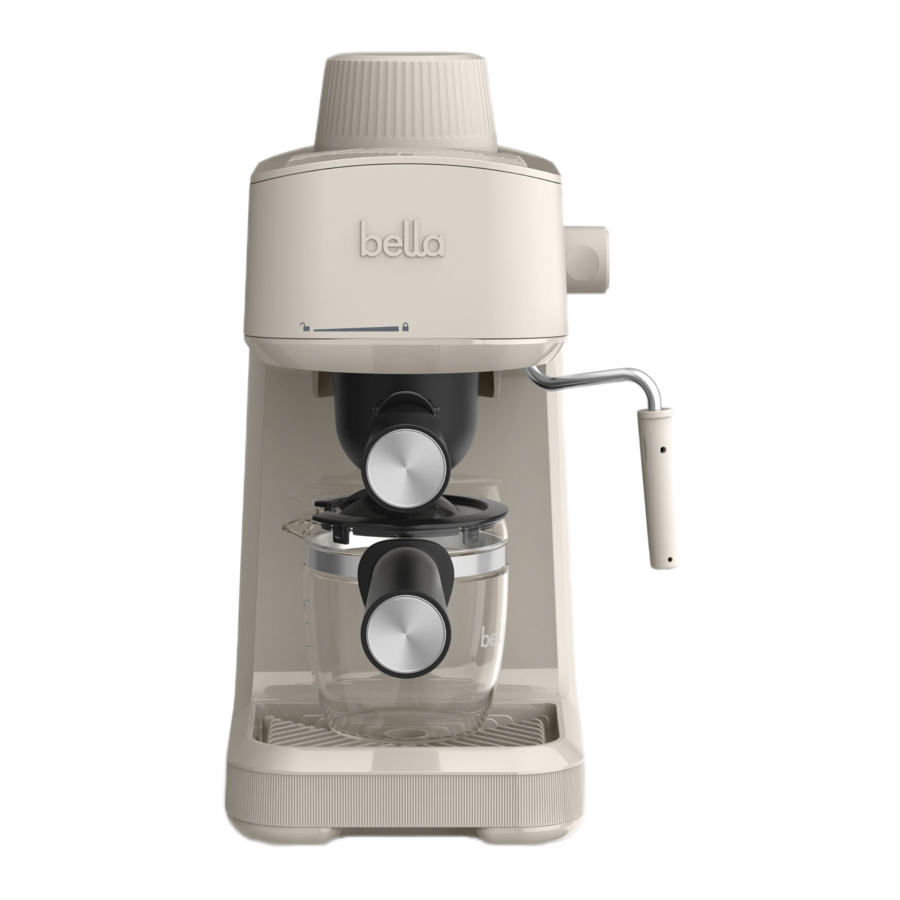

GETTING TO KNOW YOUR PRODUCT

See Figure 1.
GETTING TO KNOW YOUR PRODUCT - Part 1

Product may vary slightly from illustration.

Water Tank Safety Lid
Function Knob
(steam)
OFF
(espresso)
POWER Light
Water Tank (not shown)
Brew Head (not shown)
Steam Wand
"Perfect Froth" Tip
Glass Carafe with Lid
Removable Drip Tray
Measuring Scoop and Tamper Tool
Filter Basket
Filter Basket Holder
Nozzle
Security Clip
Handle

BEFORE USING FOR THE FIRST TIME

Before brewing your first cup of espresso, we suggest you pre-clean the machine. Place the Espresso Maker on a level surface, within close proximity to a sink to discard water.
Make sure the Espresso Maker is unplugged.
Brew 2 carafes of water without coffee, following the procedures outlined in the Brewing Espresso section of this Instruction Manual. This will thoroughly clean the unit.

BREWING ESPRESSO

Make sure the function knob is in the OFF position. Plug the Espresso Maker into a 120V AC electrical outlet. The POWER light should be off.
Remove the water tank safety lid by turning it counter-clockwise.
To brew fresh espresso, fill glass carafe with 2 to 4 cups of cold water, using the markings on the carafe for reference. Pour water into the water tank.
Turn the water tank safety lid clockwise until it is tightly sealed.
If the filter basket holder is locked into the Espresso Maker, remove from the brew head. Grasp the handle firmly and turn clockwise until the handle faces the left, unlocked position. The filter basket holder will drop down and out from the brew head.
With the measuring spoon, measure ground coffee and place into the filter basket until the "4" level mark indicated inside the filter. Gently tamp the coffee to pack it. To assure a proper fit into the Espresso Maker's brew head, do not add coffee above this "4" level mark. For best results, use medium ground coffee. Note: avoid using fine grind or espresso ground coffee as it may cause brewing issues.
Place the filter basket into the filter basket holder.
Align the filter basket holder with slots up in the Espresso Maker's brew head. Turn handle counter-clockwise (to the right) until the filter basket holder is securely locked.
Place the cover on the carafe and return the carafe to the Drip Tray Cover. Align hole in lid under nozzle.
Turn the function knob to (espresso). The POWER light will illuminate.
1. When brewing only 4 cups of espresso (4 cups of water will be added into the water tank), espresso will begin to flow into the carafe after approximately 2 minutes.
2. When brewing 4 cups of cappuccino (4 cups of water + 1 steam level of water will be added into the water tank), espresso will begin to flow into the carafe after approximately 3 minutes.
  NOTE: For cappuccino, refer immediately to the Preparing Cappuccino section in this Instruction Manual.
When the coffee has stopped flowing into the carafe, turn the function knob to OFF. The POWER light will turn off.
To refill the water tank for additional servings, make sure the water tank is cooled and empty and the POWER light is off.

This Espresso Maker will continue to heat water under pressure until the water tank is empty. Before removing the Filter Holder, or the water tank safety lid, turn the function knob to (steam). When no further steam is emitted from the steam jet, turn the function knob OFF. The POWER light will turn off.

To avoid scalding or burns, do not open the water tank safety lid or remove the Filter Holder during the brewing process, or when the POWER light is illuminated.

PREPARING CAPPUCCINO

Cappuccino is a delicious blend of espresso, steamed milk and frothed milk.

To avoid scalding or burns, do not open the water tank safety lid or remove the Filter Holder during the brewing process or when the POWER light is illuminated.

NOTE: To prepare 4 cups of cappuccino, fill the carafe with 4 cups of cool, clean water for espresso + 1 steam level of water for steaming.

Follow the detailed procedures for brewing espresso outlined in this Instruction Manual. This should be added making reference to the previous espresso description.
While espresso coffee is brewing, fill a deep, metal or ceramic pitcher half full with fresh, cold skim milk and place it next to the Espresso Maker.
Once espresso coffee has finished brewing to the desired 4 cup mark on the Glass Carafe, turn the function knob to OFF.
Hold the pitcher by the handle and bring up to the steam jet. Insert the "Perfect Froth" tip just under the surface of the milk. Turn the function knob gradually to (steam). Move the pitcher in a slightly circular motion, and continue to froth the milk.
REMINDER: To avoid splattering, the tip must remain just under the surface of the milk.
Otherwise, splattering may occur.

When frothing milk, the volume of milk will double. The top half will be frothed, the bottom half will be milk.

After frothing, turn the function knob back to OFF.
Remove the pitcher from the steam jet.

Before removing the Filter Holder, or the water tank safety lid, turn the function knob to (steam) and wait until no further steam is emitted from the steam jet. This will allow any extra steam to be released and will clean the steam jet of any excess milk. Then turn the function knob back to the OFF position.

Fill a cappuccino cup 1/3 full of freshly brewed espresso. Pour in an equal amount of warm milk and a spoon frothed milk on top.
Dust froth with cocoa powder, fresh grated nutmeg or cinnamon and enjoy a delicious, freshly brewed cappuccino.

USER MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing requiring disassembly must be performed by a qualified appliance repair technician.

CARE & CLEANING INSTRUCTIONS

NEVER IMMERSE THE ESPRESSO MAKER IN WATER OR ANY OTHER LIQUID.

Unplug the Espresso Maker from the electrical outlet and allow to cool completely before cleaning.

The Espresso Maker creates hot water and steam under pressure. To avoid burns on fingers or hands, always make sure the POWER light is off. NEVER touch the filter basket holder or steam wand immediately after brewing or steaming. Allow all parts to cool thoroughly before touching.

The filter basket holder and filter basket should be emptied and rinsed thoroughly with warm water after every use.

Grasp the filter basket holder handle firmly and turn clockwise until the handle faces the left, unlocked position. The filter basket holder will drop down and out of the unit.
Remove the filter basket and empty the used coffee grounds.
If necessary, clean the filter basket with a kitchen brush. A pin may be used to clear clogged holes of either filter basket or the steam wand. Dry thoroughly.
Remove the drip plate. Empty water from drip tray. Dry with a clean cloth.
Rinse and replace clean drip plate.
Wipe the outside of the Espresso Maker and the steam wand with a damp cloth.

Never use solvents or any detergents that may scratch or damage the surface of the machine.

Clean the carafe and carafe lid with warm, soapy water. Handle with extreme care, as glass will become slippery when wet.

DESCALING

Minerals and calcium found in hard-water areas can accumulate and affect the operation of your machine. Depending on water conditions and frequency of use, your Espresso Maker should be cleaned with distilled vinegar approximately every 3 months to remove scale.

Before cleaning your Espresso Maker, make sure the function knob is in the OFF position and the appliance has been disconnected from the wall outlet.
Fill the carafe with 1 part white vinegar to 3 parts cold water. Pour water and vinegar solution into the water reservoir.
Securely fasten the water tank safety lid.
Attach empty coffee filter basket and holder.
Place carafe onto drip plate.
Plug the Espresso Maker into 120V AC electrical outlet.
Turn function knob to (espresso). In a few minutes, the hot vinegar will start to flow through the coffee basket into the carafe.
Place steam jet into a tall glass or mug. Move function knob to (steam) position during the flowing to clean any residue left in the tube from the milk steaming process.
Turn function knob back to (espresso), permitting the hot vinegar to continue to flow in the carafe.
When the flow has stopped, turn function knob to OFF position and allow to cool completely. Make sure the POWER light is off. Then remove filter basket holder, carafe and rinse with hot water.
Repeat above steps using cold water to rinse any residual vinegar. Repeat twice.
Unplug the Espresso Maker from the wall outlet.

STORING INSTRUCTIONS

Make sure unit is unplugged and fully cooled before storing.

Never store Espresso Maker while it is hot or still plugged in.

Do not put any stress on cord where it enters unit, as this could cause cord to fray and break.
Store the Espresso Maker in its box, in a clean, dry area.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS.
Do not touch hot surface. Use handles or knobs only.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Close supervision is necessary when any appliance is used by or near children.
In order to minimize the risk of property damage, never place the Coffee Maker under cabinets. Make sure the area several feet above the Coffee Maker is clear from all furniture or cabinetry.
Do not open water tank lid while coffee is brewing. Scalding may occur if the water tank lid is removed during the brewing cycle.
Do not use outdoors.
Unplug unit from outlet when not in use and before cleaning. Allow unit to cool before putting on or taking off parts, and before cleaning.
To protect against fire, electrical shock and injury to persons, do not immerse cord, plugs, or appliance in water or other liquids.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
NOTE: DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF. THIS WILL VOID THE WARRANTY.
The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
Never move the appliance by pulling the cord. Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
Stand the appliance on a table or flat surface.
Do not use a cracked glass carafe or a carafe having a loose or weakened handle.
Only use the glass carafe with this appliance. Handle with care as the glass is very fragile.
Snap lid securely onto glass carafe before serving coffee.
Never use your Coffee Maker without water in it.
Do not place appliance on or near a hot gas or electric burner or in a heated oven.
The carafe is designed for use with this appliance. It must never be used on a range top.
Do not set hot glass carafe on a wet or cold surface.
Do not clean glass carafe with cleaners, steel wool pads, or other abrasive material.
Do not use this appliance for other than its intended use.
Scalding may occur if the lid is removed during the brewing cycles.
To reduce the risk of fire, do not mount unit over or near any portion of a heating or cooking appliance.
To reduce the risk of electric shock, do not mount over a sink.
To reduce the risk of fire, do not store anything directly on top of the appliance surface when the appliance is in operation.
To reduce the risk of Fire or Electric Shock, do not remove bottom cover. No user serviceable parts inside. Repair should be done by authorized service personnel only.
To avoid the risk of injury, do not open the brew chamber during the brew process.
Before using check that the voltage of wall outlet corresponds to rated voltage marked on the rating plate.
This appliance has been incorporated with a Polarized plug. Please ensure the wall outlet in your house is well grounded.
Ensure the power cord does not touch hot surfaces of the appliance.
To disconnect, remove plug from wall outlet. Always hold the plug, but never pull on the cord.
Be careful not to get burned by the steam.
Do not let the coffee maker operate without water.
Do not remove the metal filter when the appliance is brewing coffee or making steam.
Connect plug to wall outlet before using and turn any switch off before plug is removed from wall outlet.
The room temperature of operating or storing should be more than 0°/32°F, and be less than 45°/113°F, the environment should be dry and ventilated.

FOR HOUSEHOLD USE ONLY ADDITIONAL IMPORTANT SAFEGUARDS

This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property.

The Espresso Maker must be allowed to cool down sufficiently before adding more water to avoid splattering.

All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.
The cord to this appliance should be plugged into a 120V AC electrical outlet only.
Use water only in this appliance! Do not put any other liquids or food products in this appliance. Do not mix or add anything to the water placed in this appliance, except as instructed in the Descaling section of this Instruction Manual.
DO NOT attempt to move an appliance containing hot liquids. Allow appliance to cool completely before moving.
Keep appliance at least 4 inches away from walls or other objects during operation.
Place the appliance on a surface that is resistant to heat.
If this appliance begins to malfunction during use, turn function knob to OFF, then immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance.
If this appliance falls or accidentally becomes immersed in water or any other liquid, unplug it immediately. Do not reach into the water! Do not use this appliance after it has fallen into or has become immersed in water. Contact Consumer Service for examination and repair.
Always use fresh, cool water in your appliance. Warm water or other liquids, except as described in the descaling section, may cause damage to the appliance.
Turn the control knob to OFF and unplug from the electrical outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
DO NOT remove the reservoir cap or brew basket until pressure is completely relieved.
PRESSURE. In order to check if the appliance is under pressure, follow these steps:
1. Turn the function knob to the OFF position and unplug the appliance.
2. Rotate the function knob to the (steam) position. If steam comes out of the Steam Wand, then the water reservoir is still under pressure.
3. To release the pressure, hold a pitcher of water under the Steam Wand and immerse the Steam Wand in the water. SLOWLY TURN THE FUNCTION KNOB TO THE (STEAM) POSITION AND RELEASE THE STEAM.
4. When the steam wand stops releasing steam, turn the Function Knob to the OFF position and slowly remove the cap.
5. Do not remove the Filter Basket at any time during the brewing process or until pressure is relieved.
6. Use caution when removing the filter basket. The metal parts may still be very hot. Also, there may be hot water floating on the top of the filter.
7. If coffee does not drip from basket, the brew basket is blocked. Allow the appliance to cool down, then release the steam with the instructions above. The blockage may be caused by too finely ground coffee.
8. When cleaning the steam wand, place a frothing pitcher or large cup half full of water under the steam wand. Make sure the tip of the frothing tube is submerged in liquid before turning the function knob to the (steam) position.

SAVE THESE INSTRUCTIONS

shock hazard NOTES ON THE PLUG
This appliance has a polarized plug. To reduce the risk of electric shock, this plug is intended to fit into a polarized power outlet one way only. If the plug does not fit fully into the power outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

NOTES ON THE CORD

A short power-supply cord (or detached power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a long cord.
Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
If a long detachable power-supply cord or extension cord is used:
1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
3. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

PLASTICIZER WARNING
To prevent Plasticizers from migrating to the finish of the counter top or table top or other furniture, place NONPLASTIC coasters or place mats between the appliance and the finish of the counter top or table top. Failure to do so may cause the finish to darken; permanent blemishes may occur or stains can appear.

ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.

SAFETY WARNINGS

Proper precautions must be made to avoid burns from sprays of hot water or steam.
Avoid touching any hot surfaces on the machine or any parts of the filter basket holder, filter basket, or any parts of the steam wand while the Espresso Maker is in use or after it is just been used to prepare hot beverages.
To avoid water spillage, it is necessary to wipe the drip tray clean. Lift the drip plate up and off the unit. Empty water, wipe dry, and replace drip plate. Touchscreen Control

LIMITED TWO-YEAR WARRANTY

HOW TO OBTAIN WARRANTY SERVICE:
You must contact Customer Service at our toll-free number: 1-866-832-4843. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to SENSIO Inc.
