Bella Flip & Store 35144 Manual

Table of Contents

Contents

1 GETTING TO KNOW YOUR BELLA FLIP & STORE BLENDER
2 BEFORE USING FOR THE FIRST TIME
3 OPERATING INSTRUCTIONS
4 CONTROL PANEL CHART
5 USER MAINTENANCE INSTRUCTIONS
6 CARE & CLEANING INSTRUCTIONS
7 STORAGE INSTRUCTIONS
8 IMPORTANT SAFEGUARDS
9 Documents / Resources
- 9.1 Download manual

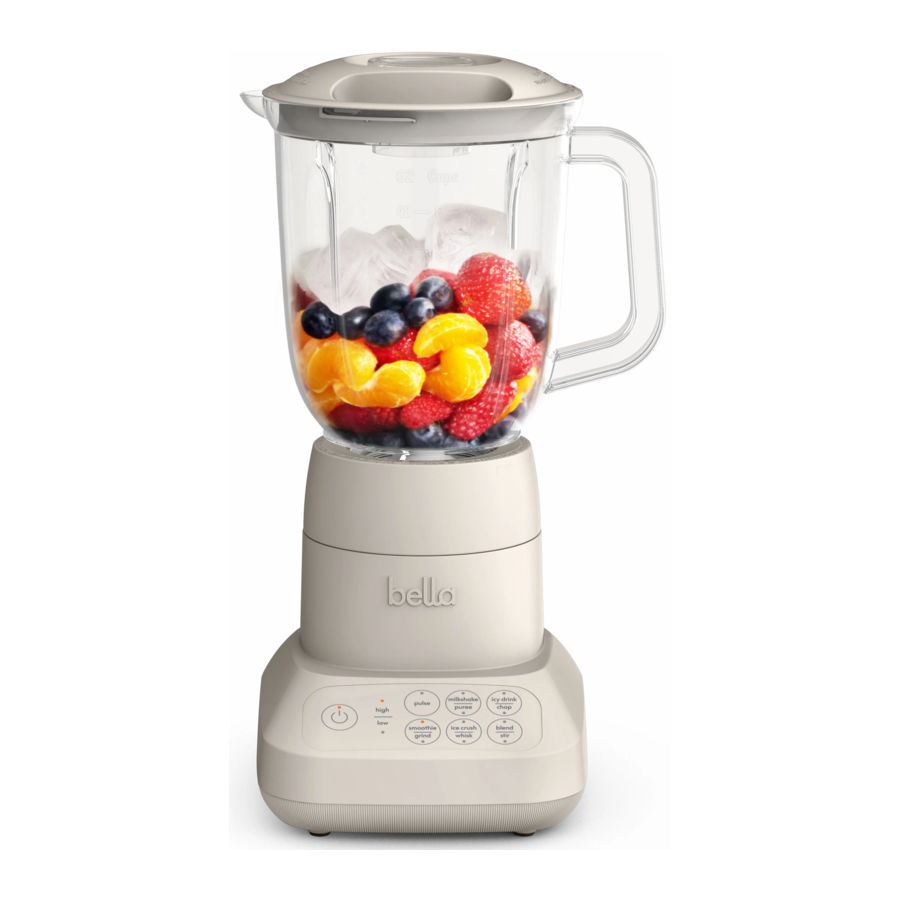

GETTING TO KNOW YOUR BELLA FLIP & STORE BLENDER

Product may vary slightly from illustration.
Overview

Lid with measuring cap
Plastic jar
Blade base
Motor base
Speed control

BEFORE USING FOR THE FIRST TIME

Carefully unpack the Flip & Store Blender and remove all packaging materials. Check the contents to ensure that all parts are present, and have been received in good condition.
Only handle blending blade by its collar.

Do not touch blades. Blades are very sharp. Use extreme care when handling. Failure to do so can result in personal injury.
Wash lid, measuring cap and jar in warm, soapy water. Rinse and dry thoroughly.
Clean jar before first use. Fill cup one-quarter full with clean, warm water. Following the steps outlined in the operating instructions, pulse several times using the blending blade. Rinse thoroughly.
The motor base may be wiped with a damp cloth.

DO NOT IMMERSE THE MOTOR BASE IN WATER.

OPERATING INSTRUCTIONS

Place the motor base on a flat, clean, dry countertop or table.
Make sure the unit is unplugged.
The Flip & Store Blender comes with one plastic jar and one lid. Place the food to be processed into the plastic jar.
To assemble the jug, place the sealing gasket on the inner edge of the blade base. Mount the plastic jar into the blade base and turn the blade base on a counter-clockwise direction until it is fixed.

Check to make sure if the plastic jar is properly attached to the blade base.
Place the assembled plastic jar and blade base onto the motor block until it is securely engaged.

Check to make sure the jar is properly fixed to the motor block.
Insert the measuring cup into the opening of the lid. Twist it counter-clockwise until it is locked.

Never operate the Blender when the plastic jar is empty.

Never over fill the jar. Do not exceed the Max Line.
To insert the plastic jar make sure the blender is switched Off.
Place ingredients in the jar; fix the lid to the plastic jar and twist it counter-clockwise until it is locked.
To process, plug the unit into a 120V plug and press any of the speeds on the speed control base.

CONTROL PANEL CHART

POWER

When the power button is pressed, the orange light will illuminate and flash.
Press to stop any operation.

HIGH/LOW

When the power button is pressed, the orange light on the HIGH setting will illuminate.
User can change speed by clicking the HIGH/LOW button. The default setting is HIGH for selecting the milkshake, icy drink, smoothie, ice crush and blend. Press the HIGH/LOW button until the orange light is under LOW to select puree, chop, grind, whisk and stir.
Press first the power button, if a HIGH setting is desired, simply press the mode button. If a LOW setting is desired, press the HIGH/LOW button until the orange light is bright under LOW, then the desired mode button. To stop the function, you can either click the power button again or directly press the mode button again.

PULSE

When the button is pressed, the orange light will illuminate.
Select PULSE to blend ingredients through controlled bursts of power.
Use PULSE to dislodge ingredients clumped around the blade and at the bottom of the jar.
PULSE is activated as the button is pressed. Release the PULSE button to stop.
For best results, time the PULSES to ensure that blades come to a complete stop before pulsing again.

MILKSHAKE/PUREE
MILKSHAKE:

Turn Blender on. Select HIGH mode, then click the MILKSHAKE/PUREE button to start the milkshake mode. The orange light will illuminate.
Blends fresh fruits or syrups with your milk of choice into the perfect milkshake.
Press the MILKSHAKE/PUREE button again to turn MILKSHAKE OFF.
MILKSHAKE has a fixed cycle time and will automatically turn OFF after 57 seconds.

PUREE:

Turn Blender on. Select LOW mode, then click the MILKSHAKE/PUREE button to start the puree mode. The orange light will illuminate.
Blends cooked vegetables with water and or milk or cream to make the perfect puree.
Press the MILKSHAKE/PUREE button again to turn PUREE OFF.
PUREE has a fixed cycle time and will automatically turn OFF after 54 seconds.

ICY DRINK/CHOP
ICY DRINK:

Turn Blender on. Select High mode, then click the ICY DRINK/CHOP button to start the icy drink mode. The orange light will illuminate.
Perfect for preparing frozen margaritas, daiquiris, frosé and many more refreshing summer drinks.
For best results, remove ice cubes from freezer for 5 minutes before using.
Add desired amount of ice cubes (maximum 6 at a time for best results) and ingredients to the blender jar.
Additional mix or ice cubes may be added through the cap. When the desired drink consistency is achieved, press the power button or the illuminated ICY DRINK button to turn the blender off.
Press the ICY DRINK/CHOP button again to turn ICY DRINK OFF.
ICY DRINK has a fixed cycle time and will automatically turn OFF after 75 seconds.

CHOP:

Turn Blender on. Select Low mode, then click the icy drink/chop button to start the chop mode. The orange light will illuminate.
Chops fresh vegetables into even pieces. Raw vegetables should be no bigger than ½ pieces before chopping them in the blender.
Press the ICY DRINK/CHOP button again to turn CHOP OFF.
CHOP has a fixed cycle time and will automatically turn OFF after 80 seconds.

SMOOTHIE/GRIND
SMOOTHIE:

Turn Blender on. Select HIGH mode, then click the SMOOTHIE/GRIND button to start the smoothie mode. The orange light will illuminate.
Blends fresh or frozen fruits and vegetables into the perfect smoothie.
Press the SMOOTHIE/GRIND button again to turn SMOOTHIE OFF.
SMOOTHIE has a fixed cycle time and will automatically turn OFF after 85 seconds.

GRIND:

Turn Blender on. Select LOW mode, then click the SMOOTHIE/GRIND button to start the grind mode. The orange light will illuminate.
Grinds coffee and spices.
Press the SMOOTHIE/GRIND button again to turn GRIND OFF.
GRIND has a fixed cycle time and will automatically turn OFF after 60 seconds.ICE CRUSH/WHISK ICE CRUSH:
Turn Blender on. Select HIGH mode, then click the ICE CRUSH/WHISK button to start the ice crush mode. The orange light will illuminate.
ICE CRUSH quickly crushes up to 6 ice cubes and is perfect for preparing frozen desserts or drinks.
Press the ICE CRUSH/WHISK button again to turn ICE CRUSH OFF.
ICE CRUSH has a fixed cycle time and will automatically turn OFF after 54 seconds.

WHISK:

Turn Blender on. Select LOW mode, then click the ICE CRUSH/WHISK button to start the whisk mode. The orange light will illuminate.
Whisks sauces like mayonnaise, eggs for omelette, and cake and pancake batter.
Press the ICE CRUSH/WHISK button again to turn WHISK OFF.
WHISK has a fixed cycle time and will automatically turn OFF after 60 seconds.

BLEND/STIR
BLEND:

Turn Blender on. Select HIGH mode, then click the BLEND/STIR button to start the blend mode. The orange light will illuminate.
BLEND any soft vegetables or fruits with liquid of your choice.
Press the BLEND/STIR button again to turn BLEND OFF.
BLEND has a fixed cycle time and will automatically turn OFF after 60 seconds.

STIR:

Turn Blender on. Select LOW mode, then click the BLEND/STIR button to start the stir mode. The orange light will illuminate.
Stir ingredients until they are combined.
Press the BLEND/STIR button again to turn STIR OFF.
STIR has a fixed cycle time and will automatically turn OFF after 50 seconds.

When the processing is completed, always press the power button to turn off the blender and make sure to unplug the unit.
Pull up the plastic jar from the motor base.
NOTE: Number of cycles needed to achieve desired results will vary best on quantities and recipes.

USER MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician.

CARE & CLEANING INSTRUCTIONS

Never immerse the motor base, plug or cord in water or any other liquid.

Always unplug the Flip & Store Blender before cleaning.
Whenever possible, simple rinse parts immediately after processing to make cleanup easier.
Always handle blades using the blade collar.

Use extreme care when handling blades. Do not touch the blades with your fingers. The blades are very sharp and can cause injury if touched.
For quick clean-ups, fill plastic jar one-quarter full with clean warm water. Press pulse several times using several times. Rinse thoroughly.
Remove the lid after use to clean. Wash the lid and the plastic jar in warm soapy water. Rinse and dry thoroughly.

never use rough scouring pars or abrasive cleansers on any plastic or metal parts as the surface may be damaged.
The plastic jar and lid are top-rack ONLY dishwasher safe.

after dishwashing, always check to make sure the gasket seal on the lid is properly in place as the heat from some dishwasher may cause to become loose.
The motor base may be wiped with a damp cloth or sponge. Dry thoroughly.
Clean blade and blade collar with a small brush to avoid injuries when getting too close to blades.

DO NOT IMMERSE THE MOTOR BASE IN WATER.

STORAGE INSTRUCTIONS:

Unplug and clean the unit.
Store in original box or in a clean, dry place.
Never store 10-speed blender while it is hot or plugged in. Never wrap cord tightly around appliance. Never place any stress on cord, especially where the cord enters the unit, as this could cause the cord to fray and break.
This unit comes with a cord storage at the base for convenient storage.
This unit is part of the Bella Fit Anywhere family and can be stored as shown in the below illustration for maximum convenience.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS.
To protect against risk of electric shock do not put the appliance base, power cord or plug in water or other liquid. Ensure that appliance does not get wet (water splashes etc.) and do not use it with wet hands.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment. Always operate blender with cover in place.
Avoid contacting moving parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, electrical or mechanical adjustment. Contact customer service for examination, repair or adjustment.
The use of attachments, including canning jars, cups or covers not recommended or sold by the manufacturer may cause a risk of injury to persons. Only items designed for use with this appliance should be used at all times.
Do not use outdoors. This unit is designed to be used only indoors.
Do not let cord hang over edge of table or counter. The cord can get tangled or cause the appliance to fall.
Do not let cord contact hot surface, including the stove. The protective insulation will burn making the appliance inoperable or unsafe to operate.
This blender is turned on by pressing the desired speed.
Blades are sharp. Handle carefully. Use the blade's collar to handle. Touching the blades can cause injuries.
Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
To reduce the risk of injury, never place cutter-assembly blades on the motor base without jar properly attached. Always completely assemble the blade and the jar in place.
Always operate blender with cover properly placed on the jar.
When blending hot liquids, remove center piece of two-piece cover. Blending boiling liquids may cause the lid to unlock itself from the jar and the hot liquid can cause serious personal injuries.
Flashing light indicates ready to operate. Avoid any contact with blades or moveable parts.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

ADDITIONAL IMPORTANT SAFEGUARDS
All users of this appliance must read and understand this owner's manual before operating or cleaning this appliance.

The cord to the appliance should be plugged into a 120 V AC electrical outlet only.
If this appliance begins to malfunction during use, immediately stop the appliance and unplug the cord. Do not use or attempt to repair the malfunctioning appliance.
If this appliance falls or accidentally becomes immersed in water, unplug it immediately. Do not reach into the water.
Do not use this appliance after it has fallen into or becomes immersed in water.
To reduce the risk of injury to persons or property, never use this appliance in an unstable position.
Do not use this appliance for other than its intended use. The appliance may be damaged and cause serious personal injury or cause property damage.
Do not use if the jar is cracked or chipped.

Do not overfill. Never fill ingredients beyond the jar's max line.

Failure to add enough liquid before processing may cause the jar to break or chip.

To avoid spills, make sure the lid is properly locked in place on the jar with the lid cap in position before pressing any SPEED or selecting one of the blending functions.

NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

NOTES ON THE CORD

A short power-supply cord (or detached power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a long cord.
Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
If a long detachable power-supply cord or extension cord is used:
1. The marked electrical rating of the cord set, or extension cord should be at least as great as the electrical rating of the appliance.
2. If the appliance is of the grounded type, the extension cord should be a grounding-type3-wire cord.
3. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

PLASTICIZER WARNING

To prevent plasticizers from migrating to the finish of the countertop or tabletop or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the countertop or tabletop. Failure to do so may cause the finish to darken, permanent blemishes may occur, or stains can appear.

ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.
