SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
CAUTION – RISK OF SHOCK:
Disconnect Power at the main circuit breaker panel or main fusebox before
starting and during the installation.
WARNING: This fixture is intended for installation in accordance with the
National Electric Code (NEC) and Local code specifications. Failure to
adhere to these codes and instructions may result in serious injury and/or
property damage and will void the warranty. If you are not familiar with code
requirements, installation by a certified electrician is recommended.
1) WARNING: This fixture is not to be installed within 10 feet (3M) of a
pool, spa or fountain.
2) This fixture is to be used only with a power unit (transformer) rated a
maximum of 300 W (25 AMPS) 15 volts.
3) The unit low voltage cable shall:
a) be protected by routing in close proximity to the luminaire or fitting,
or next to a building structure such as a house or deck;
b) not be buried except for a maximum 6 inches (15.2 cm) in order to
connect to the main low voltage cable; and
c) have the length cut off so that it is connected to a connector within 6
inches (15.2 cm) from a building structure, a luminaire, or fitting.
4) Direct burial rated wire is to be buried a minimum of 6" (152mm)
beneath the surface of the ground.
NOTE: If additional Direct Burial wire is needed, contact your local
Kichler
landscape distributor.
®
• 10 GA wire can be purchased in length of 250' (76 M), 15504-BK.
• 12 GA wire can be purchased in lengths of 100' (30 M), 15501-BK; 250'
(76 M), 15502-BK; 500' (152M), 15505-BK; and 1000' (304 M), 15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the fixture is
marked for use with such lamps.
6) Wiring connections must be made with approved/listed wire connection
device(s) suitable for the application. Do not exceed manufacturers'
wiring combination specifications for size and quantity of conductors.
7) Xenon lamps do not require additional shielding.
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE
SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES, GRASS
CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT BULB, LENS,
OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1. TURN OFF POWER.
2.
Determine desired location for mounting fixture.
3.
At desired location, hammer stake into ground. To avoid damage to stake, place a board on
top of stake or use a rubber mallet. If ground is hard and stake is difficult to install, make a
crosscut in ground using a flat shovel.
4.
Clear away area in ground at wireway opening in stake.
5.
Remove (2) screws holding cowl in place and remove cowl and lens assembly.
6.
Install recommended lamp (not supplied) in socket inside fixture.
NOTE: If using a larger directional LED bulb, such as Kichler bulb 18120, remove the metal
reflector from within the light fixture prior to installing the bulb in the socket.
7.
Fixture is supplied with (2) glass lens options to create desired lighting effect. To change
lens, remove gasket from around glass and replace with selected glass. Reinstall lens and
gasket assembly into cowl. Re-assemble cowl onto housing and secure with (2) screws.
8. Route fixture cable through wireway opening and screw stem into stake. Adjust to desired
aiming direction. Care should be taken to ensure wire is not twisted.
9. Adjust angle of accent light by loosening swivel adjustment screw.
10. If assembly does not look straight, adjust by pushing or pulling on stake only.
11. Make wire connections using an approved wiring connectors (not supplied) following
instructions provided by manufacturer.
INSTRUCCIONES DE SEGURIDAD
PRIMERO LEA ESTO
GUARDE ESTAS INSTRUCCIONES
PRECAUCIÓN – RIESGO DE DESCARGA ELÉCTRICA:
Desconecte la electricidad en el panel principal del interruptor automático
o caja principal de fusibles antes de comenzar y durante la instalación.
ADVERTENCIA: Este artefacto se debe instalar de acuerdo con el Código
Eléctrico Nacional (NEC, por sus siglas en inglés) y con las especificacio-
nes del código local. No cumplir con estos códigos e instrucciones puede
resultar en lesiones graves y/ o en daños a la propiedad y anulará la ga-
rantía. Si no está familiarizado con los requisitos del código, la instalación
se recomienda un electricista certificado.
1) ADVERTENCIA: Este artefacto no debe instalarse a menos de 10 pies
(3 m) de una piscina (alberca), spa o fuente.
2) Este artefacto debe utilizarse solamente con una unidad de potencia
(tranformador) con capacidad nominal máxima de 300 vatios (25 amp.)
15 voltios.
3) El cable de baja tensión de la unidad deberá:
a) estar protegido mediante su tendido en las proximidades de la
luminaria o conexión, o cerca de la estructura de un edificio, como
una casa o una cubierta (deck);
b) no ser enterrado, excepto por un máximo de 6 pulgadas (15,2 cm)
para conectar con el cable principal de baja tensión; y
c) tener la longitud cortada de manera que se conecte a un conector a
menos de 6 pulgadas (15,2 cm) de la estructura de un edificio, una
luminaria o una conexión.
REV 12-JUL-2024
CAUTION
For warranty information please visit: kichler.com/warranty
Para informacion de la garantia por favor visite: kichler.com/warranty

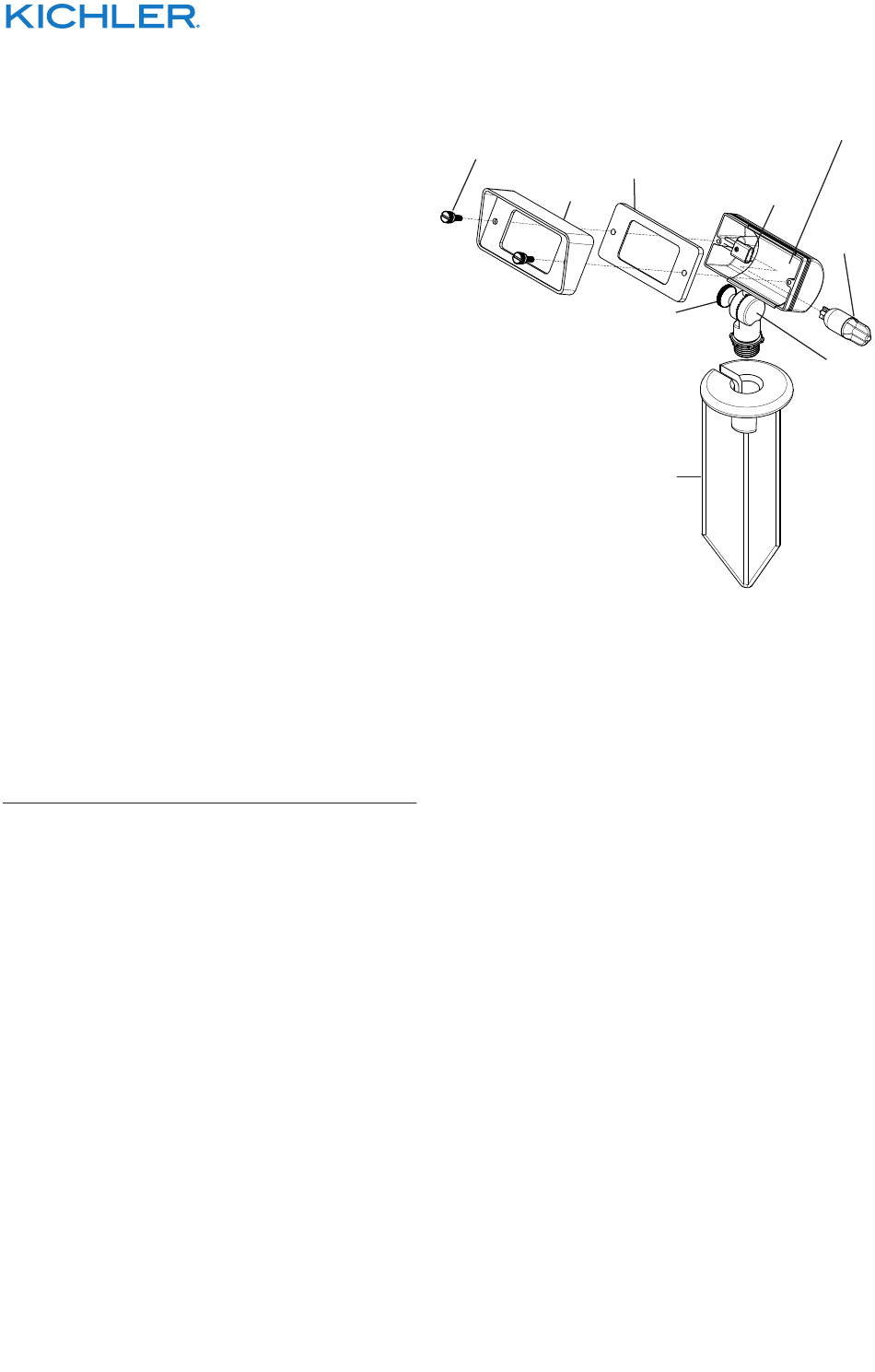

COWL SCREW
TORNILLO DEL CAPUCHA
COWL
CAPUCHA
4) El cable clasificado para uso subterráneo directo debe ser enter rado
un mínimo de 6" (152mm) bajo la superficie del suelo.
NOTA: si se necesita cable adicional para uso subterráneo directo,
póngase en contacto con su distribuidor paisajístico Kichler® local.
• El alambre calibre 10 puede comprarse en longitud de 250' (76 m.),
15504-BK.
• El alambre calibre 12 puede comprarse en longitudes de 75' (22 m.),
15550-BK; 100' (30 m.), 15501-BK; 250' (76 m.), 15502-BK; 500'
(152 m.), 15505-BK; y 1000' (304 m.), 15506-BK.
5) El artefacto no debe utilizarse con lámparas de halógeno, a menoss
que el artefacto esté marcado para usar con tales lámparas.
6) Las conexiones de cableado se deben hacer con las conexiones del
(los) dispositivos) de conexión de cableado aprobados/ de la lista,
adecuados para la aplicación. No exceda las especificaciones de
combinación de cableado del fabricante para el tamaño y cantidad
de conductores.
7) Las lámparas de Xenón no requieren blindaje adicional.
CUANDO SE INSTALE SISTEMAS DE ALUMBRADO KICHLER PARA JARDINES (YA SEA DE
VOLTAJE DE LINEA O CON VOLTAJE BAJO) SE DEBE TENER CUIDADO DE MAINTNERLOS
ALEJADOS DE MATERIALES QUE PUEDAN SER COMBUSTIBLES EN POTENCIA.
AL DAR SERVICIO DE MANTENIMIENTO A ESTOS SISTEMAS, ASEGURESE DE DESPEJAR LAS
HOJAS, CONOS DE PINO, RECORTES DEL PASTO, CUBIERTA DE PAJA O CUALQUIER BASURA
QUE SE HAYA ACUMULADO EN LA BOMBILLA DE LUZ, EL LENTE O EL CUERPO DEL
ARTEFACTO.
1. APAGAR LA ALIMENTACIÓN ELÉCTRICA.
2.
Determine el lugar deseado donde montar el artefacto.
3.
En el lugar deseado, martille la estaca en el suelo. Para evitar dañar la estaca, coloque una
tabla en la parte superior de la estaca mientras esté martillando. Si el suelo es duro y es
difícil instalar la estaca, haga un corte en cruz en el suelo usando una pala plana.
4.
Despeje el área en el suelo en la abertura del canal de alambre en la estaca.
5.
Remueva los (2) tornillos que sostienen la capucha en su lugar y remueva la capucha y
ensamblaje del lente.
6.
Instale la lámpara recomendada (no se suministra) en el portalámparas dentro del artefacto.
NOTA: Si se utiliza un foco LED direccional más grande, como el foco Kichler 18120, se
debe retirar el reflector metálico del interior del artefacto de iluminación antes de instalar el
foco en el portalámparas.
7.
El artefacto viene con (2) opciones de lentes de vidrio para crear el efecto de iluminación
deseado. Para cambiar el lente, remueva la junta alrededor del vidrio y reemplace con el
vidrio seleccionado. Vuelva a instalar el ensamblaje de lente y junta en la capucha. Vuelva a
ensamblar la capucha en la cubierta y asegure con (2) tornillos.
8.
Encamine el cable del artefacto a través de la abertura del canal de alambre y atornille el
vástago en la estaca. Ajuste en la dirección objetivo deseada. Deberá tenerse cuidado para
asegurar que el alambre no esté retorcido.
9. Ajuste el ángulo de la luz de acento aflojando el tornillo de ajuste de la articulación giratoria.
10. Si el ensamblaje no parece derecho, ajuste solamente empujando o jalando de la estaca.
11. Realice conexiones de cables utilizando conectores de cableado aprobados (no
suministrados) siguiendo las instrucciones proporcionadas por el fabricante.
We're here to help
Estamos aquí para ayudarle
Horario: Lunes-Viernes 9am a 5pm EST (hora oficial del este)
REFLECTOR
(REMOVE THIS PART IF USING A LARGER
DIRECTIONAL LED BULB)
REFLECTOR
(RETIRE ESTA PIEZA SI SE UTILIZA UN
FOCO LED DIRECCIONAL MÁS GRANDE)
LENS ASSEMBLY
ENSAMBLAJE DEL LENTE
SOCKET
PORTALÁMPARAS
SWIVEL
SCREW
TORNILLO DE
AJUSTE DE LA
ARTICULACIÓN
GIRATORIA
STAKE
ESTACA
PRECAUCION
MONTAJE E INSTALACIÓN
866-558-5706
Hrs: M-F 9am to 5pm EST
866-558-5706
LAMP
(not supplied)
LÁMPARA
(no se
suministra)
SWIVEL
ARTICULACIÓN
GIRATORIA
IS-15476-US
