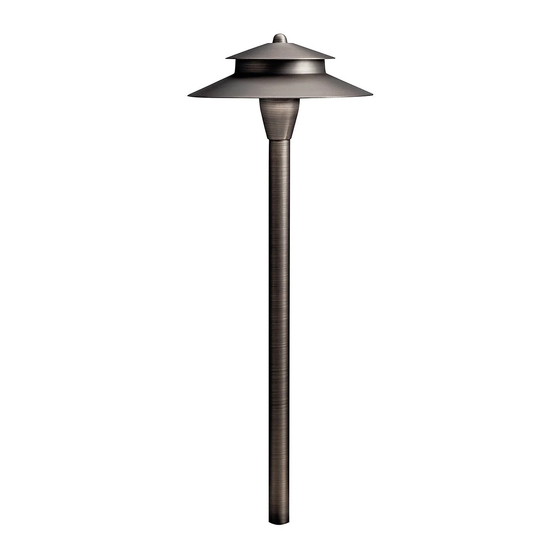

Kichler Lighting 15480CBR Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when
turning on.
3) Do not touch hot lens or cowl.
4) Do not remain in light if skin feels warm. (Light is intense, it may
cause "sunburn".)
5) Do not look directly at lighted lamp.
6) Keep lamp away from materials that may burn.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time.
Use a soft cloth. Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.
SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the
National Electric Code (NEC) and Local code specifications.
Failure to adhere to these codes and instructions may result in
serious injury and/or property damage and will void the warranty.
1) WARNING: This fixture is not to be installed within 10 feet (3M)
of a pool, spa or fountain.
2) This fixture is to be used only with a power unit (transformer)
rated a maximum of 300 W (25 AMPS) 15 volts.
3) The #18 ga. fixture wire is not intended for direct burial.
4) Direct burial rated wire is to be buried a minimum of 6"
(152mm) beneath the surface of the ground.
NOTE: If additional Direct Burial wire is needed, contact
your local Kichler landscape distributor.
®
• 8 GA wire can be purchased in length of 250' (76 M),
15503-BK.
• 10 GA wire can be purchased in length of 250' (76 M),
15504-BK.
• 12 GA wire can be purchased in lengths of 100' (30 M),
15501-BK; 250' (76 M), 15502-BK; 500' (152M), 15505-BK;
and 1000' (304 M), 15506-BK.
5) Fixture shall not use a tungsten halogen lamp unless the
fixture is marked for use with such lamps.
6) Wiring connections must be made with approved/listed wire
connection device(s) suitable for the application. Do not
exceed manufacturers' wiring combination specifications for
size and quantity of conductors.
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW
VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY
COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE
NEEDLES, GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMU-
LATED ON THE LIGHT BULB, LENS, OR BODY OF THE FIXTURE.
ASSEMBLY AND INSTALLATION
1) TURN OFF POWER.
2) Determine desired location for mounting fixture. At desired
location, hammer stake into ground. To avoid damage to
stake, place a board on top of stake while hammering or use
a rubber mallet. If ground is hard and stake is difficult to
install, make a crosscut in ground using a flat shovel.
3) Clear away area in ground at wireway opening in stake.
4) Route fixture cable through wireway opening and screw
stem into stake. Care should be taken to ensure wire is not
twisted. If assembly does not look straight, adjust by
pushing or pulling on stake only.
5) Install lamp (not provided) into socket inside fixture. NOTE:
Use caution when installing. Use a soft cloth to handle lamp;
DO NOT touch glass envelope with bare hands. If this
happens, clean lamp with denatured alcohol and a lint free
cloth.
6) For 15480 only - Remove hex nut from top shade and
assemble with bottom shade. Reinstall hex nut.
7) Install gasket and glass hood over bulb on top of stem.
8) Screw harp onto stem to secure glass. (DO NOT over
tighten.)
9) Thread shade assembly onto harp.
10) Make wire connections using an approved wiring connectors
(not supplied.) following instructions provided by manufacturer.
Date Issued: 4/24/15
PERSONS
CAUTION
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page

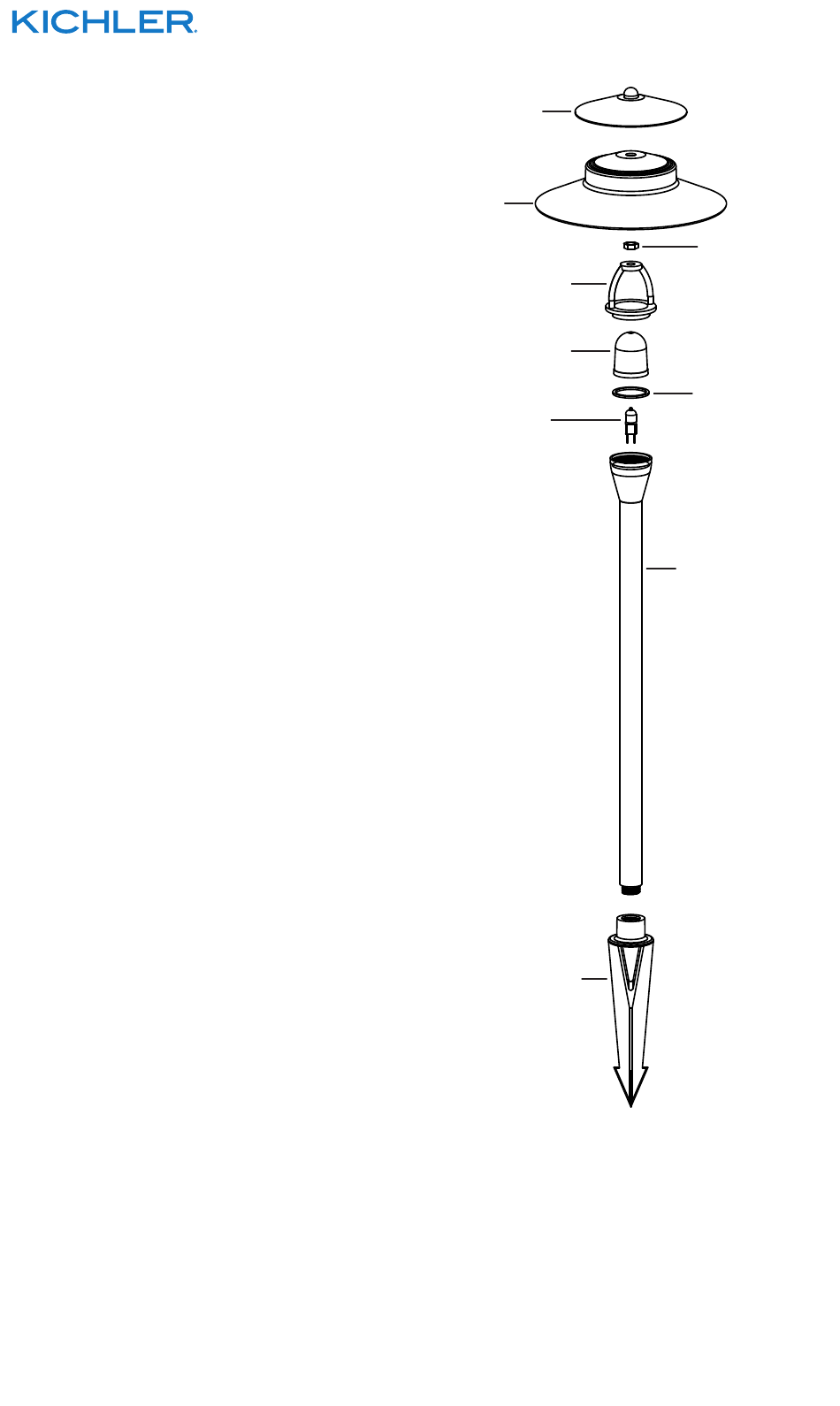

TOP SHADE
PANTALLA SUPERIOR
BOTTOM SHADE
PANTALLA
INFERIOR
HARP
ARMAZÓN
GLASS HOOD
CAMPANA DE
VIDRIO
LAMP
(NOT INCLUDED)
LÁMPARA
(NO SE PROPORCIONA)
STAKE
ESTACA
SEE OTHER SIDE FOR SPANISH TRANSLATIONS.
VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
NUT
TUERCA HEXAGONAL
GASKET
JUSTA
STEM
VÁSTAGO
IS-15480-US
