WARNING
California Prop. 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or
other reproductive harm. Wash hands after use.
The device is accepted as a component of a landscape lighting system where the suitability of the CSA or UL labeled combination
shall be determined by CSA, UL respectively or the local inspection authorities having jurisdiction.
Fixture shall be connected to an extra low voltage transformer approved for use with landscape lighting systems.
This fixture is to be connected to a secondary wiring of the following type:
- SPT-3 suitable for outdoor use; or
- approved landscape lighting cable.
CAUTION
If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate completely, please contact a licensed
electrical contractor.
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE), CARE SHOULD BE TAKEN TO
KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS. WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE
LEAVES, PINE NEEDLES, GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT BULB,
LENS, OR BODY OF THE FIXTURE.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
Purchase Date
1
LANDSCAPE LIGHTING
ITEM #0805201
MODEL #28307
Español p. 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Showscape 28307 and is the answer not in the manual?

Questions and answers

Tony Dominguez
March 4, 2025

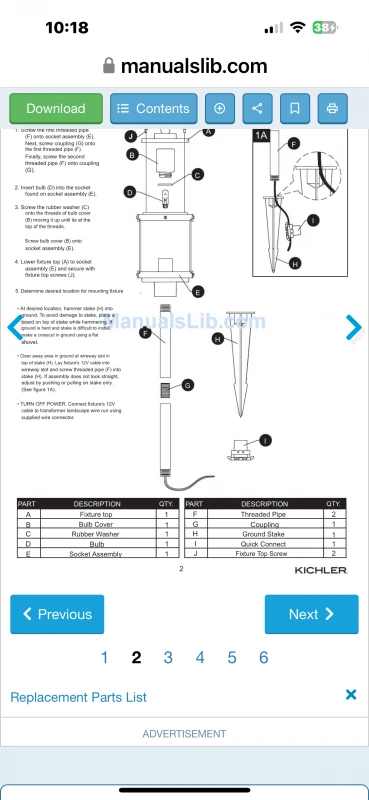

Model # 28307 need a total of 4 threaded pipes for this model. My contractor misplaced the pipes.

User image 67c71a410ded1
1 comments:
Mr. Anderson
May 14, 2025

The Kichler Showscape 28307 model requires two threaded pipes, each labeled as part F in the manual. No specific dimensions or material specifications are provided in the available information.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Kichler Lighting Showscape 28307

  • Page 1 ITEM #0805201 LANDSCAPE LIGHTING Kichler® is a registered trademark of The L.D. Kichler Co. All Rights Reserved. MODEL #28307 Español p. 5 WARNING • California Prop. 65: This lighting fixture contains chemicals known to the state of California to cause cancer, birth defects, and/or other reproductive harm.
  • Page 2 PACKAGE CONTENTS 1. Screw the first threaded pipe (F) onto socket assembly (E). Next, screw coupling (G) onto the first threaded pipe (F). Finally, screw the second threaded pipe (F) onto coupling (G). 2. Insert bulb (D) into the socket found on socket assembly (E).
  • Page 3 ASSEMBLY INSTRUCTIONS A. Pass low voltage transformer supply wire through base. B. Insert fixture wire into contact plate. Firmly push the wire onto the contact pins with the press plate. C. Place top cover over press plate and snap into the contact place locking tabs.
  • Page 4 LANDSCAPE LIGHTING WARRANTY AND LIMITATIONS Subject to Kichler’s General Warranty and Limitations and aside from the exceptions noted below, Kichler warrants that Landscape Lighting Products whose model numbers begin with the numbers “28” will be free from defects in material and workmanship for seven (7) years.
  • Page 5 ARTÍCULO #0805201 ILUMINACIÓN PARA PAISAJISMO Kichler® es una marca registrada de The L.D. Kichler Co. Todos los derechos reservados. MODELO #28307 ADVERTENCIA • Prop. 65 de California: Esta lámpara contiene sustancias químicas que se sabe en el Estado de California que causan cáncer, defectos de nacimiento y otros daños al sistema reproductivo.
  • Page 6 CONTENIDO DEL PAQUETE 1. Atornille el primer tubo roscado (F) al conjunto de portalámparas (E). Después atornille el acoplamiento (G) al primer tubo roscado (F). Finalmente, atornille el segundo tubo roscado (F) al acoplamiento (G). 2. Inserte el foco (D) en el portalámparas que se encuentra en el conjunto de portalámparas (E).
  • Page 7 INSTRUCCIONES DE ENSAMBLAJE A. Pase el cable de alimentación del transformador de bajo voltaje por la base. B. Inserte el cable de la lámpara en la placa de contacto. Empuje con firmeza el cable hacia los pines de contacto con la placa de presión. C.
