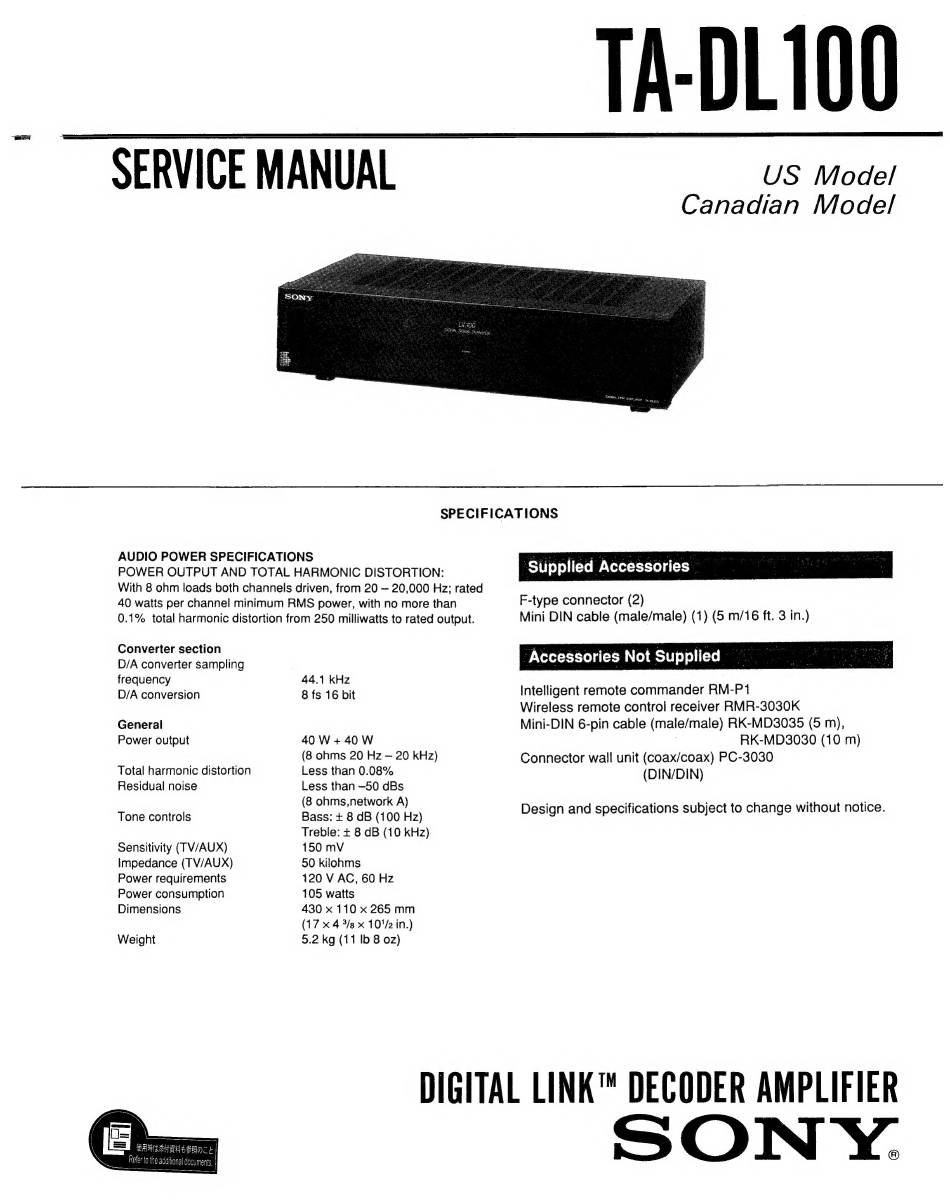

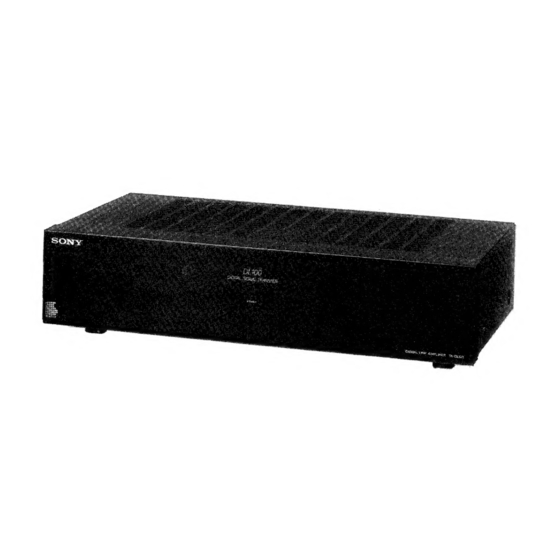

Sony DIGITAL LINK TA-DLI00 Service Manual

SERVICE MANUAL
TA-DLI00
US Model
Canadian Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 8 ohm loads both channels driven, from 20 — 20,000 Hz; rated
40 watts per channel minimum RMS power, with no more than
0.1% total harmonic distortion from 250 milliwatts to rated output.
Converter section
D/A converter sampling
frequency 44.1 kHz
D/A conversion 8 fs 16 bit
General
Power output 40W+40W
(8 ohms 20 Hz — 20 kHz)
Less than 0.08%
Less than —50 dBs
(8 ohms,network A)
Bass: + 8 dB (100 Hz)
Treble: + 8 dB (10 kHz)
Total harmonic distortion
Residual noise
Tone controls
Sensitivity (TV/AUX) 150 mV
Impedance (TV/AUX) 50 kilohms
Power requirements 120 V AC, 60 Hz
Power consumption 105 watts
Dimensions 430 x 110 x 265 mm
(17 x 4 9/s x 10'/2 in.)
Weight 5.2 kg (11 Ib 8 oz)
'Supplied Accessories
F-type connector (2)
Mini DIN cable (male/male) (1) (5 m/16 ft. 3 in.)
Accessories Not Supplied
Intelligent remote commander RM-P1
Wireless remote control receiver RMR-3030K
Mini-DIN 6-pin cable (male/male) RK-MD3035 (5 m),
RK-MD3030 (10 m)
Connector wall unit (coax/coax) PC-3030
(DIN/DIN)
Design and specifications subject to change without notice.
DIGITAL LINK™ DECODER AMPLIFIER
