SERVICE MANUAL
SPECIFICATIONS
Continuous RMS power output
60 W + 60 W
(6 ohms, at 1 kHz, 5% THD)
50W + 50 W
(6 ohms, DIN, 1 kHz)
90 W + 90 W
(6 ohms, at 1 kHz, 10% THD)
Music power output
Input.
Jack type |
PHONO (MM)
VIDEO1
47 kohms
VIDEO2
47 kohms
CD
47 kohms
MIC
10 kohms
Output.
Jack type
Voltage
SURROUND
| Phono
SPEAKER
Sensitivity
Impedance
47 kohms
Impedance
Accepts speakers of 16 ohms
Accepts headphones of 8 ohms
or more
Frequency response
Power requirements
Power consumption
AC outlet
Weight
Dimensions
TA-Do0a
AEP Model
UK Model
E Model
Australian Model
15 Hz to 50 kHz +3. dB
220-230 V AC, 50/60 Hz
150 W
1 unswitched, 100 W max.
Approx. 8 kg (17 lbs 11 02z)
Approx. 355
132.5 x 320 mm
(w/h/d, including projections)
(14 X 51/4 X 12 5/g inches)
Design and specifications subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.

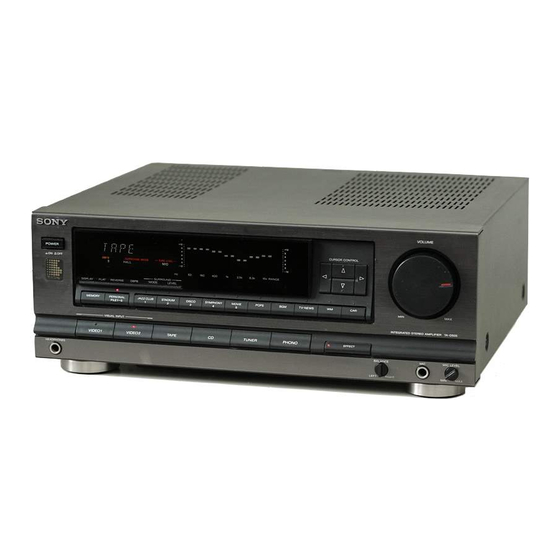

STEREO AMPLIFIER
