Lenovo K6 NOTE K53a48 Manual

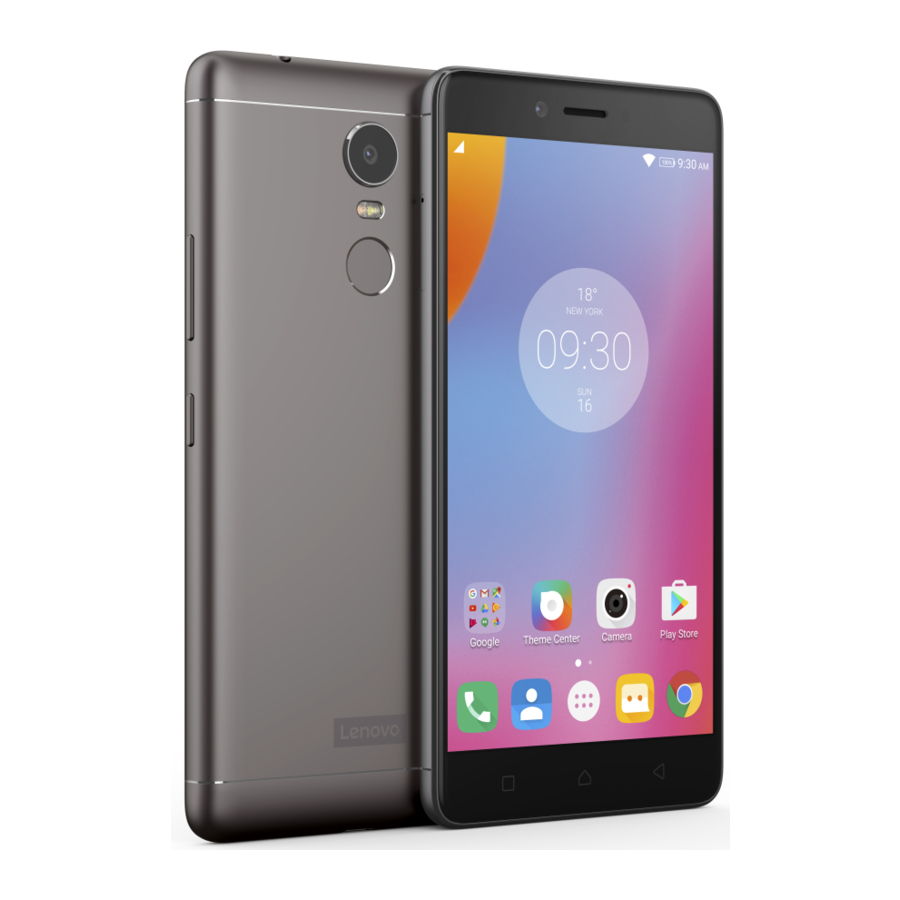

First glance

Front-facing camera
Receiver
Light/Proximity sensor
Indicator
Volume buttons
On/Off button
Touch screen
Back button
Home button
Multitask button
Headset connector
Anti-noise microphone
Rear-facing camera
Flash
Card tray
Fingerprint sensor
Micro USB connector
Microphone
Speaker

Installing the Nano-SIM & microSD cards

Dual-SIM model

A Nano-SIM card provided by your carrier is required in order to use cellular services (1).

A microSD card is required to store data. Install the Nano-SIM cards and the microSD card as shown (2).

Step 1. Insert the eject tool that comes with your smartphone into the hole in the card tray.

Step 2. Pull out the card tray and do one of the following:

Position a Nano-SIM card in Slot 1 and a microSD card in Slot 2;
Position a Nano-SIM card in Slot 1 and another Nano-SIM card in Slot 2 (3).

Step 3. Carefully insert the tray with the installed cards back into the slot.

warning

Only Nano-SIM cards work with your smartphone.
Always turn off your smartphone first before you insert or remove a Nano-SIM card. Insert or remove a Nano-SIM card with your smartphone on may damage your Nano-SIM card or smartphone permanently.
Both of the card slots support 4G/3G/2G data services, but you can enable only one Nano-SIM card for data connection at a time. If you want to change the Nano-SIM card used for data connection, go to Settings > SIM management.

Single-SIM model

A Nano-SIM card provided by your carrier is required in order to use cellular services (1).

A microSD card is required to store data. Install the Nano-SIM card and the microSD card as shown (2).

Step 1. Insert the eject tool that comes with your smartphone into the hole in the card tray.

Step 2. Pull out the card tray and position a Nano-SIM card in Slot 1 and a microSD card in Slot 2;

Step 3. Carefully insert the tray with the installed cards back into the slot.

warning

Only Nano-SIM cards work with your smartphone.
Always turn off your smartphone first before you insert or remove a Nano-SIM card. Insert or remove a Nano-SIM card with your smartphone on may damage your Nano-SIM card or smartphone permanently.

Charging the battery

Charge the battery as shown.
Charging the battery

Method 1. Connect your smartphone to a power outlet using the cable and USB power adapter that come with your smartphone.

Method 2. Connect your smartphone to a computer using the cable that comes with your smartphone.

Low battery power

Fully charged

Charging

warning As a protective measure, your smartphone will stop charging automatically in unstable voltage conditions. Reconnect the micro USB cable to your smartphone to resume charging.

Turning on or turning off your smartphone

Turn on: Press and hold the On/Off button until the Lenovo logo appears.

Turn off: Press and hold the On/Off button for a few seconds, tap Power off, then tap OK.

Restart: Press and hold the On/Off button for a few seconds, tap Restart, then tap OK.

warning Your smartphone has a built-in rechargeable battery. For more information about battery safety, see the "Built-in rechargeable battery notice" section. The battery in this product cannot be easily replaced by yourself.

Important safety and handling information

This section contains important safety and handling information for Lenovo smartphones. Additional safety and handling information is provided in the User Guide.

Operating temperature

Use the Lenovo Phone only in the temperature range of -10°C (14°F) — 35°C (95°F) to avoid damage.

Plastic bag notice

Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

General battery notice

The original batteries supplied with your product have been tested for compatibility and should only be replaced with approved parts. Risk of explosion if the battery is replaced with an incorrect type. Dispose of used batteries according to the instructions.

Rechargeable battery notice

Risk of explosion if the battery is replaced with an incorrect type.

When replacing the lithium battery, use only the same or an equivalent type that is recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Dispose of used batteries according to the instructions.

Do not:

Throw or immerse into water
Heat to more than 100°C (212°F)
Repair or disassemble

Built-in rechargeable battery notice

Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo Support for factory replacement.

Charging

Lenovo, and its affiliates are not responsible for the performance or safety of products not manufactured or approved by Lenovo, or its affiliates. Use only approved Lenovo ac adapters and batteries. Adapter shall be installed near the equipment and shall be easily accessible.

Preventing hearing damage

To prevent possible hearing damage when using headsets, earphones, or earbuds with this device, do not listen at high volume levels for long periods.

Service, support, and warranty information

Online technical support

Online technical support is available during the lifetime of a product at: http://www.lenovo.com/support

To get support on network service and billing, contact your wireless network operator. To learn how to use your smartphone and view its technical specifications, go to http://support.lenovo.com.

Telephone technical support

Worldwide Lenovo Support telephone list

Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer Support Center is always available at: http://support.lenovo.com/supportphonelist

The Customer Support Center phone number is subject to change. For the latest phone number, go to the e-support website. If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.
