Lenovo K10 Note (L38111) Manual

Introduction

informationRead this guide carefully before using your smartphone.

Reading first — regulatory information
Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your Lenovo Mobile Phone. To obtain a PDF version of the Regulatory Notice, see the "Downloading publications" section. Some regulatory information is also available in Settings > About phone > Regulatory information on your smartphone.

Getting support
To get support on network service and billing, contact your wireless network operator. To learn how to use your smartphone and view its technical specifications, go to http://support.lenovo.com.

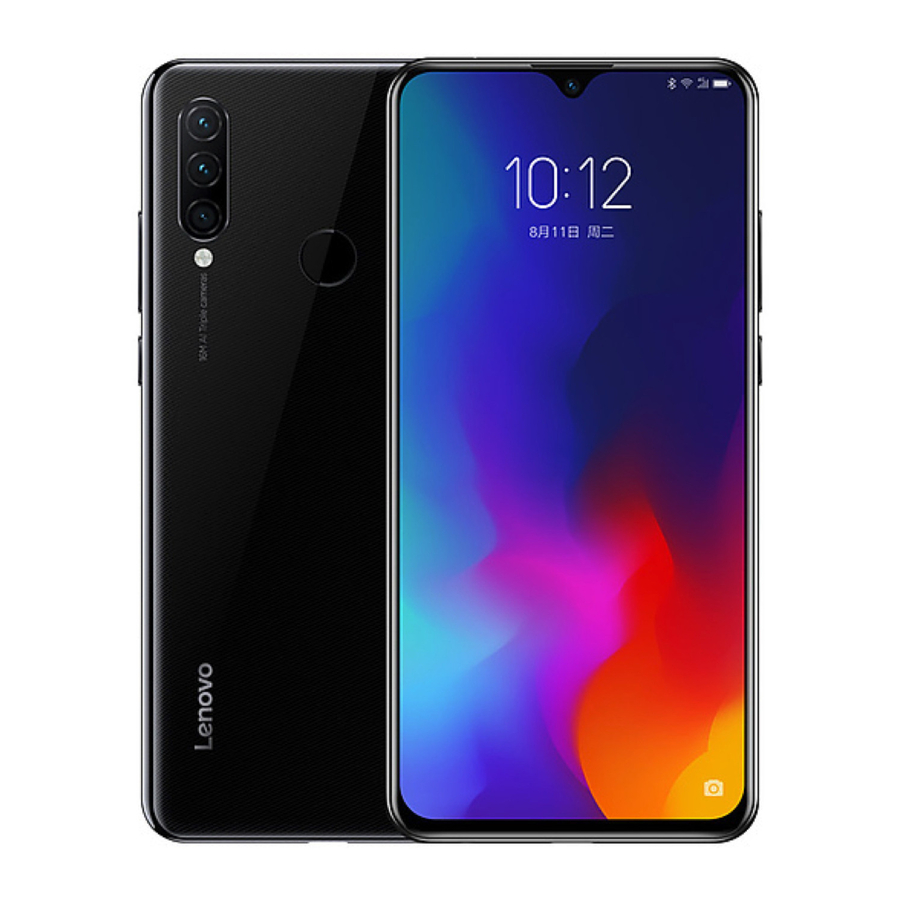

First glance

First glance

  1. Secondary microphone
  2. Proximity Sensor
  3. Indicator
  1. Light Sensor
  2. Receiver
  3. Front-facing camera
  1. Volume buttons
  2. Power button
  3. Touch screen
  1. Rear-facing cameras
  2. Flash
  3. Card tray
  1. Fingerprint sensor
  2. Headset connector
  3. Microphone
  1. USB-C connector
  2. Speaker

informationAll pictures and illustrations in this document are for your reference only and may differ from the nal product.

Installing the Nano-SIM & microSD cards

A Nano-SIM card provided by your carrier is required in order to use cellular services. A microSD card is required to store data. Install the Nano-SIM cards and the microSD card as shown.

  1. Insert the eject tool that comes with your smartphone into the hole in the card tray.
  2. Pull out the card tray and do one of the following:
    • Position a Nano-SIM card in Slot 1 and a microSD card in Slot 2;
    • Position a Nano-SIM card in Slot 1 and another Nano-SIM card in Slot 2.
  3. Carefully insert the tray with the installed cards back into the slot.

information

  1. Only Nano-SIM cards work with your smartphone.
  2. Always turn off your smartphone first before you insert or remove a Nano-SIM card. Insert or remove a Nano-SIM card with your smartphone on may damage your Nano-SIM card or smartphone permanently.
  3. When two SIM cards are inserted, both SIM card slots support 4G/3G service. But you can enable only one Nano-SIM card for data connection at a time. If you want to change the Nano-SIM card used for data connection, go to Settings > Cellular networks & SIM > Cellular Data.

Charging the battery

Charge the battery as shown.
Charging the battery
Methods

  1. Connect your smartphone to a power outlet using the cable and USB power adapter that come with your smartphone.
  2. Connect your smartphone to a computer using the cable that comes with your smartphone.

Low battery power
Fully charged
Charging

Turning on or turning off your smartphone

Turn on: Press and hold the Power button until the Lenovo logo appears.
Turn off: Press and hold the Power button for a few seconds, then swipe down to Power off.
Restart: Press and hold the Power button for a few seconds, then swipe up to Reboot.
informationYour smartphone has a built-in rechargeable battery. For more information about battery safety, see the "Battery safety" section.
The battery in this product cannot be easily replaced by yourself.

Important safety and handling information

This section contains important safety and handling information for Lenovo smartphones. Additional safety and handling information is provided in the User Guide. See the "Accessing your User Guide" section for details.

Operating temperature
Ideal operating temperatures are 0°C to 35°C. Ideal storage temperatures are -20°C to +45°C. Extreme heat or cold may damage your device or accessories.

Plastic bag notice

Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Battery safety
Before assembling, charging or using your mobile device for the first time, please read the important safety and handling information provided with your product.
If your mobile device becomes unresponsive, try a reboot—press and hold the Power button until the screen goes dark and your device restarts.
For your safety, the battery in your mobile device should only be removed by a Lenovo approved service center or independent qualified professional. Don't try to remove or replace the battery yourself—doing so may damage the battery and could cause burning and injury. Don't crush, bend, or expose your mobile device to heat or liquid. This may damage the battery and could cause burning and injury. Don't try to dry your mobile device using a microwave oven, conventional oven, or dryer.

Battery charging
Charge your mobile device using a compatible Lenovo charger, another brand class 2 Limited Power Source USB charger that complies with USB 1.1, 2.0, 3.0, or greater, and complies with EN301489-34, EN60950-1 or equivalent, or a high-power USB port on a PC. Chargers that do not comply with these standards may be unsafe and may cause slow charging, product damage, or reduced device performance.

  • Your mobile device will not charge if the temperature is too high or low.
  • Only use Lenovo approved batteries, which contain safety circuitry and are designed to give the best performance in your mobile device.
  • Don't use a damaged charger or charger cable to charge your device
  • .• Don't use tools, sharp objects, or excessive force to clean the USB port, as this may damage your mobile device.

Warning about high volume usage

To prevent possible hearing damage, do not listen at high volume levels for long periods. Ensure your player at low volume levels or power off before you leaving. Fully understand user manual before use.

Disposing according to local laws and regulations
When the Lenovo Phone reaches the end of its useful life, do not crush, incinerate, immerse in water, or dispose of the Lenovo Phone in any manner contrary to local laws and regulations. Some internal parts contain substances that can explode, leak, or have an adverse environmental effect if disposed of incorrectly. See "Recycling and environmental information" for additional information.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Lenovo K10 Note (L38111) Manual
