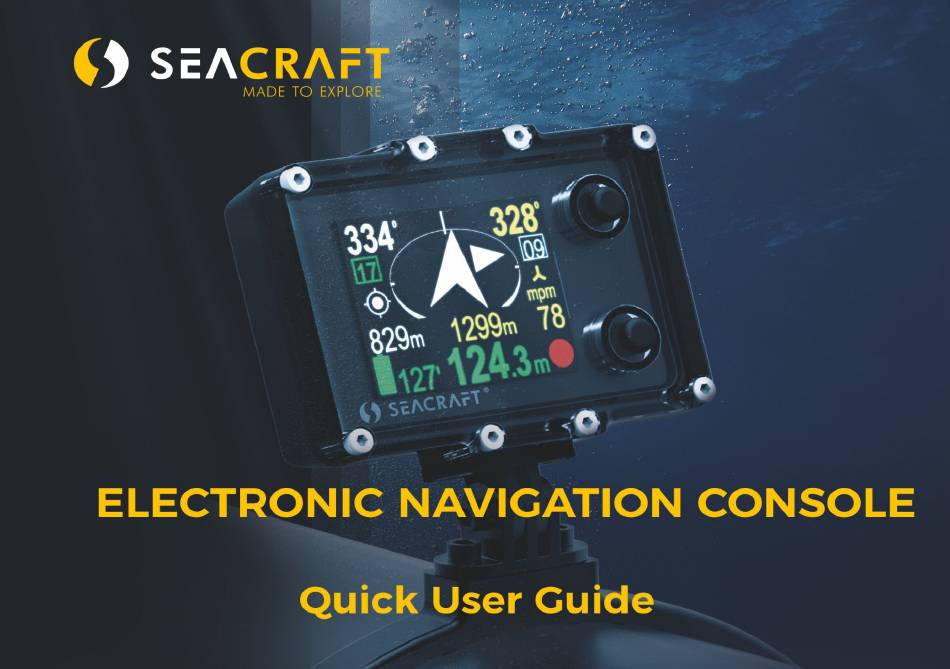

Seacraft ENC3 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENC3 and is the answer not in the manual?

Questions and answers

Related Manuals for Seacraft ENC3

Summary of Contents for Seacraft ENC3

  • Page 2 Marine Tech accepts no liability for damages and/or injuries caused by improper use of the Seacraft ENC3 as well as a result of its use in a manner contrary to or deviating from principles set out in this manual.
  • Page 3 CAUTION ! This manual is no substitute for a proper training in how to dive and navigate under water, with or without use of ENC3. Should you have any questions or comments regarding this manual, please contact: Manufacturer: MARINE TECH SA ul.

  • Page 4: Table Of Contents

    Table of Contents 1. Technical specifications ................... 6 2. Pr ecauti ons ........................ 7 3. Mechanical con struction ..................8 4. Control ........................9 5. Main screen layout ....................11 6. Additional information screen (next to main)............17 7. Destination par ameters – setting and changing ..........21 8.
  • Page 5 - installing ............ 70 ® 29. Using auxiliary software ..................71 30. ENC3 firmwar e update ..................80 31. Guidelines for attaching the ENC to DPVs ............84 32. Troubleshooting ....................87 33. Bef ore ea ch dive… ....................89...

  • Page 6: Technical Specifications

    1. Technical specifications Model Power source ENC III Built-in Li-ion 3,7 V battery Type ENC v.3 Battery capacity 5 Wh Maximum depth 300 m Typical working time 20-35 h Tested depth Average charge time 350 m <2 h Depth of start and stop of Optional: 0.5, 1 or 1.6 m (compatible Working temperature +10 …...

  • Page 7: Precautions

    2. Precautions This manual is suitable for the navigation device with software version 1.7.10 and above. The software version number is shown under MENU, when the battery voltage is displayed (OFF option selected). WARNING ! This device may have some bugs in the software, which we did not find yet. You should never risk your life using this device as sole advisor.

  • Page 8: Mechanical Construction

    3. Mechanical construction Fig. 1. Description of elements. 1. Universal mounting – top side 2. Ambient light sensor (do not cover) 3. Additional LED diode (red color) 4. Screen / display 5. Top button (NEXT) 6. Bottom button (SET, REC, HOLD) 7.

  • Page 9: Control

    4. Control Button functions (depending on actual screen content): Top button (5) – NEXT screen / NEXT item / CANCEL change / BACK Bottom button (6) – SET / change value / enter changing item / switch between REC and HOLD state Note On most screens, a small graphical hint is displayed in top and bottom right corner of the display.
  • Page 10 The device will also switch on when immersed in water min. 0.3 m (1 ft) deep, when the AUTO-ON option is enabled (factory default). Note This is the standard method of switching on the ENC3 device, valid for any factory new device. User can change the switching on method by switchin the One-key ON option to yes. See Other settings chapter for details.

  • Page 11: Main Screen Layout

    Normal operation mode – Default mode after power on. The user sees the current dive parameters, may switch recording ON (REC) and OFF (HOLD), enter settings and view the contents of the device’s internal memory. Charging mode – After connecting the device to a power source, the charging screen appears. The buttons are inactive in this mode. This mode will be terminated, when the battery is fully charged or the power source is disconnected.
  • Page 13 Screen elements: 1. Course to planned destination. If no destination is Present marker number. For using markers, please see next programmed, this field is blank. chapter. 2. Present memory slot number. If you start recording, the dive Destination direction arrow. The tip of the arrow is always pointing to the planned destination.
  • Page 14 Battery indicator Icon Charge on % Time left Icon Charge in % Time left 85-100 20-25 h 28-45 5-10 h 68-84 17-20 h 12-27 1-5 h 46-67 10-17 h 1-11 <1 h Caution: The value ‘Time left’ is approximate !Navigation arrow colors: White –...
  • Page 15 Notice The arrow described above always points at the programmed target point. But you may clear the target coordinates when you don’t care about the destination (exploring mode). In this case, the arrow will change it’s shape to “busola like” – see below. Main screen when no target was set Main screen when the target was set GPS indicator:...
  • Page 16 GPS readings are available, but the accuracy may vary GPS location fixed due low signal strength/quality. No valid GPS location The GPS receiver cannot obtain the current location, available but previous readings may be still available and valid. Depth indicator colors: Color Meaning More info...

  • Page 17: Additional Information Screen (Next To Main)

    6. Additional information screen (next to main) After pressing the top button on the main navigation screen, the display content changes like shown above. On the left side of the screen, all present information are shown. On the right side there is a list with all available options. The currently selected item is marked by inverting the background and foreground color (highlighting).
  • Page 18 Note If some of parameters cannot be evaluated, a ‘---‘ value will be shown instead. RETURN function is unavailable (grayed) before you start swimming and went at least 20 meters from the start point. Buttons role: Top button – Select the NEXT item. After 3 press, you will return to the main navigation screen.
  • Page 19 If the RETURN item is selected, the screen looks like below: 1 - The course you need to follow in order to return to the start point 5 - Top button role – go to next (lower) item 2 - The time required to return to the start point (approx.) 6 - Currently selected item 3 - The distance from current location to the start point 7 - Bottom button role –...
  • Page 20 If the MENU item is selected, the screen looks like this: 1 - Internal date (DD.MM.YY) 2 - Internal time (hh:mm), in 24-hour system 3 - Water temperature 4 - Operation hint – when you press the lower button, other functions will be shown. 5 - Stopwatch The description regarding the right display side is the same as on previous picture.

  • Page 21: Destination Parameters - Setting And Changing

    7. Destination parameters – setting and changing When you activate the DESTIN(ation) option on the additional information screen (see fig. 1 on p. 6), the device will show the current destination parameters (if set) or it will suggest new ones, as shown in the following picture: 1 - Current route number in memory / total routes in memory 2 - Azimuth –...
  • Page 22 If you press the lower button (ENTER) when azimuth is selected, the display will change like this: You may now rotate the device, in order to set the desired heading. Then simply press the lower button (ENTER), if the value is appropriate.
  • Page 23 Note The minimal allowed distance is 10m (or 0.01 mile). The device will not allow to set a shorter distance. When both parameters (azimuth and distance) are set, pressing the top button will bring up the command line. You may choose from two commands, using the top button: NAVIGATE –...
  • Page 24 Notes The DESTINATION, once set, is held in memory until cleared or changed (power off will not clear programmed values). The DESTINATION is always set or changed relatively to the current position.

  • Page 25: Menu Screen

    8. MENU screen If you press the lower button (ENTER) when the MENU item is highlighted on the additional information screen (see fig. 1 on p. 6), you may choose between 4 commands: OFF – Allows you to switch off the device. The left part of the screen shows information about the present battery charge. Below that you see the device serial number (SN) (unique device identifier) and the internal software version (SV), as illustrated below: Note You cannot switch off the device in the recording state (Hint: Stop RECORD first in bottom line –...
  • Page 26 GRAPH – Allows you to show the position and depth graphs on the device screen. More info about graphs can be found in chapter 9 and 10. On the left side of the screen, the device shows 2 numbers: Current routes in memory / maximum routes in memory. More about memory organization can be found in chapters 9 and 10.

  • Page 27: Depth Profile Graph

    SETUP – This allows you to show and change all internal configuration parameters. More about this function can be found in chapter 12. On the left side on the screen, the most important settings are shown in short form (to avoid unnecessary activation of the configuration just to check it).

  • Page 28: Swim Route Graph

    Note: – The internal device memory stores all dive data identified by ‘route number’. When the device is switched on, the least available (empty) route number is chosen for recording current data. If all available route numbers (1-50) are used, the oldest one will be overwritten. –...
  • Page 29 Note You may see small GPS symbol above the record time, if this route has also any valid GPS readings recorded. You may tilt the device to the left or to the right, in order to change the button roles on this screen. When tilted left, the lower button brings you to previous route number.

  • Page 30: Timer / Stopwatch

    11. TIMER / stopwatch If you press the lower button (ENTER) when the TIMER item on the MENU screen is highlighted, you will be redirected to the TIMER/STOPWATCH control screen: 1 - EXIT – current selected command; if you press lower button (ENTER), you will return to main navigation screen 2 - Timer START –...

  • Page 31: Device Configuration (Setup)

    12. Device configuration (SETUP) If you press the lower button (ENTER) when the SETUP item on the MENU screen is highlighted, you will be redirected to the SETUP menu. Device settings are organized in 2 screens. The selected function is highlighted. The top button (NEXT) will switch the selected function to the next one (below).

  • Page 32: Send Data

    Green and yellow arrows will change to gray color, when transmission was broken. Yellow text describes current operation (RD = reading, then file name). In left bottom corner you will see progress indicator, in %. You can always break communication by pressing lower ENC3 button (STOP).
  • Page 33 You will have to enter the ‘Send data’ menu item again. You may also have to disconnect the USB cable, if you was using it for connection (see previous explanation). IMPORTANT – when you updating ENC3 firmware and you have to break this operation, ALWAYS use STOP button on ENC3 device first (before closing program or PC/mobile device).

  • Page 34: Pressure/Salinity

    14. Pressure/salinity Shows the current pressure in milibar (green color). 1 PSI ≈ 68,95 milibar. When no pressure is shown, the pressure sensor is defective. The lower line shows the pressure correction (white color) – this value will be added to the raw value of the measured pressure. It has no effect on depth calculations, but the value will be added to the pressure measurement shown above, so the user may calibrate this device as a precision barometer.

  • Page 35: Log/Speed

    15. Log/speed This navigation console can work with an external sensor (speed sensor) or without it (inertial mode). This option can be used to switch between these two modes. Lower button press changes this back to ← Lower button press changes this setting to → Field named 'Calc.
  • Page 36 - upper button – go to the next digit ENC3 operation is different with and without external log sensor. When the external sensor is not used (Calc. distance from = Const. speed), on the log settings screen you may set the average...

  • Page 37: Log/Speed Calibration

    Pulses value can be altered by type of DPV, mounting position, and influence of for example “propeller suction” effect. Devices are calibrated to be used with Seacraft scooters, which construction allows for optimal sensor placement, and minimizes interferences. While for general orientation underwater factory setting will be fine with most types of DPV’s, for more precise applications- as for example mapping- we recommend speed log calibration with whole set-up used.
  • Page 38 The calibration procedure needs values in meters. No other units are available. 1 N.M. (Nautical Mile, U.S.) equals 852.0 meters. 100 feet equals 30.48 meters. 100 meters equals 328.08 feet. All above procedure is shown on the screens below: In order to calibrate the external log, first set the known and precisely determined test distance.
  • Page 39 On the end of the calibration distance press STOP (lower button again). The counter visible on the screen will show the number of pulses registered by the log. If this quantity is too low, the calibration will be canceled (the previous value will be kept).
  • Page 40 “f” can be calculates using following equation: ���� where: a = length of the section as measured with ENC3 b = current calibration factor (pulses / 100 m) c = precise known length of the route section For example: the section being measured has a length of exactly 127 m and ENC has indicated the route length of 124 m.

  • Page 41: Gps

    compact sensor, you should have good results when the calibration is between 1600 and 1650 pulses/100m. 17. GPS This menu option is for information purposes only. When selected, the navigation screen will show the GPS status information as described below: Valid: Y/N –...

  • Page 42: Time/Date

    GPS information is refreshed automatically after each successful update on this screen. The GPS state is also reported as icon on the main screen. Green circle in the left-bottom corner of the screen will change his shape each time new GPS reading is received from the internal sensor.
  • Page 43 Caution: – The device may drop date & time settings, if the battery was deeply discharged. - The device clock accuracy is about 15 seconds per month. You may need to correct date & time settings from time to time. - Date and time are used in record files.

  • Page 44: Other Settings

    19. Other settings Miscellaneous other settings are available as a separate screen: The additional settings screen (MENU → SETUP → Other) is divided into 3 parts. The first part of the options shows the current settings: Backlight, Record every, Depth tresh. (...old), Auto-ON and Auto-OFF. The upper button goes through all these options one after the other, and then the next screen is displayed.
  • Page 45 Last part of settings screen Backlight – [1, 2, 3, 4, 5, auto] – Changes the display backlight intensity. Value 1 means the constant lowest brightness (about 20%), value 5 means the constant maximum brightness (about 95%), value ‘auto’ means that the backlight will be auto adjusted using the ambient light sensor.
  • Page 46 Automatic start of data recording will start if all of the following conditions are met simultaneously: - the ENC3 console is submerged to a depth at least equal to Depth tresh. (available on the first screen of additional settings) - Speed sensor detects water flow of at least 8 m / min for a minimum duration of 1.2 seconds. The flow must not be interrupted (no...
  • Page 47 The Auto-REC and Auto-HOLD options have lower priority than the REC and HOLD commands issued by the user. Thus, any REC / HOLD command activated by pressing a button on the ENC3 console will lock Auto-REC and Auto-HOLD for only 15 seconds. During these 15 seconds, the REC or HOLD state will remain as manually set by the user.
  • Page 48 The option is disabled by default. The ENC3 console has a built-in mechanism for writing markers. A marker is an additional “highlight” associated with a point on a recorded route. By default, each time you stop recording manually (with the button on the console), the device saves the current marker number in the memory and increases its number by a value of 1 until it reaches 99.
  • Page 49 ‘Disable GPS’ option The ENC3 console has a built-in GPS receiver that works continuously on the surface (when the calculated depth is 0.1 meters or less). The operation of the GPS receiver increases the consumption of battery power while it is on (active).
  • Page 50 Turning off the GPS receiver completely causes its icon to disappear from the main navigation screen. Attempting to enter the detailed information on GPS status (MENU → SETUP → GPS ) will display the message "Option currently not available" ‘ButtonSens+’ option Possible settings: enabled (yes) or disabled (no).
  • Page 51 This option requires a longer explanation. All earlier versions of the ENC3 had a default method of switching on by pressing both buttons simultaneously. Such a mechanism was dictated by the need to avoid accidental (unintentional) activation of the device due to shock or vibration.

  • Page 52: Units

    20. Units Allows you to choose the units of the values presented on the screen: Temperat.(ure) – Can be °C (Celsius) or °F (Fahrenheit) Depth – Can be meters or feet Speed – Can be m/min (meters per minute) or knots (nautical miles per hour) Distance –...

  • Page 53: Compass

    21. Compass The ENC2 compass settings screen, accessible by selecting MENU → SETUP → Com p ass , looks like the picture below : White text highlighting indicates the currently selected item. On the left side there is a text description of the function or parameter.

  • Page 54: Compass Calibration

    Declination - The magnetic declination is a constant value, depending on your geographical region. It can be obtained from many sources for example https://www.ngdc.noaa.gov/geomag/calculators/magcalc.shtml#declination Deviation – A constant value that will be added to the heading shown on the display (and to all position calculations). The deviation is a constant value caused by magnetic elements near the navigation device, that cannot be removed.
  • Page 55 Compass calibration - current values Compass calibration – previous calibration values The compass calibration current values contain the following information: Age - calibration age (time elapsed since the last calibration). NOTE - if the clock is or was incorrectly set during calibration, the indication may be incorrect.
  • Page 56 Warning Factory calibration may or may not be effective for the user's current location. In the lowest line of the screen, in green, hints for each highlighted function are displayed. When Current is highlighted, pressing the new button starts the compass calibration process. When the Previous field is highlighted, we can see the calibration settings that the console had previously.
  • Page 57 The screen for restoring the calibration to the factory values ENC2 window during calibration While calibrating the compass, you should slowly- without rapid movements- turn it in all possible directions ("tilting the eighths while turning around"). The screen displayed during this operation has not changed from the previous version. The only addition is the digital "calibration progress percentage"...
  • Page 58 Preview of current values from sensors The last function available in the compass calibration menu is the function of displaying the current values measured by the sensors of the ENC console. We activate this function by highlighting Raw data on the compass calibration screen. By pressing the lower button of the console, we change the view of the previewed data, as shown in the figures below: Accelerometer raw data Magnetometer raw data...
  • Page 59 Euler angles Gyroscope raw data The data of the magnetometer (Mag) can be used, for example, when looking for a good place to mount the ENC console. If the total value of the magnetic field (Field) oscillates, for example, around the number 47.7uT (as in the picture above) and we bring our ENC console closer to the scooter, we can observe a change in the Field value.

  • Page 60: Enc Installation Angle (Install Angle)

    If the Euler angle indications do not work as described, the device must be reset to factory settings and then carefully calibrated from the beginning. When that doesn't help, the ENC console should be returned for service. 23. ENC installation angle (Install angle) The last new feature available in the compass calibration menu is the Install angle feature.
  • Page 61 Analyzing some less typical cases, we concluded that for some divers, due to their specific habits or specific diving conditions - this simplified system is insufficient and may lead to errors in determining the direction of flow, which also tend to accumulate. Therefore, in the current software version, the installation angle issue has its own configuration section and it is required that the user correctly configure this parameter.
  • Page 62 may vary depending on user requirements. If we tilt the console a bit, then when our scooter is set differently than straight, the compass direction measured by the ENC console does not coincide with the direction of the scooter movement. No DPV tilt- correct readings DPV is tilted- changed readings The error will occur in case the ENC2 console does not compensate its indications.
  • Page 63 The new software version allows the user to fully control all the necessary parameters. To set this parameter, go to MENU → SETUP → Compass → Install angle. The ENC console display will show the following:: The current value of Install angle is shown Measurement of non-standard Install angle value - first stage.
  • Page 64 Second stage of Install angle measurement. If during the Install angle measurement our scooter moves, the measurement will be rejected. The measurement can be started Tilt the ENC console to the position that is most comfortable for from the beginning with the lower button. the user.
  • Page 65 If so, our Install angle has been set correctly. By tilting the scooter to the right or left, we will see that the white dot is moving in the opposite direction. If the white dot is low, the Install angle selected by us is too small (e.g. we set -15 and it should be -30 degrees) The reverse is true if the white dot is too high.
  • Page 66 Use the top button to change the option: Exit – Return with no changes Clear – Switch off the precision calibration and clear all its coefficients Setup – Make a new precision calibration To make a new precision calibration, you should use the SET option. You will be asked to set the device in true geographical direction of 0, 45, 90, 135, 180, 225, 270 and 315 degrees.
  • Page 67 Stored – Stored value for this step. The lower button will store the Current value as Stored, each time you press it. The upper button will guide you to the next step. On the last screen you can check, if this calibration improved the heading display. This screen is named ‘Accuracy test’ and will show you: Corrected –...

  • Page 68: Clear Data

    24. Clear data Clears all records from the internal memory. The user will be asked, if he really wants to perform this operation. It is recommended to power off and on the device after using this feature. 25. Factory reset After using this option, all settings will be restored to factory values, and all other data will be lost.

  • Page 69: Auxiliary Software For Android

    SEACRAFT-904101), this name will be also shown on ENC3 screen - click SEACRAFT-XXXXXX name and wait for pairing, no PIN is needed Note : if you want to get data from another ENC3, you will have to manually unpair your present device first.

  • Page 70: Auxiliary Software For Windows

    Bluetooth hardware should be present and switched on before running this application, if you plan to use wireless transmission with your ENC3. When using USB cable, first go to MENU  SETUP  Send data, next connect the cable to PC.

  • Page 71: Using Auxiliary Software

    29. Using auxiliary software ENC3 auxiliary software looks and works almost identically on Windows and on Android. In this manual we will describe Windows version of this software. This software is common for ENC2 and ENC3 devices. When you start ENC3 auxiliary software, you will see main program window as shown below: In example above, you can see software version number 1.0.93.0.
  • Page 72 From File Download data from other person (i.e sent via email) From Bluetooth Device Download data from ENC3 via Bluetooth From Serial Device Download data from ENC3 via USB cable Configuration Units Choose units for showing downloaded data Upgrade via Bluetooth...
  • Page 73 To download data from ENC3, click Import Routes and then From Device button. On Android, you have to pair ENC3 with your mobile device before this operation (or make sure it was paired before). On Windows pairing is done automatically.
  • Page 74 Note ENC3 device can hold up to 50 different routes inside. GPS data and swim data are recorded as separate files. So if you have 10 records inside your ENC, download screen can show you 10-20 items (10 items – no GPS data was recorded, 20 items –...
  • Page 75 Headers section. By clicking on each header you can sort data in table ascending or descending Green anchor symbol means that this route was anchored (see further for more information) Green marker symbol means that route has GPS data also Route number.
  • Page 76 Sometimes not all data are downloaded at first time. ENC3 is much slower with serving the data, if compared to your PC which is grabbing it. If you find, that some of your records from ENC3 are missing in the PC program, just repeat the downloading process to complete it.
  • Page 77 1 – with this field you can switch between 3 graphs : depth vs time, depth vs distance and speed vs time 2 – this blue point shows each marker (point where you switched between REC and HOLD state while using ENC3)
  • Page 78 Anchor on map – ENC3 device records route as set of relative positions. If you want to show this route on any map, you have to manually set the “first point location” – by clicking it on the map. It should be this point, where you press REC first time. If you press this button, you will see the empty map.
  • Page 79 CONFIGURATION OF AUXILIARY SOFTWARE Units This option allows to change display units, but in this application only. ENC3 has his own display units settings and it is independent. Upgrade Allows ENC3 firmware update (see further – chapter 28) Manual...

  • Page 80: Enc3 Firmware Update

    This software can be used also with other version of ENC3 console, specialized for less common tasks. For this ‘special’ versions of ENC3 some additional settings are required and you may unlock it using this option. Ask our support for unlocking code, if you have this ‘special’...
  • Page 81 If you make all this steps correctly, you will see screen like below : and for a while …...
  • Page 82 After all data was sent to the ENC3, display of your console will be switched off, and red LED diode above it will blink for 10 seconds. After that, your ENC3 should switch on automatically.
  • Page 83 TROUBLESHOOTING FIRMWARE UPDATE Symptom Procedure Update process hangs and progress bar doesn’t increment for Press STOP on ENC3 device to break data transmission more than 1 minute Close PC / mobile application and start all update procedure again from the beginning...

  • Page 84: Guidelines For Attaching The Enc To Dpvs

    When using the navigation console with any DPV, you should carefully choose the mounting point for the device. An unfavorable placement may cause magnetic interferences from your vehicle elements (battery, engine) to the ENC compass sensor. For a SEACRAFT® underwater vehicle, the recommended placement for the navigation device and its speed sensor is shown below:...
  • Page 85 Installation for other brand underwater vehicles. If the ENC3M console is to be used on other than Seacraft underwater equipment, please contact the manufacturer to determine how and where it should be installed, and the installation procedure.
  • Page 86 To maintain good accuracy of the compass, it is recommended to calibrate it carefully before diving in a new area. The direction of the compass is calculated by measuring the three components of the Earth's magnetic field. The properties of the magnetic earth field depend on the geographical location, local terrain properties (e.g.

  • Page 87: Troubleshooting

    32. Troubleshooting Symptom Cause Solution Start charging battery for at least 30 minutes before attempt to switch on the Excessive battery discharge. device. After few minutes, the red led the Device cannot be switched on. Display is will start blinking. blank and no other reactions is observed.
  • Page 88 speed is shown. clean the connector, connect it again. The device is switched do INERTIAL Go to Settings / Log/Speed, and make operation. sure EXT is set to ‘Active Log’. Perform the calibration as described in Calibration required. chapter 13.1 and 13.2 Try to remove the magnetic and Strong external magnetic field near the ferromagnetic elements from the vicinity...

  • Page 89: Before Each Dive

    33. Before each dive… Make sure that battery is charged enough. Power on device and check all important settings. In order to connect the log to the device, check the state of the plug and socket, clean any impurities, check the o-rings, apply a delicate layer of silicone grease and gently but firmly tighten.
