jablotron JA-154E Manual

The JA-154E, JA-154E-GR, JA-154E-AN, JA-154E-WH
Wireless access module with LCD, RFID and keypad
The access module is a component of the JABLOTRON system. Its
modular architecture enables users to create a combination whose size
of installation perfectly meets their needs. The device should be installed
by a trained technician with a valid certificate issued by an authorised
distributor. The product is compatible with the JA-101Kx or higher
control panels.
The wireless access module comprises first control segment (1), an LCD
display (4), the keypad and RFID chip card / tag reader (5). The JA-192E,
JA-192E-GR, JA-192E-AN, JA-192E-WH segments can be used to
extend the JA-154E unit by the required number of segments (the max.
allowed amount is 20 on one unit). The tilting keypad cover (7) can be
removed if the user prefers permanent access. It also works as an RFID
card / tag reader.

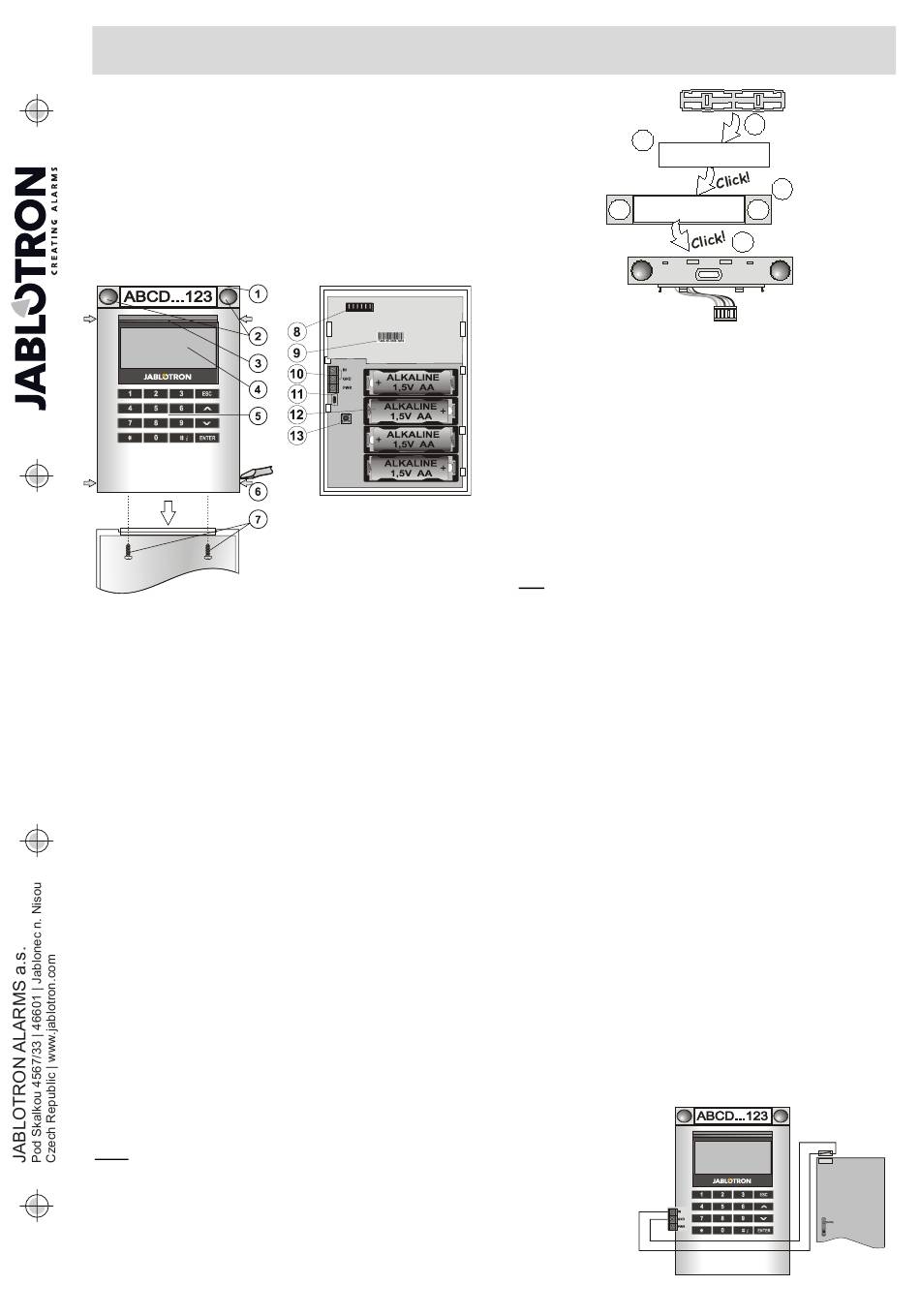

Figure 1: 1 – control segment; 2 – segment buttons; 3 – backlit activation
button; 4 – LCD; 5 – access module with RFID reader; 6 – tabs for module
opening; 7 – cover screws
Installation
1.
Press the four tabs (6) on the sides (see figure 1) one by one and release
the module from the plastic base.
2.
When installing more control segments, first remove the socket cover on
the 1 st segment.
3.
Remove the transparent plastic cover from the segments (by levering on
both sides of the segment near the buttons).
4.
Always connect the segment wires to the connector of the previous
segment and click them into each other (we recommend coiling the wires
by turning the segment by 360° - this will prevent any possible damage to
the wires between the plastic parts). Use this method to install all
the required segments. Finally push the socket cover in.
5.
Insert four 1.5 V alkaline AA batteries into the module.
6.
Attach the base onto the selected place together with the segments using
screws. If multiple control segments are required attach them onto
the wall using screws as well (use the number of screws required).
7.
Insert the module into the base.
8.
Proceed according to the control panel installation manual.
Basic procedure:
a.
There must be a JA-110R radio module installed in the control panel
with a reliable communication range to the access module.
b.
When batteries are inserted, the yellow backlit activation button (3)
starts to light permanently which indicates that the module has not
been enrolled to the system yet.
c.
Go to the F-Link software, select the required position in
the Devices window and launch enrollment mode by clicking on
the Enroll option.
d. Press the backlit activation button (3) – the module is thus enrolled
and the yellow LED indicator goes off (this can take a few sec).
An enrollment signal can also be sent by inserting the batteries.
9.
When you have completed installation, insert descriptive labels behind
the segment transparent covers and close them, see figure 3. Label
printing is a part of the F-Link software (Devices window, at the module
position – Internal settings).
Notes:
The module can also be enrolled to the system by entering its
production code (9) in the F-Link software or using a bar code scanner.
All numbers stated under the bar code shall be entered (1400-00-0000-
0001).
To comply with the EN 50131-3 norm it is necessary to fix the cover
tabs (6) by the screws from the accessories. In figure no 1 the cover tabs
are displayed and marked by the arrows.
The JA-154E, JA-154E-GR, JA-154E-AN, JA-154E-WH
Figure 2: 8 – connector for control
segments; 9 – production code;
10 – terminals; 11 – mini USB
connector; 12 – batteries;
13 – tamper contact
1
Figure 3: Insertion of a label into a control segment
Setting the properties
Go to the Devices window in the F-Link software. When you are at
the module position, use the Internal settings option. The particular unit is
displayed and it is possible to set its properties. Internal settings is separated
into 2 basic tabs: Segments and Settings.
It is possible to set the required functions for individual segments (control
of sections, section status signalling, alarm triggering, PG output control, PG
output status signalling, etc.).
Common segment – settings and function description
A common segment (up to 2 of them allowed on one module unit) simulates
the simultaneous pressing of several segments which are placed on this
module and which control sections. In the F-Link SW – go to the Devices tab
at the keypad position, Segments tab and select the specific segment
function called Common segment A (B). Then in the new tab Common
segment, select the segments which will be operated en bloc.
Note: A module has to be equipped with a minimum of 3 segments
otherwise this function can not be used.
The selected sections will all be set / unset after pressing a button on
the common segment.
If the states of the segments which are operated by the common segment
are mixed, then only the segments that need changing will be set / unset.
If partial setting is enabled for some segments, then the common segment
respects this: 1 st press = partially setting, 2
suitable to combine a common segment with a common section.
The indication of the common segment is: all segments unset = green,
some set (partially set) = yellow, all sections fully set = red.
In the Settings tab you can set all other module functions like acoustic
signalling, backlight intensity, RFID reader mode, optical and acoustic
indication, LCD display settings, etc. Details related to settings can be found
in the installation manual of the control panel and of course in the tooltips
displayed by the F-Link software.
Battery power save mode
The module saves its energy by shutting down the optical indication of
system status, the backlit of the LCD display and the RFID reader after 8 sec
when the button, segment or keypad cover have been pressed. The module
still keeps communication with the control panel and it can signal for example:
an entrance delay. Complete waking up is done when you press the cover of
the module, or by pressing of any button.
Alternative power
The module can be powered from an external 12 V DC power supply
via the PWR and GND terminals. The DE 06-12 power supply can be
used. It has the advantage of hidden installation. It permanently
communicates with the control panel and it indicates the system status
according to the Devices / Internal settings. Leave the batteries inside
the module during alternative powering. When the mains power is cut off,
the module will work from the batteries. Inserted batteries are not charged
by the external power supply.
Connection of an external door detector
The module has an
input terminal for
external door detector
connection. The input
(IN) reacts to
disconnection from
the common ground.
The reaction of this
input is programm-
able by the F-Link
SW. The input has
a status reaction.
1 / 2
2
ABCD...123
3
4
nd press = full setting. It is not
