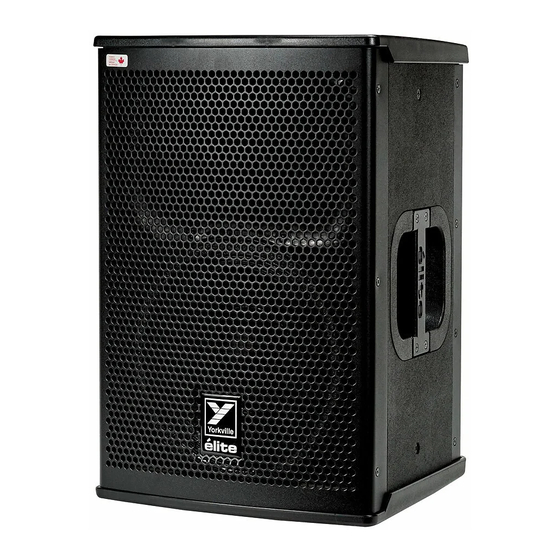

YORKVILLE Elite EF10P Service Manual

Hide thumbs Also See for Elite EF10P:

Advertisement

Quick Links

Download this manual
WORLD HEADQUARTERS
CANADA
Yorkville Sound Limited
550 Granite Court
Pickering, Ontario
L1W 3Y8 CANADA
Voice: 905-837-8481
Fax: 905-837-8746
U.S.A.
Yorkville Sound Inc.
4625 Witmer Industrial Estate
Niagara Falls, New York
14305, USA
Voice: 716-297-2920
Fax: 716-297-3689
SERVICE MANUAL
EF10P
SMT Disclaimer
Due to the complex nature of the use of SMT installed components
in Yorkville equipment, we highly caution all service technicians in
attempting to repair or replace SMT factory installed components.
Many of these components may be glued prior to initial soldering.
Replacing SMT components requires expensive
specialized de-soldering equipment and training.
Yorkville Sound will repair and replace defective SMT components
to ensure proper quality assurance and installation is maintained.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elite EF10P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YORKVILLE Elite EF10P

Summary of Contents for YORKVILLE Elite EF10P

  • Page 1 Due to the complex nature of the use of SMT installed components 550 Granite Court 4625 Witmer Industrial Estate in Yorkville equipment, we highly caution all service technicians in Pickering, Ontario Niagara Falls, New York attempting to repair or replace SMT factory installed components.
  • Page 2 IM PORTAN T S A F E TY I NS TRU C TI ONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is intended to alert the an equilateral triangle, is intended to alert the user to the presence of user to the presence of important operating and maintenance (servicing) uninsulated “dangerous voltage”...
  • Page 3 Hold 4 sec. to reset LED Flashing: Ready to Connect LED On: 100Hz Connected MODE NOTE: THE YORKVILLE APP IS CLUB C L I P L I M I T NEEDED TO CONTROL FUNCTIONS CONCERT M I X E R...
  • Page 4 Specifications EF10P EF12P EF15P EF215P System Type 2-Way 2-Way 2-Way 2-Way Active or Passive Active Active Active Active Program Power (watts) 500 watts (1000 watts Peak) 1200 watts (2400 watts Peak) 1200 watts (2400 watts Peak) 1200 watts (2400 watts Peak) Max SPL (dB) 128dB Peak (122dB Continuous) 131dB Peak (125dB Continuous)
  • Page 5 Spécifications EF10P EF12P EF15P EF215P Type de système 2 voies 2 voies 2 voies 2 voies Active or Passive Active Active Active Active Puissance(watts) 500 watts (1000 watts Pointe) 1200 watts (2400 watts Pointe) 1200 watts (2400 watts Pointe) 1200 watts (2400 watts Pointe) Max SPL (dB) 128dB Pointe (122dB Continue) 131dB Pointe (125dB Continue)
  • Page 6 E F 1 2 P B l o c k D i a g r a m f o r & E F 1 5 P ( R E V 1 ) D E S I G N E D &...
  • Page 7 EF10P, EF12P Block Diagram for , EF15P (REV2) & EF215P D E S I G N E D & M A N U F A C T U R E D Y O R K V I L L E S O U N D Combi-Jack Line...
  • Page 8 M1501-59 03 Parts Reference List 10/26/2020 YS # Description YS # Description YS # Description 7871 470P 50V 5%CAP 0603 SMT NPO 7637 W125 3K32 1% 0805 SMT RES 7884 IRS20957S DIG AUDIO DRVR SMT SOIC 7969 _10U 16V 20%CAP 0805 SMT X5R 7637 W125 3K32 1%...
  • Page 9 M1802 Parts Reference List 12/13/2018 YS # Description YS # Description YS # Description YS # Description YS # Description 7878 __1U 25V 20%CAP 1206 SMT X7R 7603 680P 50V 5%CAP 0805 SMT C0G 4140 XLR MALE PCB MT VERT 24MM A-SERIES 7898 W125 1K02 0.1% 0805 SMT RES...
  • Page 10 M1803 Parts Reference List 12/13/2018 YS # Description YS # Description YS # Description AI-ASS M1803-59 EF15P/12P/10P PS/AMP V2 R233 7642 W100 4K75 1% 0805 SMT RES 7886 __4U7 25V 20%CAP 4X5.5 SMT ELC R234 7642 W100 4K75 1% 0805 SMT RES R235 7769 __1U 50V 20%CAP 4.3X3.9 SMT ELC...
  • Page 11 M1804 Parts Reference List 12/13/2018 YS # Description YS # Description YS # Description 5242 100N 250V 20%CAP BLK 'X2' 15MM AC 5266 680N 250V 20%CAP BLK 'X2' 27MM AC 6451 __4N7 250V 20%CAP BLK 'Y' 10MM AC 6492 1300UH COIL COMMON MODE 4AMP 4147 6 PIN POWER PIN HEADER MALE POLZED 4147 6 PIN POWER PIN HEADER MALE POLZED 4162 2 PIN POWER PIN HEADER MALE POLZED...
  • Page 12 Assembly History Assembly.SCHDOC History.SCHDOC WOOFER AMP HORN AMP W1_:1 W1_:2 MUTE MUTE W1_:3 MUTE -15V -15V W1_:4 -15V -80V_H -80V_H -24V W1_:5 -24V -80V_H +24V +24V W1_:6 +24V -24V -24V -24V W1_:7 -24V LVGND LVGND W1_:8 LVGND -44V -44V W1_:9 -44V +15V +15V...
  • Page 13 R61_3T +80VH +80V_H W125 0805 +80V_H R139 R61_2T W1:25 250V W100 0805 SOT-23 7840 0805 R137 R140 100R D2PAK 1W00 1W00 R106_2T +44V 16V0 2512 2512 W250 W1:21 SOT-23 1206 D5_3T +44V +44V R138 250V MURA240T3 W100 SOT-23 403D W500 W500 0805 IRF530NS...
  • Page 14 +15V W1:10 MC7815BDT +15V +24V +15V 7846 +24V DPAK3 1W00 W1:6 2512 100N SOT-23 0805 0805 LVGND_ LVGND LVGND W1:8 SOT-23 0805 LVGND 1W00 DPAK3 100N 2512 7847 0805 -15V -24V -15V 0805 MC79M15CDT ClassName: WoofOut -15V W1:4 2512 ClassName: Hi+ +80V +80V 200V...
  • Page 15 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY DATE VER# DESCRIPTION OF CHANGE OCT-4-2017 RELEASED VERSION 2. APR-27-2018 9129 MOVED R61_3T AWAY FROM 80V CONNECTOR PAD Aug-08-2019 9449 C12&C23 to 10U/25V. Change VBE res to center trim pot. Add D4 to cut turn off noise. FEB-03-2020 9508 Added 1N cap and 47R resistor between gate and source of Q10...
  • Page 16 100N M1501 M1501 IRS20957S 3K32 7844 100K0 200V 200V 200V 348R0 MC7815BDT 100N 7K50 100N MC79M15CDT 100N 200V 470P 200V 2K74 7883 R61_2T R109 R97_2T 450V MURA240 MURA240 100N 250V 2SC4027 R134 221R R119 470R 2SA1552 IRF530NS IRF9530NS 16V0 16V0 R138 100R 250V...
  • Page 17 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES PCB HARDWARE SCREWS AND BOLTS 1-Place Connector (#7883) on all boards on panel BEFORE Reflow Oven. Assembly Section: M1498/M1501 Product(s): THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD. PCB#: X8025 Rev#:...
  • Page 18 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY DATE VER# DESCRIPTION OF CHANGE OCT-4-2017 RELEASED VERSION 2. APR-27-2018 9129 MOVED R61_3T AWAY FROM 80V CONNECTOR PAD Aug-08-2019 9449 C12&C23 to 10U/25V. Change VBE res to center trim pot. Add D4 to cut turn off noise. FEB-03-2020 9508 Added 1N cap and 47R resistor between gate and source of Q10...
  • Page 19 200R 0805 DGND Clip 7033 Limit 2495 7032 2495 DGND ECO.SchDoc ECAD INCIDENTAL EF10P-EF12P-EF15P Assembly.SchDoc Yorkville Sound Ltd. Product(s): ASSEMBLY NOTES 550 Granite Court Description: PS and Input History.SchDoc Pickering, ON M1802 DESIGN HISTORY PCB#: Rev#: EML Rev#: Sheet Canada L1W 3Y8 www.yorkville.com...
  • Page 20 R175 PreAmp CDSF4148 W125 CLIP D1005 1K02 0805 0603 470P +15V +15V U17:2 R199 R148 +15V_1 J1:2 MC33079D W125 W125 7668 U17:5 U6:3 U7:3 MIX+ U6:2 R176 R177 0805 0805 MC33078 MC33078 MAIN INPUT MC33078 W125 W100 AIN_HI_SENS+ MC33079D 100V 8K25 XLR-PHONE 1K50...
  • Page 21 10u 10v X5R (is X6S) R184 AD_Ref W100 4K75 R186 0805 4K75 C134 0805 0805 0603 C133 C135 0805 0603 C137 C136 AIN_HI_SENS+ 3528 0603 AIN_HI_SENS+ +5Vref R189 Voltage 1206 Reference Serial Output Delta-Sigma Decimation AIN1P AIN_HI_SENS- DIF0 37 Modulator Filter AIN1N AIN_HI_SENS-...
  • Page 22 +3V3 600R F0805 +3V3_DSP +3V3_DSP MCLK DGND 0603 0805 MMBT5401 +1V8 SUPPLY 475R0 0603 0603 0603 0805 SOT-23 0603 0603 0805 0805 +3V3_DSP 7837 +3V3_DSP DGND +3V3 W125 1K02 OSCILLATOR DGND 0603 0805 0805 600R DGND F0805 ADAU1401 W100 PVDD 100R 7894 1.8V Reg...
  • Page 23 +3V3_uC +3V3 VREFH R194 W250 600R Mode_B F0805 P1:1 1206 Mode_G B LIN C140 Mode_R 0805 0805 0805 0603 0805 0603 0603 R137 4459 R128 R129 R130 R131 R132 R133 W125 3K32 3K32 3K32 3K32 3K32 3K32 1K02 0805 0805 0805 0805 0805...
  • Page 24 Low Energy Bluetooth +3V3_BLE P0.4 P3.2 P0.6 P0.6 P3.3 XRES 14X19mm SMT Module P0.7 P3.4 CYBLE-012011-00 P0.7 P0.5 P3.5 6793 P3.6 P1.0 P3.7 P1.4 BLE_UART_RX P1.4 P4.0 BT_Pgm BT_Pgm P1.5 P1.5 P5.0 BLE_UART_TX P1.6 P5.1 W125 P1.7 P2.0 0805 P2.2 /BLE_RESET XRES P2.3...

  • Page 25: Dac Output

    Input PCB Power Supply PCB HORN_PRE_GND HORN_PRE_OUT WOOFER_PRE_GND WOOFER_PRE_OUT DGND HORN OUTPUT Ph+24v +15V 20k rolloff -15V C113 _W6_ R108 0805 W100 R110 4K75 W125 0805 1K800 C115 0805 U12:2 MC33079D 680P +15V_5 IOUTL+ 7668 C117 0805 R112 U13:1 R114 W100 MC33078 100N...
  • Page 26 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY POTENTIOMETERS AND KNOBS FUNCTION POT# KNOB# DATE VER# DESCRIPTION OF CHANGE MASTER LEVEL 4434 8653 2017/03/03 RELEASED FOR PRODUCTION LINE LEVEL 4432 8653 2017/09/15 9116 MARKED W3 CONNECTOR - YS PART# 4018 AS DNS MIC LEVEL 4432 8653...
  • Page 27 BlueTooth LINE MASTER MC33079D 4K75 680P 200R0 4K75 200R0 100P 15K0 100P 100N 100N 17K8 200R0 100N 100N 680P 200R0 4148 64K9 4K75 15K0 4148 100N 64K9 100N 10K0 100N 1K50 1K02 100R 10K0 475R0 100N 4148 64K9 64K9 470P 1K50 1K50 1K50...
  • Page 28 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES PCB HARDWARE SCREWS AND BOLTS NUTS STANDOFFS MISCELLANEOUS The input section needs to be air tight. All Vias and Part Holes must be filled with solder. Assembly Documentation Section: EF10P-EF12P-EF15P Product(s): THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD. M1802 PCB#: Rev#:...
  • Page 29 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY POTENTIOMETERS AND KNOBS FUNCTION POT# KNOB# DATE VER# DESCRIPTION OF CHANGE MASTER LEVEL 4434 8653 2017/03/03 RELEASED FOR PRODUCTION LINE LEVEL 4432 8653 2017/09/15 9116 MARKED W3 CONNECTOR - YS PART# 4018 AS DNS MIC LEVEL 4432 8653...
  • Page 30 Connected to CHGND2 through the chassis. Use a wire to connect these two points when working on the bench. ECO.SchDoc ECAD INCIDENTAL EF10P - EF12P - EF15P Assembly.SchDoc Yorkville Sound Ltd. Product(s): ASSEMBLY NOTES 550 Granite Court Description: PS and Input History.SchDoc...

  • Page 31: Power Supply

    Model Transformer EF15P CH1341U EF12P CH1441U MUTE ON/OFF EF10P CH1342U FEMALE CONNECTOR BLK/YEL VIEWED FROM WIRE SIDE VIO_ W125 W125 SOT-23 MMBT5401 FEMALE CONNECTOR 7837 VIEWED FROM WIRE SIDE 0805 0805 CDSF4148 D1005 GRY_ -20V UNMUTE BLACK 10K0 CDSF4148 MALE 9 PIN CONNECTOR FOR Elec 18V0 4.3X3.9...
  • Page 32 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY POTENTIOMETERS AND KNOBS FUNCTION POT# KNOB# DATE VER# DESCRIPTION OF CHANGE 2017/03/03 RELEASED FOR PRODUCTION 2017/09/15 9116 MARKED W3 CONNECTOR - YS PART# 4018 AS DNS 2017/11/14 CHANGE FUSE PART NUMBER FOR CE FROM 2475 TO 2473 (T1.6A) 2017/10/03 V02p1 9098...
  • Page 33 R247 R241 R246 R145 17K8 R242 17K8 64K9 R146 20K5 R206 4148 R208 475R0 64K9 MUTE 17K8 R144 T3904 7K50 15K0 C146 -15V_ 7K50 R228 -88V +24V C145 R204 C154 AmpBias -24V LVGND_ +15V_ R240 96KHZ 7837 4K75 4K75 4K75 R239 150P 4K75...
  • Page 34 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES PCB HARDWARE 1. PCBSA: ADD RTV BETWEEN POWER SUPPLY CAPS AS SHOWN SCREWS AND BOLTS NUTS STANDOFFS MISCELLANEOUS HERE. Assembly Documentation Section: EF10P - EF12P - EF15P Product(s): THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD. PCB#: M1803 Rev#:...
  • Page 35 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY POTENTIOMETERS AND KNOBS FUNCTION POT# KNOB# DATE VER# DESCRIPTION OF CHANGE 2017/03/03 RELEASED FOR PRODUCTION 2017/09/15 9116 MARKED W3 CONNECTOR - YS PART# 4018 AS DNS 2017/11/14 CHANGE FUSE PART NUMBER FOR CE FROM 2475 TO 2473 (T1.6A) 2017/10/03 V02p1 9098...
  • Page 36 Model Transformer EF15P CH1341U EF12P CH1441U EF10P CH1342U FEMALE CONNECTOR VIEWED FROM WIRE SIDE BLK/YEL VIO_ FEMALE CONNECTOR VIEWED FROM WIRE SIDE GRY_ BLACK RED_ BROWN CH1342U ORANGE BLK/YEL ClassName: AC BLUE WHITE W10:1 W9:1 W9:2 W10:2 LINE LINE LINE W9:3 AC-BLK1 W10:3...
  • Page 37 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY M1804V01 POTENTIOMETERS AND KNOBS FUNCTION POT# KNOB# DATE VER# DESCRIPTION OF CHANGE SEP-02-2018 M1804 was part of P8802. P8802 is now de-panelized into M1802, M1803, M1804 OCT-12-2018 V01 RELEASED FOR PRODUCTION MAR-12-2019 9277 CHANGED W9 AND W10 FROM 4147 TO 4243...
  • Page 38 DOCUMENTATION Blank PCB PLASTICPIN PCB1 ClassName: PLASTICPIN RTV_HOLES ClassName: RTV_HOLES BREAK ClassName: BREAKHOLES CHASSISSCREW ClassName: CHASSISSCREW Section: EF10P - EF12P - EF15P Product(s): M1804 PCB#: Rev#: EML Rev#: Sheet Modified: 2019-09-17 File: ECO.SCHDOC Tmp Rev: V031...

  • Page 39: Power Supply - Ac

    M1804 EF10P - EF12P - EF15P M1804 Power Supply - AC 240VAC 4243 4243 120VAC 5266 680N/250V 6492 1300UH 5242 100N/250V 4244...
  • Page 40 DESIGN HISTORY AND INFORMATION POTENTIOMETERS AND KNOBS CHANGE HISTORY M1804V01 POTENTIOMETERS AND KNOBS FUNCTION POT# KNOB# DATE VER# DESCRIPTION OF CHANGE SEP-02-2018 M1804 was part of P8802. P8802 is now de-panelized into M1802, M1803, M1804 OCT-12-2018 V01 RELEASED FOR PRODUCTION MAR-12-2019 9277 CHANGED W9 AND W10 FROM 4147 TO 4243...
  • Page 41 0805 0805 DGND RA Light Pipe ECO.SchDoc Status R174 ECAD INCIDENTAL W13_:1 W13:1 W125 +15V_5 EF15P-EF12P-EF10P Assembly.SchDoc Yorkville Sound Ltd. Product(s): 0805 ASSEMBLY NOTES BT_State 550 Granite Court Description: PS and Input History.SchDoc Pickering, ON 6001 DESIGN HISTORY PCB#: P8802...
  • Page 42 R184 AD_Ref W100 4K75 R186 0805 4K75 C134 0805 0805 0603 C133 C135 0805 0603 C137 C136 AIN_HI_SENS+ 3528 0603 AIN_HI_SENS+ +5Vref R189 Voltage 1206 Reference Serial Output Delta-Sigma Decimation AIN1P AIN_HI_SENS- Modulator Filter AIN_HI_SENS- AIN1N DIF0 600R +3V3 AIN_LO_SENS+ DIF1 F0805 AIN_LO_SENS+...
  • Page 43 Low Energy Bluetooth +3V3_BLE P0.4 P3.2 P0.6 P0.6 P3.3 14X19mm SMT Module P0.7 P3.4 CYBLE-012011-00 P0.7 P0.5 P3.5 6793 P3.6 P1.0 P3.7 P1.4 BLE_UART_RX P1.4 P4.0 BT_Pgm BT_Pgm P1.5 P1.5 P5.0 BLE_UART_TX P1.6 P5.1 W125 P1.7 P2.0 0805 P2.2 /BLE_RESET XRES P2.3 P2.4...
  • Page 44 +3V3 600R F0805 +3V3_DSP +3V3_DSP MCLK DGND 0603 0805 MMBT5401 +1V8 SUPPLY 475R0 0603 0603 0603 0805 SOT-23 0603 0603 0805 0805 +3V3_DSP 7837 +3V3_DSP DGND +3V3 W125 1K02 OSCILLATOR DGND 0603 0805 600R 0805 DGND ADAU1401 F0805 W100 PVDD 100R 7894 1.8V Reg...
  • Page 45 +3V3_uC +3V3 R194 VREFH W250 600R Mode_B F0805 P1:1 1206 Mode_G C140 Mode_R 0805 0805 0805 0603 0805 0603 0603 Master R137 4434 R128 R129 R130 R131 R132 R133 W125 3K32 3K32 3K32 3K32 3K32 3K32 1K02 0805 0805 0805 0805 0805 0805...
  • Page 46 Input PCB Power Supply PCB D_GND_ HORN OUTPUT D_GND_ +15V_ 20k rolloff -15V_ C113 _W6_ R108 0805 W100 R110 4K75 W125 0805 1K800 C115 0805 U12:2 MC33079D 680P +15V_5 IOUTL+ 7668 0805 C117 R112 U13:1 R114 W100 MC33078 100N 7918 W100 4K75 7817...
  • Page 47 Model Transformer EF15P CH1341U EF12P CH1441U MUTE ON/OFF EF10P CH1342U FEMALE CONNECTOR BLK/YEL VIEWED FROM WIRE SIDE VIO_ W125 W125 SOT-23 MMBT5401 FEMALE CONNECTOR 7837 VIEWED FROM WIRE SIDE 0805 0805 CDSF4148 D1005 GRY_ -20V UNMUTE BLACK 10K0 CDSF4148 MALE 9 PIN CONNECTOR FOR Elec 18V0 4.3X3.9...
  • Page 48 R175 PreAmp CDSF4148 W125 CLIP D1005 1K02 0805 0603 470P +15V +15V U17:2 R199 R148 +15V_1 J1:2 MC33079D W125 W125 7668 U17:5 U6:3 U7:3 MIX+ U6:2 R176 R177 0805 0805 MC33078 MC33078 MC33078 AIN_HI_SENS+ MAIN INPUT 100V W125 W100 MC33079D 8K25 XLR-PHONE 7817...
  • Page 49 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES PCB HARDWARE 1. PCBSA: ADD RTV BETWEEN POWER SUPPLY CAPS AS SHOWN SCREWS AND BOLTS NUTS STANDOFFS MISCELLANEOUS HERE. 3841 TieWrap The input section needs to 3841 be air tight. All vias and part TieWrap holes must be filled with solder.
  • Page 50 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS DATE VER# DESCRIPTION OF CHANGE POTENTIOMETERS AND KNOBS 31-MAY-2018 V01P0 RELEASED FOR PRODUCTION FUNCTION POT# KNOB# MASTER LEVEL 4434 9014C LINE LEVEL 4432 9014C MIC LEVEL 4432 9014C "STYLE_P32" DATE VER# DESCRIPTION OF CHANGE PINOUT DIAGRAMS DATE...
  • Page 51 10K00 1K02 4148 10K00 1K02 MC33078 R153 4148 R138 30K0 4K75 R152 4162 4218 250V 6451 10K0 C142 10K00 MC33078 10K0 5190 4148 10K0 MC33078 6543 4148 10K0 470P C148 MC33078 100N 475R0 475R0 R151 Spkr WOOF- 475R0 475R0 680P WOOF+ 470P C153...
  • Page 52 10K00 1K02 4148 10K00 1K02 MC33078 R153 4148 R138 30K0 4K75 R152 4218 10K0 C142 10K00 MC33078 10K0 4148 10K0 MC33078 4148 6543 10K0 470P C148 MC33078 100N 475R0 475R0 R151 Spkr 475R0 475R0 680P 470P C153 2K74 HORN R101 150P HORN R102...
  • Page 53 4162 250V 6451 5190 Spkr WOOF- WOOF+ C153 HORN- 150P HORN+ C152 7915 150P 17K8 R243 5933 64K9 6562 17K8 20K5 R249 R248 R244 17K8 R245 20K5 R227 R230 R229 7K50 7K50 6535 4148 4700U 4700U 100V 100V 5910 5910 5860 R221 15K0...
  • Page 54 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES PCB HARDWARE 1. PCBSA: ADD RTV BETWEEN POWER SUPPLY CAPS AS SHOWN SCREWS AND BOLTS NUTS STANDOFFS MISCELLANEOUS HERE. 3841 TieWrap The input section needs to 3841 be air tight. All vias and part TieWrap holes must be filled with solder...
  • Page 55 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS DATE VER# DESCRIPTION OF CHANGE POTENTIOMETERS AND KNOBS 31-MAY-2018 V01P0 RELEASED FOR PRODUCTION FUNCTION POT# KNOB# MASTER LEVEL 4434 9014C LINE LEVEL 4432 9014C MIC LEVEL 4432 9014C "STYLE_P32" DATE VER# DESCRIPTION OF CHANGE PINOUT DIAGRAMS DATE...
  • Page 56 Vocal: Shaped response specifically for the human voice range ensures vocal intelligibility. User: Flat by default, can be customized by a user through the Yorkville app with a maximum of five different parametric equalization points with adjustable boost, cut and Q.
  • Page 57 Commande Bluetooth™ Cette commande active ou désactive la connexion Bluetooth ™ entre une tablette ou un smartphone à l’aide de l’application Yorkville. Appuyez sur ce bouton de commande pendant plus de 4 secondes pour réinitialiser l’enceinte amplifiée de la série EF aux réglages d’usine.

  • Page 58: Eyebolt Installation

    WE SUGGEST CALLING ATM FLY-WARES TECHNICAL SERVICES IN THE UNITED STATES AT (310)639-8282 MONDAY THROUGH FRIDAY FROM 9 AM TO 6 PM (PST) OR FAX AT (310)639-8284. YORKVILLE SOUND MAKES NO CLAIMS AS TO THE SAFETY OF THE ENCLOSURES IF RECOMMENDED LOAD LIMITS AND HARDWARE ARE NOT STRICTLY ADHERED TO. NOR DOES IT MAKE ANY SAFETY CLAIMS TO THE RESULTANT INSTALLATION.

  • Page 59: Outils Requis

    SUR LES ACCESOIRES EXTÉRIEURS NOUS VOUS SUGGÉRONS D'APPELER LE SERVICE TECHNIQUE DE ATM FLY-WARE AUX ETATS-UNIS AU (310)639-8282 DU LUNDI AU VENDREDI DE 9 AM À 6 PM (HSP) OU PAR FAX AU (310)639-8284. YORKVILLE SOUND NE GARANTIE PAS UNE UTILISATION SÉCURITAIRE DES ENCEINTES SI LES LIMITES DE CHARGE RECOMMANDÉES NE SONT PAS RESPECTÉES ET SI VOUS N'ADHÉREZ PAS STRICTEMENT À...
  • Page 60 Yorkville Sound 550 Granite Court Pickering, Ontario Canada L1W 3Y8 www.yorkville.com Auto Attend: (905) 837-8550 Fax: (905) 837-8746...
