IMPORTANT NOTES
The installer is responsible for following safety procedures at each step of the installation (wearing a helmet, gloves, boots,
safety glasses, protective mask, etc.).
Install the Rewatec dosing distribution box on a flat surface. The soil must be well-compacted to minimize movement and
destabilization over time. Premier Tech recommends adding a layer of gravel or a concrete slab beneath the unit to ensure
even distribution across each treatment row throughout the product's life cycle. A provided watertight adapter can be used
to connect the septic/primary tank's outlet to the Rewatec dosing distribution box's inlet.
The Rewatec dosing distribution box must be installed according to the following recommendations:
• The lid must always be accessible. Never cover it with soil, debris, or any kind of fixed structure.
• The final backfill must never be higher than 2'' (50 mm) below the lid.
• Never drive a vehicle or place any object weighing more than 500 lb (225 kg) within 10' (3 m) of the Rewatec dosing
distribution box.
• Ensure rapid vegetation regrowth to prevent erosion.
• Only one Premier Tech PSR-060 riser is permitted to be installed (not provided).
• The backfill material must be placed onto the unit instead of pushed onto it. Backfill material must be sandy and free of
rocks. Determine the thickness of the vegetational cover and ensure that it does not come higher than 2'' (50 mm) below
the system's lid once the landscaping is complete.
INSTALLATION STEPS
The Rewatec dosing distribution box can connect to up to seven treatment rows.
Use a 5'' hole saw to pierce one hole for each treatment row needed. The location of each hole is outlined on each side of
the Rewatec dosing distribution box, as shown below.
Use the provided rubber outlet adapters before connecting the pipes (fig. 1).

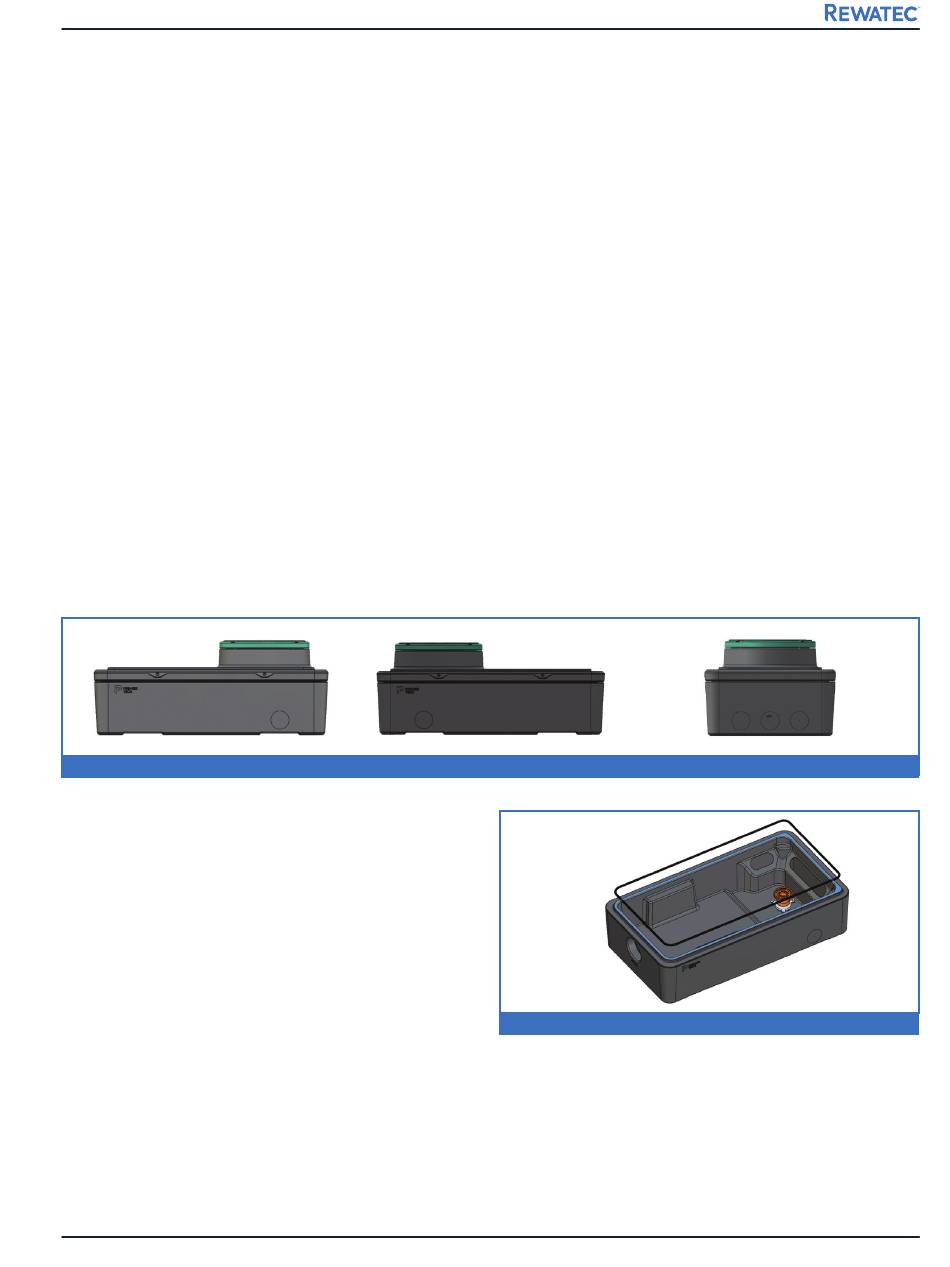

Figure 1 | View of the Rewatec dosing distribution box from different sides
INSTALLING THE GASKET
WARNING – The provided gasket must be placed around
the upper part of the chamber (fig. 2).
20240415 — Item #682486
Figure 2 | Installing the gasket
