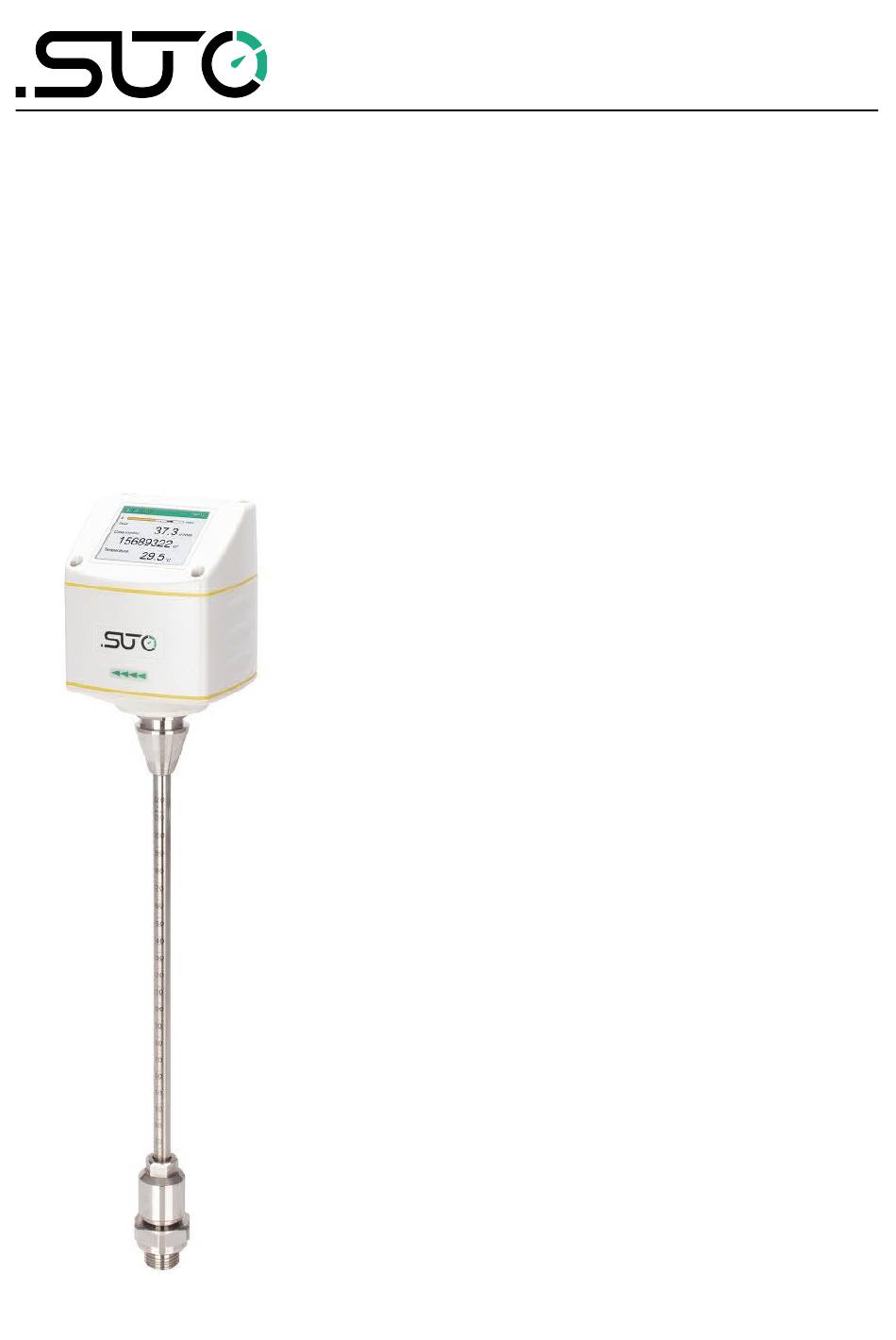

- Page 1 English Instruction and Operation Manual S401 Thermal Mass Flow Meter (Insertion)
- Page 2 Dear Customer, Thank you for choosing our product. Please read the operating instructions in full and carefully observe them before starting up the device. The manufacturer cannot be held liable for any damage that occurs as a result of non-observance or non- compliance with this manual.
-
Page 3: Table Of Contents
10.3.2.1 Modbus/RTU Cable Length........33 10.3.2.2 Modbus/RTU Wiring and Cable Type......33 10.3.2.3 Daisy-Chain using RS-485 Splitter......34 10.3.2.4 Topology of Modbus/RTU Daisy-Chain......35 10.4 M-Bus Output................36 11 Configuration..................37 11.1 Use the Service App S4C-FS............37 11.2 Use the Display (Optional)............38 11.2.1 Start-Up.................39 11.2.2 Operations..............40 S401... - Page 4 11.2.3 Menu Map...............41 12 Calibration..................43 13 Maintenance...................43 14 Disposal of Waste................43...
-
Page 5: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance. • Any electrical work on the system is only allowed by authorized qualified personnel. S401... - Page 6 1 Safety Instructions ATTENTION! Permitted operating parameters! Observe the permitted operating parameters. Any operation exceeding these parameters can lead to malfunctions and might lead to damage to the instrument or the system. • Do not exceed the permitted operating parameters. •...
-
Page 7: Registered Trademarks
• Avoid direct UV and solar radiation during storage. • For the storage, the humidity must be <90%, with no condensation. 2 Registered Trademarks Trademark Trademark owner SUTO ® SUTO iTEC MODBUS ® Modbus Organization, Hopkinton, USA Android™, Google LLC Google Play S401... -
Page 8: Rf Exposure Information And Statement
3 RF Exposure Information and Statement 3 RF Exposure Information and Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. -
Page 9: Application
Other units are configurable using the S4C-FS service app or the optional display. The S401 Thermal Mass Flow Meter is mainly used in compressed air or gas systems in industrial environments and is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 10: Technical Data
6 Technical data 6 Technical data 6.1 General FCC ID: 2ASK2-SUTO-001 Parameters Standard unit (flow): Other units (flow): /min, l/min, l/s, cfm, kg/h, kg/min, kg/s Units (Consumption ): m , ft , kg Reference conditions ISO1217 20 °C 1000 hPa (Standard-Unit) DIN1343 0°C 1013.25 hPa (Norm-Unit) Principle of Thermal mass flow... -
Page 11: Electrical Data
Note: The total consumption value is saved to the permanent memory every 5 minutes. If within these 5 minutes the device is powered off, it will restore the last consumption value which was saved in the last cycle. S401... -
Page 12: Volumetric Flow Ranges
6 Technical data 6.5 Volumetric Flow Ranges S401-S S401-M S401-H Inch (mm) (m³/h) (m³/h) (m³/h) ½" DN15 ¾" DN20 1" DN25 27.3 0.5 ... 147.7 0.6 ... 294.7 0.6 ... 356.9 1¼" DN32 36.0 0.9 ... 266.3 1.2 ... 531.5 1.2 ... - Page 13 6 Technical data To calculate flow ranges based on pipe sizes and reference conditions in your site, SUTO offers the "Flow Range Calculator" tool for free. The tool can be used online from http://www.suto-itec.com by clicking Support > Flow Range Calculator. S401...
-
Page 14: Dimensional Drawing
7 Dimensional Drawing 7 Dimensional Drawing... -
Page 15: Determine The Installation Point
• The device is for indoor use only! At an outdoor installation, the device must be protected from solar radiation and rain. • It is strongly recommended not to install S401 permanently in a wet environment such as the place right after a compressor outlet. -
Page 16: Reserve Required Inlet And Outlet Sections
The S401 should be always installed upstream from obstacles such as valves, filters, reductions, etc. In common, the S401 must be installed as far as possible away from any disturbances. - Page 17 8 Determine the Installation Point Three-dimensional Bend T-piece Shut-off valve Filter or similar (unknown objects) S401...
-
Page 18: Installation
9 Installation 9 Installation Before installing the flow meter, please make sure that all components listed below are included in your package. Qty Description Item no. S401 Thermal Mass S695 4100 Flow Meter S695 4101 S695 4102 S695 4103 Sealing ring... -
Page 19: Determine The Installation Depth
OD=60.3 mm 60.3 mm =30.15 mm y=87 mm ; Insertion depth = 30.15 mm +87 mm=117.15 mm * The length of the locking nut and connection head has been deducted from the scale on the shaft. S401... -
Page 20: Off-Center Installation (100 Mm-Depth Installation)
9 Installation 9.2.2 Off-center Installation (100 mm-Depth Installation) For bigger pipe diameters (> 200 mm), the device can be installed with only a 100 mm insertion depth as the alternative. This allows one device to be used for all pipe sizes. Note: To enable the 100 mm installation method, remember to change the installation method setting accordingly, using the S4C-FS service app or the optional device display. -
Page 21: Install The Device
8. With the aid of the alignment key, make sure that the actual flow direction is the same as the arrow shows. (The angle deviation should not be larger than ±2°.) S401... -
Page 22: Install In A High-Pressure Environment
9.4 Install in a High-Pressure Environment When the operation pressure > 1.6 MPa(g), a high pressure installation device must be used for installing the S401. For how to use the high pressure installation device, see the High pressure installation device manual by scanning the QR code... -
Page 23: M12 Connection Pins
B = M12 (8-pin X-coded) M-Bus + 4… 20 mA + Pulse A = M12 (5-pin); B = M12 (5-pin) A1414 Pin compatible with S400 General connection pins, male Ethernet connection pins, male (View onto the connector) (View onto the connector) S401... - Page 24 9 Installation M12 pin assignment Output Type Connector Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 4 ... 20 mA + pulse (P/N: A1410) isolated isolated Modbus/RTU (P/N: A1411) M-Bus (P/N: A1412) M-Bus M-Bus 4 ... 20 mA+pulse, active active compatible to S400...
-
Page 25: Ethernet Connection
When Modbus/TCP is chosen as the device output, a 5 m 8-pore cable is supplied in the delivery package. The has the M12 and RJ45 plugs on the ends. RJ45 is used to connect the device to a PoE switch. Front view of the M12 plug, female S401... - Page 26 9 Installation The 8-position pin/pair assignment on the RJ45 side must comply with the T568B wiring method. The device does not support the T568A wiring method. Pair M12 X-coded RJ45 Signal Color code designation Tx+ / +V / -V White-Orange (W-O) Pair 2 Tx- / +V / -V...
-
Page 27: Signal Outputs
The device has an analog output of 4 ... 20 mA. This output can be scaled to match the desired measuring range. Standard scaling is from 0 to max flow. The S401 can be ordered with the bi-directional calibration. In such case, the correspondence between the analog output and standard scaling is as follows:... - Page 28 10 Signal Outputs In case that the flow rate is too high, the S401 cannot output the pulses with default settings (one pulse per consumption unit). In this case, you can set the pulse to 1 pulse per 10 consumption units or 1 pulse per 100 consumption units, using the S4C-FS service app or a connected display.
-
Page 29: Pulse Connection Diagrams (A1410)
10 Signal Outputs 10.2.1 Pulse Connection Diagrams (A1410) Using the isolated pulse switch (Connector B, Pin 2 and 3) Variant 1: Variant 2: 10.2.2 Pulse Connection Diagrams (A1413) Using the isolated pulse switch (Connector B, Pin 4 and 5) Variant 1: S401... - Page 30 10 Signal Outputs Variant 2: Using the pulse output P+ (Connector A, Pin 5) Variant 1: Variant 2: *GND of the external pulse counter might be connected to -V of the device.
-
Page 31: Modbus Interface
(SEEEEEEE) (EMMMMMMM *) Byte 0 Byte 3 UINT32 1-0-3-2 Byte 1 Byte 2 INT32 Byte 1 Byte 0 UINT16 INT16 Byte 1 Byte 0 UINT8 XXX * DATA INT8 • S: Sign, E: Exponent, M: Mantissa, XXX: no value S401... - Page 32 10 Signal Outputs Explanations of MSB and LSB MSB refers to the Most Significant Byte first, which follows the Big-Endian byte order. For example, if the main system follows the MSB first order: When the 4-byte floating number, in the order of Byte1-Byte0- Byte3-Byte2, is received from the slave (sensor), the master must change the byte order to Byte3-Byte2-Byte1-Byte0 for the correct display of the value.
-
Page 33: Connect Modbus/Rtu Devices To A Master
2 x 2 x 0.22 mm Li-2YCY (A553 0123). • The shield must be connected at one end to the master GND connection. • At the end of the bus, a 120 Ohm resistor should be placed as a termination resistor. S401... -
Page 34: Daisy-Chain Using Rs-485 Splitter
10 Signal Outputs See the below picture for details. 10.3.2.3 Daisy-Chain using RS-485 Splitter SUTO devices with M12 connectors can be easily connected in a Modbus/RTU daisy-chain using a M12 RS-485 splitter (A554 3310). Furthermore this allows you to easily place the M12 termination resistor (C219 0055) at the last splitter in the bus-chain. -
Page 35: Topology Of Modbus/Rtu Daisy-Chain
Make sure that at the end of the bus line, the termination resistor of 120 Ohm is placed to avoid interferences. Recommended connection of Modbus/RTU salves in a daisy-chain topology. Avoid a connection of slaves to the master in ring or star topology. Avoid a star topology S401... -
Page 36: M-Bus Output
10 Signal Outputs Avoid a ring topology 10.4 M-Bus Output Communication parameters Primary Address Secondary Address : 8-digit serial number of the device Manufacturer Code : 0x15C4 M-Bus version Baud rate : 2400 Response delay (ms) Response timeout (ms) : 100 Receive timeout (ms) : 500 Value register... -
Page 37: Configuration
Instruction and Operation Manual, which you can download from the SUTO website www.suto-itec.com (Download > Search: S4C-FS). ATTENTION! Improper changes in the settings might lead to wrong measurement results! Contact the manufacturer if you are not familiar with the settings. S401... -
Page 38: Use The Display (Optional)
11 Configuration 11.2 Use the Display (Optional) The display enables you to do the following: • View the online flow and consumption values • View error messages • Change the sensor settings. Operation keys Press for >3 seconds to enter the configuration mode. Enter key Press to confirm your selection. -
Page 39: Start-Up
Icons shown in the status bar Indicate the status or warnings for the device in service. Icon Description Icon Description Temperature over the Pressure sensor damaged operating range Flow over measuring Temperature sensor range damaged Pressure over the Flow direction operating range S401... -
Page 40: Operations
11 Configuration 11.2.2 Operations 1. Press the “Enter” key for more than 3 seconds to enter the configuration mode. 2. Enter the unlock code: 12 using the “Up” and “Down” keys, and then press the “Enter” key to confirm. 3. Use the “Up” and “Down” keys to choose a setting that needs to be changed. - Page 41 11 Configuration 11.2.3 Menu Map S401...
- Page 42 11 Configuration...
-
Page 43: Maintenance
The device, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S401... - Page 44 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782 Email: sales@suto-itec.com...
