OWNER'S MANUAL
WARNING
Never leave your child unattended – drowning hazard.
KEEP ASSEMBLY AND INSTALLATION INSTRUCTION FOR
FUTURE REFERENCE. THE TOY CONTAINS SMALL PARTS, IT
SHOULD BE ASSEMBLED BY AN ADULT.
• Only for domestic use.
• Only for outdoor use.
• Children can drown in very small amounts of water. Empty the pool
when not in use.
• Do not install the paddling pool over concrete, asphalt or any other
hard surface.
• Place the product on a level surface at least 2 m from any structure
or obstruction such as a fence, garage, house, overhanging
branches, laundry lines or electrical wires.
• Recommend back towards the sun when playing.
• Modification by the consumer of the original paddling pool (for
example the addition of accessories) shall be carried out according
to the instructions of the manufacturer.
• Make sure the pool and slide are always connected while in use; do
not exceed the maximum weight: 45 kg / 99 lbs. One person on the
slide at a time. For 53097, do not exceed the maximum weight:
144kg / 317lbs, and the maximum users on the slide is two
persons at a time.
• Children must remove shoes and glasses, as well as any sharp
or hard objects from their pockets, as they may puncture the
slide surface.
• Always keep the slide entrance free from obstruction.
• Do not allow food, drink or gum inside unit.
• Do not allow users to do somersaults or rough play.
• Do not allow users to climb or hang on containing walls.
• Do not use the product if wind speed exceeds 20mph.
• Do not use the product during inflation and deflation.
• Incorrect assembly could result a potential hazard.
• As the red connector is an important connection part, it needs
to be tightened durning installation.
SETUP
CHOOSE THE CORRECT LOCATION
• Because of the combined weight of the water inside the pool and the
users, it is important that the surface chosen to install the pool is
capable of uniformly supporting the total weight for the entire time
the pool is installed.
• An adequate drainage system has to be provided to deal with
overflow water. During filling, draining or when in use, water may flow
out of the pool.
• The surface must be flat and smooth. If the surface is inclined
or uneven, it can damage the structure of the pool and the
welding point.
• The selected surface must be clear of any type of object. Due to the
weight of the water, any object under the pool could damage or
perforate the material on the bottom.
• The selected surface must be clear of aggressive plants and weed
species. Those types of strong vegetation could grow through the
liner and create water leakage. The grass or other vegetation that
may cause odor or slime to develop has to be eliminated from the
set-up location.
• The selected location must not have overhead power lines or trees.
Be sure the location does not contain underground utility pipes, lines
or cables of any kind.
• The selected position must be far from house entrance. Do not
position any equipment or other furniture around the pool. The water
that comes out of the pool during the use or due to a faulty product
can damage the furniture inside the house or surrounding the pool.
• Suggested set-up surfaces: grass, ground and all other surfaces
that respect the above set-up conditions.
• Not suggested surfaces: mud, sand, gravel, deck, balcony,
driveway, platform, soft/loose soil or other surface that does not meet
the above set-up conditions.

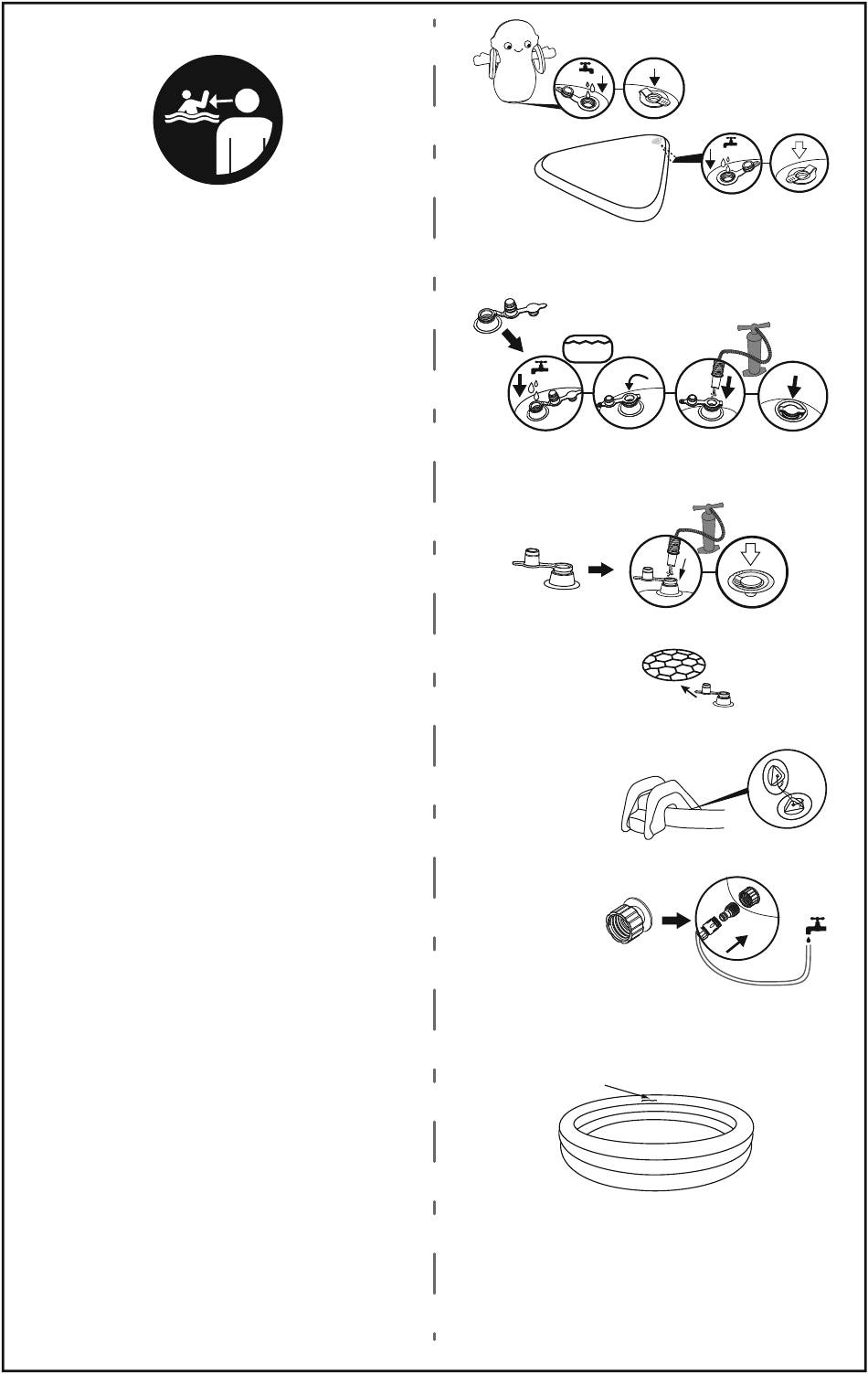

ASSEMBLY
Warning: Adult assembly required.
1. Open the water valve to fill water in the water chamber.
(Only for product with water chamber)
2. Open the 3-interconnecting valve to fill water in the water chamber
and close the first cap, then inflate the same chamber with air pump
(not included). Close the valve after inflation and press it into the air
chamber. (Only for product with 3-interconnecting valve)
70%
3. Open the safety valves and inflate the parts one by one. Be sure to
close the valves after inflation. Air pump is not included.
NOTE: Do not over inflate. Do not use either an air compressor or
compressed air.
NOTE: For inflatable floor, the air valve is on the bottom side of
the product.
4. Connect the slide to the pool by tighten the rope.
(Only for product with detachable slide)
5. Connect your garden hose to the hose adapter.
6. Slowly fill the pool to a proper water level, if there is a fill line, reach
but do not exceed the fill line on the pool's interior. DO NOT
OVERFILL as this could cause the pool to collapse.
ATTENTION: Do not leave pool unattended while filling with water.
Proper Water Level
NOTE: All drawings for illustration purpose only. May not reflect actual
product. Not to scale.
WATER MAINTENANCE
• Change the water of pools frequently (particularly in hot weather) or
when noticeably contaminated, unclean water is harmful to the
user's health.
• Please contact your local retailer to obtain chemicals to treat the
water in your pool. Be sure to follow the chemical manufacturer's
instructions.
