- Page 1 Original Instructions Electric Scooter User Manual Model DT06 Series "IMPORTANT! Read carefully and keep it for future reference!"...
-
Page 2: Table Of Contents
Contents 1.Riding Safety ----------------------------------------- 04 2.Packing List ----------------------------------------- 06 3.Diagram ----------------------------------------- 07 4.Assembling Your Electric Scooter --------------- 10 5.First Ride ----------------------------------------- 11 6.Charging ----------------------------------------- 11 7.Learning to Ride --------------------------------------- 12 8.Warnings ---------------------------------------------- 15 9.Maintenance -----------------------------------------20 10.Parameters -----------------------------------------21 11.Declaration of Conformity ----------------------- 22... - Page 3 Thanks for choosing the Electric Scooter! Thanks for choosing our electric scooter, which is a fashion and leisure device. Our electric scooter is not intended for use by persons (including children) who are not good at physical, sensory, or mental capabilities, or lack experience and knowledge unless they have been given supervision or instruction by a person responsible for their safety.
-
Page 4: Riding Safety
1 Riding Safety Don't use any accessories and any additional items which are not approved by the manufacturer. Don't slam the brake. Please use your right brake lever first. We adjust our left brake lever softly to avoid roll-over when slammed. - Page 5 Avoid high-traffic areas or overcrowded areas. In any case, anticipate your trajectory and your speed while respecting the code of the road, the code of the sidewalk, and the most vulnerable. Notify your presence when approaching a pedestrian or cyclist ...
-
Page 6: Packing List
2 Packing List Assembled Electric Scooter User Manualx1 Tool kit x1 Bolt x4 Charger x1 When unpacking your Electric scooter, please verify that the above items are included in the package. If you are missing any components, please contact your dealer/distributor or nearest service center. After verifying that all components are present and in good condition, you can assemble your new Electric scooter. -

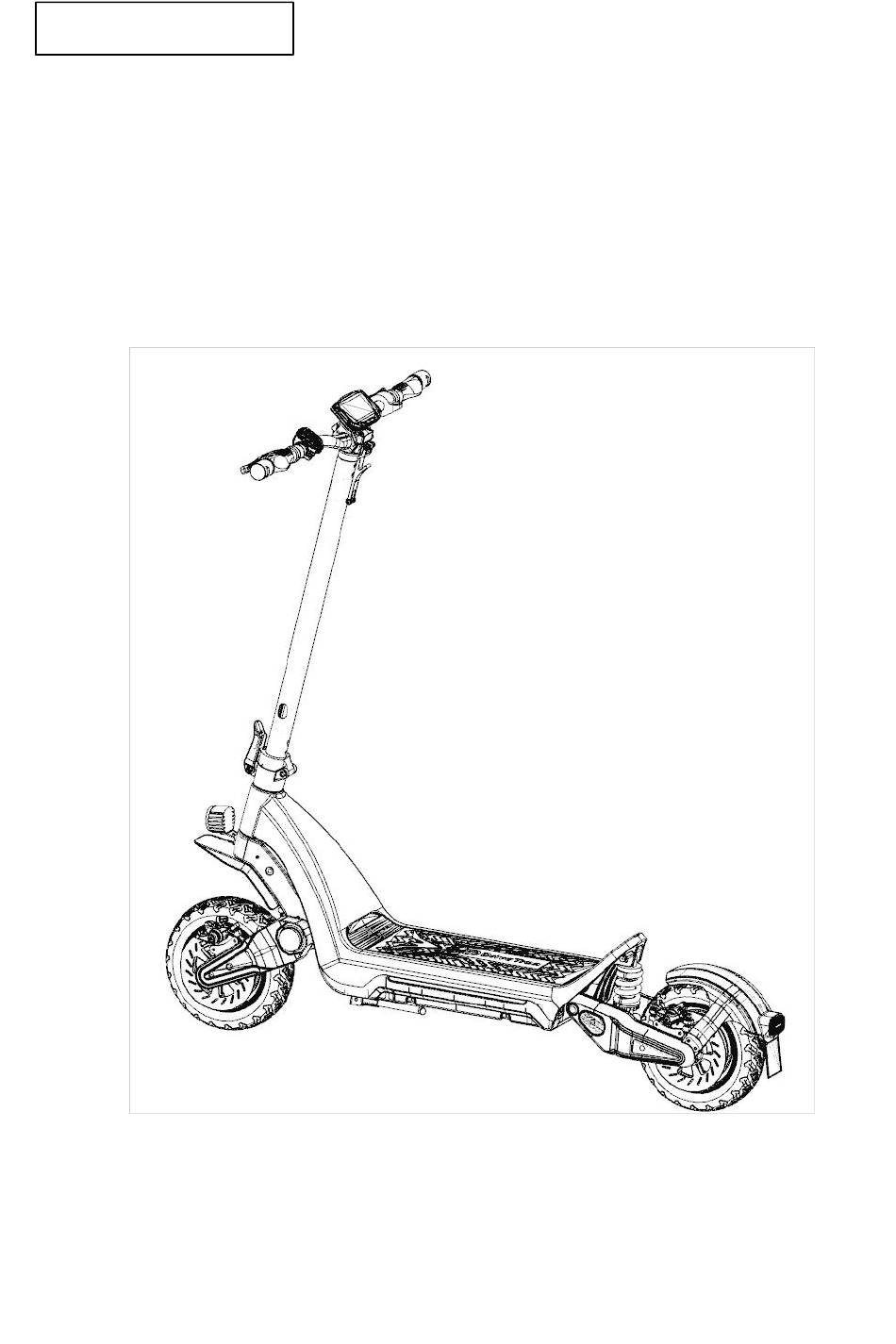

Page 7: Diagram
3 Diagram... - Page 8 Dashboard and button operations The layout of the display The speedometer shows different information about the electric scooter. Power on and off: Press and hold the power button for 2 seconds to power on. After powering on, you need to enter a 3-digit password. The default password is 000.
- Page 9 Pole lock: Take out the lock head of the pole lock, pull out the lock wire, wrap the lock wire around the fixed point, insert the lock head into the keyhole, and scramble the password. When unlocking, you need to enter the password first, then press the unlock button, pull out the lock, put the lock wire back and insert the keyhole into the fixed bracket.
-
Page 10: Assembling Your Electric Scooter
Automatic shutdown: If the scooter is left idle for 5 minutes, the vehicle will automatically shut down. 4 Assembling Your Electric scooter 1 . Unfold the handlebar stem and fasten 2 . Firmly connect the wires inside it. Then unfold the kickstand to the handle and the stem. -
Page 11: First Ride
. Install four screws (two on each side). . Verify that your electric scooter can be powered on. 5 First Ride 1. There are safety risks when learning to ride an electric scooter. You must read and study the scooter riding operation and safety report through the manual before riding it for the first time. -
Page 12: Learning To Ride
WARNING！ Do not charge if the charging port or power cord is wet. Do not charge or use your battery if it is damaged or see a trace of water. Close the charging port cover when not charging. 7 Learning to Ride Wear an approved helmet and other protective gear to minimize any possible injury. - Page 13 4. Take note of the brake levers, and operate the rear brake lever first rather than the front brake lever. 5.When turning around, the body should be turned in the same WARNING direction, and slowly operate the handlebar. 6.Put down the kickstand when parking WARNING When hard braking, you risk serious injury due to loss of traction and falls.
-
Page 14: Folding And Carrying
Folding and Carrying Folding: Make sure the vehicle is off and fold it as the below picture shows. Carrying: Two hands carrying after folding. -
Page 15: Warnings
8 Warnings WARNING Failure to follow these instructions could lead to serious Injury. DO NOT ride the speed bumps, DO NOT ride over thresholds, or Kick scooters in Or other bumps at HIGH SPEED. the rain. DO NOT GET Wet. Watch your head when Do not keep your feet on the rear passing through... - Page 16 Avoid contacting obstacles DO NOT press the throttle with the tire/wheel. when walking with the Electric scooter. DO NOT carry heavy objects on DO NOT ride the Electric the scooter with Handlebar. scooter on only one foot.
- Page 17 DO NOT ride on public DO NOT rotate the handle violently roads, motorways, or while driving at high speed. highways while driving. The Electric scooter is for one rider Only. Do not carry any DO NOT ride through passengers. Do not carry a child. puddles or other bodies of Do not ride when pregnant.
- Page 18 Do not leave the handlebars with DO NOT touch the hub motor both hands. after riding because it can get hot. DO NOT ride up and down stairs or Do not use a mobile phone or wear jump over obstacles. when operating the Electric scooter.
- Page 19 WEEE Disposal and Recycles Information Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal. Recycling is responsible to promote the sustainable reuse of materials and resources.
-
Page 20: Maintenance
and/or accumulators must remove those batteries and accumulators for separate collection. Maintenance When meets problems, please do maintenance following our below instructions: Clean recommendations 1. When a surface is dirty, please use a wet cloth to make it clean. If meets oil or others, please use toothpaste to clean, and then clean with a dry cloth. -
Page 21: Parameters
Parameters DT06 DT06 Dual Specificati Item Parameters Parameters Size LxWxH① 1320x730x1300mm 1320x730x1300mm Net weight（kg） Net weight Recommended age（Y） 16-50 16-50 120-200 120-200 Recommended height(CM) Riding Requirements Max. pay load（kg） Max speed(Km/h) ② Max distance(Km) Max climbing degree Main Parameters Terrain Flat terrain, lower than 1.5cm step Flat terrain, lower than 1.5cm step Working temperature(℃) -
Page 22: Declaration Of Conformity
DECLARATION OF CONFORMITY Business name of the factory: Ningbo Sunhon International Co., Ltd. full address of the manufacturer: Room 2-2, Building 6, Chenjia Village, Zhangqi Town, Cixi, Ningbo, Zhejiang, China We declaring that the machinery: product name: Electric scooter commercial name: Electric scooter... - Page 23 Tested in accordance with below standards: EN17128:2020 EN 60335-2-29 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Place and date of the declaration: Cixi, China, 2024/3/1 Identity and signature of the person empowered to draw up the declaration: Fanny...
