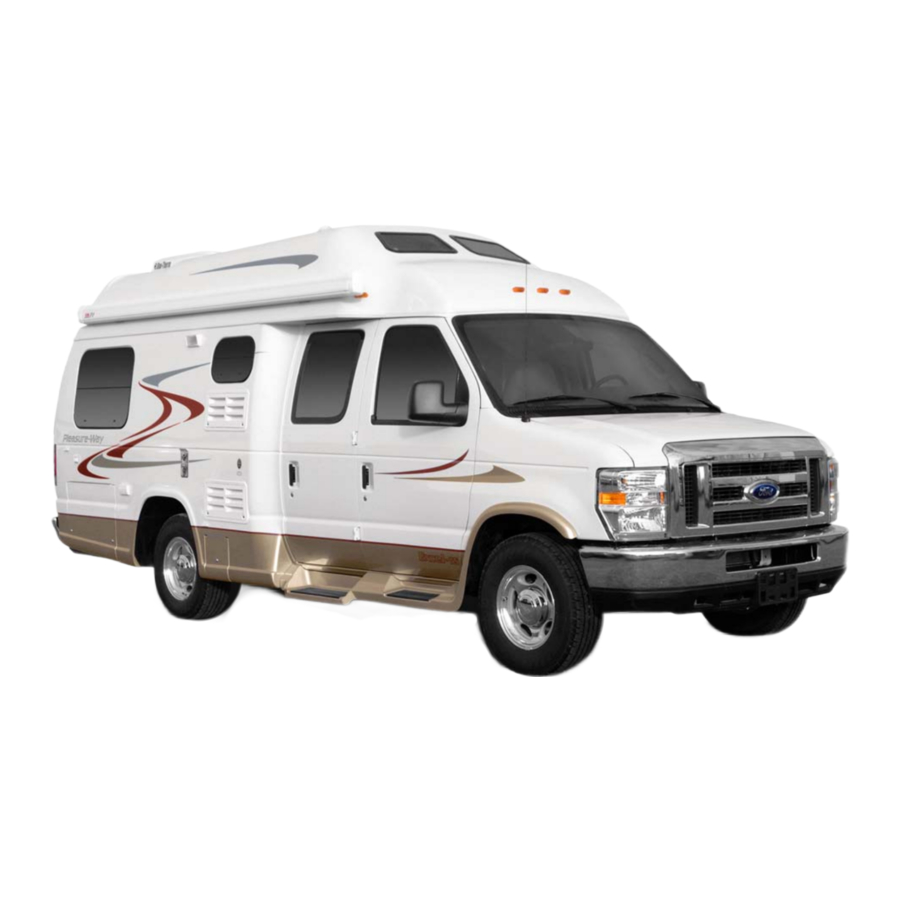

Pleasure-Way Excel Manual

MOTORHOME EXTERIOR

Motorhome Dimensions and Capacities

Your Motor Home is larger than your standard van or automobile, so please be careful when entering underpasses, garages, parkades, etc.

DIMENSION (approximate)

CAPACITIES (approximate)

NOTE: The height of your Motorhome may vary depending upon the tire pressure, air ride pressure and optional components mounted on the roof. The width of the motor home will very with the positions of the outside mirrors. All measurements and capacities are approximate. There are many variables in the construction of the vehicle for measurements to be absolute.

TIRE/AIR RIDE PRESSURE:
Tire pressures as recommended by Ford Motor Company. Tire Size LT 245/75 R16E
FRONT TIRES: 55 PSI/380 kPa
REAR TIRES: 80 PSI/550 kPa
REAR AIR RIDES: 50 PSI this is a recommended setting for general use.
The Air rides are used to assist the springs and shocks of the vehicle. Your inflation rates will very depending on the loading of the vehicle. It is recommended that you inflate the air rides to a pressure that keeps the vehicle ride level.

Air Ride Fill Valves

(These will only be used if your vehicle is not equipped with the on board air ride compressor and gage). Manual fill valves for the rear air ride suspension are located under the rear bumper of the vehicle. These valves can be filled and tested with a tire gauge and chuck. The rear air bags should maintain 50 psi.

LP Tank remote Fill and Breather

Located in the driver side component compartment in front of the rear wheel well.
NOTE: Only fill your propane tank to 80% capacity.

Driver's Side Furnace Vent

Located on the passenger side above the rear wheel well. This vent is the exhaust and fresh air return for your furnace.
NOTE: For maximum efficiency of your furnace this vent should be free from obstruction. Caution this surface may be hot when furnace is running.

Driver's Side Exterior Shower Compartment

Located beside the vehicle fuel fill door on the driver's side, this compartment contains a retractable showerhead with hot and cold-water taps.
NOTE: When winterizing your Motorhome be sure to winterize this tap and the shower hose.

Driver's Side Water Heater Vent

Located at the rear the driver side, these vent gives you access to the exterior working components of the 6-gallon auto ignite water heater.
NOTE: Keep this vent clear from all obstructions.

Driver's Side Sewer Hose Compartment

Located on the driver side just behind the rear wheel well. This stores the 10-foot sewer hose.

Driver's Side Sewer Dump Valves

Located in and underneath the driver side component compartment. These dump handles allow you to dump your gray and black waste tanks.
NOTE: Dump your black water first to allow your gray water to flush the black water through the hose.

Driver's Side Fridge Vents

Located on the passenger side just behind the side entry door. These vents allow for airflow for your fridge coils, which help with the cooling process of the fridge.
NOTE: Ensure that these vents are free from all obstructions.

Passenger's Side Fresh Water Holding Tank Fill

Located on the driver side rear beside the water heater access door. This locking door provides access to fill your fresh water tank.

Passenger's Side Exterior 110-Volt Plug

Located on the passenger side rear behind the rear wheel well, this plug will only function if power is supplied through the generator or shore power.

Passenger's Side Exterior Porch Light

Located behind the passenger side kitchen window, this light is controlled by the switch on the kitchen end gable near the entrance handle.

Coach & Chassis Batteries

The chassis battery is located under the hood of the vehicle, supplied by Ford. The coach or auxiliary battery is an Interstate SRM 24 series deep cycle battery. This battery operates the Motor Home portion of your vehicle. The coach battery is located on the passenger side in front of the rear wheel well. It is installed on a slide out battery tray.

TRAVEL PREPARATION

Before You Leave

Prior heading off on your adventures, you should always check to ensure that:

• the LP gas is off at the main valve
• all black and gray waste water tanks are empty and closed.
• all electrical cords and exterior hoses are stored back into their respective compartments
• chassis fluid levels are at recommended levels
• chassis tire pressure levels are at recommended levels
• chassis exterior lighting is functional
• air ride bag pressures are at recommended levels
• all exterior components are secure and closed
• the refrigerator power switch is changed to 12-Volt
  (The 12volt/ DC system is there to maintain the coolness of the refrigerator while in motion. The refrigerator should have been cooled on propane or AC electric before filling it and leaving on you trip.)
• all interior compartments and drawers are closed and locked into position
• all interior components are secure and in place
• the furnace control switch on the thermostat is off
• the TV swing-out is locked into a position
• the site is left in better condition than when you arrived.

While In Motion

It is not recommended that you use any of your appliances while in motion.

Do not use any LP gas appliances while in motion.
While you are in motion, you will have power to all 12Volt components such as the dome lights, water pump, roof vent, 12-Volt receptacle, TV, and DVD. You will not have power to the microwave, 110-Volt receptacles, coffee maker and roof air conditioner.

Upon Arrival at Your Site

Once you arrive at a site, please ensure that:

• your motorhome is parked in a level position so that your components will be at their optimum performance (place a bubble level in the freezer shelf of the refrigerator to use as a base and level your unit according to this)
• all exterior vents are clear from obstructions
• the black and gray water waste tank valves are closed
• hook up your 110-Volt power cord to your coach and then to the site receptacle (if supplied at site)
• hook up your fresh water line to the city water pressure connection (if supplied at site)
• it is recommended for pressurized city water that a water regulator is used
• turn the LP gas on
• turn the refrigerator switch power to LP gas selection or 110-Volt power (AC).
• turn the water heater on ( Before turning it on, make sure the water heater is filled with water)
• connect park cable and telephone jack (if supplied)

MOTORHOME SYSTEMS

LP Gas System

Your motorhome is equipped with a Liquid Propane (LP) gas system that provides fuel to the appliances (refrigerator, cook top, water heater and furnace).
The LP storage tank is located on the driver side behind the component compartment-swinging door. The filler and bleeder valve, the LP tank gauge and the LP gas regulator are also in this location.
Propane fuel is stored in a liquid state under extreme high pressure. As fuel is used, propane vapor passes from the tank through the regulator into the gas lines and eventually to the appliances. Although the propane system has undergone extensive testing for leaks, the system's connections and fittings are subject to road vibrations and should be checked regularly for possible leaks.
Propane fuel is extremely flammable, colorless, heavier than air and smells like rotten eggs.
The main shut-off valve to supply propane to the coach is operated by the round handle located in the driver side component compartment (ensure this switch is on before operating appliances.)
LP gas regulators must always be installed with the diaphragm vent facing downward. Regulators that are not in compartments have been equipped with a protective cover. Make sure that the regulator vent faces downward and that the cover is kept in place to minimize vent blockage that could result in excessive gas pressure causing fire or explosion.

Do not bring or store LP gas containers, gasoline or other flammable liquids inside the vehicle because a fire or explosion may result. LP gas containers should not be placed or stored inside the vehicle as LP gas containers are equipped with safety devices that relieve excessive pressure by discharging gas into the atmosphere.

It is not safe to use cooking appliances for comfort heating. Cooking appliances need fresh air for safe operation. Unlike homes, the amount of oxygen supply in the unit is limited due to the size of the vehicle. Proper ventilation when using the cooking appliance(s) will avoid dangers of asphyxiation.

Do not use portable fuel burning equipment, including wood and charcoal grills and stoves inside the motorhome. The use of this equipment inside the recreational vehicle may cause fire or asphyxiation.
DO NOT FILL LP CONTAINER TO MORE THAN 80% CAPACITY. Overfilling the LP gas container can result in uncontrolled gas flow, which can cause fire or explosion. A properly filled container will contain approximately 80% of its volume of LP gas. If you smell gas:

1. Extinguish any open flames, pilot lights and all smoking materials.
2. Do not touch any electrical switches.
3. Shut off the gas supply at the tank valve or gas supply connection.
4. Open all the doors and other ventilating openings.
5. Leave the area until the odour clears and you are sure there is no further risk to you.
6. Have the gas system checked and leakage source corrected before using again.

LP Off/On Valve:
Located in the driver side component compartment. This valve, when open, allows LP to flow to the coach.

LP Fill Valve
Located in the driver side component compartment. This valve, covered by the yellow end cap allows you to fill the LP tank to 80% capacity.

LP Bleeder Valve
The bleeder valve allows pressure to vacate the LP tank when 80% full.

LP Tank Gauge
This gauge indicates how full the LP tank is.

How to Use the LP Appliances

Turn your red key disconnect switch to the on position (located behind the small door under the furnace vent). Turn your LP on/off valve to the on position as mentioned above (located in the driver side component compartment).

Cook Top:
The vehicle is equipped with a two-burner flush mount cook top located in the kitchen counter top.

1. Lift the glass cover.
2. Turn the selected burner knob to the ignite (flame) position. This allows propane to flow to the selected burner.
3. Depress the middle ignition spark knob until the burner ignites.
4. Turn the burner knob to adjust the flame to the appropriate heat setting.
5. When you have finished using the cook top, turn the burner knob to the off position allow the burner to cool before closing the cook top cover.

Please consult the Smeve stovetop owner's manual for complete operating and cleaning instructions.

It is recommended that the Fantastic Fan be used for ventilation when this appliance is in use.

IT IS NOT SAFE TO USE COOKING APPLIANCES FOR COMFORT HEATING.
Cooking appliances need fresh air for safe operation.
Before Operation:
Open overhead vent or tum on exhaust fan
Open Window
FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY.
Unlike homes, the amount of oxygen supply is limited due to the size of the recreational vehicle, and proper ventilation when using the cooking appliance(s) avoids dangers of asphyxiation. It is especially important that cooking appliances not be used for comfortheating, as the danger of asphyxiation is greater when the appliance is used for long periods of time.

DO NOT FILL CONTAINER (S) TO MORE THAN 80 PERCENT OF CAPACITY.
FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY.
Overfilling the propane container can result in uncontrolled propane flow, which can cause fire or explosion. A properly filled container contains approximately 80 percent of its volume as liquid propane.

IF YOU SMELL PROPANE:
Extinguish any open flames, pilot lights, and all smoking materials
Do not touch electrical switches
Shut off the propane supply at the container valve(s) or propane supply connection
Open doors and other ventilating openings
Leave the area until the odor clears
Have the propane system checked and leakage source corrected before using again
FAILURE TO COMPLY COULD RESULT IN EXPLOSION RESULTING IN DEATH OR SERIOUS INJURY.

Propane cylinders shall not be placed or stored inside the vehicle. Propane cylinders are equipped with safety devices that relieve excessive pressure by discharging propane to the atmosphere.
FAILURE TO COMPLY COULD RESULT IN DEATH OR SERIOUS INJURY.

SAFETY

For your safety while travelling with your Pleasure-Way Motorhome, we have provided safety components throughout the vehicle. In order for your vehicle to maintain the safest possible conditions, these components must be tested and maintained on a regular basis, according to the detailed manufacturer's operating instructions.
All Pleasure-Way Motorhomes in Canada are CSA and CMVSS Certified, and may exceed the approved installation criteria.
All Pleasure-Way Motorhomes in the United States are FMVSS certified and bear the R.V.I.A. seal of approval, and may exceed the individual state requirements.

Smoke Detector
A smoke detector is provided on the ceiling of your unit near the front. Smoke detectors may give you a warning of fire and smoke, but only if you use and maintain them in accordance to the manufacturer's instructions. This device should be tested after each time your vehicle has been in storage, before each use, and at least once each week during your vehicle use. Do not block air circulation in the area where the smoke detector is located. Ensure you connect the battery inside the detector upon receiving of your new unit and that you install a fully charged fresh battery at least once a year.

Fire Extinguisher
A 3-pound capacity fire extinguisher is provided and located at the side door main entrance for ease of accessibility from the interior or exterior.

This fire extinguisher is a type "BC", which will extinguish flammable liquids and electrical fires, but not wood, paper and cloth fires. You should inspect the extinguisher at least once a month according to the manufacturer's instructions.

LP Gas Detector
A liquid propane (LP) gas detector is provided near the floor level at the rear of the motorhome interior. This detector will operate to detect liquid propane gasses as well as other gasses that are heavier than air. Your components that require LP gas are provided with complete ventilation to the exterior and are sealed off to the interior for your added safety. This detector is powered by the auxiliary battery and is operating at all times unless the battery is disconnected. The LP gas detector should be tested every week or every time before a trip, whichever occurs first. Do not block air circulation in the area where the LP gas detector is located. The test procedure should be performed in accordance to the manufacturer's instructions.
Note: The LP Gas Detector will sound to indicate a low coach battery charge.

Carbon Monoxide Sensor
A carbon monoxide sensor is provided in the monitor panel located above the passenger side door entrance. This detector only indicates the presence of carbon monoxide gas at the sensor. Carbon monoxide gas may be present in other areas.

Carbon Monoxide Gas cannot be seen or smelled and can kill you. This detector should be tested at least once per week or before every time the coach is taken on a trip. Do not block air circulation in the area where the carbon monoxide detector is located. The test procedure should be in accordance to the manufacturer's instructions. Carbon monoxide sensors are installed in all Pleasure-Way motorhomes.
Note: The Carbon Monoxide Detector will sound to indicate a low coach battery charge.

GFCI Outlet
A ground fault circuit interrupter (GFCI) 110-volt receptacle located just below the bathroom vanity countertop provides protection against line-to-ground electrical shock hazards that could be harmful or even fatal. The outlets that are on this circuit are the exterior receptacle, the galley receptacle, the two rear receptacles and the fridge receptacle. These receptacles are to be tested at least once a month in accordance with the manufacturer's instructions.

Refueling
When you are refueling your gasoline tank or your propane system, ensure that your vehicle is shut off and your main LP valve is shut off. Ensure that your pilot lights have been extinguished as well.

Even with the main LP valve shut off there is enough gas in the LP lines for the pilot light to continue to burn.

Filling the LP Gas Fuel Cylinder
When you are filling the LP Gas Fuel Cylinder, the propane tank valve must be closed, all pilot lights, appliances, along with their igniters must be turned off during refueling of motor fuel and/or the propane fuel tank. Only qualified personnel should refuel your propane tank. Do not refuel the propane tank to more than 80% of its capacity. To reduce the danger of fire and or explosion, do not store gasoline or other flammable liquids inside your vehicle.
NOTE: Ensure the propane system valve is fully shut when vehicle is in motion. It is not safe to travel while propane appliances are in use.

Seat Belts
Only forward-facing seats equipped with factory installed seatbelts are to be occupied while the vehicle is in motion. All passengers must be seated in these seats only with the seat belts fastened while the vehicle is in motion.
Seat belts are only available in the Ford Excel TS and RD models. Seat belts are not available in the Ford Excel TD model.

Appliances
It is not safe to use cooking appliances to heat the interior of the coach due to the danger of asphyxiation. It is recommended that you read all of the appliance owners/operating manuals prior to using the appliances.

TV Flat Screen
When the vehicle is in motion, it is necessary to have the flat screen television cabinet in the locked travel position to prevent damage to the flat screen and to the TV cabinet. The locking mechanism is located on the left-hand side of the TV cabinet.

Generator
When launching a boat or some form of watercraft with your Pleasure-Way motorhome, it is imperative to not submerge the generator in water. Please refer to the generator owner/operating manual for proper use and maintenance information.

Vehicle Ground Clearance
Your motorhome is equipped with underside holding tanks, waste tanks, plumbing lines, propane lines and other RV related items. Please be careful when driving your motorhome on uneven or poorly maintained roadways.

Emergency Escape
If the need to make an emergency escape from the interior of your motorhome arises, all interior doors are equipped with interior access latches. Your choices of escape routes are as follows, the main entrance at the side door, the driver and passenger side front doors and the rear doors.

Maintenance Schedule
It is recommended that you regularly maintain your Pleasure-Way Motorhome in order to get the maximum benefits from your unit. The life and performance of each component depends upon proper use, operation and maintenance. With a regular maintenance schedule you should be able to catch any components that need attention while you are prepared for them, allowing you to have many years and miles of trouble-free travelling.
NOTE: Please refer to your Ford Owners manual for chassis mechanical maintenance.

Helpful Hints

1. To maintain your fibreglass roof and other fibreglass components we suggest that you wax these pieces annually, with an automobile wax, as these are painted components.
2. When storing your Pleasure-Way Motorhome, you should try to park in a level spot and avoid having to park down hill. If parked in a down hill position with the front end lower than the back end, moisture (rain, snow, etc.) may collect in the recessed portion of the roof. This may cause water to leak through the roof air conditioner. Damage to the motorhome as a result of this is not covered under warranty.
3. When storing your Pleasure-Way Motorhome, please ensure that all the holding tanks are empty and flushed, all LP gas valves have been turned off, all electrical components are switched off, and the red key kill switch is in the off position.
4. To maintain your monitor probe system it is recommended that after the tanks have been flushed and cleaned, a probe cleaner (which can be purchased from your local RV dealer) should be added to your tanks. Please follow the manufacturer's recommendations.
