- Page 1 OELMANN ELEKTRONIK GMBH INDUSTRIAL SOLUTIONS LX7 WIFI PAGER I/O CRADLE OPERATIONS LX7 I/O CRADLE OPERATIONS © 2025 oelmann-elektronik.com...
- Page 2 • All pagers are of the same type, with differences only in parameter settings. • Not only clean LX7 WiFi are available, but also LX7 POCSAG and LX7 LTE pagers with WiFi option. LX7 I/O CRADLE OPERATIONS © 2025 oelmann-elektronik.com...
- Page 3 LX7 WIFI — OPERATIONS IN I/O CRADLE TIME OF RECEIVING THE MESSAGE RECEIVED MESSAGES COUNTER MESSAGE ITSELF Operations: ORIGIN IP All devices are connected to and registered in the same network. Notebook When the state changes at the 1...4 inputs, the pager sends a corresponding UDP-message to one or more IP addresses.

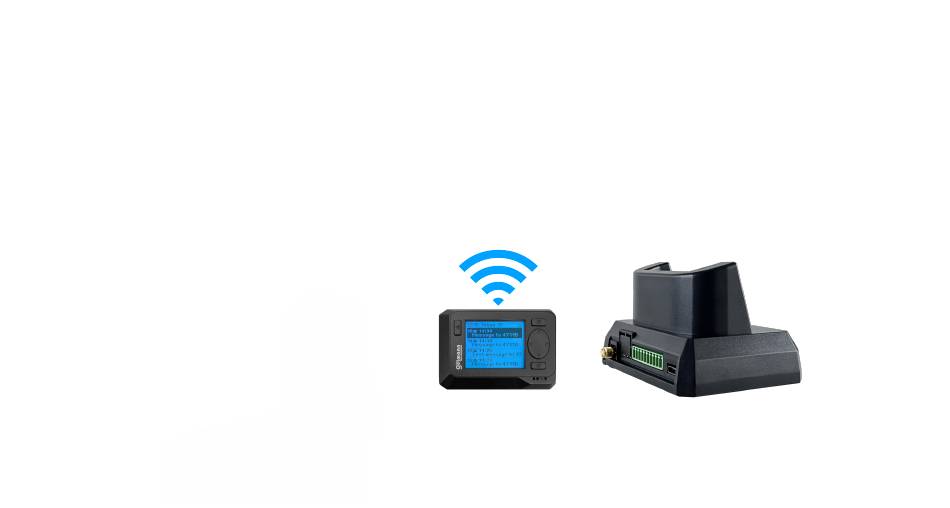

- Page 4 LX7 WIFI — I/O CRADLE 247.1100 LX7 Pager 247.9909 LX7 Desktop I/O cradle 4 opto–isolated inputs / 2 outputs relay contacts Magnet connector for secure the pager in the cradle Magnet pager data/power connector 1 2 3 4 5 6 7 8 9 10...
